RAM-HOL-TAB30U Tab-Tite Cradle for 8" Tablets including the Samsung Galaxy Tab S2 8.0 + More
Features

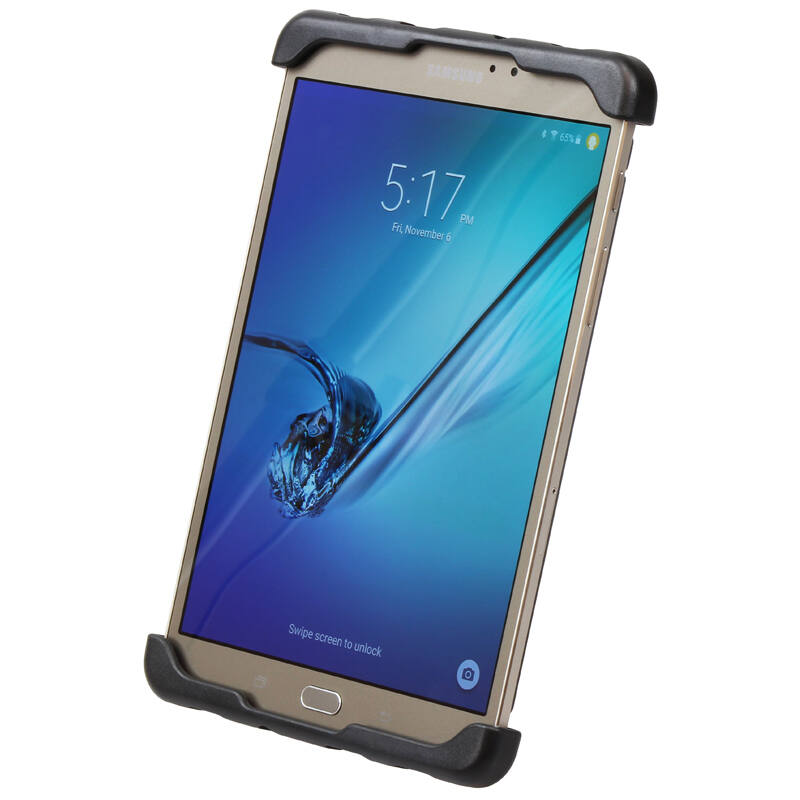

* Spring-loaded holder secures the Samsung Galaxy Tab S2 8.0 + More
* Interchangeable end cups allow you to modify the holder when upgrading devices
* Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

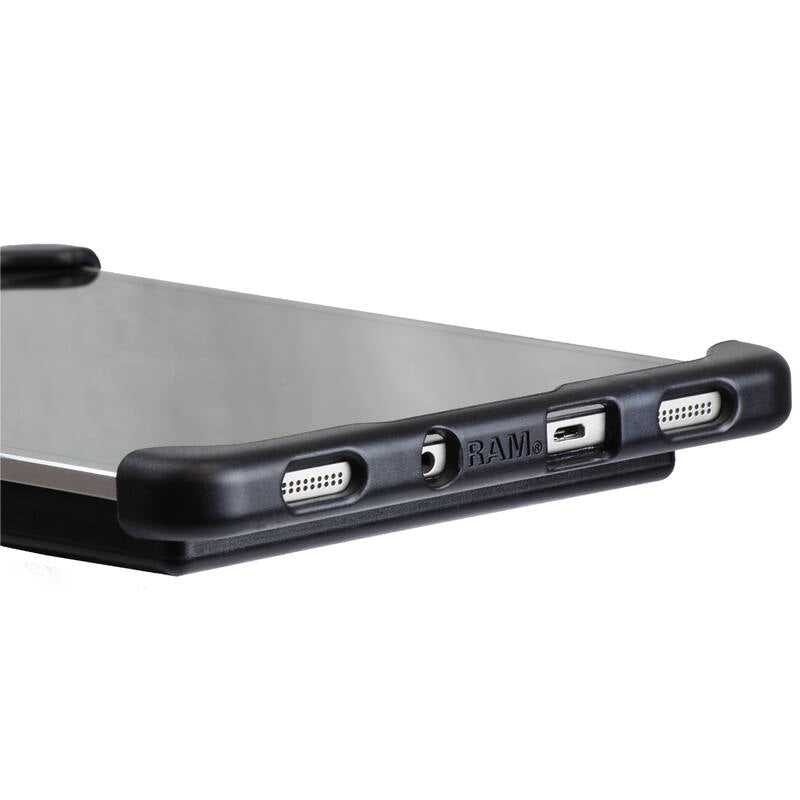

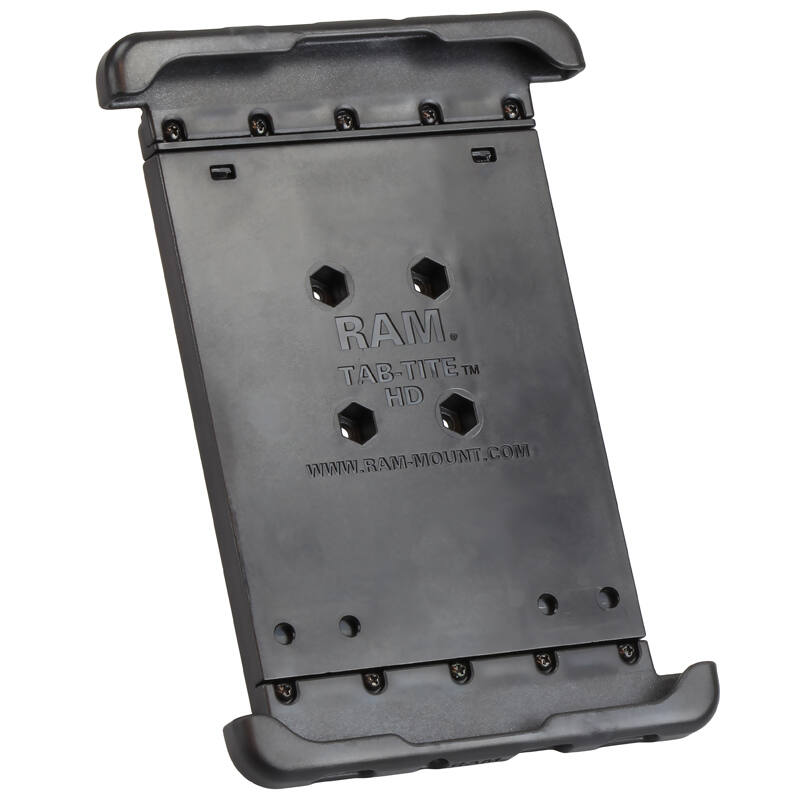

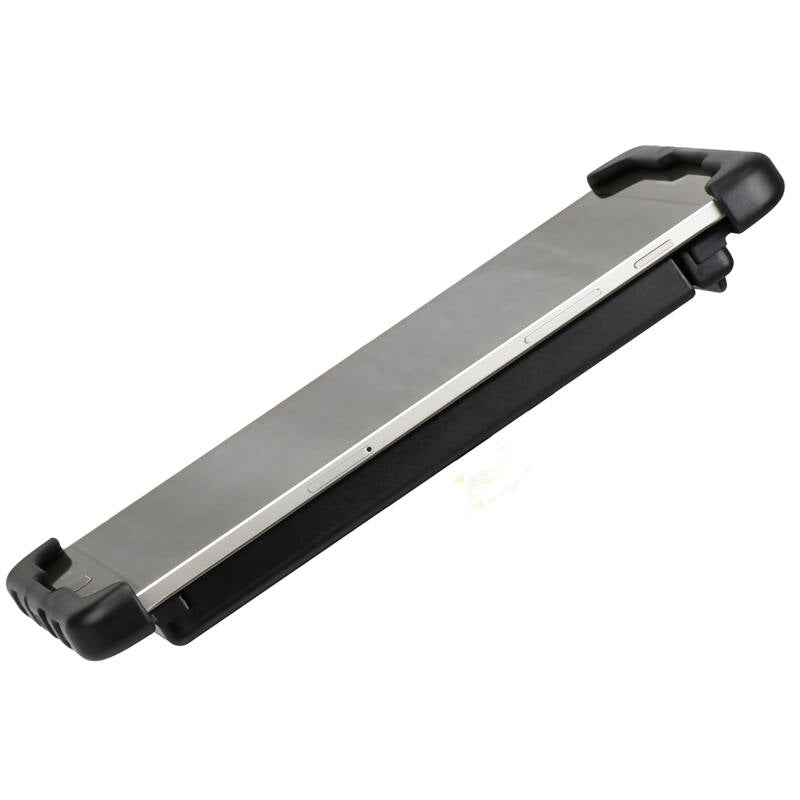

The Tab-Tite spring loaded, quick release cradle offers a secure fit with easy access to the mounted tablet. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab S2 8.0. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions.
Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
H: 198.6 - 263.5mm (7.82 - 10.375")
W: 120.65 - 136.525mm (4.75 - 5.375")
D: 0 - 7.9375mm (0 - .3125")
Compatible Devices
Apple
iPad mini 4 (lightning connector blocked)
iPad mini 5 (lightning connector blocked)
ASUS
ZenPad Z8s
Samsung
Galaxy Tab S2 8.0
Weight
304 grams
Hardware Included
Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
Materials
High strength composite
Weight
304 grams (0.67 lbs.)
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
