RAM-B-101B-TAB12U RAM® Dashboard Mount with Backing Plate for 8" Tablets with Cases
Features
* Spring-loaded holder secures most 8" tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
* Includes 4-hole AMPS pattern ball adapter, B size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

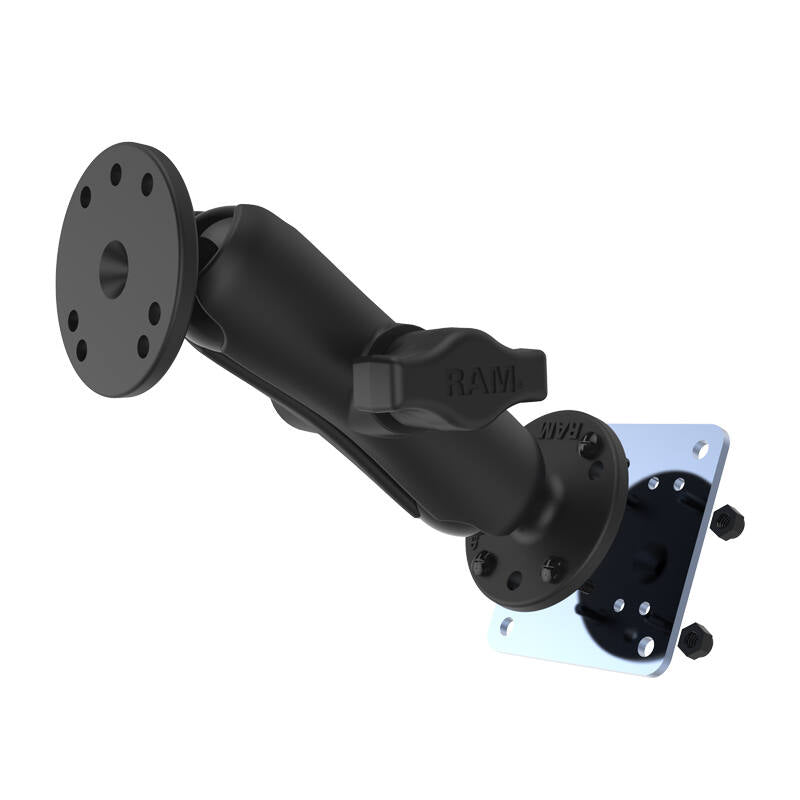

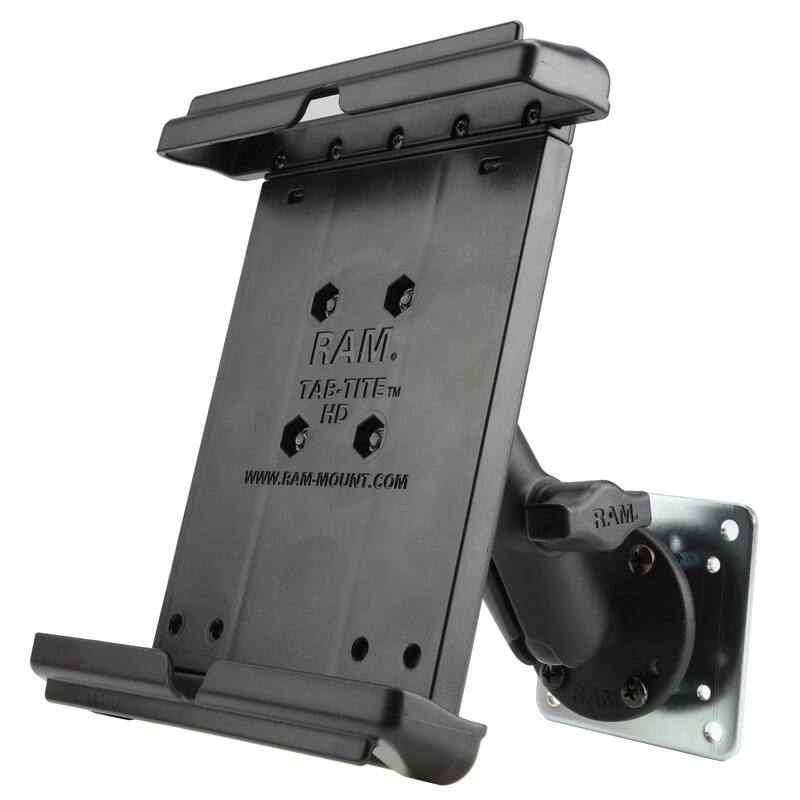

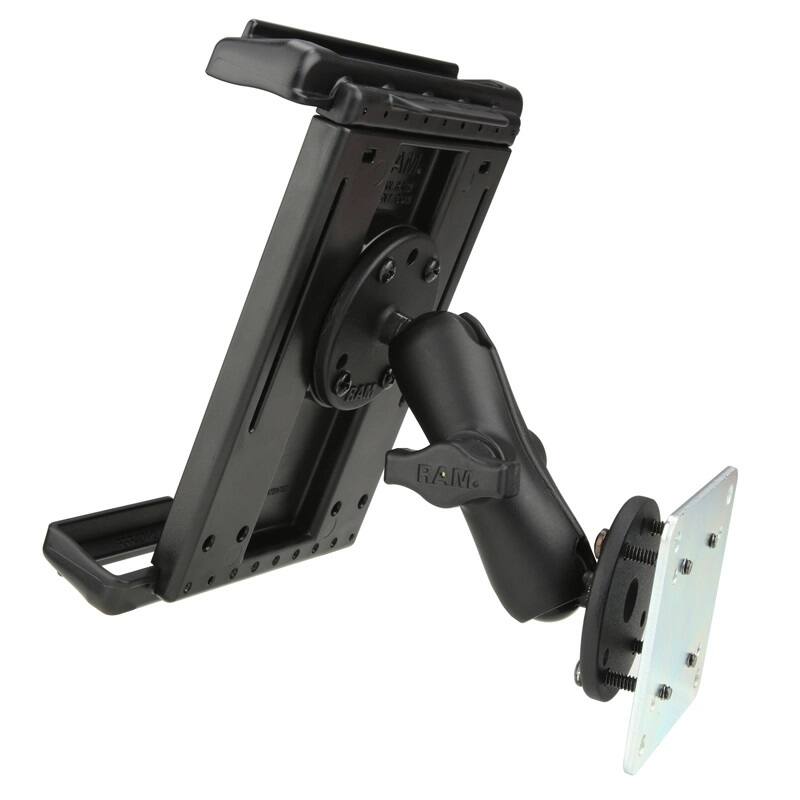

This vehicle kit consists of a RAM® Tab-Tite™ spring loaded holder for 8" tablets with a case, medium B size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 3" x 3" backing plate, and mounting hardware. The mount is designed with a 1" diameter B size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

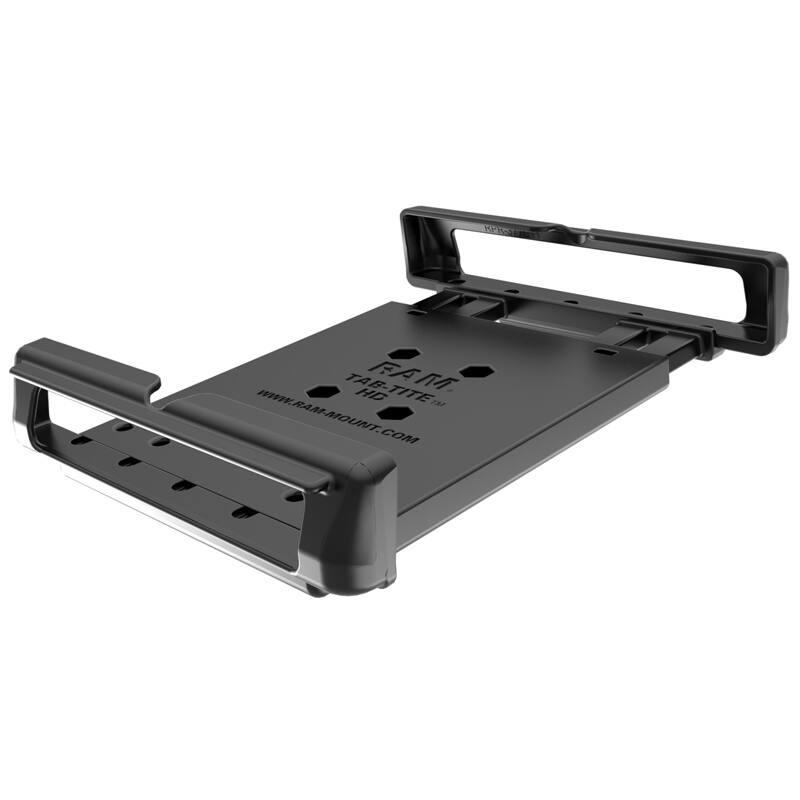

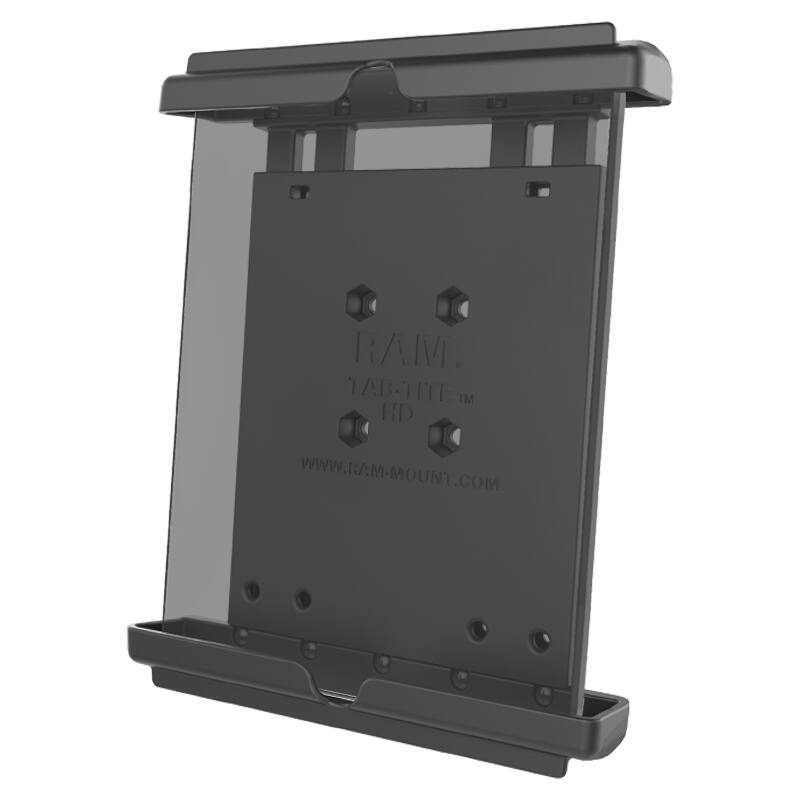

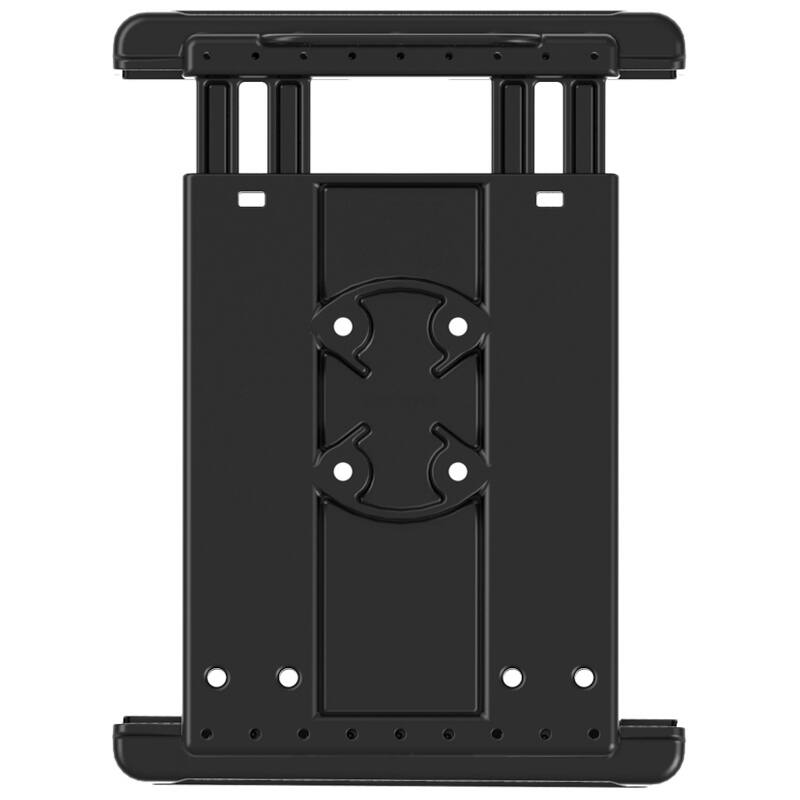

The RAM® Tab-Tite™ spring loaded, quick release cradle offers a secure fit with easy access to the mounted tablet. The interchangeable cup ends are designed specifically for the iPad mini series 1-4 7" tablets. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications.
The interchangeable cup ends allow access to audio jacks and USB / Lightning plug.
Tab-Tite Cradle Dimensions:
Height: 181mm to 241mm (7.125" to 9.5")
Width: 129mm to 144mm (5.06" to 5.68")
Depth: 3.3mm to 25mm (0.13" to 1")
Compatible Devices include:
Apple

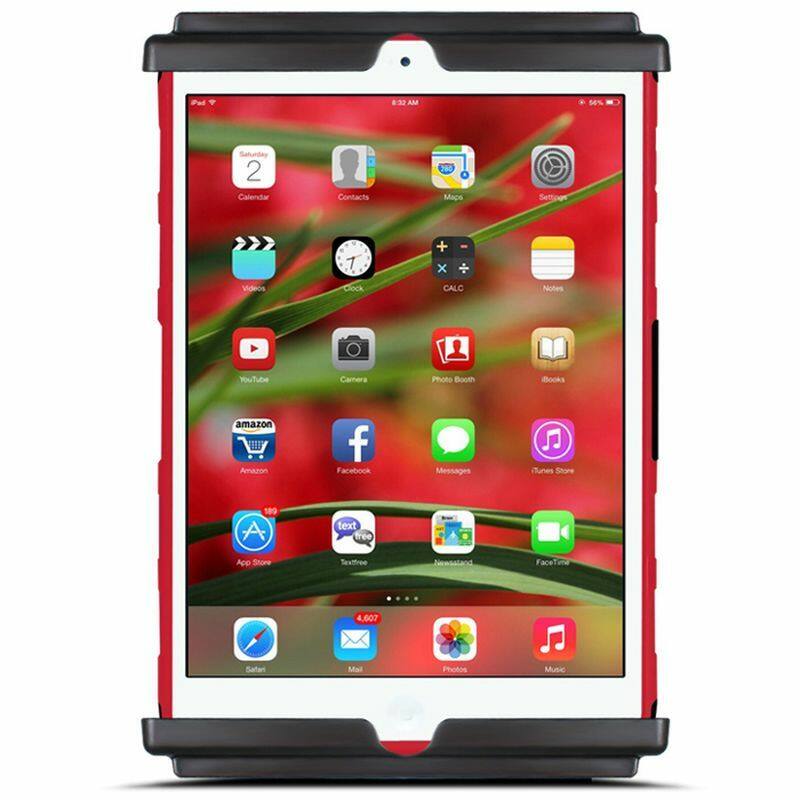

iPad mini / mini 2 / 3 / 4 (with our without light duty case - not suitable for LifeProof cases)
Amazon
Fire 7 Kids
Fire HD 8 Kids
Fire HD 8 with Case
ASUS
MeMO Pad 8 with Case
VivoTab 8 with Case
Dell
Venue 8 with Case
Venue 8 (2014) / 7840 / Pro with Case
Huawei
MediaPad M3 with Case
MediaPad M3 Lite with Case
MediaPad T1 8.0 with Case
MediaPad T3 8 with Case
Lenovo
Ideapad Miix 300 with Case
IdeaTab A2107 with Case
Tab 2 A8 with Case
Tab 4 8 with Case
Tab 4 8 Plus with Case
Tab A8-50 with Case
Tab S8 with Case
Tab3 8 with Case
LG
G Pad F 8.0 (2nd Gen) with Case
G Pad F2 8.0 with Case
G Pad II 8.0 with Case
G Pad X II 8.0 with Case
Nvidia
Shield Tablet with Case
Panasonic
Toughpad FZ-M1
Samsung
Galaxy Tab 2 7.0 with Case
Galaxy Tab 3 8.0 with Case
Galaxy Tab A 8.0 (2017 / 2018 / 2019) with Case
Galaxy Tab E 8.0 with Case
Galaxy Tab Pro 8.4 with Case
Assembly Hardware
(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts
Material:
High Strength Composite
Powder Coated Marine Grade Alloy
Overall Height of base:
127mm (5")
Components:
RAM-HOL-TAB12U RAM TAB-TITE IPAD MINI W/ SLEEVE
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL (x 2)
RAM-202-225BU RAM Backing Plate Adapter
