RAM-B-166-TAB12U RAM® Tab-Tite™ Suction Cup Mount for 8" Tablets
The RAM-B-166-TAB12U is a complete RAM® suction cup mount for 8" tablets in a case, sized around the Apple iPad mini (1-4). It pairs the spring-loaded RAM® Tab-Tite™ cradle with a RAM® Twist-Lock™ suction base and a medium B-size arm, ideal for mounting an iPad mini to a windscreen with shock absorption and easy adjustment.
Key Features

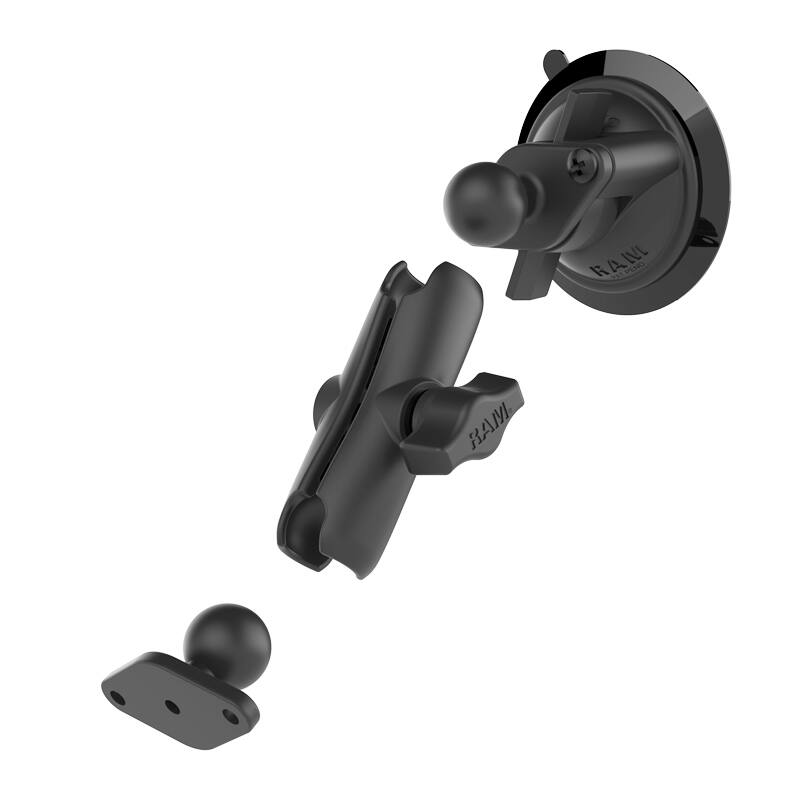

Complete mount: cradle, suction base and arm in one kit.

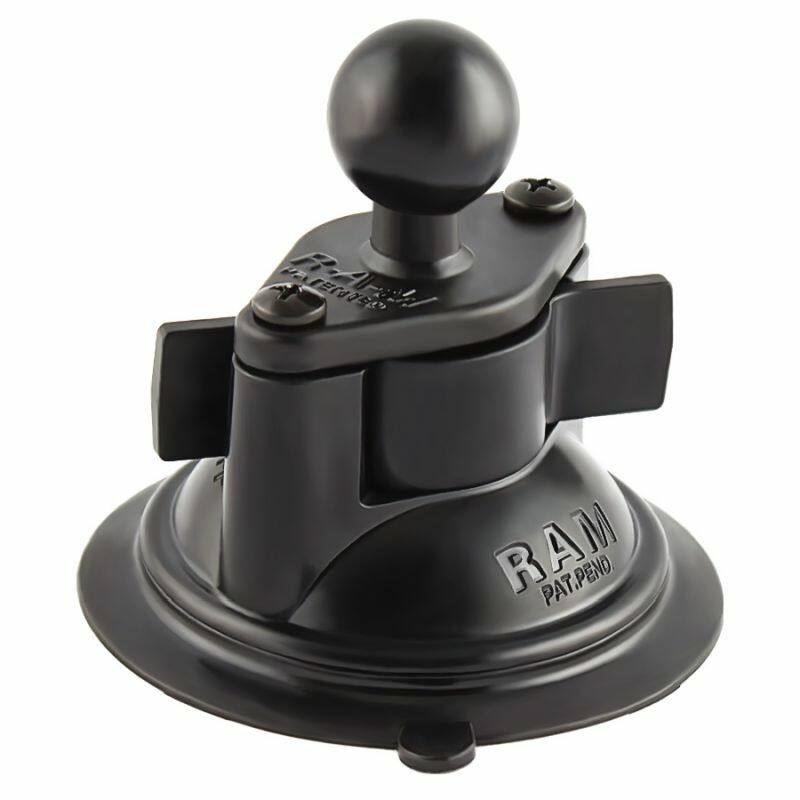

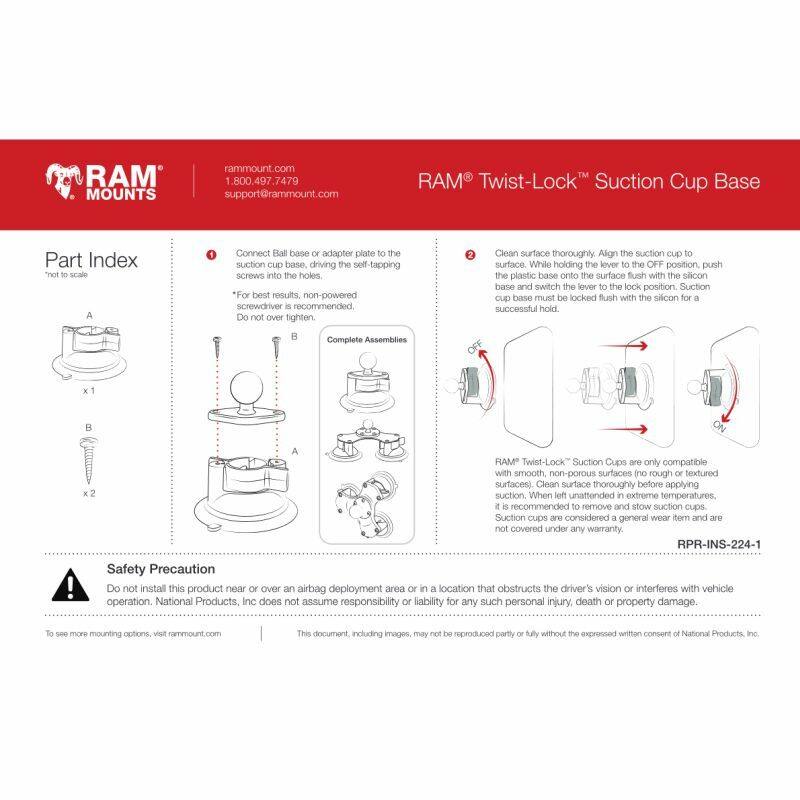

Twist-Lock suction base: 83.8mm (3.3") cup grips glass and smooth, non-porous surfaces and locks with the lever. Use a RAM® adhesive disk for textured dashboards.

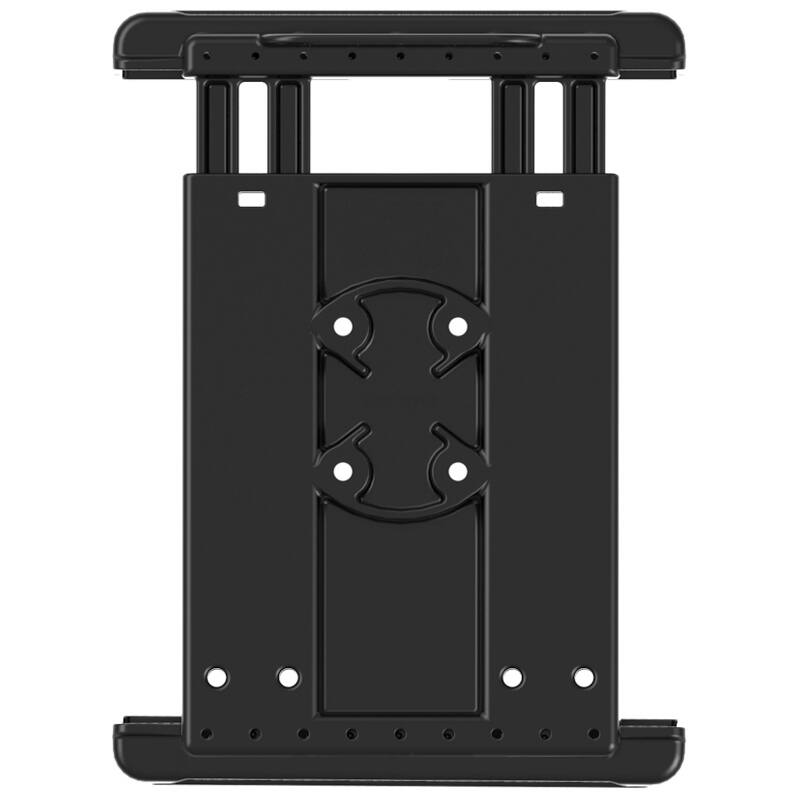

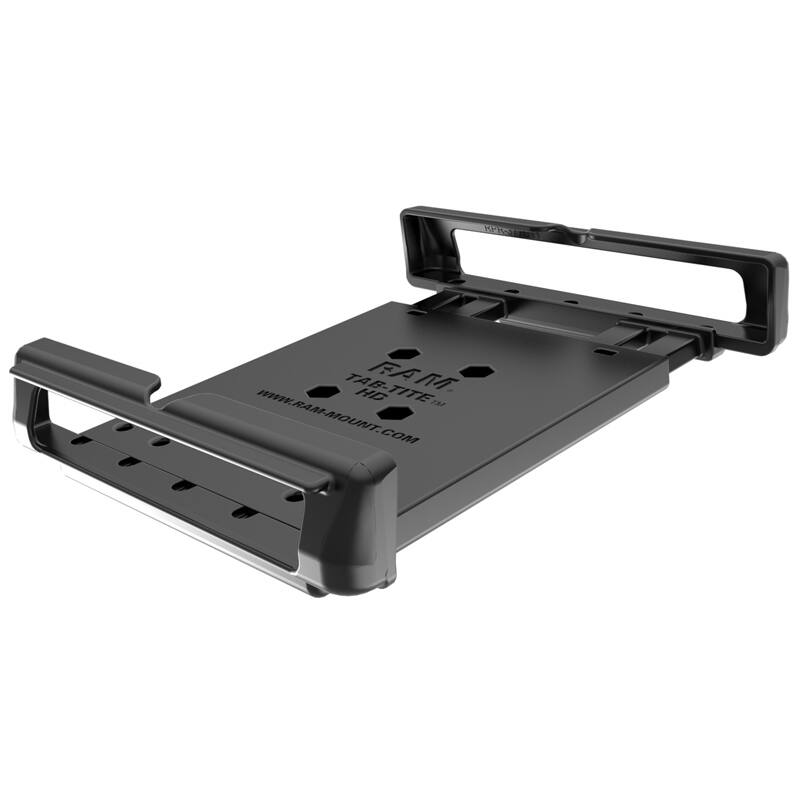

Spring-loaded Tab-Tite cradle: sized for the iPad mini series with interchangeable end cups for access to ports and the Lightning connector.
Infinite adjustment: B-size 1" ball at each end of the double socket arm.
Built to last: powder-coated marine-grade alloy and high-strength composite, backed by RAM®'s lifetime warranty.
Works With
Sized for the iPad mini series and most 8" tablets in a light-duty case (not suitable for LifeProof cases). Fit is by measured size, so check your device against the cradle dimensions below.
Compatible Devices
This cradle fits the Apple iPad mini and a wide range of 8" tablets in a case. For the full compatible device list, see the RAM-HOL-TAB12U cradle listing, or check your tablet against the cradle dimensions below.

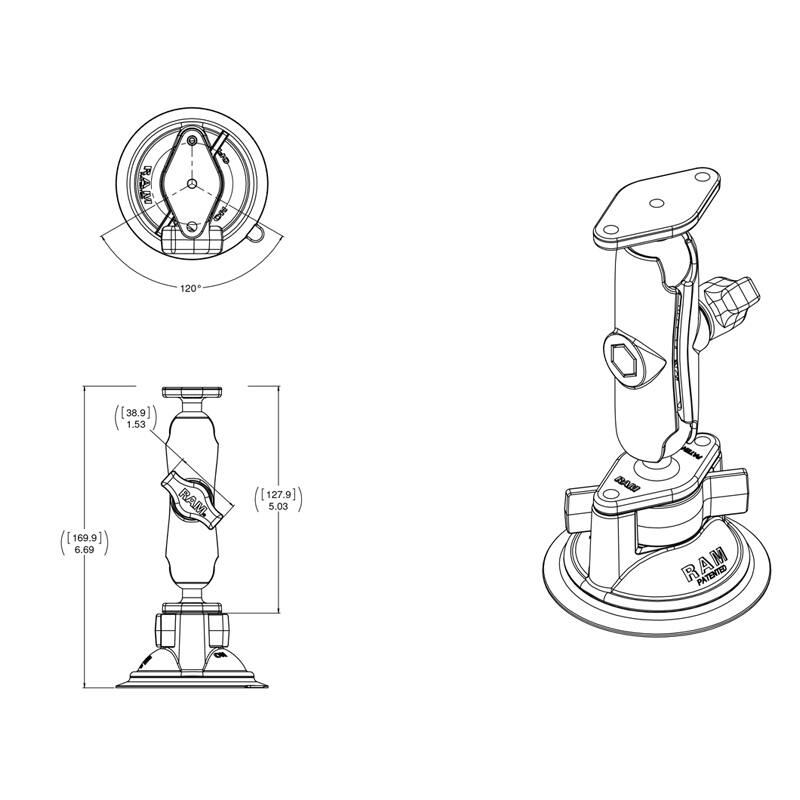

Dimensions & Specifications
Cradle height range: 181–241mm (7.13"–9.49")
Cradle width range: 129–144mm (5.08"–5.67")
Cradle depth range: 3.3–25mm (0.13"–0.98")
Suction cup diameter: 83.8mm (3.3")
Ball size: B Series 1"
Arm length: 94mm (3.69") overall, 76mm (3") socket-to-socket
Load rating: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
Material: powder-coated marine-grade alloy and high-strength composite
Weight: 535g (1.18 lb)
What's Included
RAM® Tab-Tite™ spring-loaded cradle (back plate and end cups)
RAM® Twist-Lock™ suction cup base with 1" ball
RAM® medium double socket arm
Round base adapter with 1" ball
Assembly hardware
FAQs
Does it fit an iPad mini in a case? Yes, it is sized for the iPad mini 1-4 with a light-duty case. It is not suitable for LifeProof cases.
Will it hold on my dashboard? The suction base needs a smooth, non-porous surface like glass. For a textured dash, use a RAM® adhesive disk and suction to that.
