RAM-138-TAB20U RAM® Tab-Tite™ 9"-10.5" Tablet Holder with Flat Surface Mount
Features
* Spring-loaded holder secures most 9" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
* Includes 4-hole AMPS pattern ball adapter, C size medium length double socket arm
* Ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

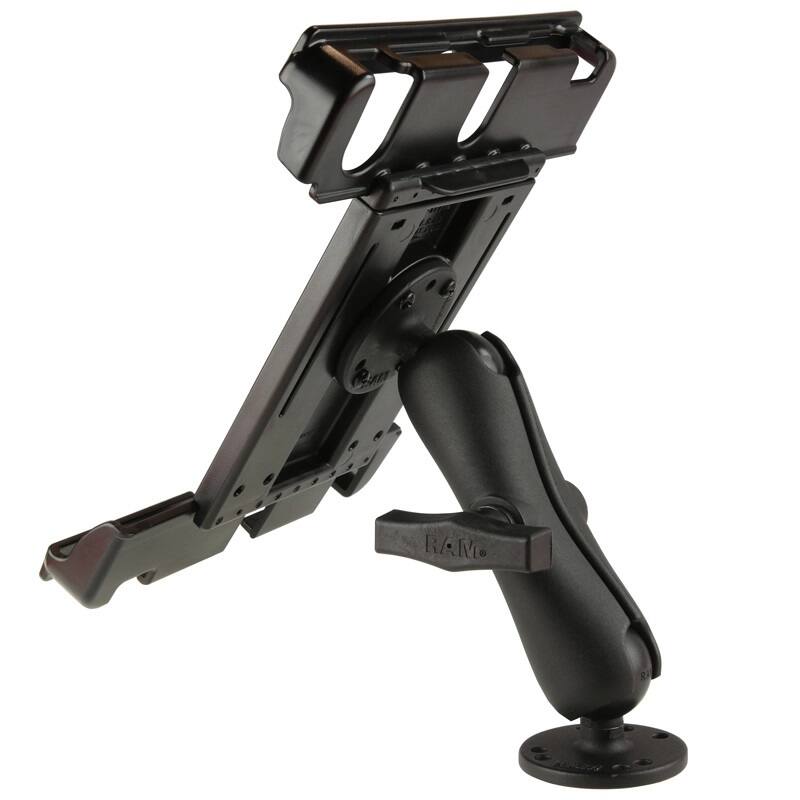

This vehicle kit consists of a RAM® Tab-Tite™ spring loaded holder for 9"-10.5" tablets with a case, MEDIUM C size double socket arm and two 2.5" diameter round bases that contain the universal AMPS hole pattern.
With the RAM® Tab-Tite™ Holder with interchangeable cup ends, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends allow access to audio jacks, USB, power, and other ports so your tablet can be used just as it was intended.
The Tab-Tite cradle is compatible with any tablet that will fit the following dimensions.
Cradle Dimensions:
Height:
241mm to 308mm (9.5" to 12.125")
Width:
166mm to 189mm (6.55" to 7.43")
Depth:
7.6mm to 22mm (0.3" to 0.875")
Ball Size
1.5" C Size
Overall Length:
187 mm (7.35")
Arm Length:
Overall:
143mm (5.625")
Socket-To-Socket:
114mm (4.5")
Weight Capacity
Standard Use:
1.814kg (4lbs)
Heavy-Duty Use:
1.36kg (3lbs)
Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole 120-Degree:
1.812" Diameter (46.0mm)
Materials
Marine-grade aluminium
High strength composite
Powder coated steel
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
Components:
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball (x2)
RAM-201U 1.5" (C-Series) Alloy Arm
RAM-HOL-TAB20U TAB-TITE IPAD AIR W CASE
