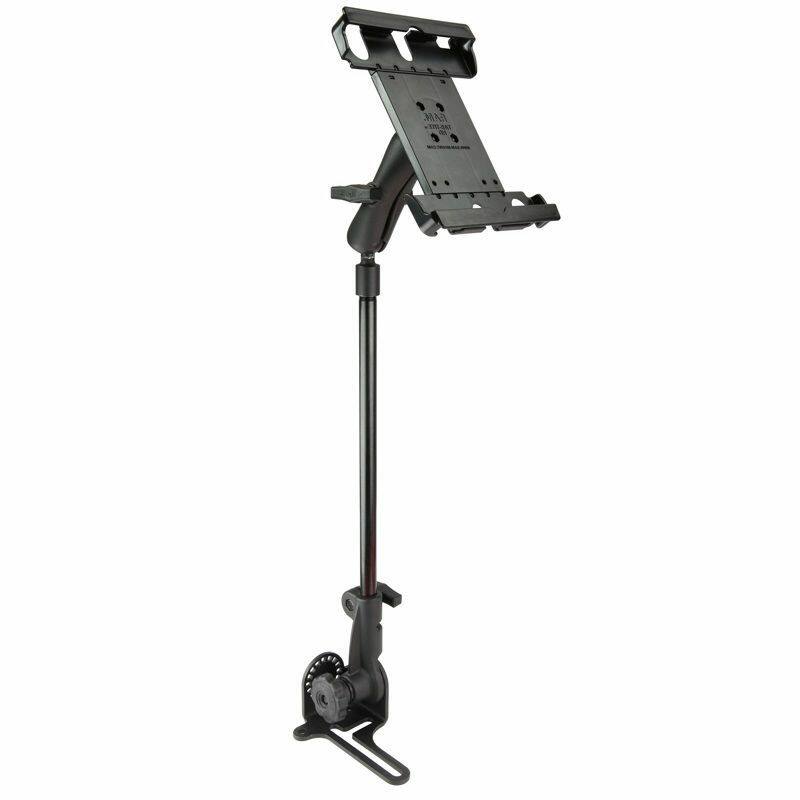

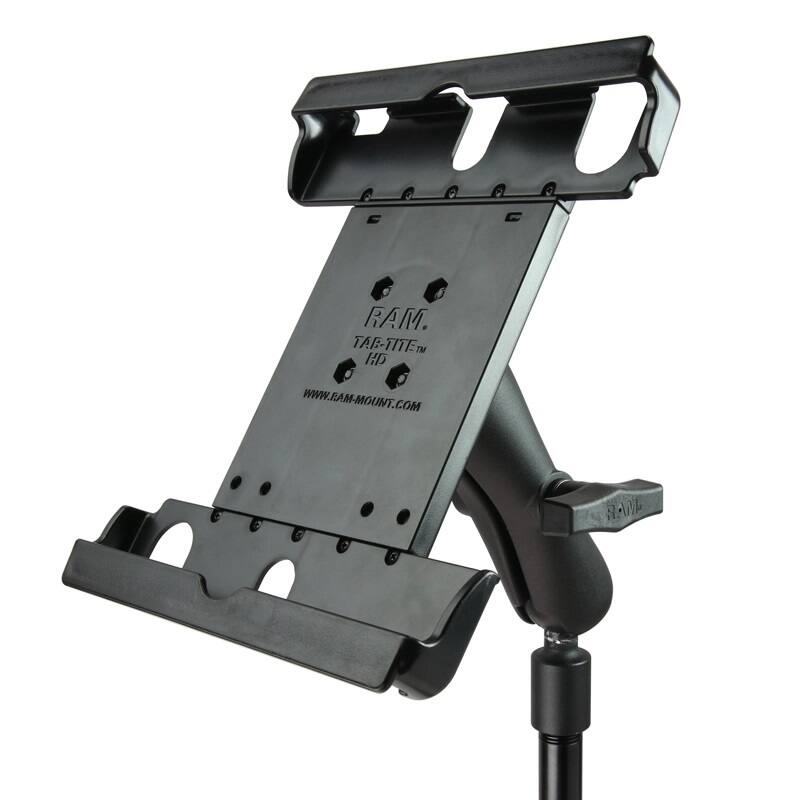

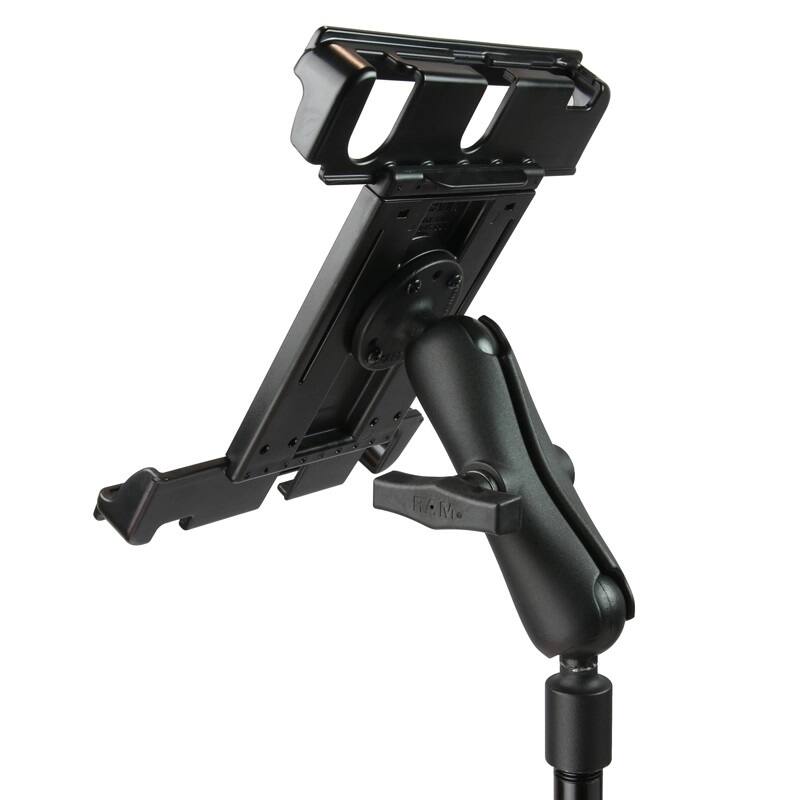

RAM-316-HD-18-TAB20U RAM® Pod HD™ Vehicle Mount for 9"-10.5" Tablets with Heavy Duty Cases
Features
* Spring-loaded holder secures most 9"-10.5" tablets with cases
* Interchangeable end cups allow you to modify the holder when upgrading devices
* universal vehicle mount attaches to seat bolt without any drilling necessary
* Includes universal vehicle mount and 4-hole AMPS pattern ball adapter
* Ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

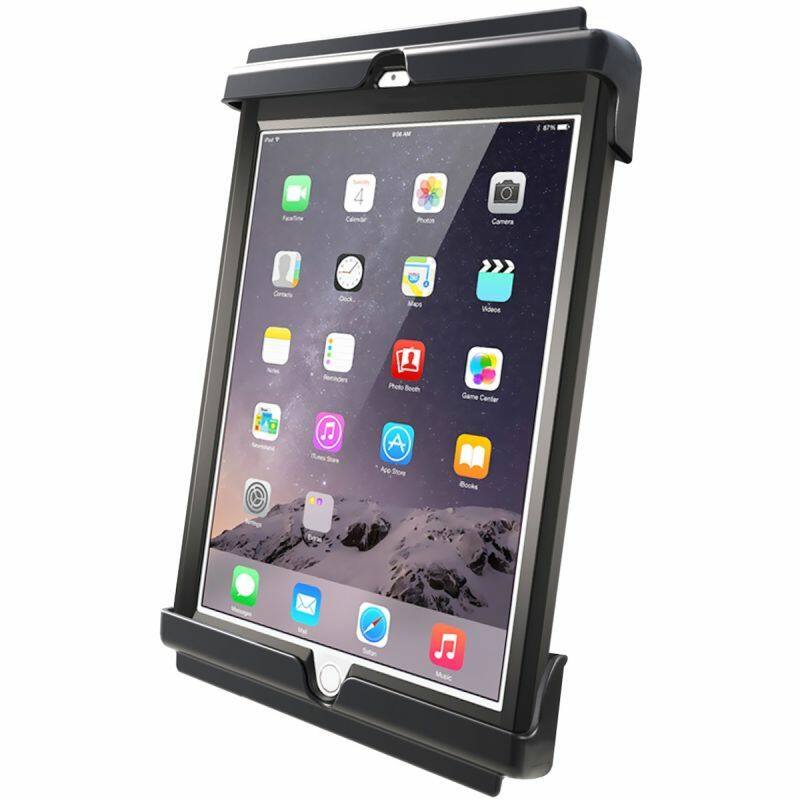

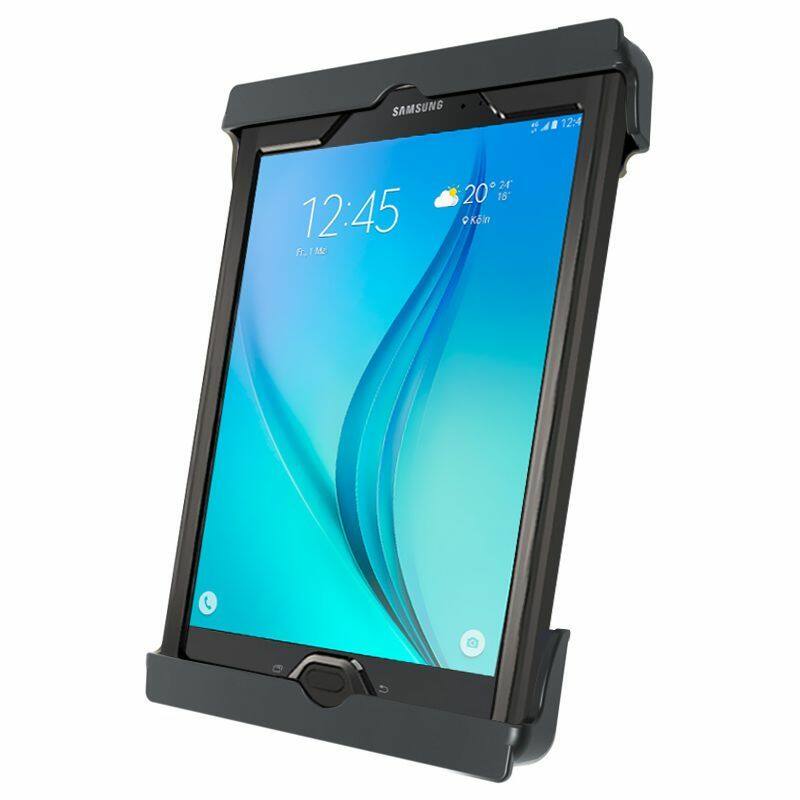

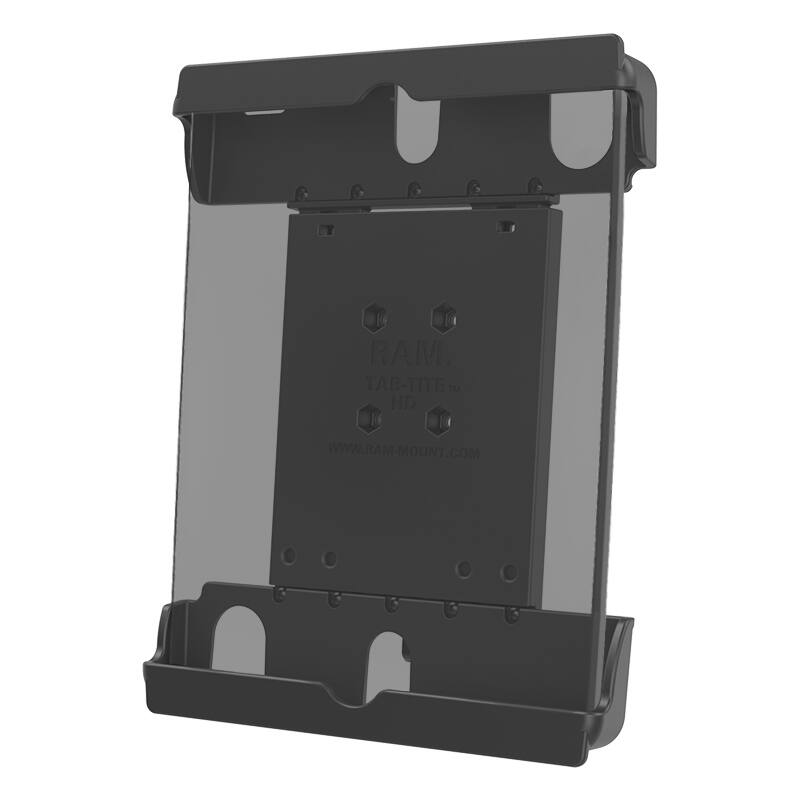

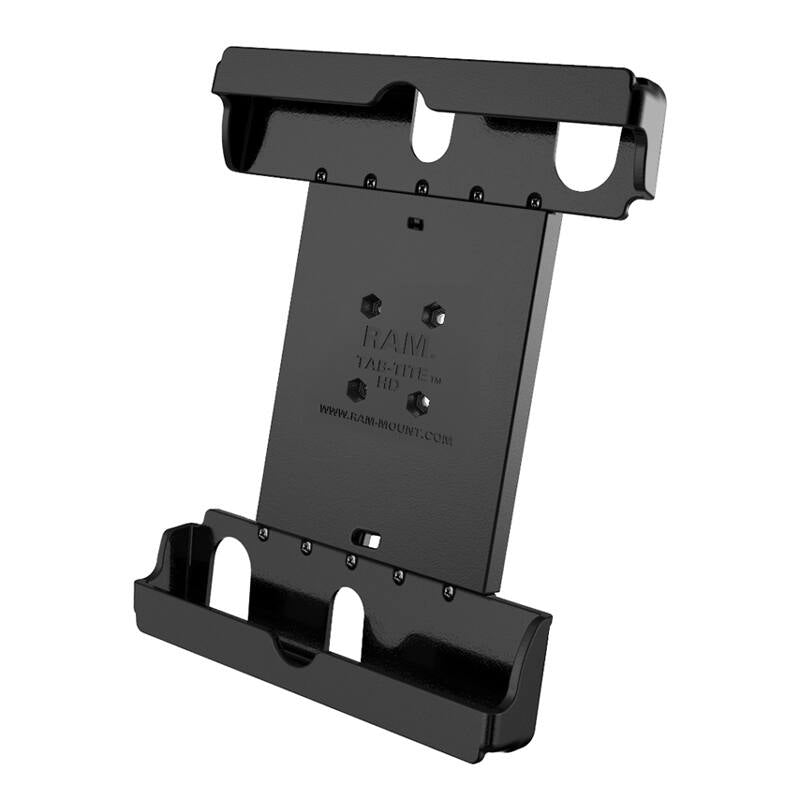

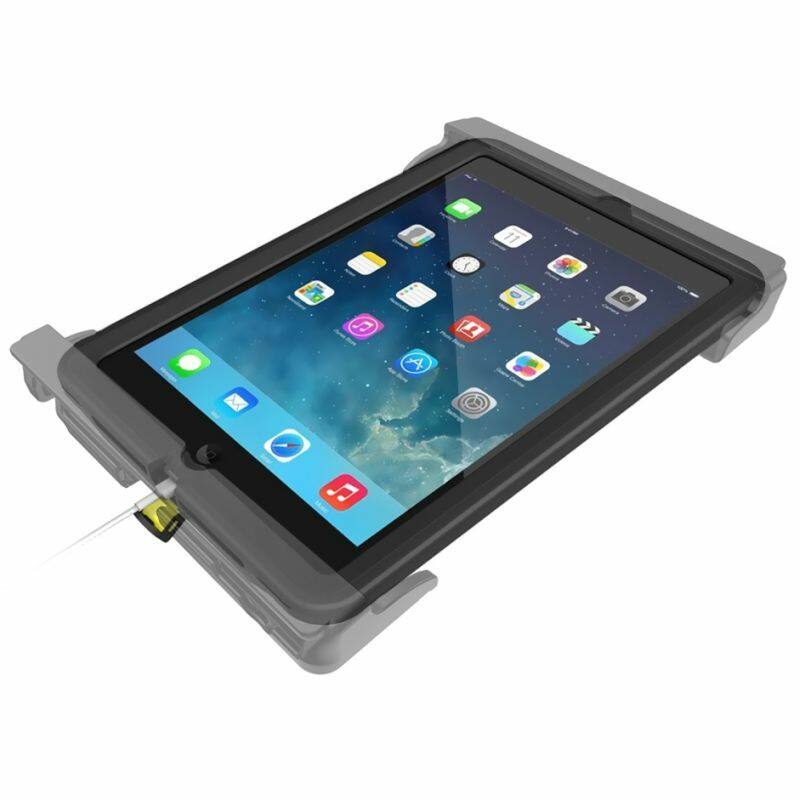

RAM-HOL-TAB20U RAM® Tab-Tite™ Holder for 9"-10.5" Tablets with Heavy Duty Cases. With interchangeable cup ends, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends allow access to audio jacks, USB, power, and other ports so your tablet can be used just as it was intended.
The Tab-Tite cradle is compatible with any tablet that will fit the following dimensions. Please verify the dimensions of your tablet when determining the overall size.
Tab-Tite Cradle Dimensions:
Height:
241mm min to 308mm max (9.5"to 12.125")
Width:
166mm to 189mm (6.55" to 7.43")
Depth:
7.6mm to 22mm (0.3" to 0.875")
RAM-316-HDR-18-202U (Reverse Configuration ideal for RHD vehicles) Universal No-Drill™ RAM POD HD Vehicle Mount with Double Socket Arm & 2.5" Round Base with AMPs Hole Pattern is a versatile Heavy Duty mount which provides a robust mounting platform for a car or truck. Simply remove a pair of seat mounting bolts, slip the shoe under the existing rail and refit. Job done!
This is the longer pole version - for 305mm version see part RAM-316-HDR-202U.
Low Profile, Low Cost and Extremely Robust:
- The minimalist design offers a low profile form factor while offering an extremely robust mounting platform
- Ideal mounting solution for fleet and service vehicle fleets with a varying range of vehicles. Stands up to the demands of field applications
Highly Versatile:
- Foot angle adjustment to compensate for varying floorboard angles
- Can be used as a horizontal or vertical flat surface drill-down mount
- Aluminium post can be cut to size in order to accommodate varying vehicle configurations
Easy to Install and Remove:
- Works on most vehicles. Fast and simple installation, requires no drilling or modification to your vehicle
- Attaches using existing seat rail bolts or seat tracks
- Remove the upper portion of the mount with the turn of one knob, creating valuable space in the cab when the mount is not in use
Height Range:
629-806mm (24.75" - 31.75")
Pole Length:
457mm (18")
Weight Capacity
Standard Use: 1.814kg
Heavy-Duty Use: 1.36kg
Ball/Socket Size
C Size (1.5")
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
https://www.youtube.com/watch?v=j7mtswe5pts
https://www.youtube.com/watch?v=CTAMfFCY1K0
Components:
RAM-HOL-TAB20U RAM TAB-TITE IPAD AIR W CASE
RAM-316-HDR-18-202U RAM (Reverse Configuration) RAM POD HD Vehicle Mount with Double Socket Arm & Round Base
