RAM-B-365-TAB20U RAM® Tab-Tite™ with RAM® Twist-Lock™ Triple Suction for 9"-10.5" Tablets with Heavy Duty Cases
Features
* Spring-loaded holder secures most 9" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
* RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Triple twist lock suction mount is ideal for high vibration environments
* Made of high-strength composites and powder coated aluminium alloy for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

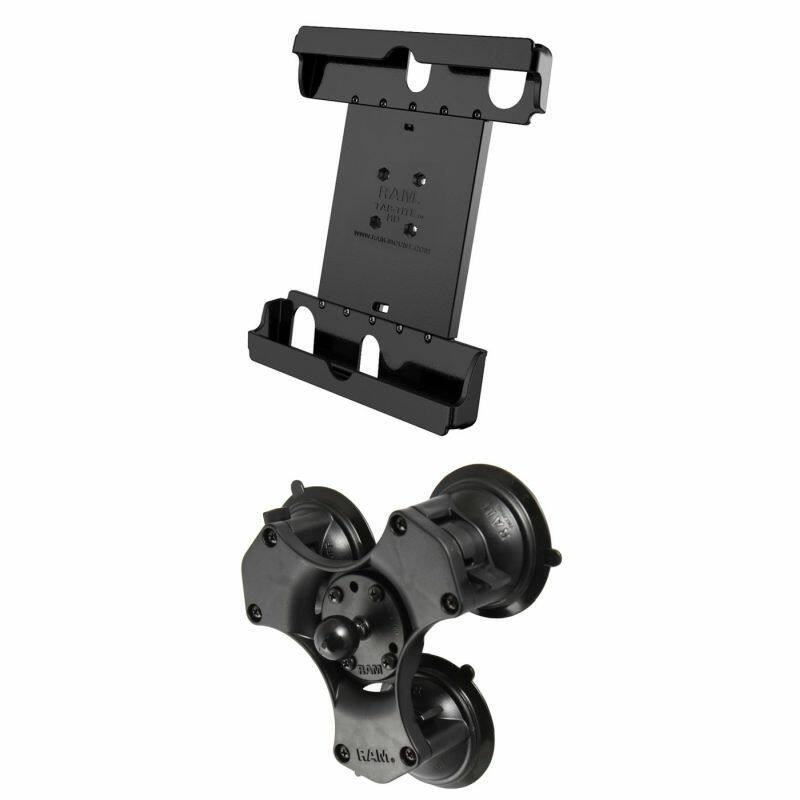

This consists of three 84mm / 3.3" twist lock suction cups on a base, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle.

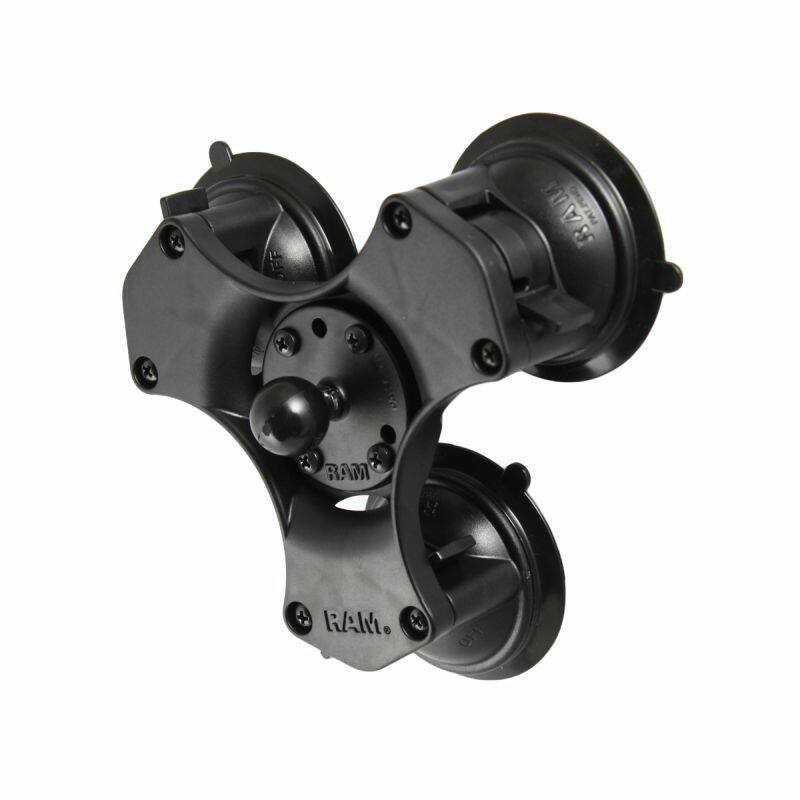

The triple suction mount is ideal for high vibration environments (e.g. helicopters) and consists of a triple 83.8mm (3.3") twist lock suction cup base with B series ball base. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface.

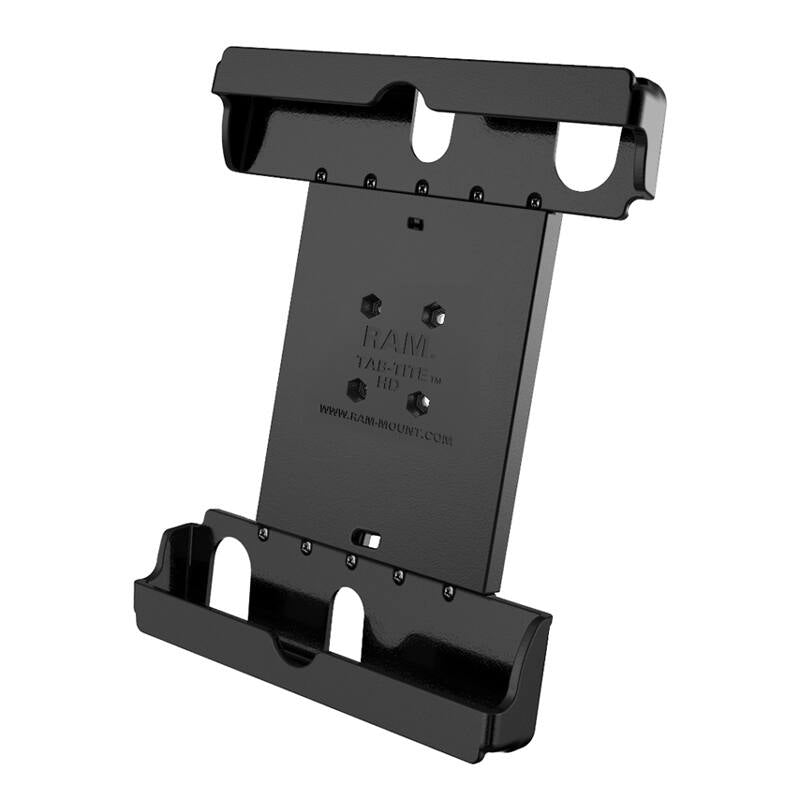

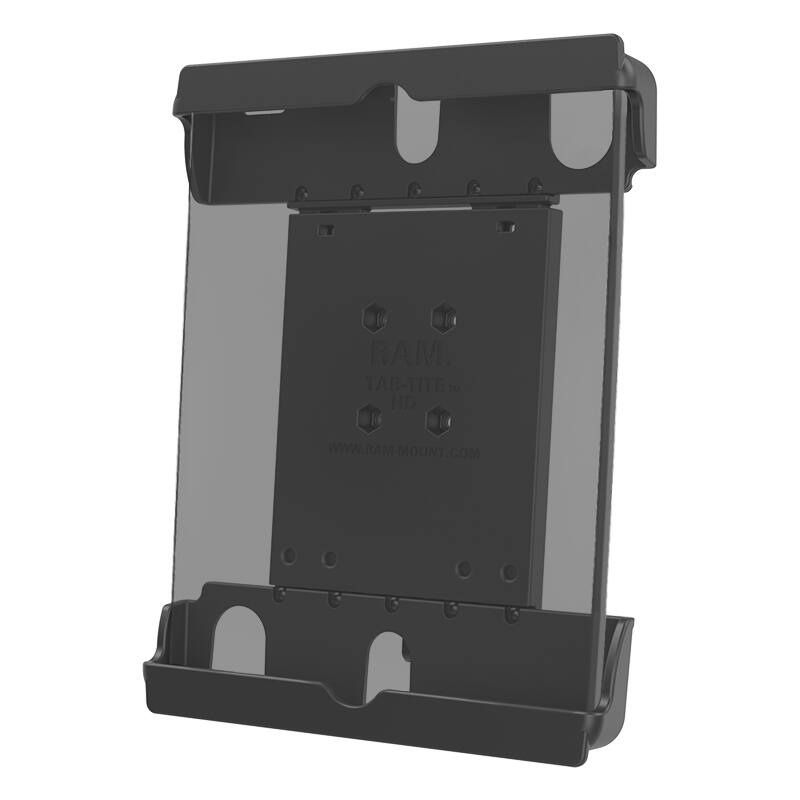

The Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 9"-10.5" Tablets with Heavy Duty Cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended.
The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Tab-Tite Cradle Dimensions:
H: 241 to 308mm (9.5 to 12.125")
W: 166 to 189mm (6.55 to 7.43")
D: 7.6 to 22mm (0.3 to 0.875")
Compatible Devices include:
Apple
iPad (5th Generation) with Case
iPad (6th Generation) with Case
iPad (7th Generation) with Case
iPad (8th Generation) with Case
iPad 9.7 (2017) with Case
iPad 9.7 (2018) with Case
iPad Air with Case
iPad Air 2 with Case
iPad Pro 10.5 (2nd Generation) with Case
ASUS
ZenPad 10 with Case
ZenPad 3S 10 with Case
ZenPad Z10 with Case
Huawei
MediaPad M2 10.0 with Case
Lenovo
Tab 2 A10-70 with Case
Tab 4 10 with Case
Tab 4 10 Plus with Case
Tab3 10 Business with Case
Yoga Tab 3 10 with Case
LG
G Pad 10.1 with Case
G Pad II 10.1 with Case
G Pad X 10.1 with Case
G Pad X II 10.1 with Case
Microsoft
Surface Go with Case
Surface Go 2 with Case
Samsung
Galaxy Tab 10.1 with Case
Galaxy Tab 3 10.1 with Case
Galaxy Tab 8.9 with Case
Galaxy Tab A 9.7 with Case
Galaxy Tab A 10.5 with Case
Galaxy Tab Pro 10.1 with Case
Galaxy Tab S2 9.7 with Case
Galaxy Tab S3 9.7 with Case
Galaxy Tab S4 10.5 with Case
Galaxy Tab S6 with Case
Galaxy Tab S7 with Case
Sony
Xperia Tablet Z with Case
Vankyo
MatrixPad Z4 10"
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
https://www.youtube.com/watch?v=r5b0ZOqJRAU
https://www.youtube.com/watch?v=khEs-yngDuk&feature=emb_logo
Components:

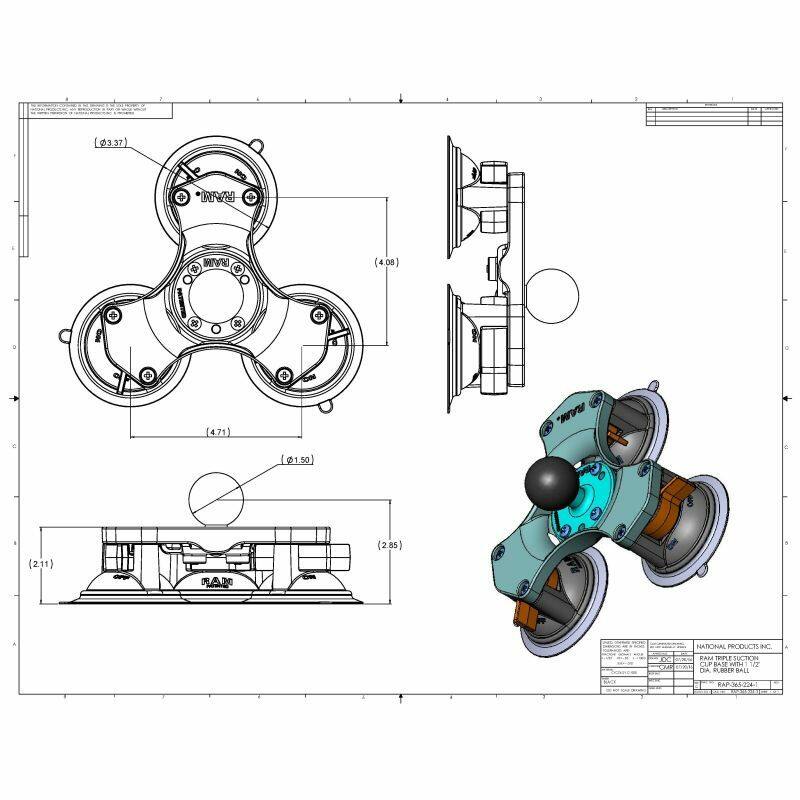

RAP-B-365-224-1U TRIPLE SUCTION CUP BASE WITH 1" BALL
RAM-HOL-TAB20U TAB-TITE 10" TAB WITH CASE
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
