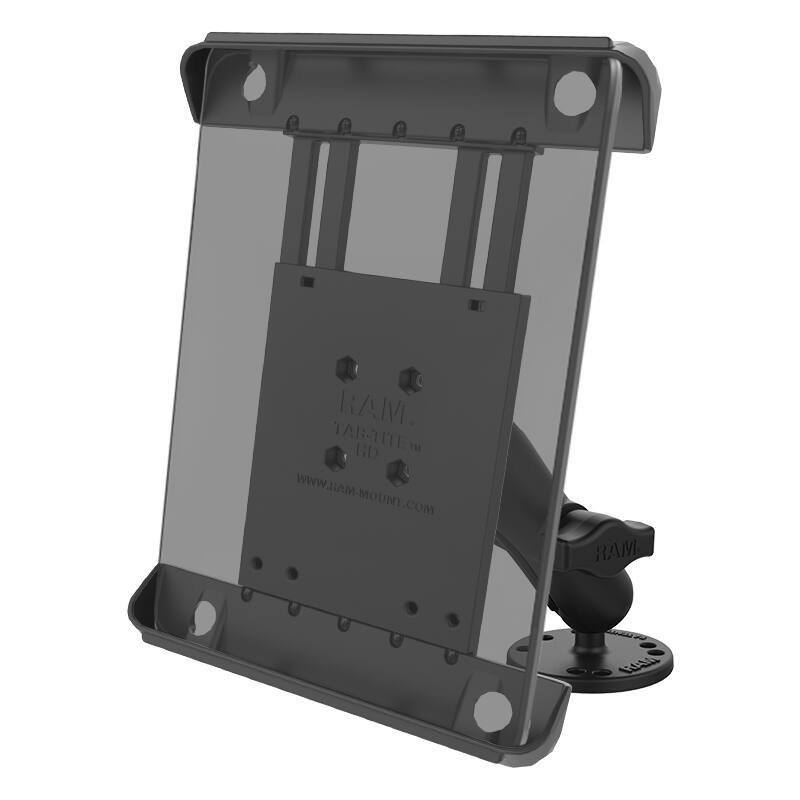

RAM-B-138-TAB3U RAM Tab-Tite™ Drill-Down Mount for Apple iPad 1-4 + More
Features
* Spring-loaded holder secures the Apple iPad 1-4 + More; interchangeable end cups allow you to modify the holder when upgrading devices
* Drill down B series mount includes round base with AMP's hole pattern
* Made of marine grade aluminium alloy and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

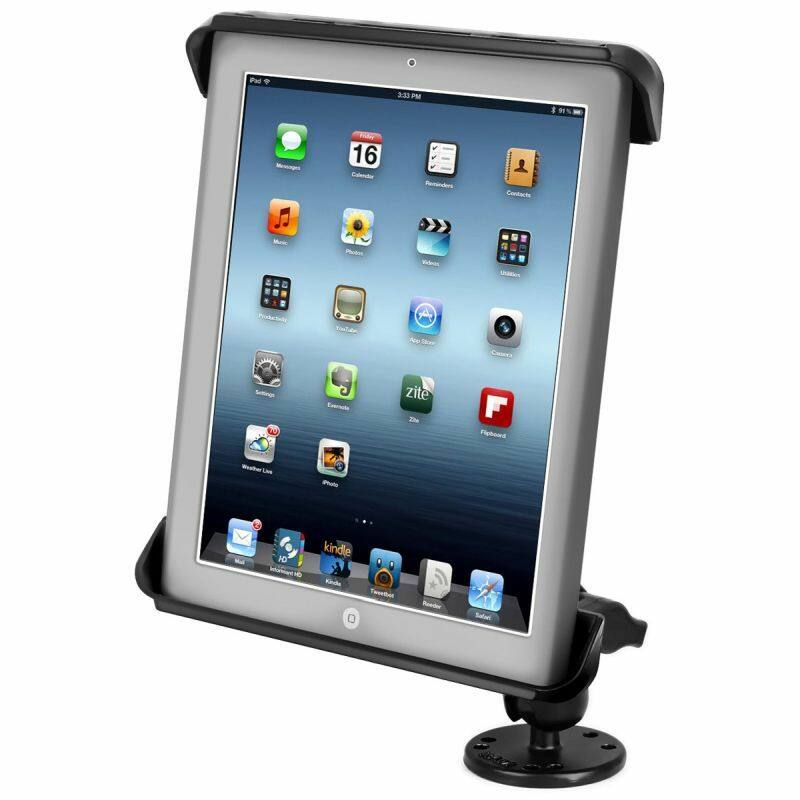

This consists of a round base, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that allows for almost infinite adjustment and perfect viewing angles.

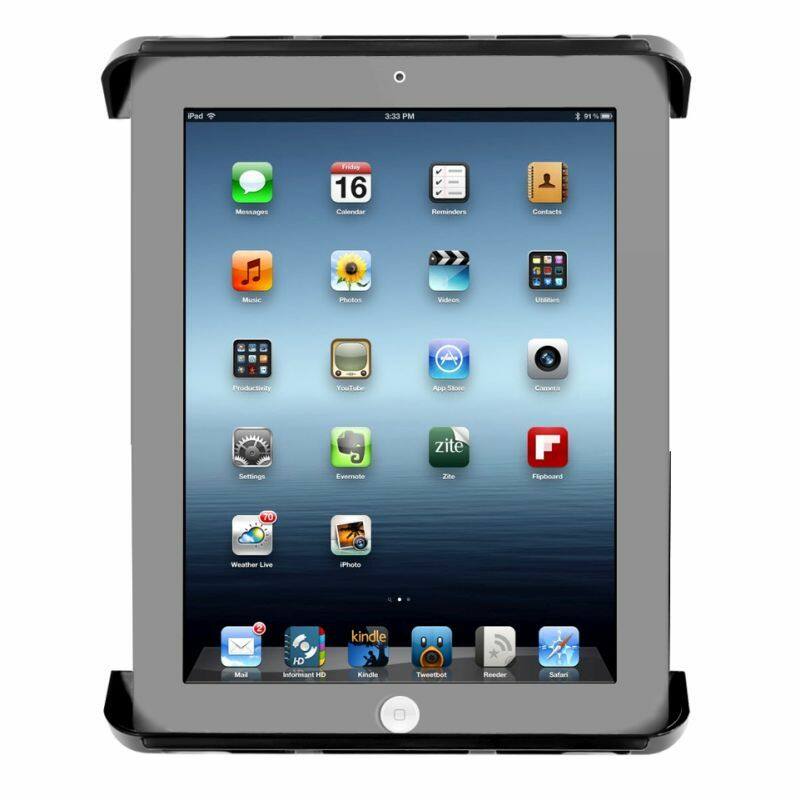

The spring loaded Tab-Tite™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. Check the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
Height: 216mm to 283mm (8.5" to 11.125")
Width: 162mm to 197mm (6.38" to 7.75")
Depth: 3.3mm to 14.2mm (0.13" to 0.56")
Compatible Devices - 9.7" to 10" Tablets including:
Apple
iPad (1st Generation)
iPad (2nd Generation)
iPad (3rd Generation)
iPad (4th Generation)
ASUS
MeMO Pad FHD 10
Transformer Pad
Dell
Venue 10 7000
Venue 11 Pro 7000
HP
ElitePad 900
ElitePad 900 G1
Pro 610
Lenovo
S6000
Tab A10
ThinkPad 10
Yoga Tablet 10
Yoga Tablet 10 HD+
Yoga Tablet 2 (10 inch)
Hardware Included
Assembly Hardware
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Round Base Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Round Base Plate Size
2.5" Diameter
Ball/Socket Size
B Size (1")
Materials
Marine-grade aluminium
High strength composite
Weight Capacity
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)
YouTube:
https://www.youtube.com/watch?v=_gHqfV_xn44
Components:

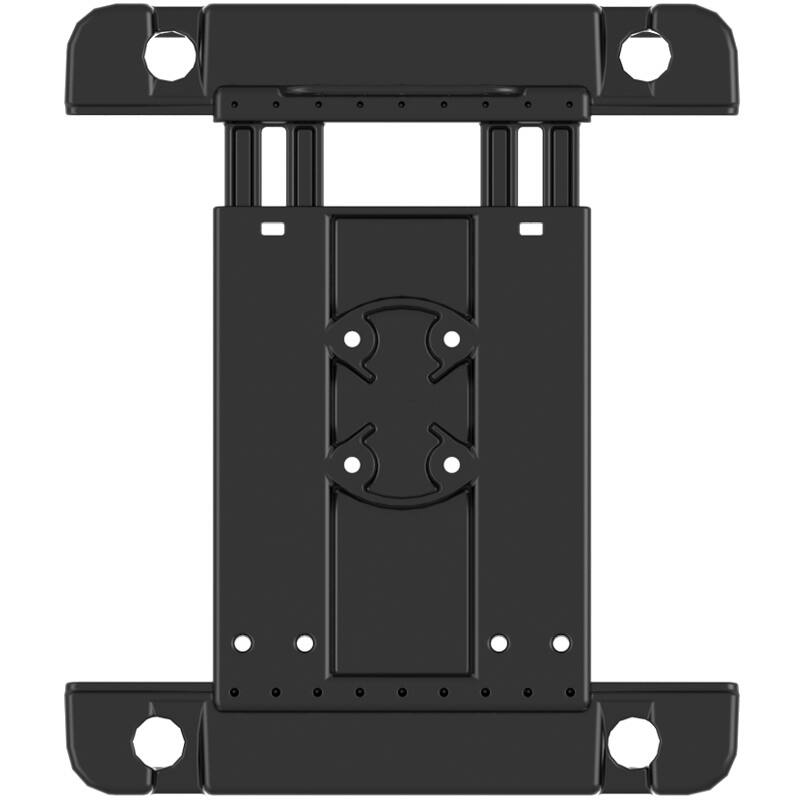

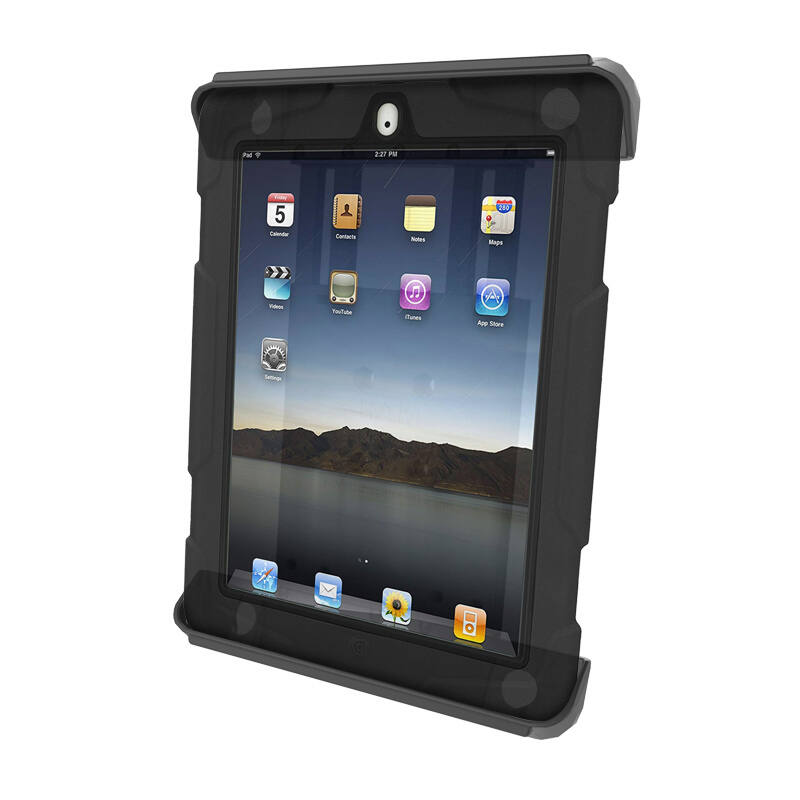

RAM-HOL-TAB3U RAM TAB-TITE IPAD MID TABLETS

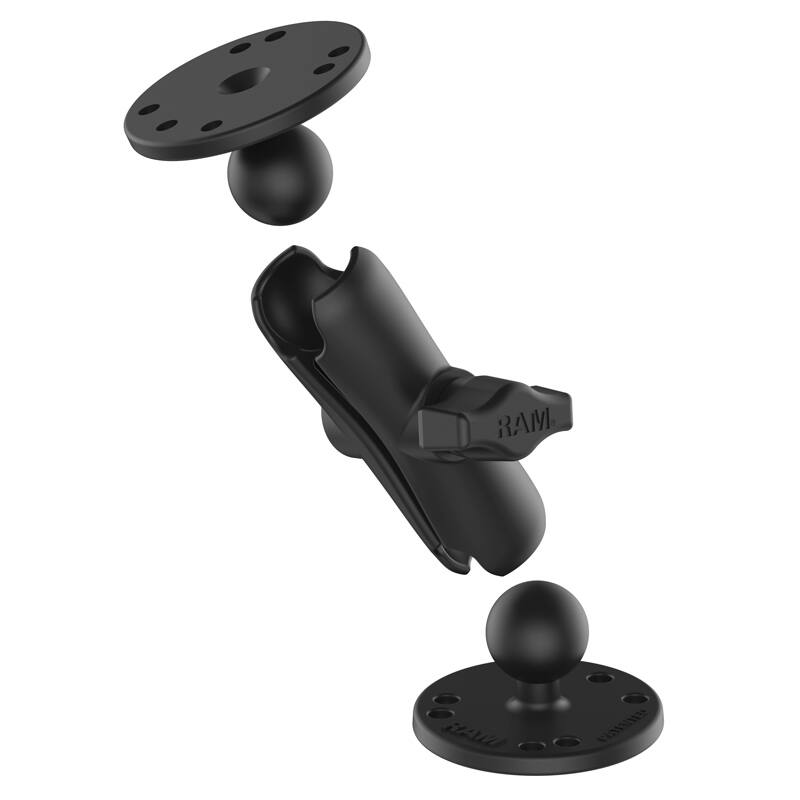

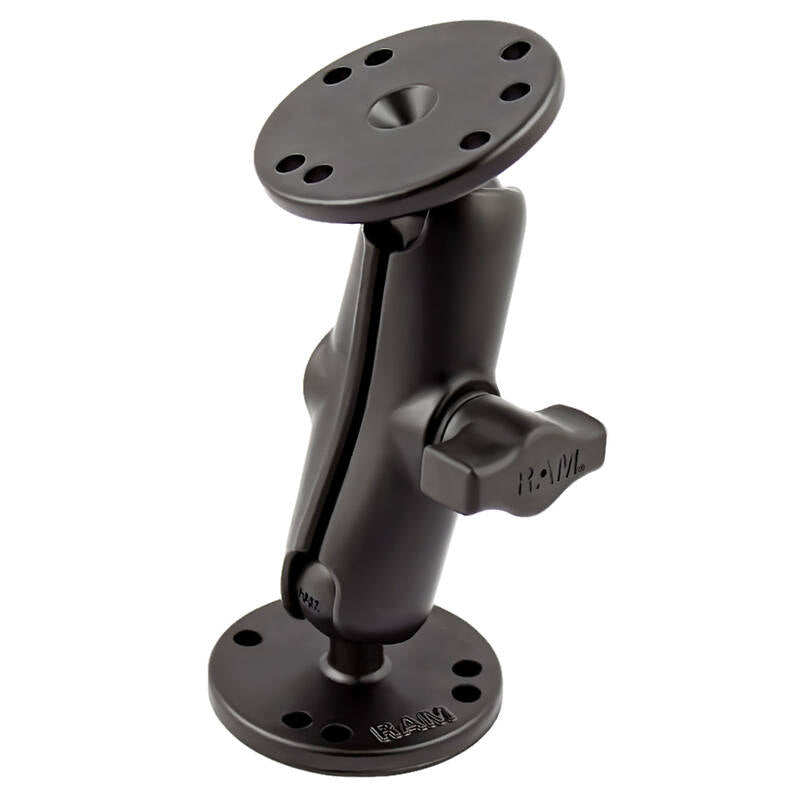

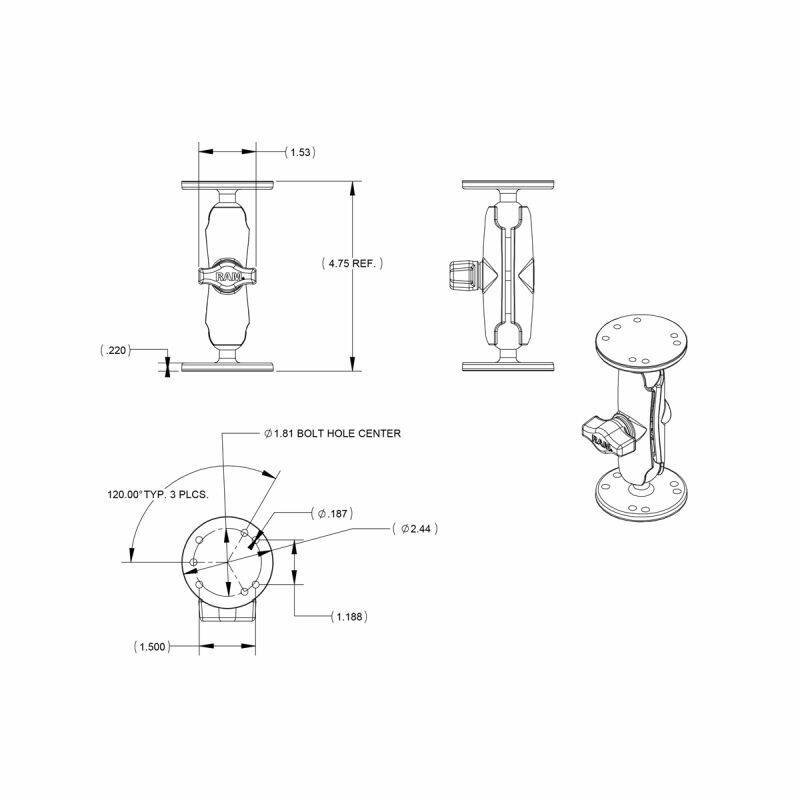

RAM-B-101U RAM 1" Ball Mount with Two 2.5" Round Bases that contain the AMPs hole pattern
