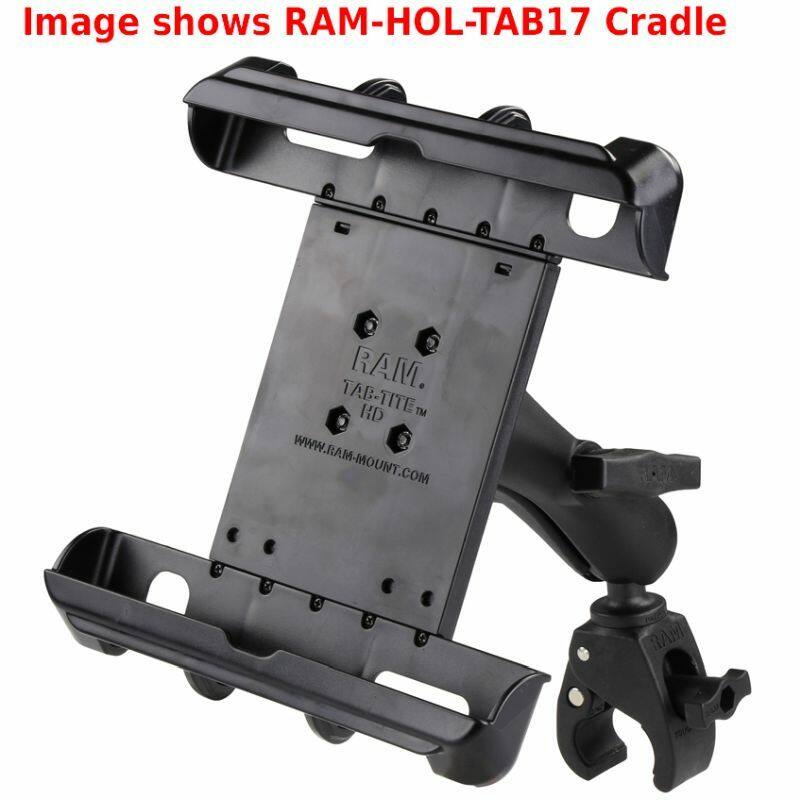

RAP-404-TAB3U RAM® Tab-Tite™ Tablet Holder with Medium RAM® Tough-Claw™
Features
* Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) without case and more; interchangeable end cups allow you to modify the holder when upgrading devices
* Medium Tough-Claw base allows for fast tool-less installation on flat or round surfaces up to 41mm diameter
* C size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of high-strength composites and marine grade aluminium alloy for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAP-404-TAB3U is ideal for commercial or pro-sumer applications where mounting the tablet to a round or flat surface is required but when removal without tools is desired. Just place the clamp over the rod/rail and tighten with the knob - no tools needed!

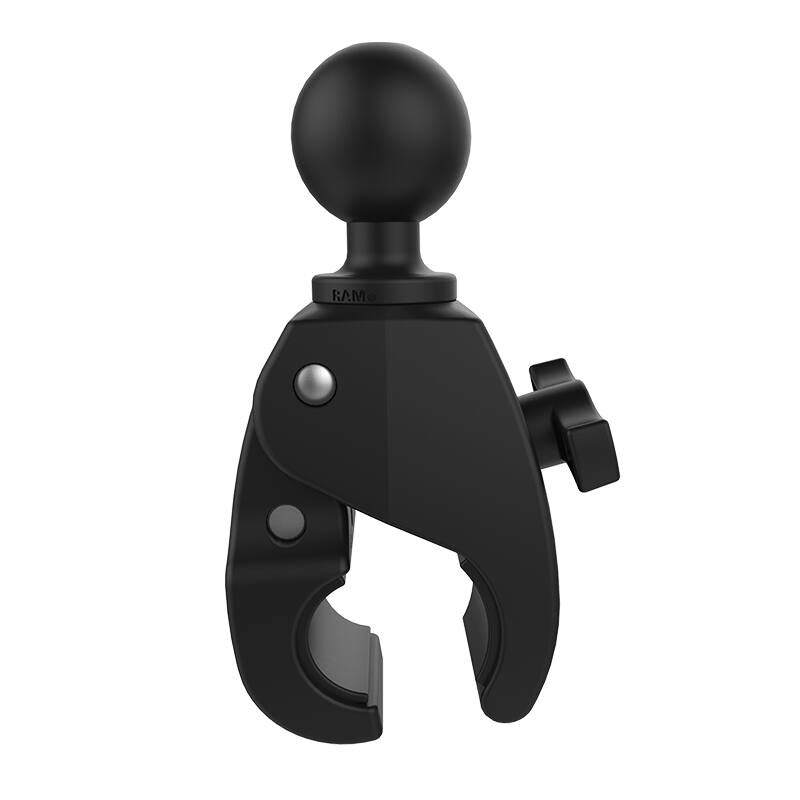

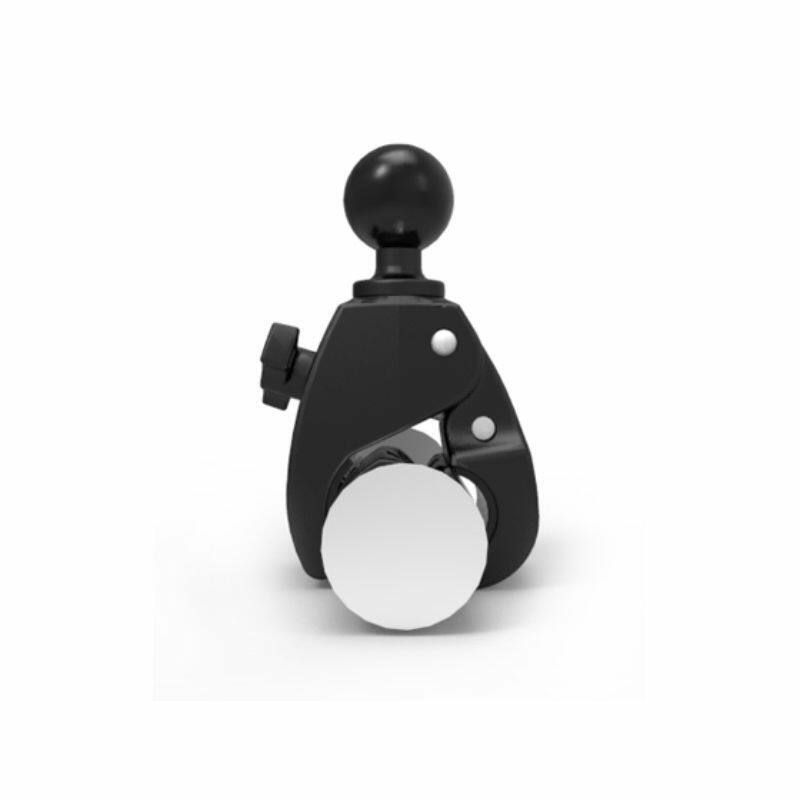

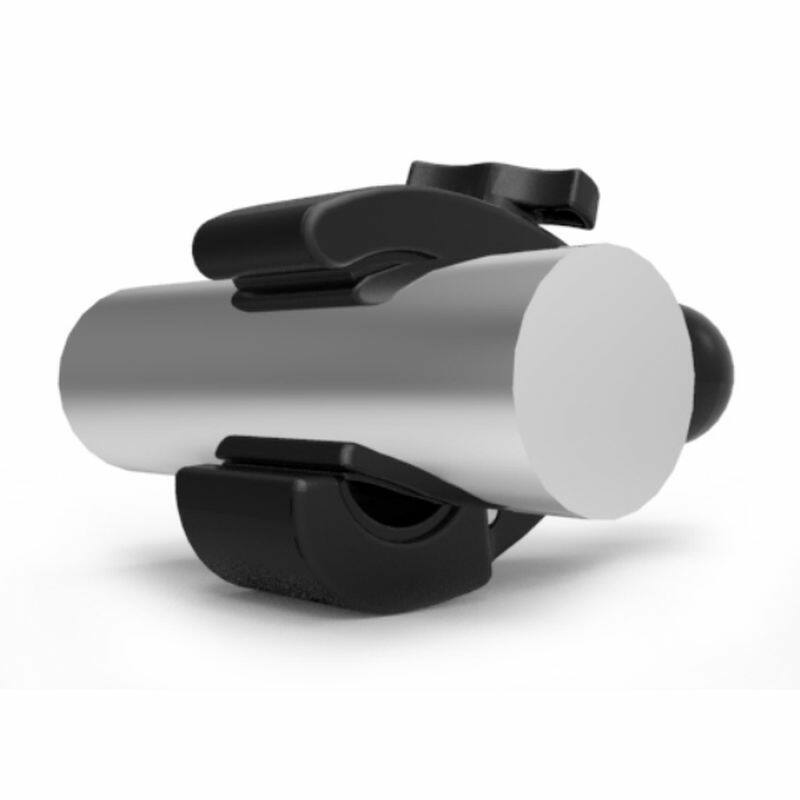

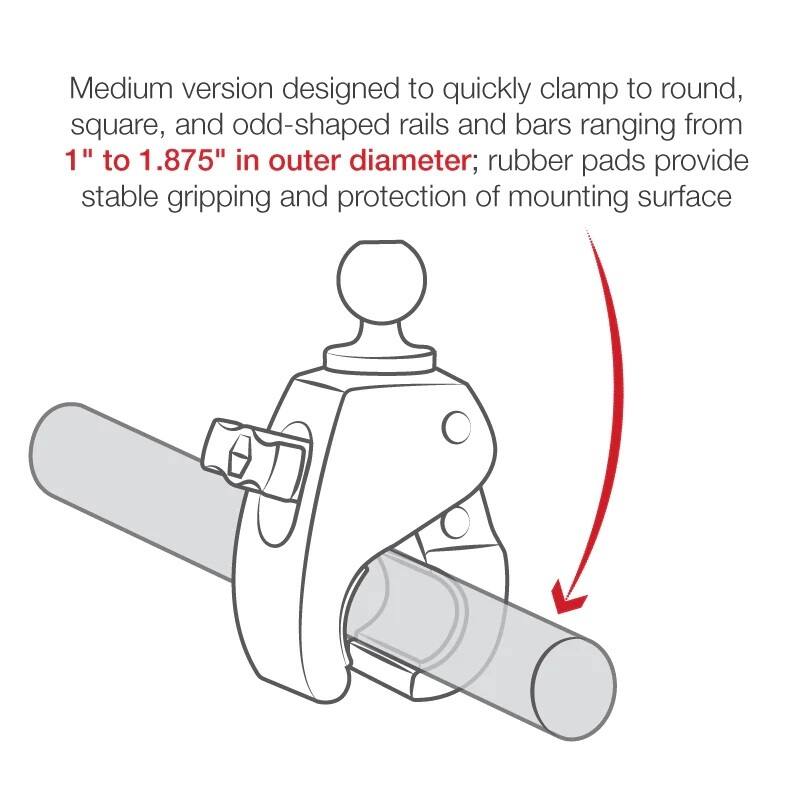

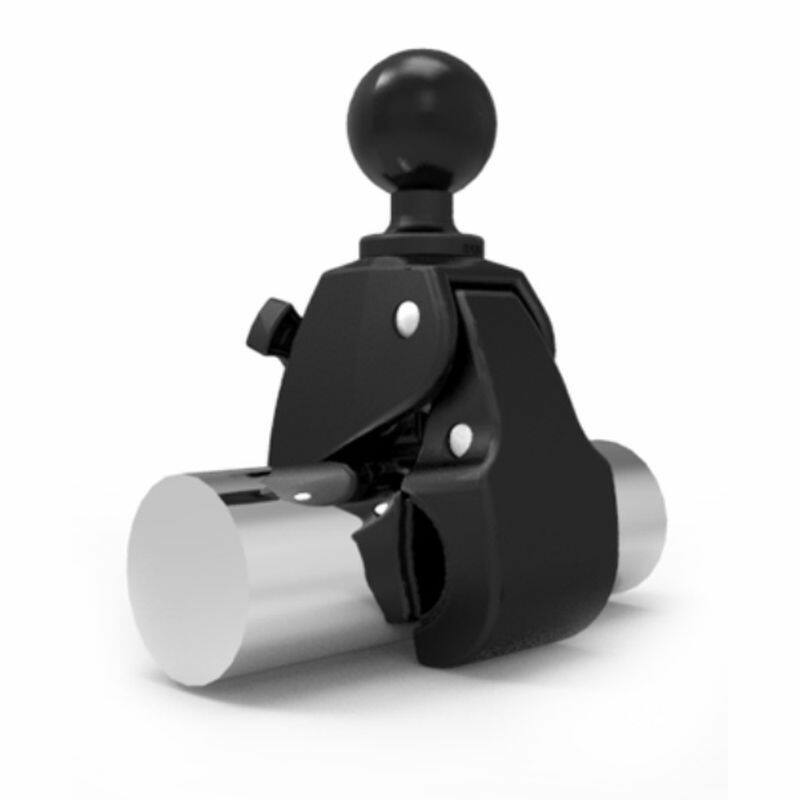

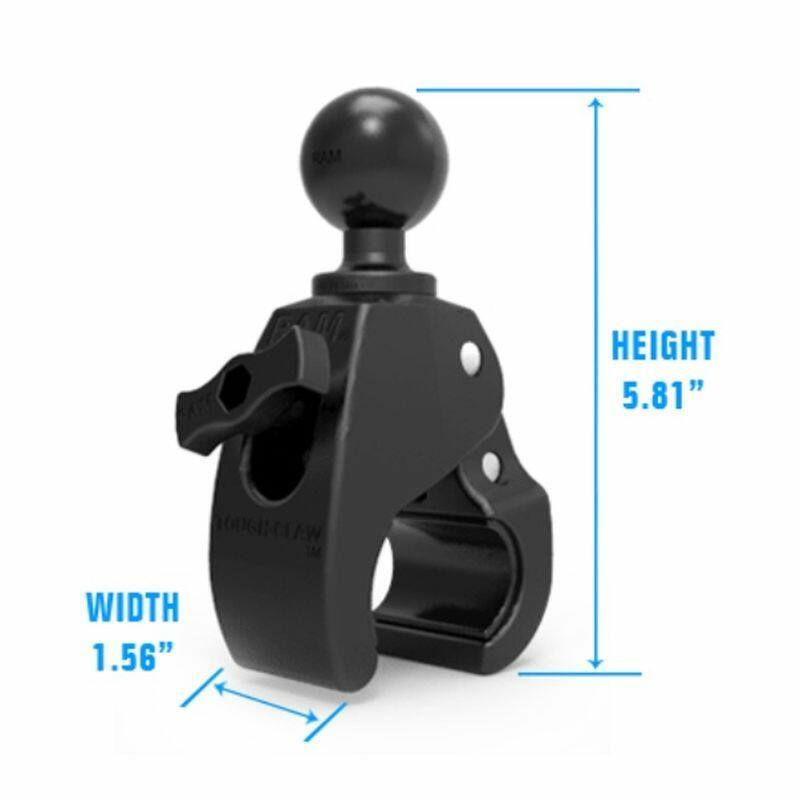

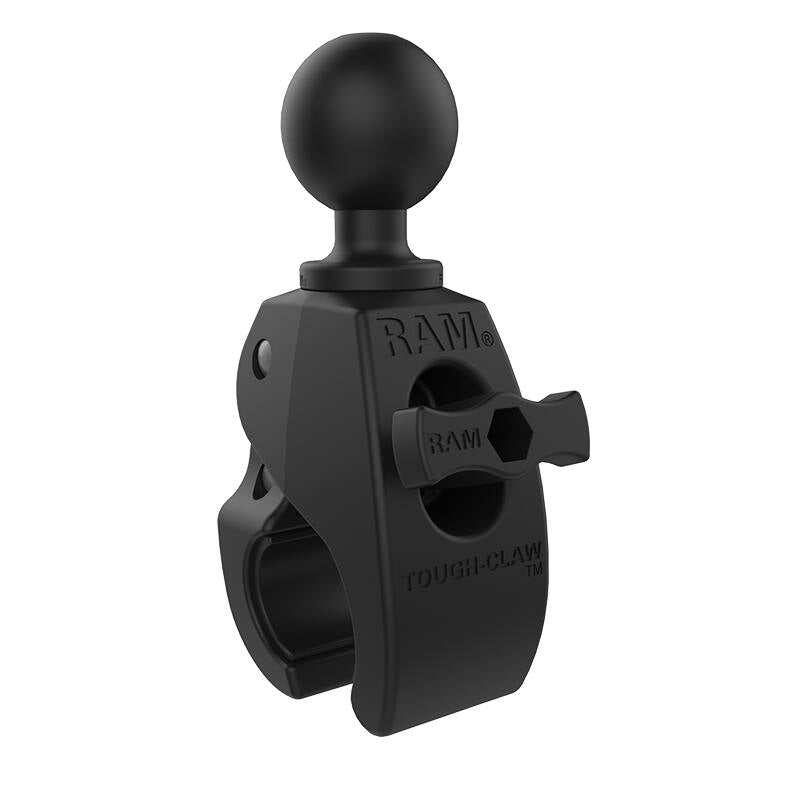

The base is a RAM Tough-Claw™ which is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 25 to 47mm outer diameter. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars, wheelchairs and mobility devices and much more.

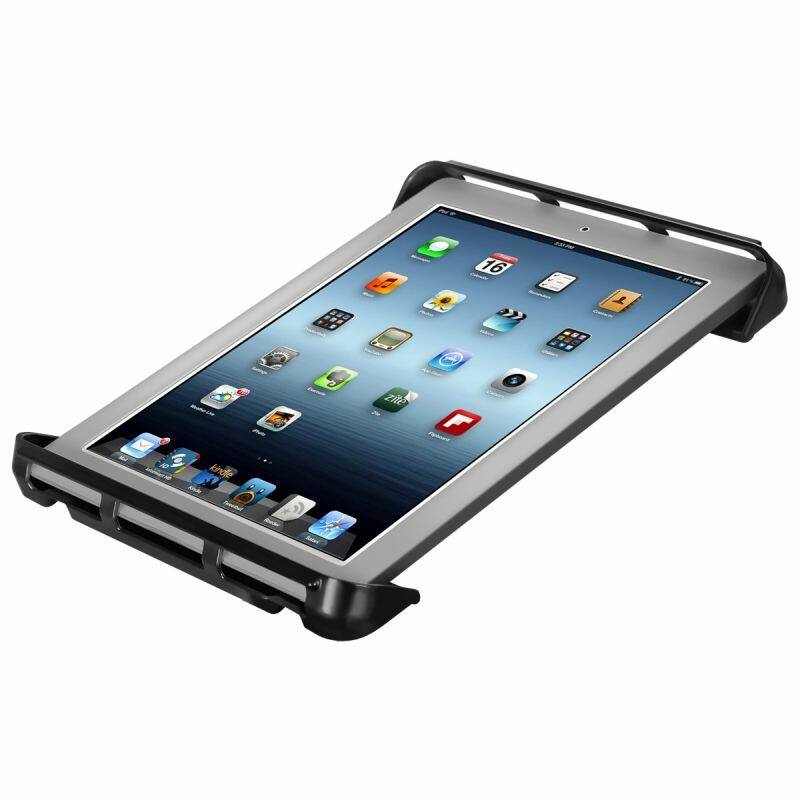

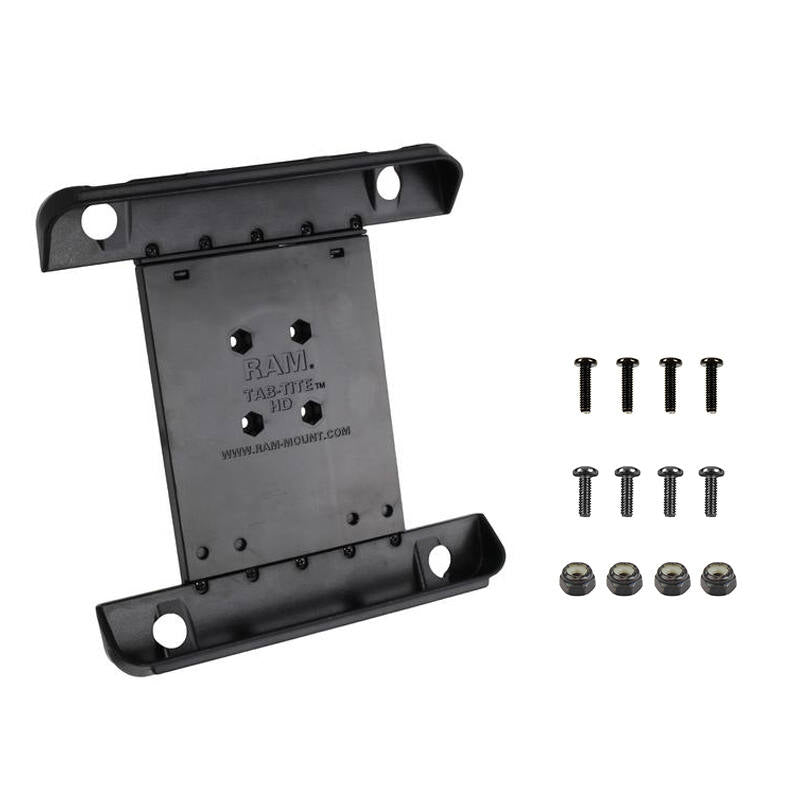

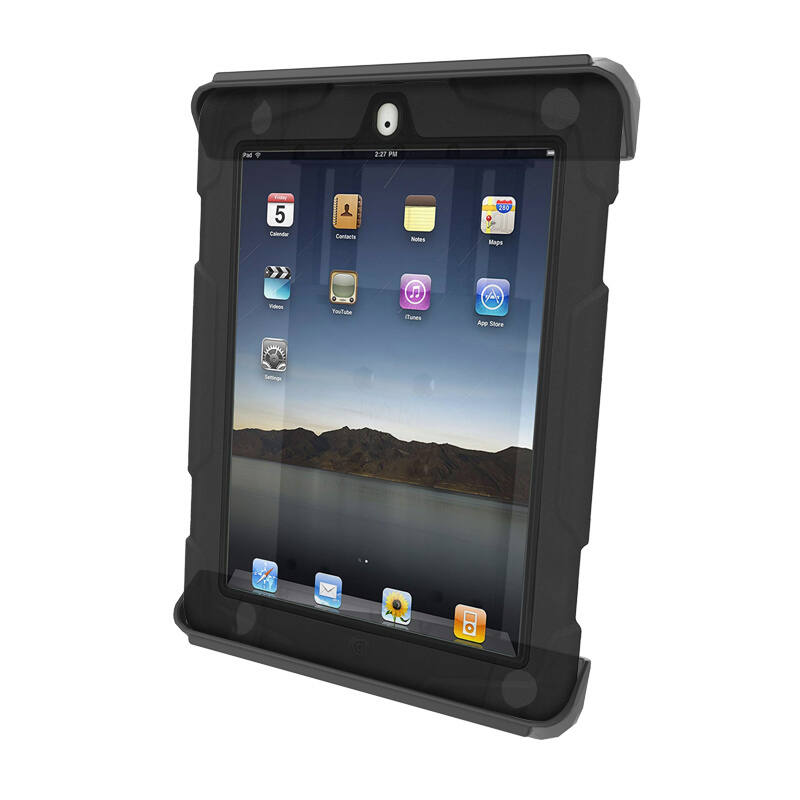

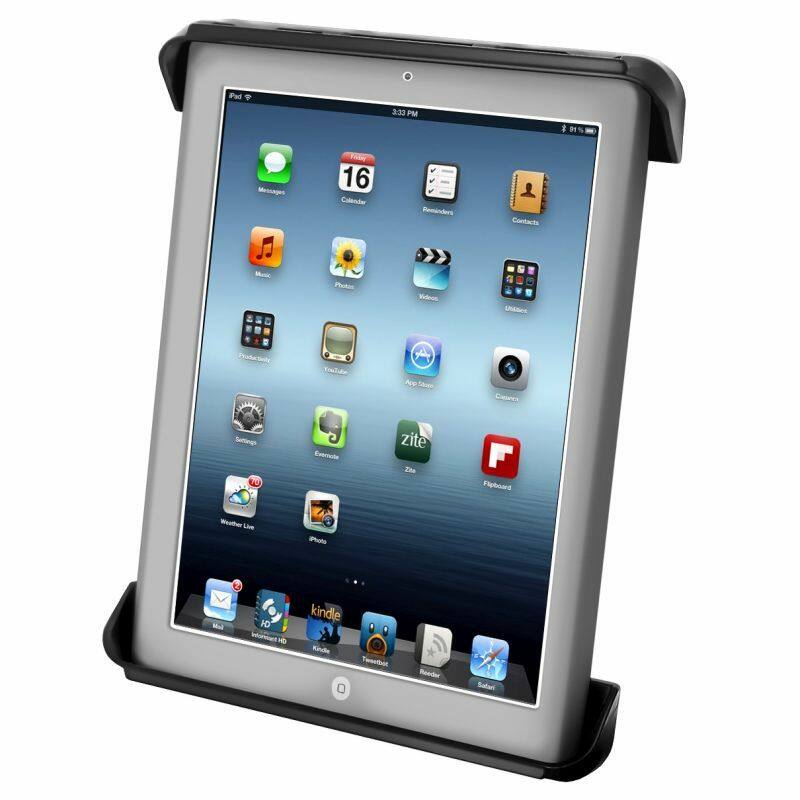

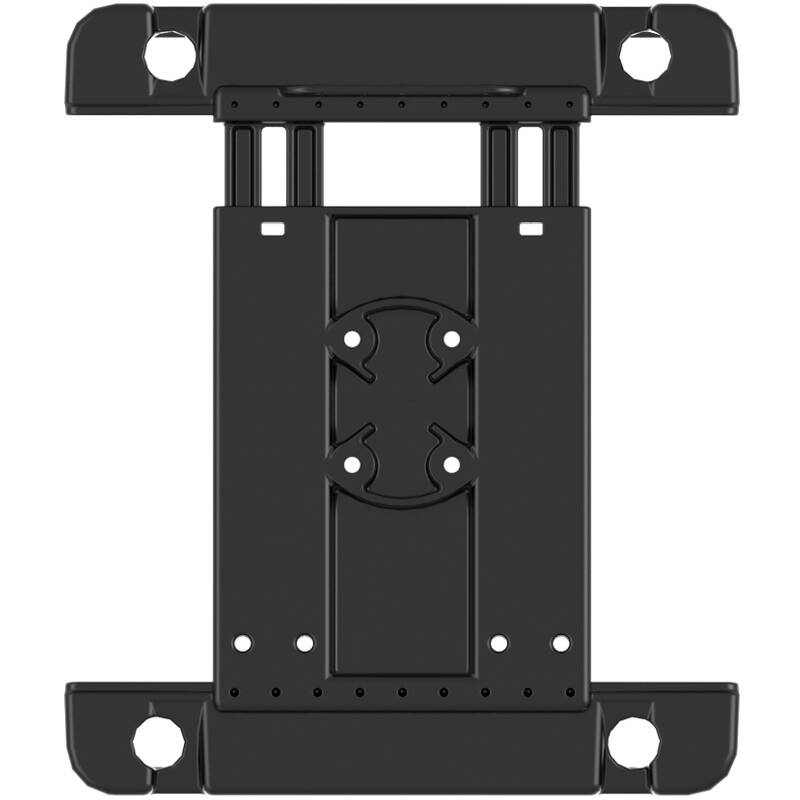

The RAM® Tab-Tite™ Tablet Holder consists of a spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases.

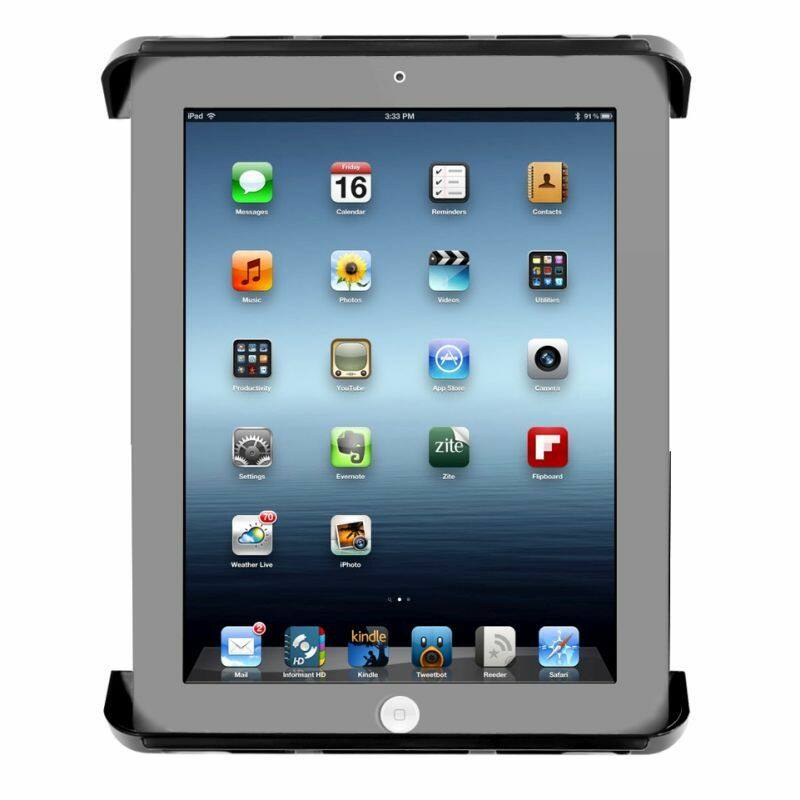

The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, the RAM-HOL-TAB3U is just what you need to get the most out of your tablet.
The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
Height: 216mm to 283mm (8.5" to 11.125")
Width: 162mm to 197mm (6.38" to 7.75")
Depth: 3.3mm to 14.2mm (0.13" to 0.56")
Compatible Devices - 9.7" to 10" Tablets including:
Apple
iPad (1st Generation)
iPad (2nd Generation)
iPad (3rd Generation)
iPad (4th Generation)
iPad Air 4
iPad Pro 11"
iPad Pro 11" (2020)
ASUS
MeMO Pad FHD 10
Transformer Pad
Dell
Venue 10 7000
Venue 11 Pro 7000
HP
ElitePad 900
ElitePad 900 G1
Pro 610
Lenovo
S6000
Tab A10
ThinkPad 10
Yoga Tablet 10
Yoga Tablet 10 HD+
Yoga Tablet 2 (10 inch)
Ball/Socket Size
C Size (1.5")
Clamping Range
Rails/Tubes:
25.4 to 40.6mm (1" to 1.6")
Flat Surfaces:
0 to 40.6mm (0" to 1.6")

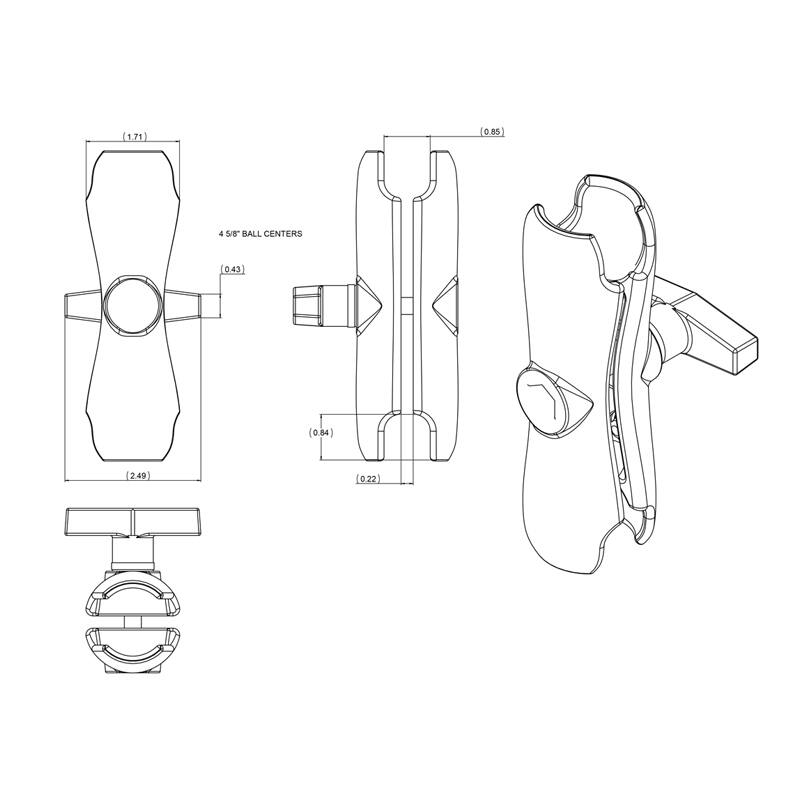

Arm Dimensions:
Overall Length:
143mm / 5.625"
Socket-To-Socket Length:
114mm / 4.5"
Materials:
High-strength composite
Marine grade aluminium alloy
Components:
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball
RAP-404U Medium Tough-Claw with 1.5" Diameter Rubber Ball

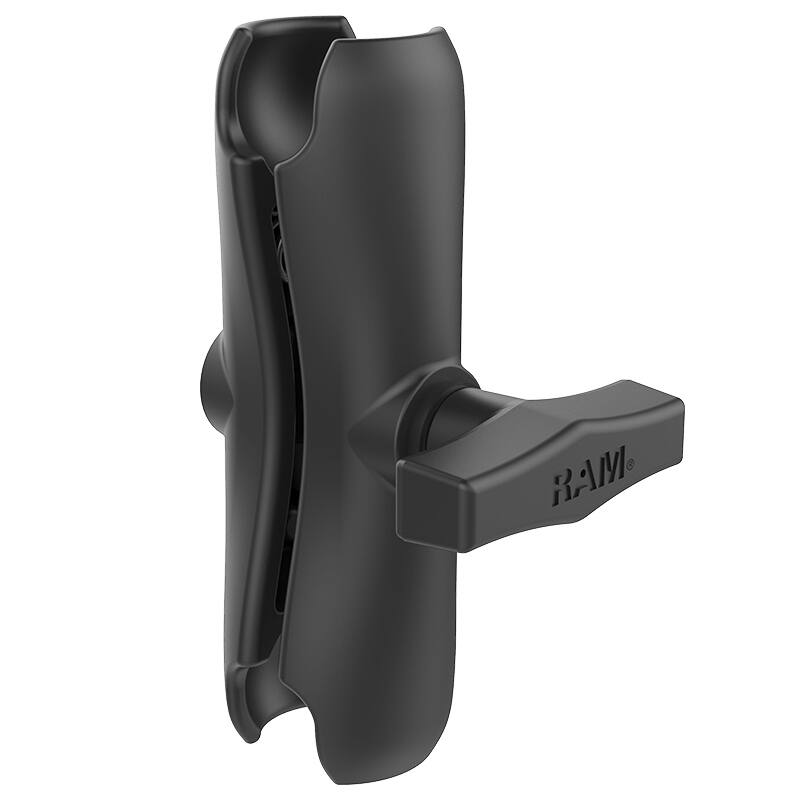

RAM-201U Standard Double Socket Arm for 1.5" Balls
RAM-HOL-TAB3U TAB-TITE IPAD MID TABLETS
