RAM-B-189-TAB3U RAM® Tab-Tite™ with RAM® Twist-Lock™ Dual Suction for Tablets including iPad Gen 1-4
Features
* Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) without case and more; interchangeable end cups allow you to modify the holder when upgrading devices
* Includes RAM® Twist-Lock™ dual suction cup base and medium length B size RAM® double socket arm with retention knob; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

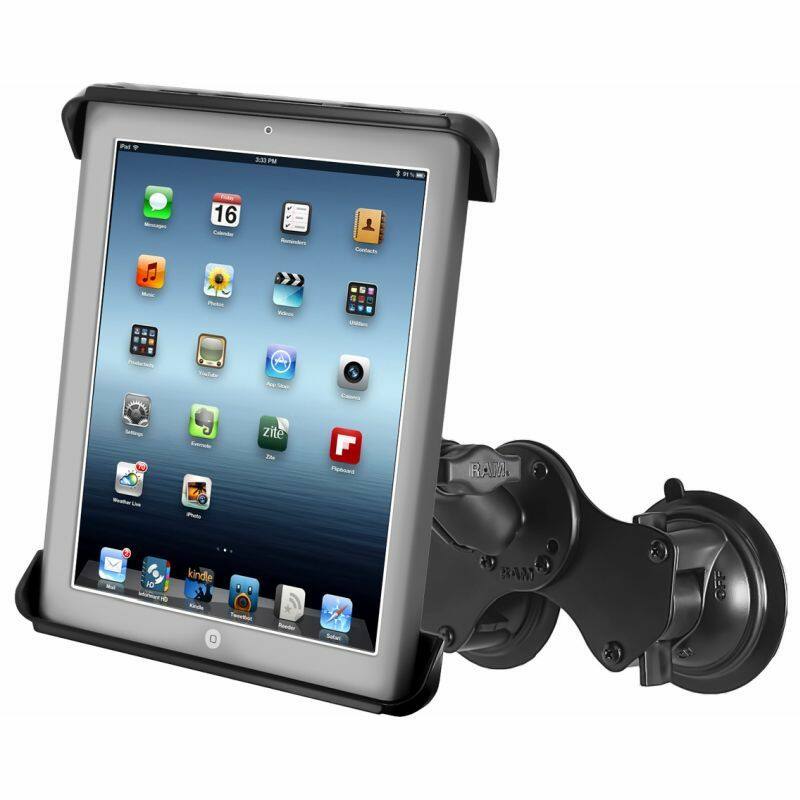

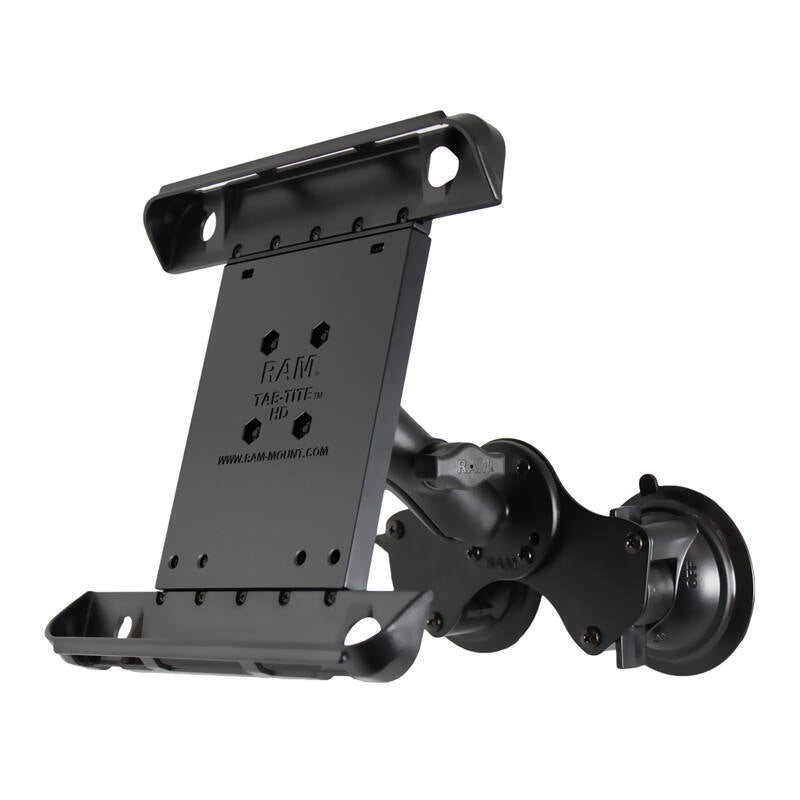

The RAM-B-189-TAB3U consists of a double 3.3" twist lock suction cup base, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

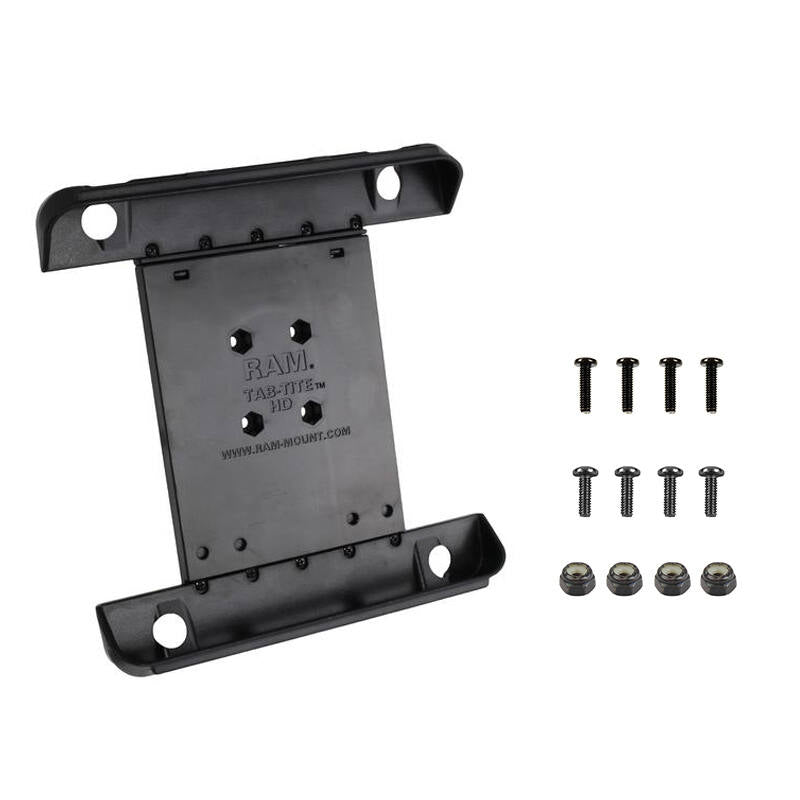

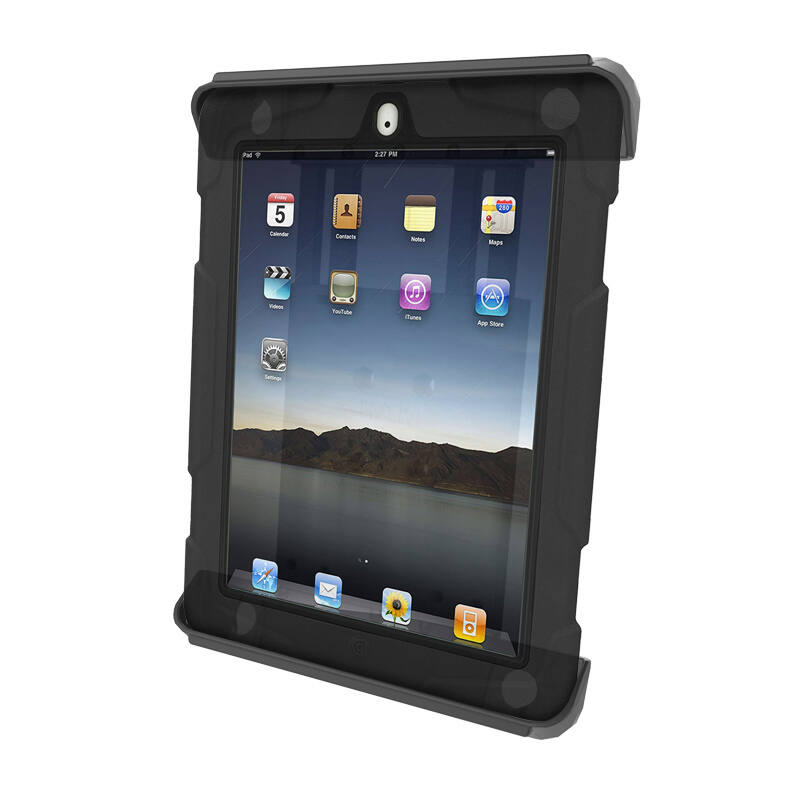

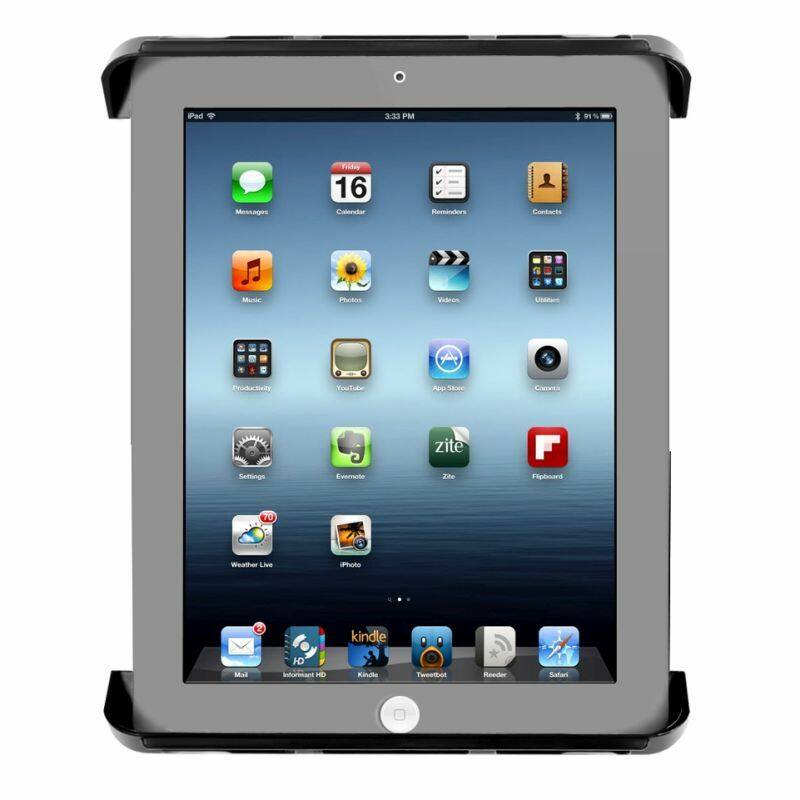

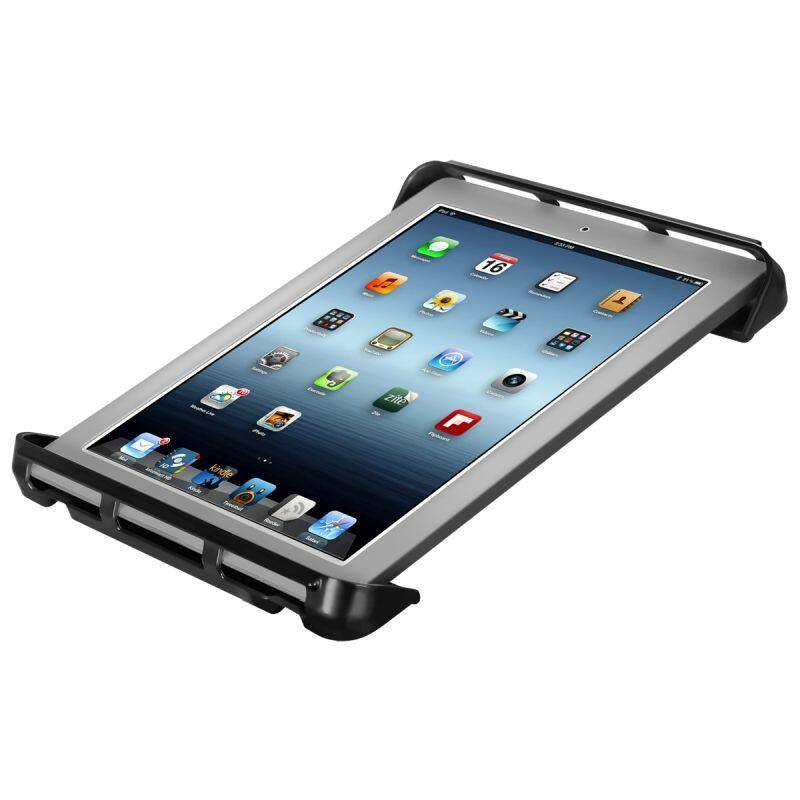

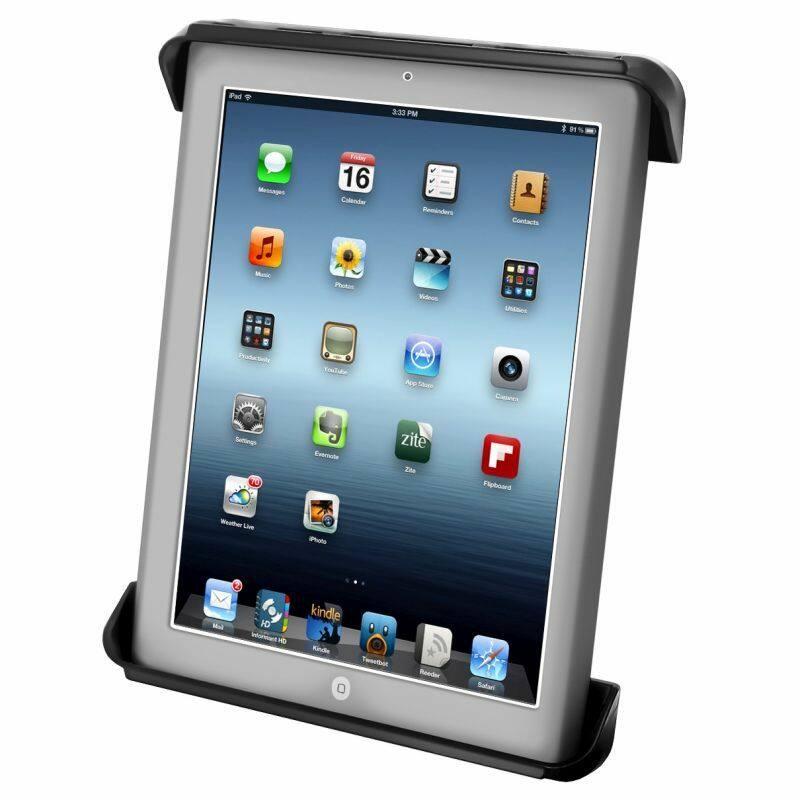

The RAM-HOL-TAB3U cradle consists of a spring loaded back plate and custom support cups. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, the RAM-HOL-TAB3U is just what you need to get the most out of your tablet. The included backplate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the backplate for support of your new tablet.

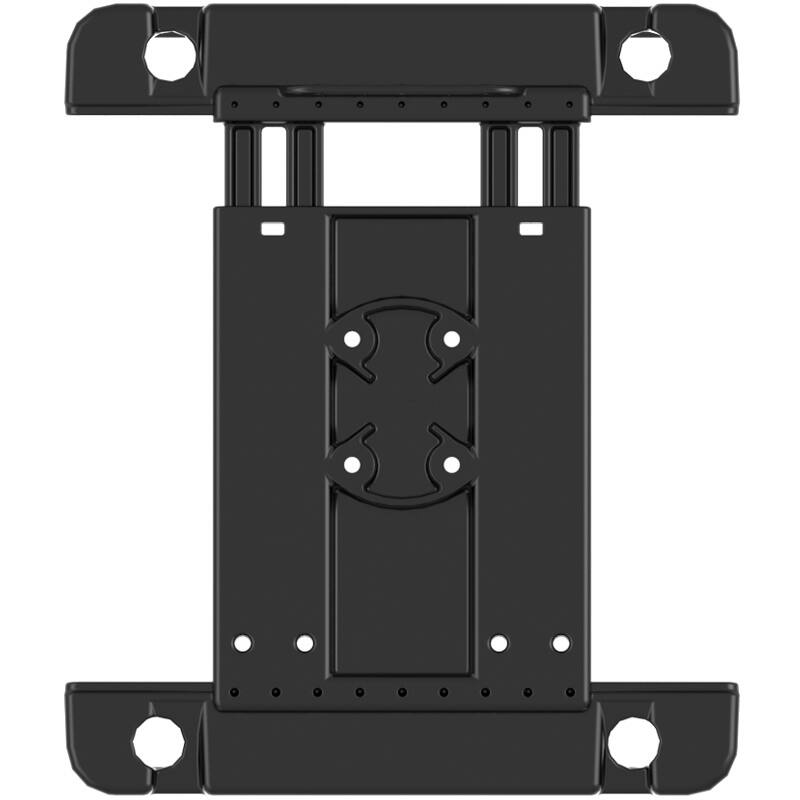

Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.
The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
Height: 216mm to 283mm (8.5" to 11.125")
Width: 162mm to 197mm (6.38" to 7.75")
Depth: 3.3mm to 14.2mm (0.13" to 0.56")
Compatible Devices - 9.7" to 10" Tablets including:
Apple
iPad (1st Generation)
iPad (2nd Generation)
iPad (3rd Generation)
iPad (4th Generation)
iPad Pro 11"
ASUS
MeMO Pad FHD 10
Transformer Pad
Dell
Venue 10 7000
Venue 11 Pro 7000
HP
ElitePad 900
ElitePad 900 G1
Pro 610
Lenovo
S6000
Tab A10
ThinkPad 10
Yoga Tablet 10
Yoga Tablet 10 HD+
Yoga Tablet 2 (10 inch)
Weight
816 grams (1.8lbs )

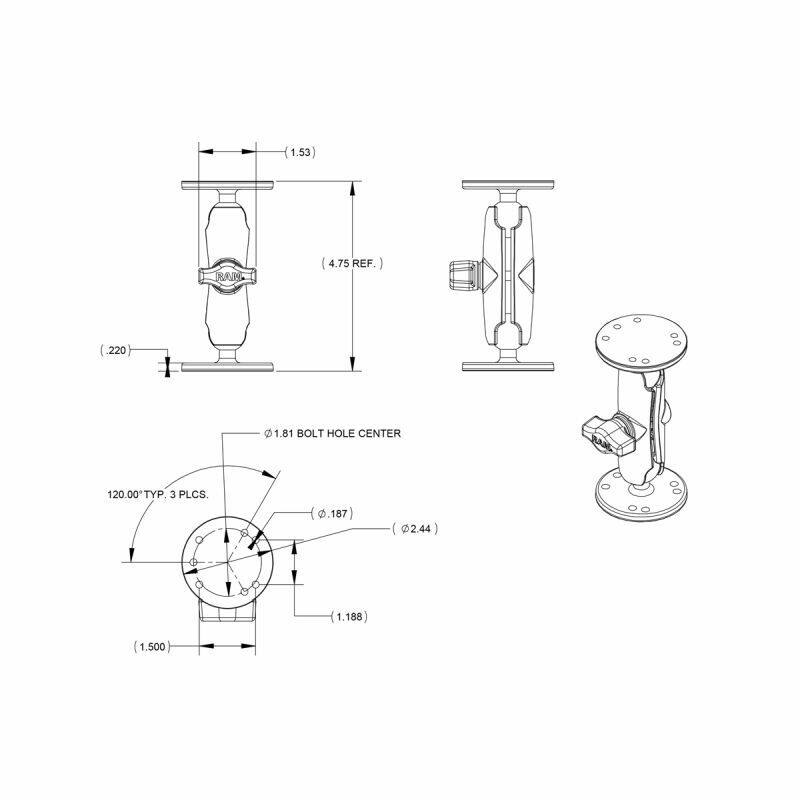

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Components:

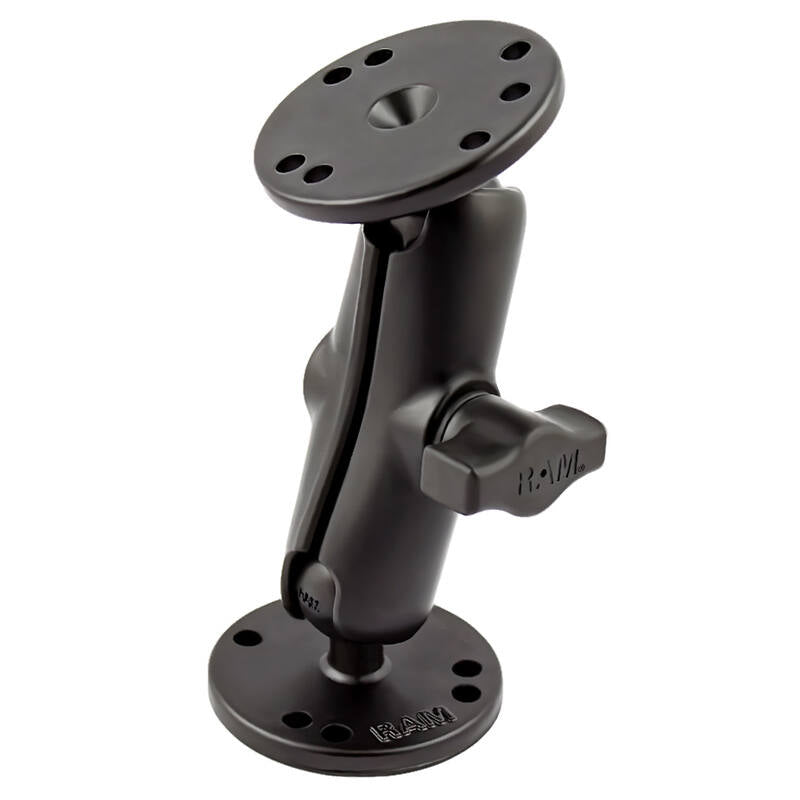

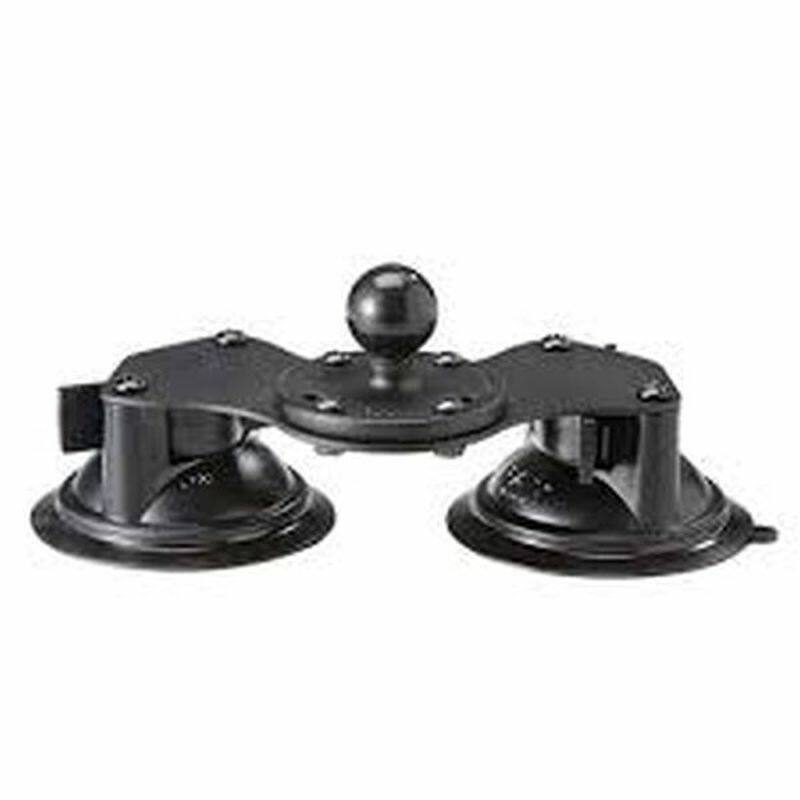

RAM-B-189BU RAM DOUBLE SUCTION CUP BASE with AMPS Hole Pattern
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL x 2
RAM-B-189BU RAM DOUBLE SUCTION CUP BASE with AMPS Hole Pattern
RAM-HOL-ACU RAM Tab-Tite Backplate with Hardware
RAM-HOL-TAB3-CUPSU RAM Replacement Top and Base Cups for RAM-HOL-TAB3U
