RAM-B-108-TAB3U RAM® Tab-Tite™ Mount with Strap Hose Clamp Base for iPad Gen 1-4 + More
Features
* Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) without case and more; interchangeable end cups allow you to modify the holder when upgrading devices
* V-Shape base accommodates rails from 25mm to a maximum of 53mm in diameter.
* Made of high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

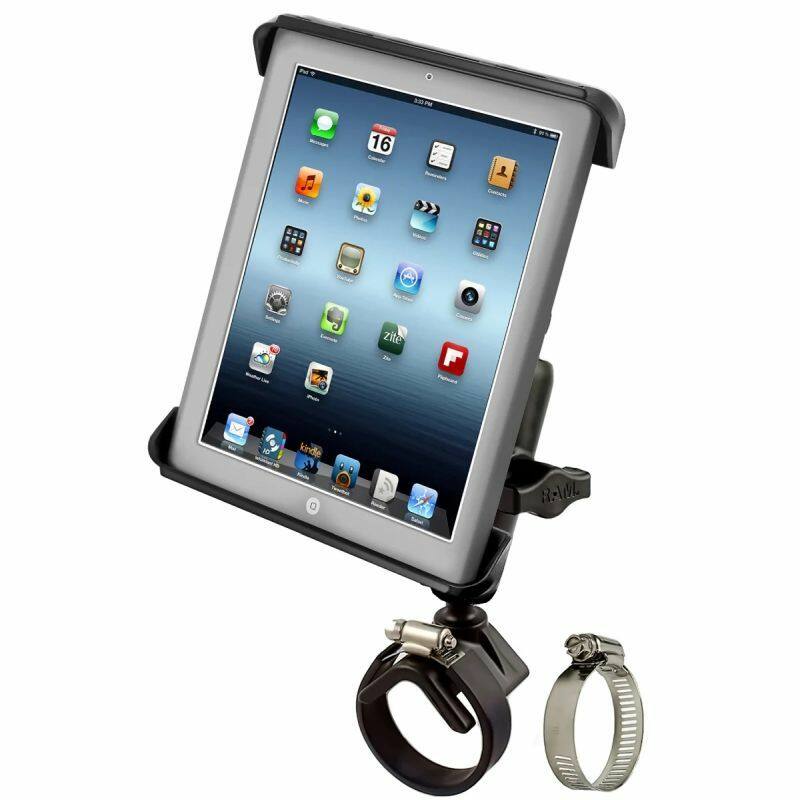

This consists of a V-Shape base, metal clamp straps, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle.

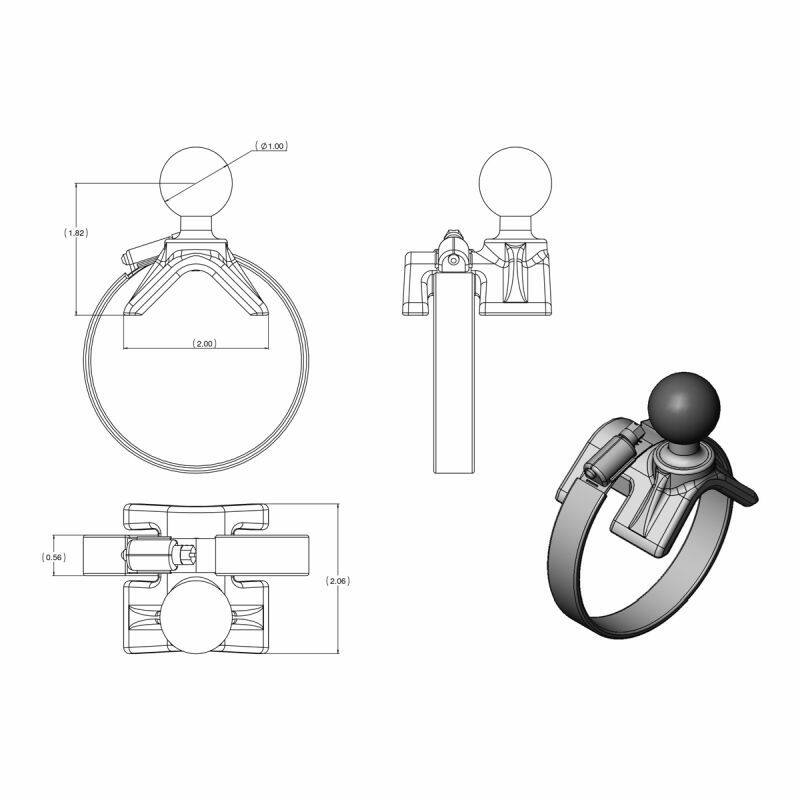

The V-Shape base accommodates rails from 1.0" to a maximum of 2.1" in diameter. This an alternative mounting base for Beechcraft airplanes with a “throw over yoke”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system which allows for almost infinite adjustment and perfect viewing angles.

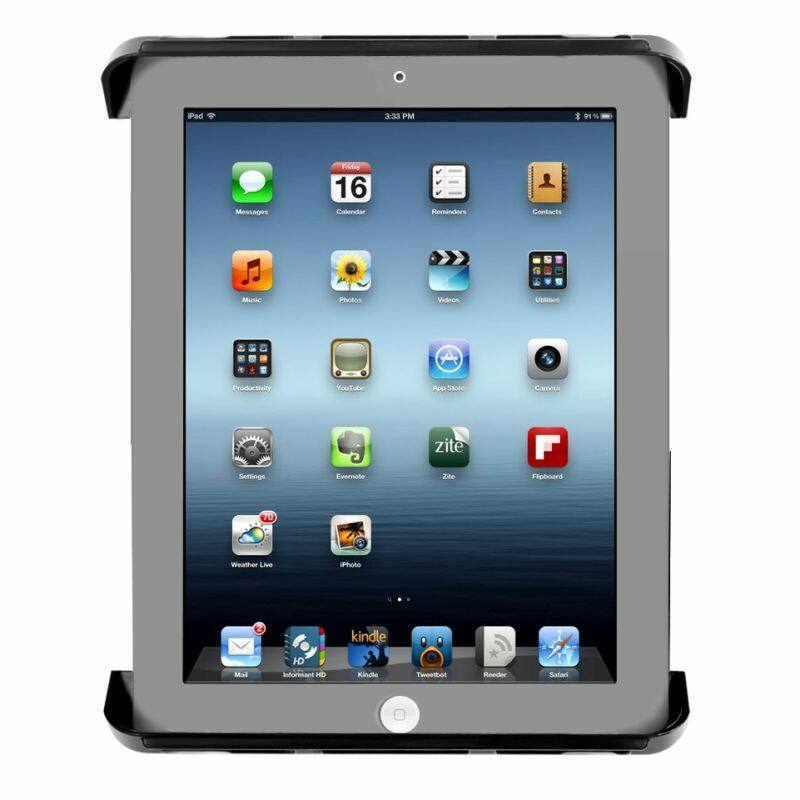

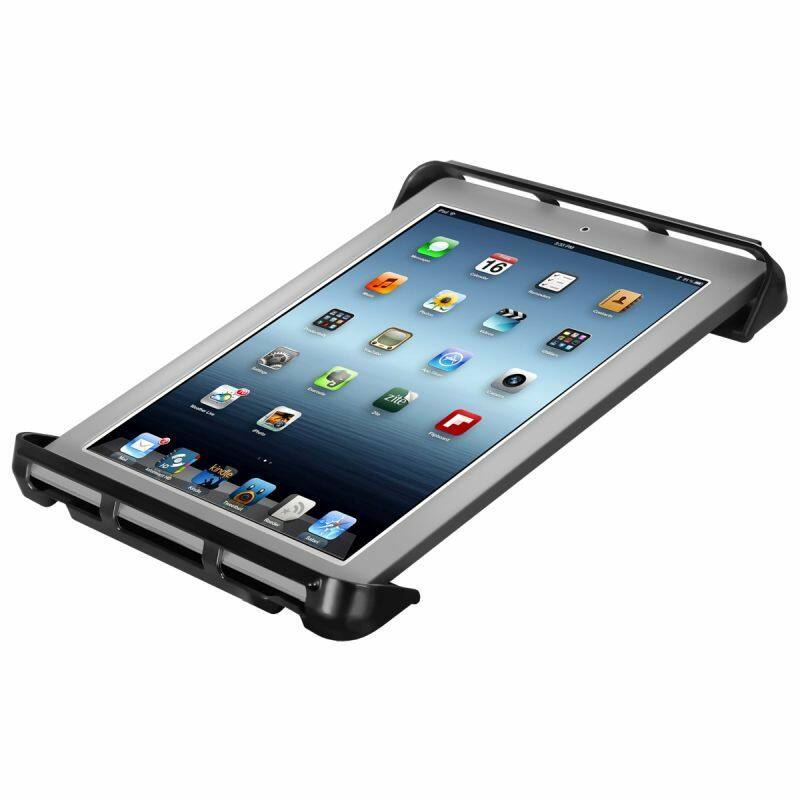

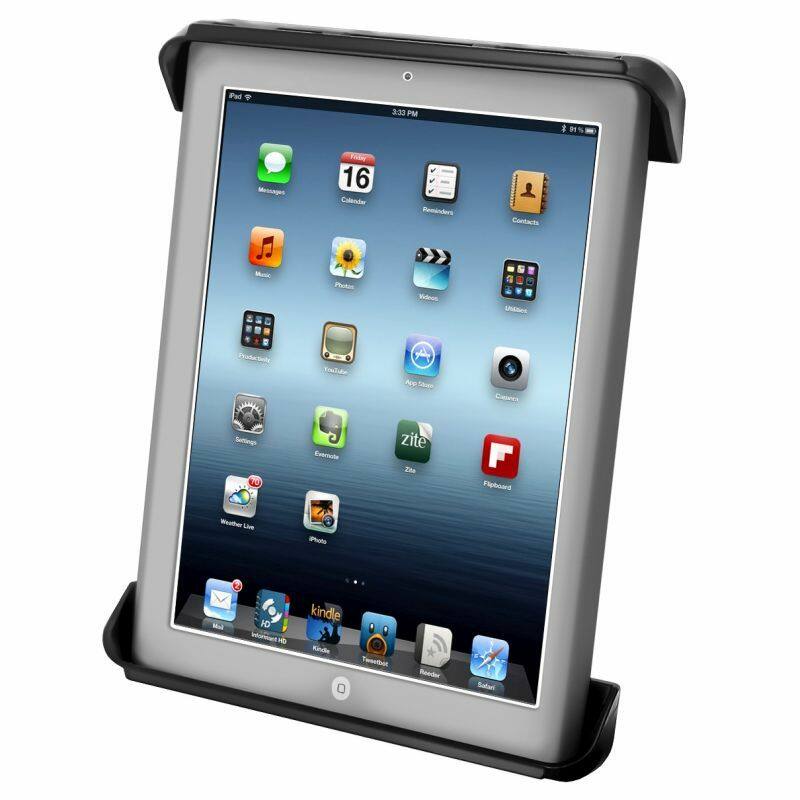

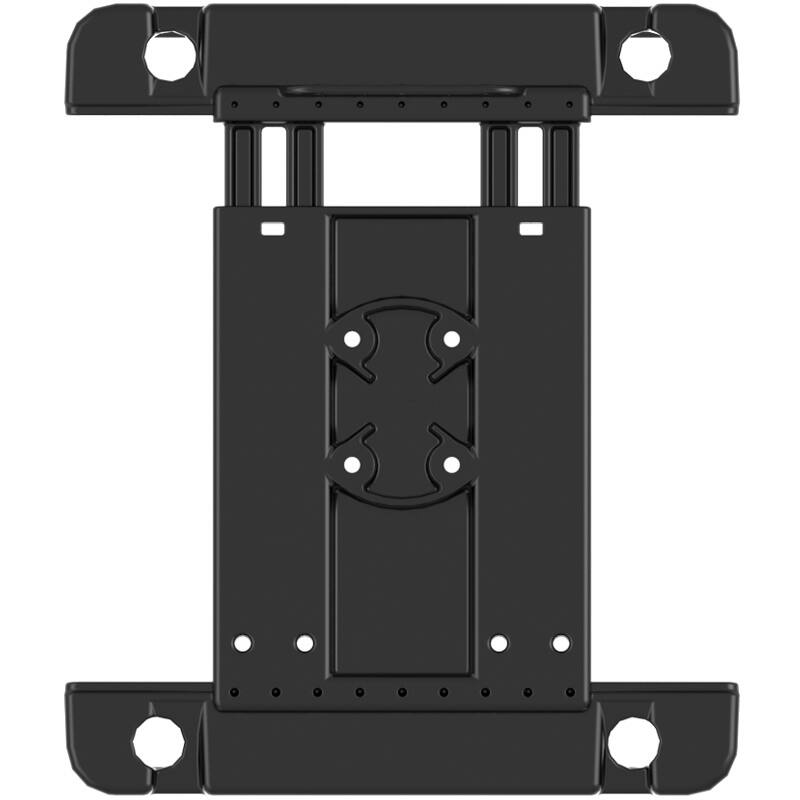

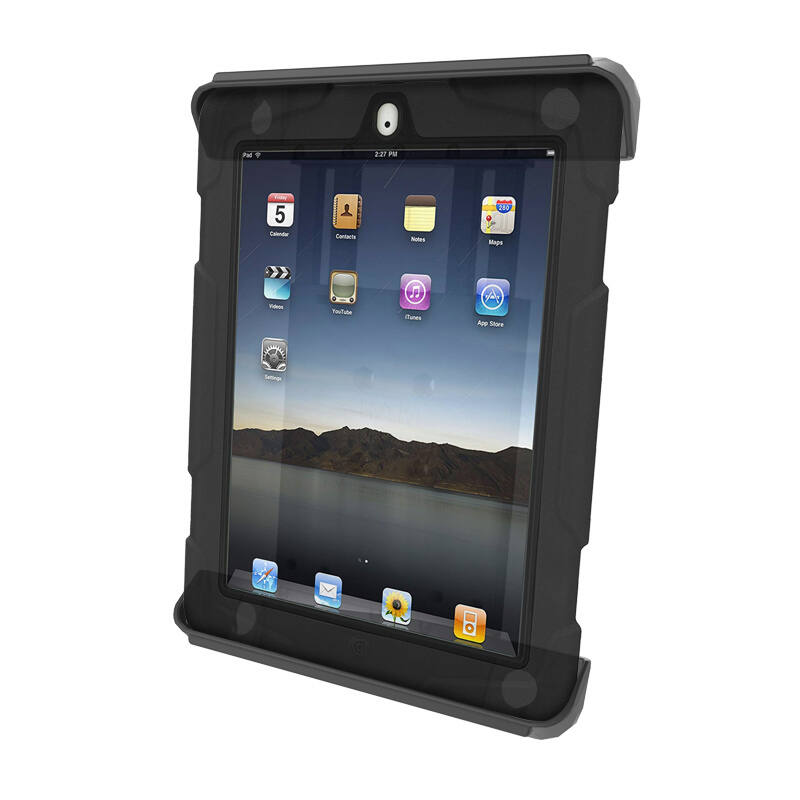

The Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 9.7" to 10" tablets screen tablets. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports.
The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. Check the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
Height: 216mm to 283mm (8.5" to 11.125")
Width: 162mm to 197mm (6.38" to 7.75")
Depth: 3.3mm to 14.2mm (0.13" to 0.56")
Compatible Devices - 9.7" to 10" Tablets including:
AppleiPad (1st Generation)
iPad (2nd Generation)
iPad (3rd Generation)
iPad (4th Generation)
iPad Air 4
iPad Pro 11"
iPad Pro 11" (2020)
ASUS
MeMO Pad FHD 10
Transformer Pad
Dell
Venue 10 7000
Venue 11 Pro 7000
HP
ElitePad 900
ElitePad 900 G1
Pro 610
Lenovo
S6000
Tab A10
ThinkPad 10
Yoga Tablet 10
Yoga Tablet 10 HD+
Yoga Tablet 2 (10 inch)
Clamp Dimensions:
25.4mm to 53.3mm (1" to 2.1")
Arm Dimensions:
Overall Length: 94mm (3.69")
Socket-To-Socket Length: 76mm (3")
Assembly Hardware Included
Ball Size:
1" "B" Size
Weight
662 grams (1.46lbs)
Components:

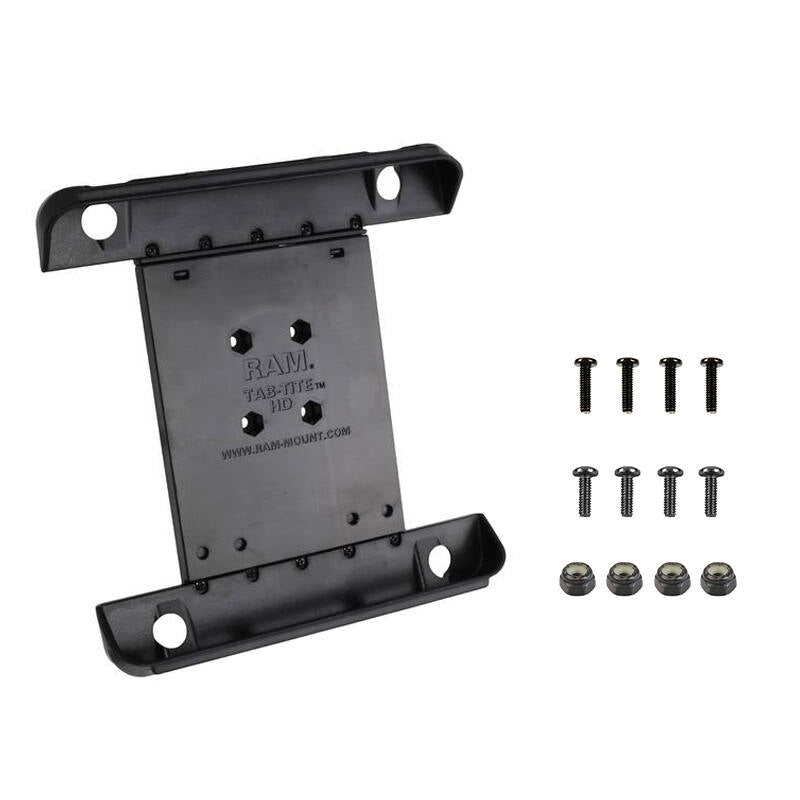

RAM-HOL-TAB3U TAB-TITE Cradle

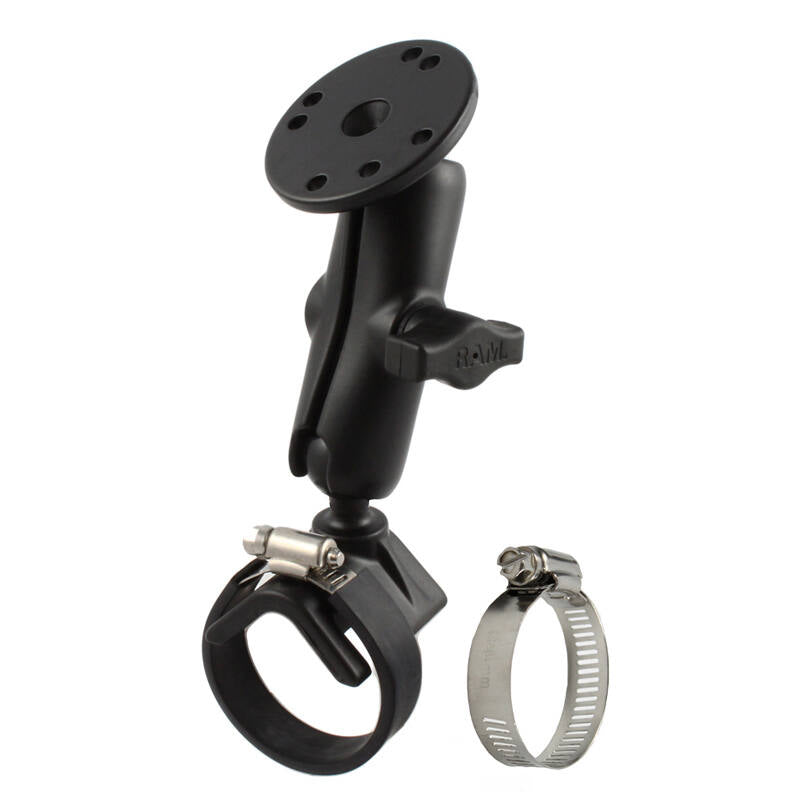

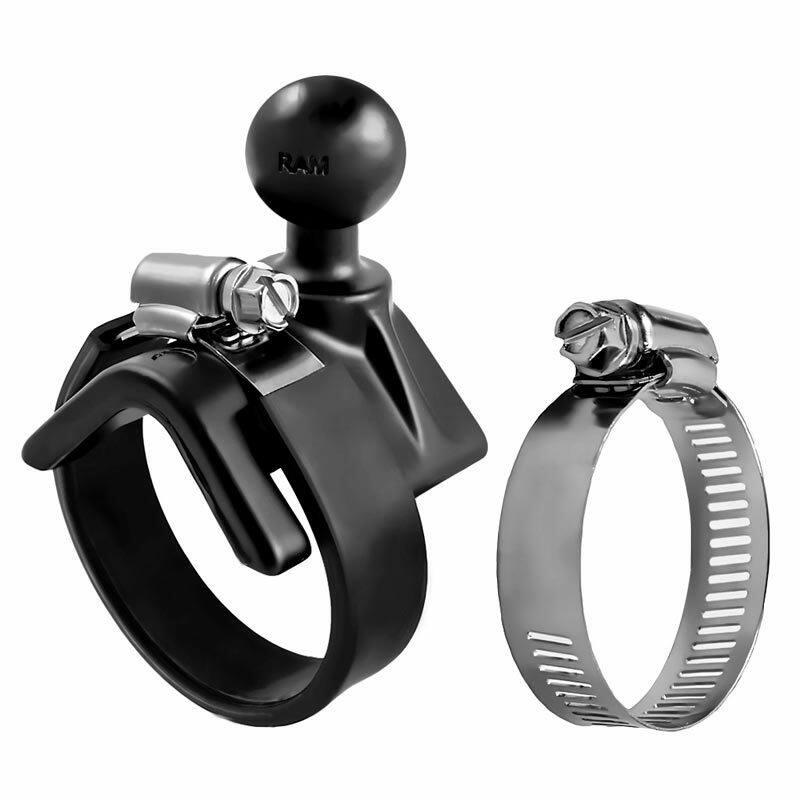

RAM-B-108BU V BASE BALL AND STRAPS
RAM-B-202U 62mm DIA.BASE
RAM-B-201U DOUBLE SOCKET ARM
