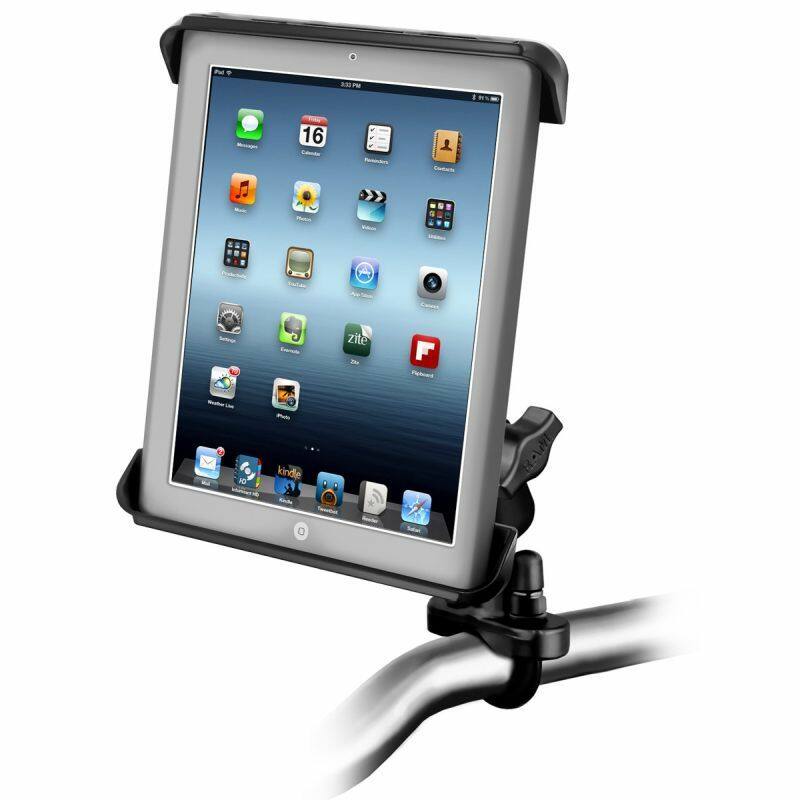

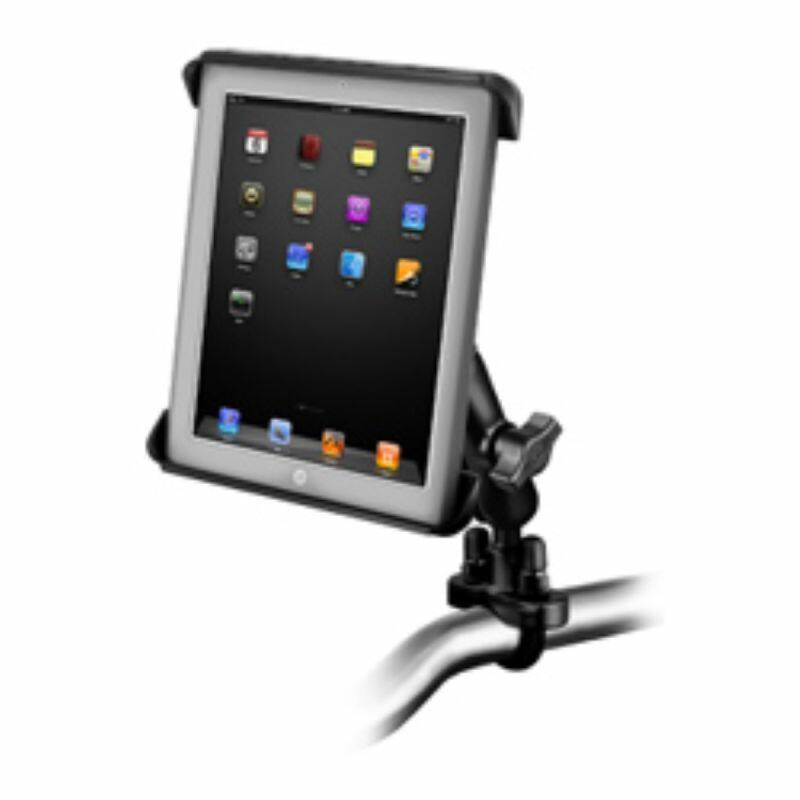

RAM-B-149Z-TAB3U RAM® Tab-Tite™ Handlebar U-Bolt Mount for Apple iPad Gen 1-4
Features
* Spring-loaded holder secures the iPad (1st, 2nd, 3rd, and 4th Gen) without case and more; interchangeable end cups allow you to modify the holder when upgrading devices
* The U-Bolt base will accommodate rails from 12.7mm to 31.75mm in diameter
* RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of Marine-grade aluminium and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM-B-149Z-TAB3U consists of a zinc coated u-bolt base, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle for 9.7" - 10" tablets.

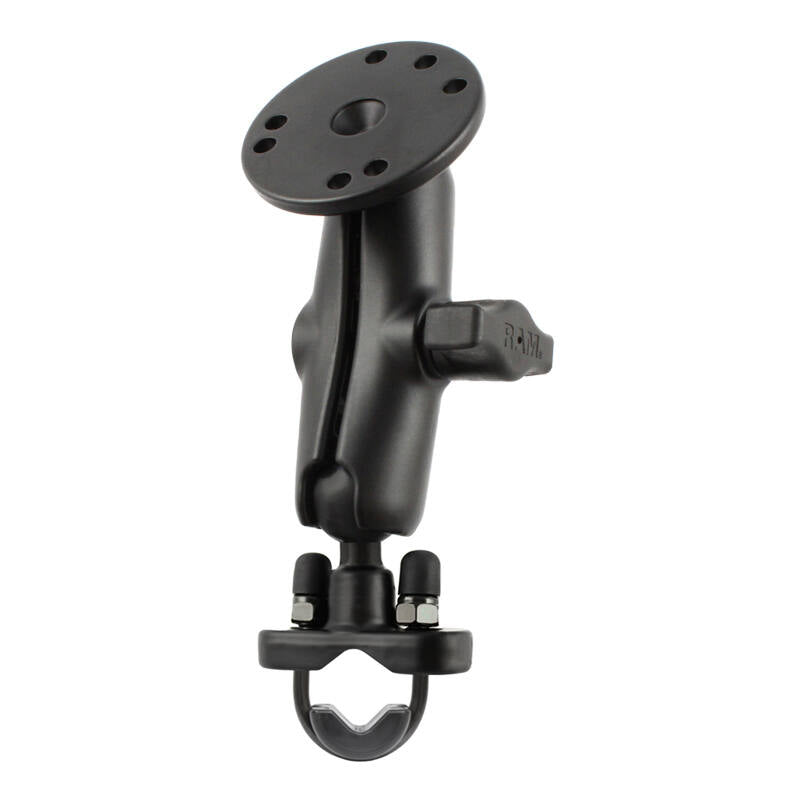

The U-Bolt base will accommodate rails from 12.7mm to 31.75mm (0.50" to 1.25") in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5".
The RAM patented rubber ball and socket system allows for almost infinite adjustment and perfect viewing angles.

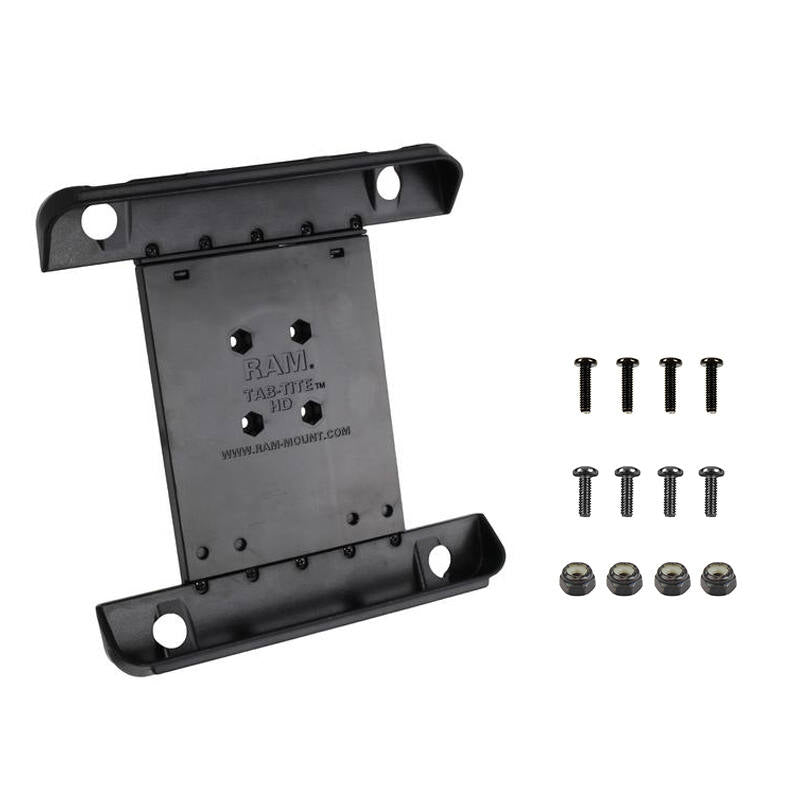

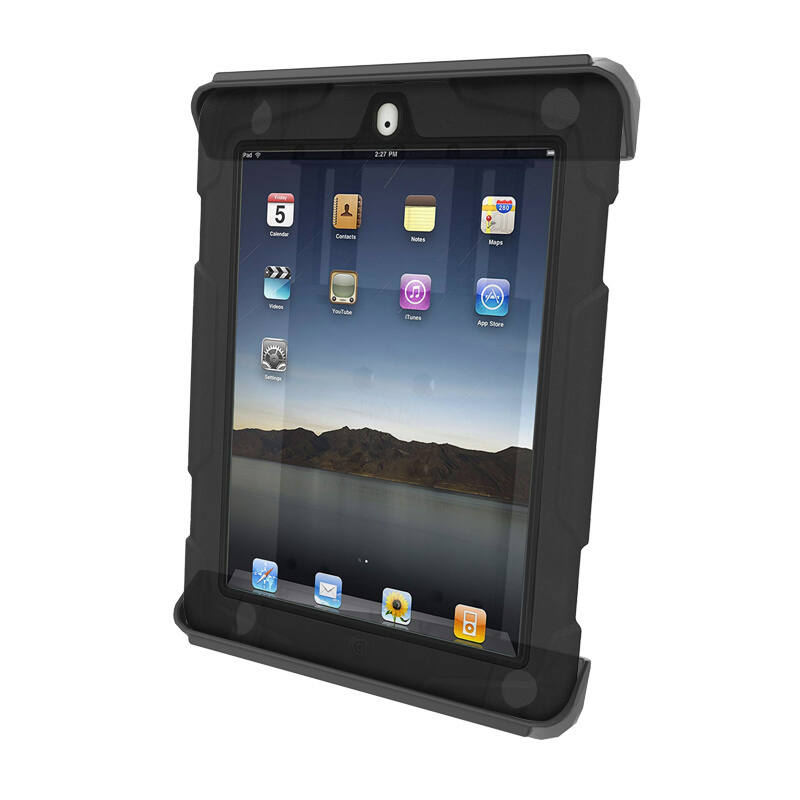

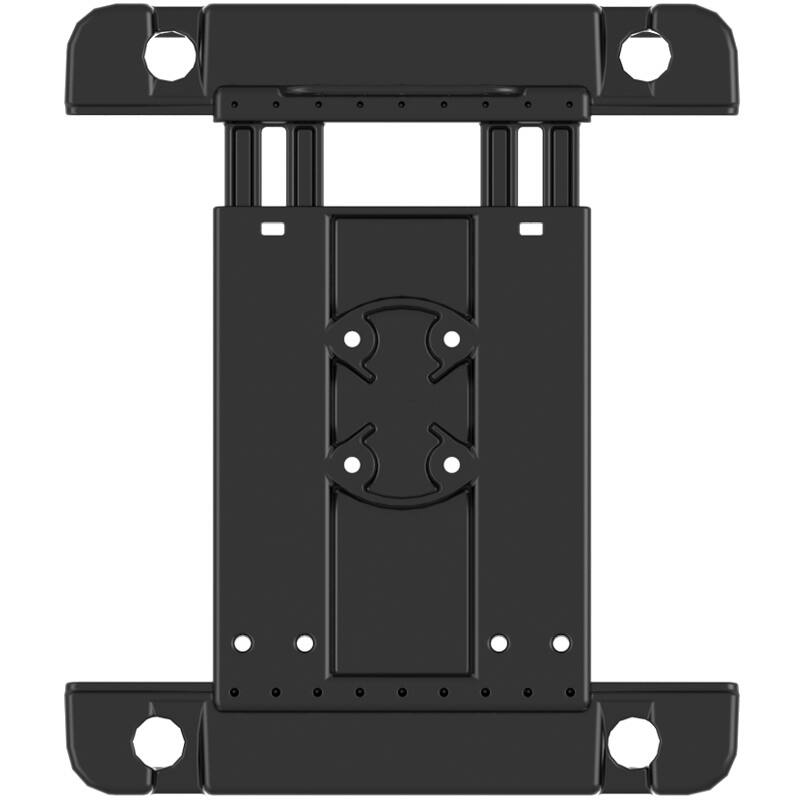

The Tab-Tite™ cradle includes a spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports.
The cradle is compatible with any tablet that will fit the following dimensions. Check the dimensions of your tablet when determining the overall size.
Cradle Dimensions:
H: 216mm to 283mm (8.5" to 11.125")
W: 162mm to 197mm (6.38" to 7.75")
D: 3.3mm to 14.2mm (0.13" to 0.56")
Compatible Devices - 9.7" to 10" Tablets including:
Apple
iPad (1st, 2nd, 3rd, 4th Generation)
ASUS
MeMO Pad FHD 10
Transformer Pad
Dell
Venue 10 7000, 11 Pro 7000
HP
ElitePad 900
ElitePad 900 G1
Pro 610
Lenovo
S6000
Tab A10
ThinkPad 10
Yoga Tablet 10
Yoga Tablet 10 HD+
Yoga Tablet 2 (10 inch)
U-Bolt Dimensions:
12.7mm to 31.75mm (0.50" to 1.25")
Arm length
Overall:
94mm (3.69")
Socket-To-Socket:
76mm (3")
Materials
Marine-grade aluminium
High strength composite
Ball Size:
1" "B" Size
Components:
RAM-HOL-TAB3U TAB-TITE IPAD MID TABLETS
RAM-B-231ZU RAIL BASE W/ U-BOLT
RAM-B-202U 62mm DIA.BASE
RAM-B-201U DOUBLE SOCKET ARM
