RAM-B-101-C-TAB-LGU RAM® Tab-Tite™ Drill-Down Double Ball Mount for Large Tablets
Features
* Spring-loaded holder secures large tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
* B Size RAM double socket arm and ball and socket technology allows for near-infinite adjustability
* Drill down mount with 63.5mm diameter round base provides a solid base on any flat surface
* Made of high-strength composites and powder coated marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

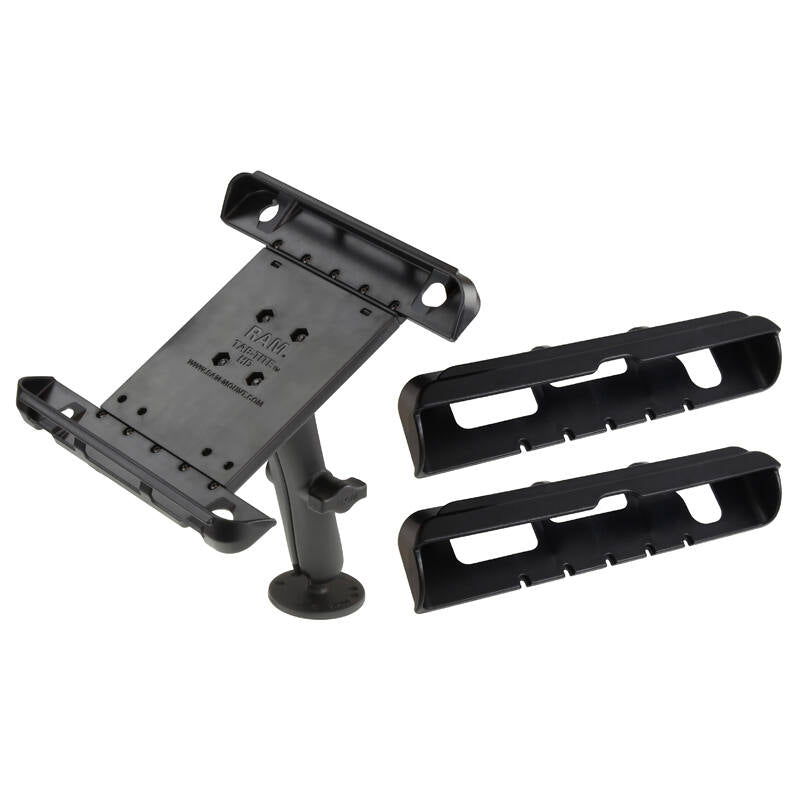

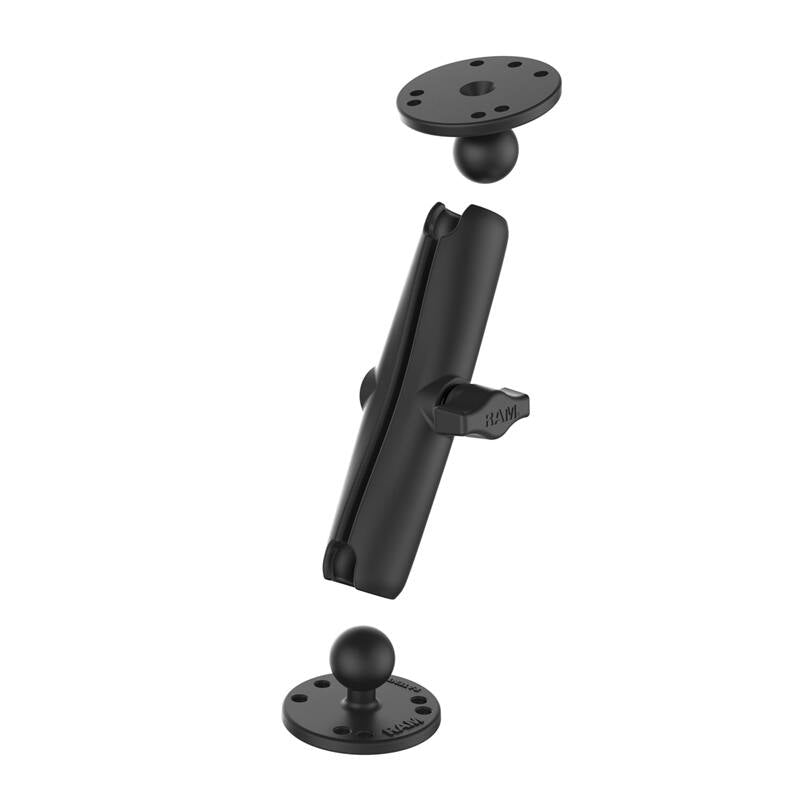

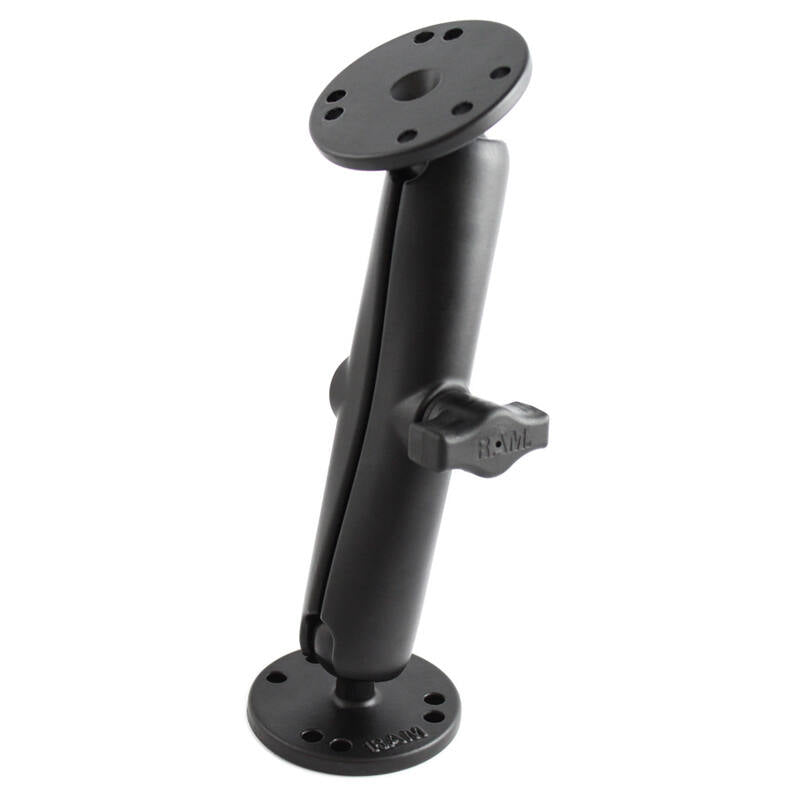

This mounting base consists of the Tab-Tite cradle for large tablets matched to a drill down mount with long length arm. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The two 63.5mm / 2.5" Round Plates have the AMPs hole pattern

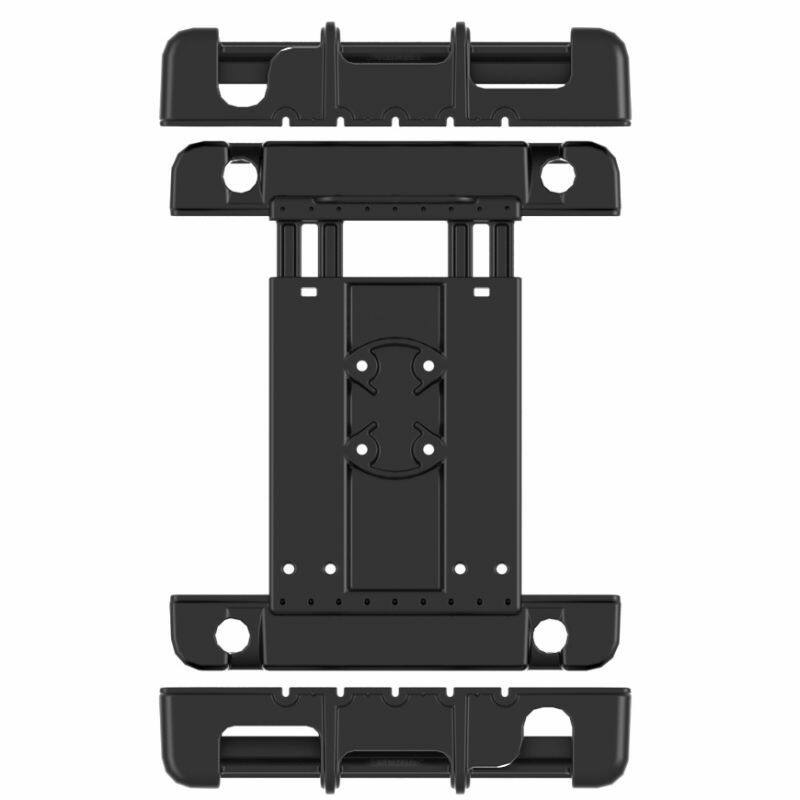

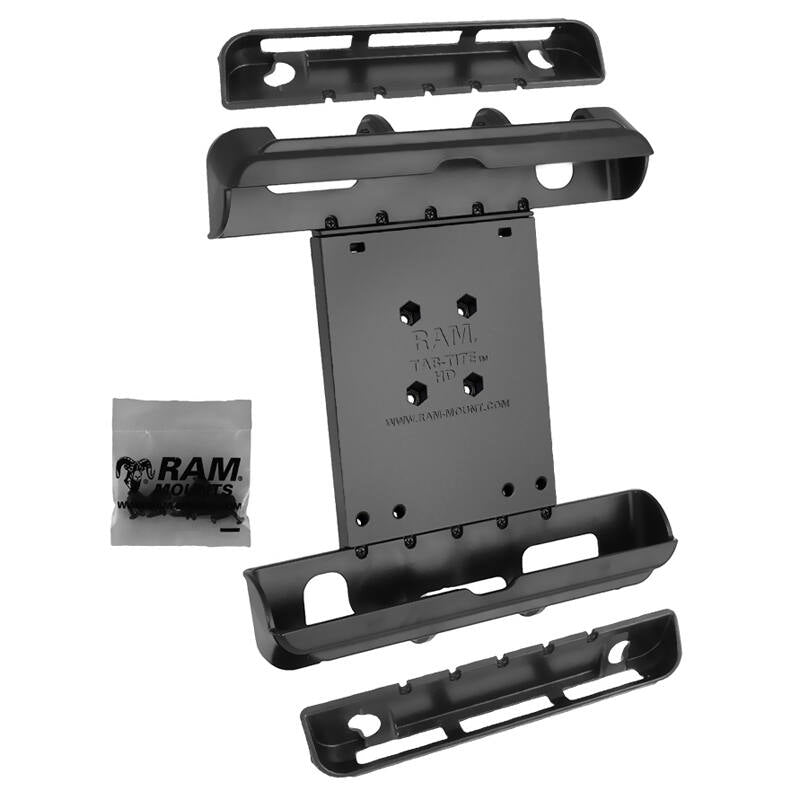

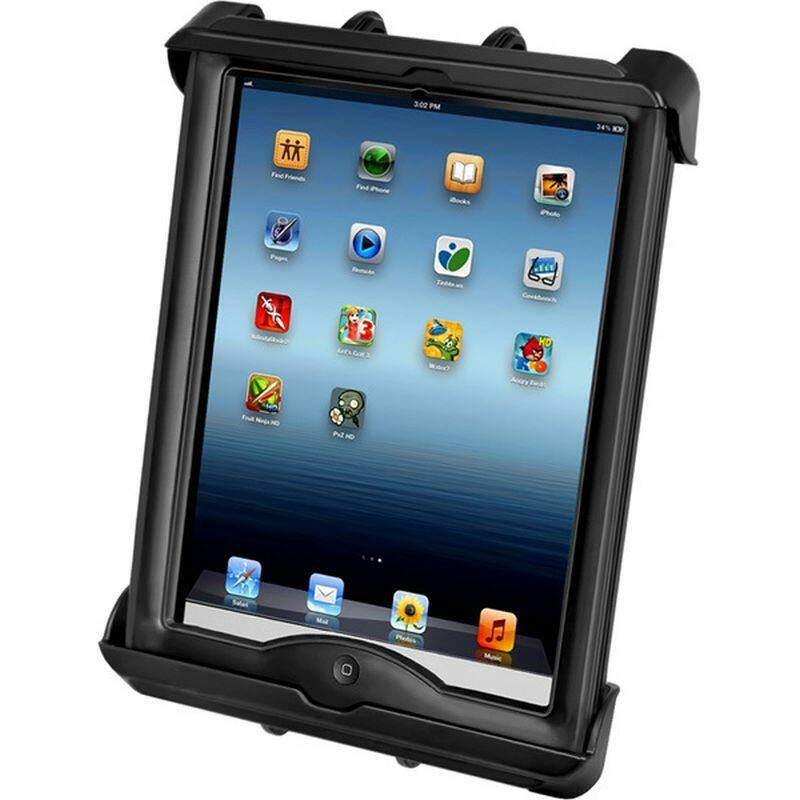

The Tab-Tite cradle fits full sized Apple iPads and other 10" tablets. With 2 sets of interchangeable cup ends, ranging from different sizes and features, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this new RAM product is just what you need to get the most out of your mobile device.
The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. Please verify the dimensions of your tablet with a case/sleeve/skin when determining the overall size.
Holder Dimensions
H: 216mm to 298mm (8.5" - 11.75")
W: 197mm to 209mm (7.75" - 8.25")
D: 14mm to 28mm (.56" - 1.1")
Compatible Devices include
10" Tablets with LifeProof nd cases
10" Tablets with Lifedge cases
10" Tablets with Heavy duty cases
Apple
iPad 4
iPad 3
iPad 2
iPad 1
iPad Air 2
iPad Air
HP
TouchPad
Samsung
Galaxy Note 10.1
Hole Pattern (round base plates)
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Plate Size
63.5mm / 2.5" Diameter
Arm Dimensions:
Overall Length:
152 mm (6 inches)
Socket-To-Socket Length:
134 mm (5.25 inches)
Ball/Socket Size
B Size (1")
Weight Capacity
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)
Materials
Marine-grade aluminium
High strength composite
Components:
RAM-HOL-TAB-LGU TAB-TITE KIT LARGE TABLETS
RAM-B-201U-C DBL SOCKET ARM B BALL C LENGTH
RAM-B-202U 62mm DIA.BASE WITH 1" BALL (x2)
