RAM Tab-Tite Cradle - Large Tablets with Suction Cup Base (incl iPad)

RAM-B-166-TAB-LGU RAM® Tab-Tite™ Suction Cup Mount for Large Tablets

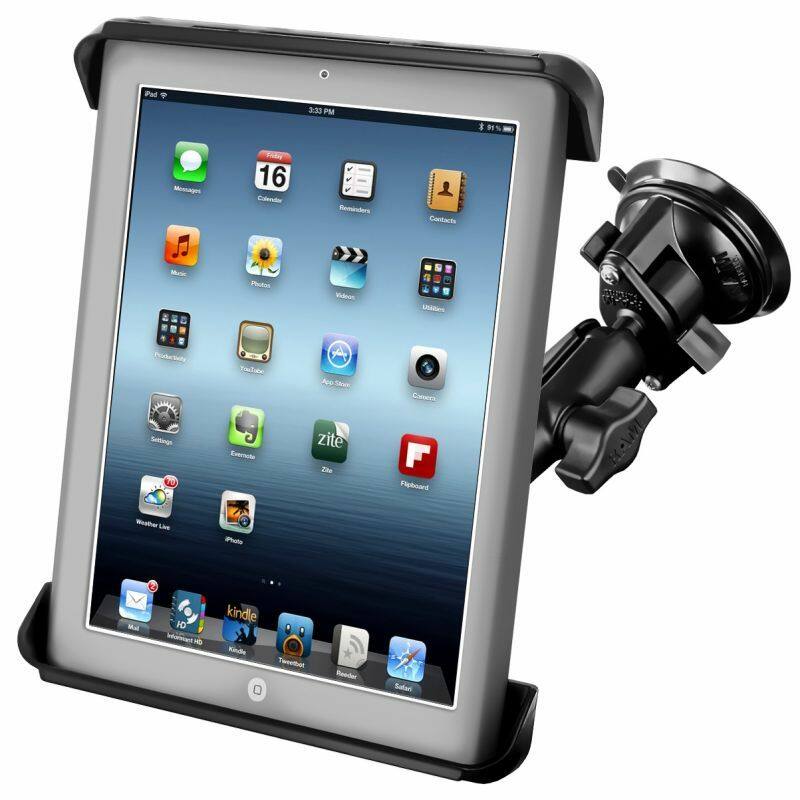

The RAM-B-166-TAB-LGU is a complete RAM® suction cup mount for 10" tablets in LifeProof nüüd, Lifedge and other heavy-duty cases. It pairs the spring-loaded RAM® Tab-Tite™ cradle with a RAM® Twist-Lock™ suction base and a medium B-size arm, and ships with two sets of interchangeable cup ends to fit a range of large tablets.

Key Features

• Complete mount: cradle, suction base and arm in one kit, with two cup-end sets included.
• Sized for rugged cases: fits full-size iPads, the Samsung Galaxy Note 10.x series and other 10" tablets in LifeProof or heavy-duty cases.
• Twist-Lock suction base: 83.8mm (3.3") cup grips glass and smooth, non-porous surfaces. Use a RAM® adhesive disk for textured dashboards.
• Infinite adjustment: B-size 1" ball at each end of the double socket arm, locked with a single knob.
• Built to last: powder-coated marine-grade aluminium and high-strength composite, backed by RAM®'s lifetime warranty.

Works With

Suits 10" tablets in LifeProof nüüd, Lifedge and heavy-duty cases that fit the holder dimensions below. Mounts to windscreens, glass and other smooth, non-porous surfaces.

Compatible Devices

Apple

• iPad 1, 2, 3, 4 (with LifeProof or heavy-duty case)
• iPad Air, iPad Air 2 (with LifeProof or heavy-duty case)

HP

• TouchPad

Samsung

• Galaxy Note 10.1

Plus other 10" tablets in LifeProof nüüd, Lifedge or heavy-duty cases that fit the holder dimensions below.

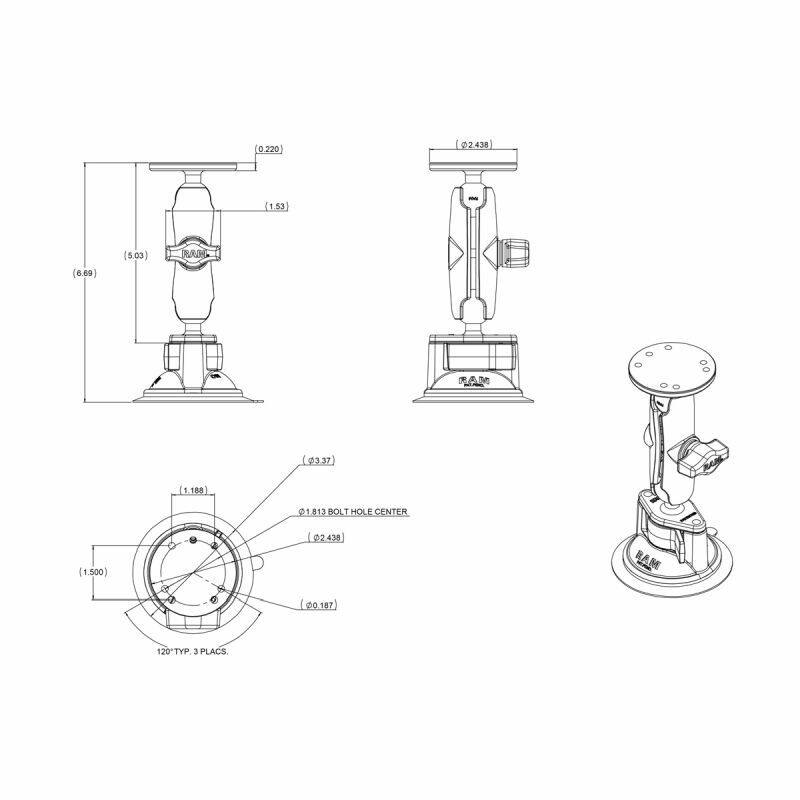

Dimensions & Specifications

• Holder height range: 216–298mm (8.5"–11.75")
• Holder width range: 197–209mm (7.75"–8.25")
• Holder depth range: 14–28mm (0.56"–1.1")
• Suction cup diameter: 83.8mm (3.3")
• Ball size: B Series 1"
• Arm length: 94mm (3.69") overall, 76mm (3") socket-to-socket
• Load rating: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
• Material: powder-coated marine-grade aluminium and high-strength composite
• Weight: 313g (0.69 lb)

What's Included

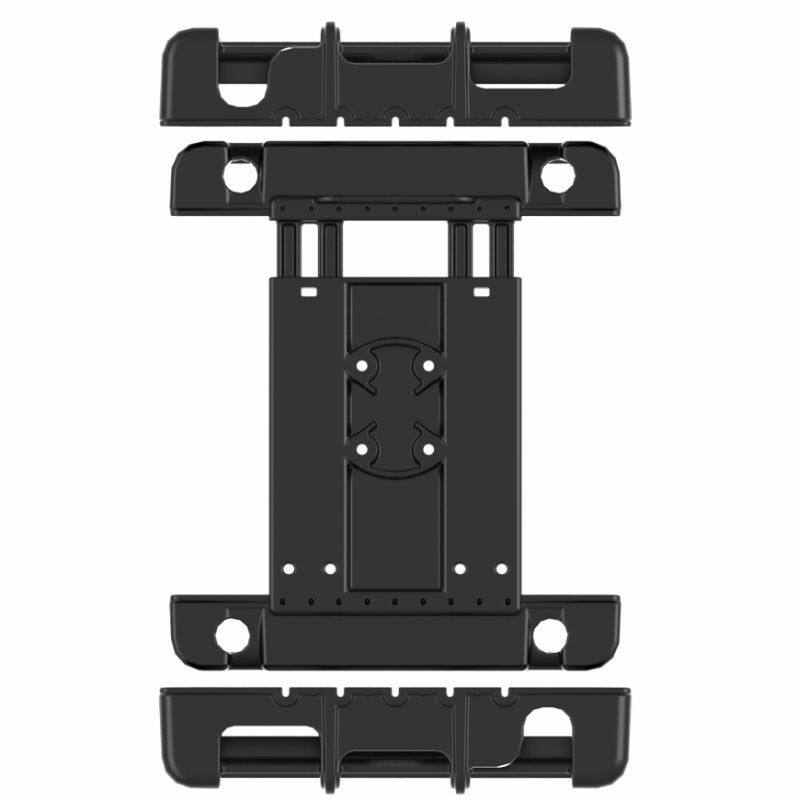

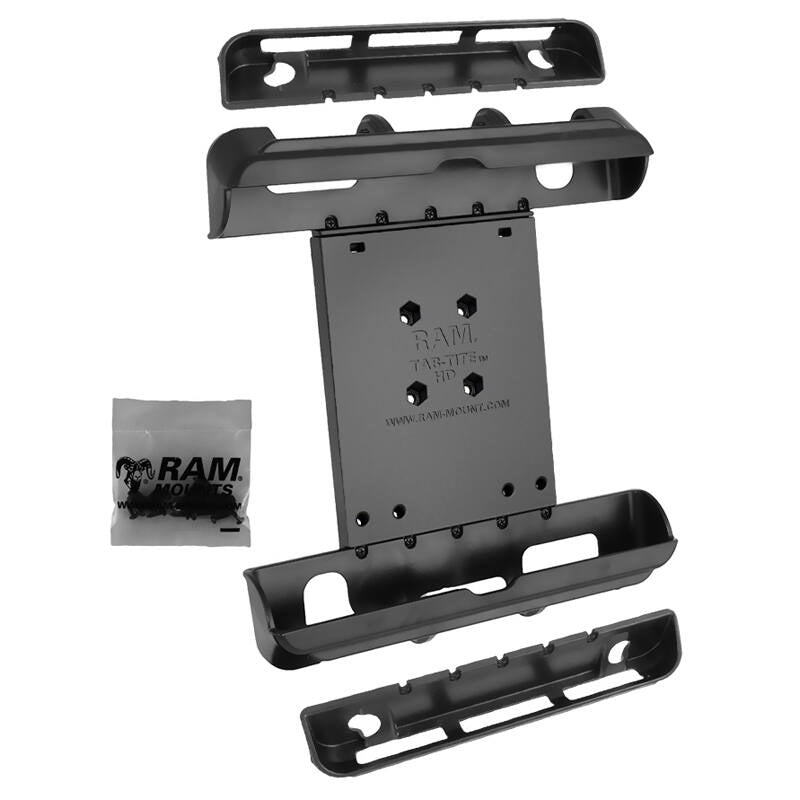

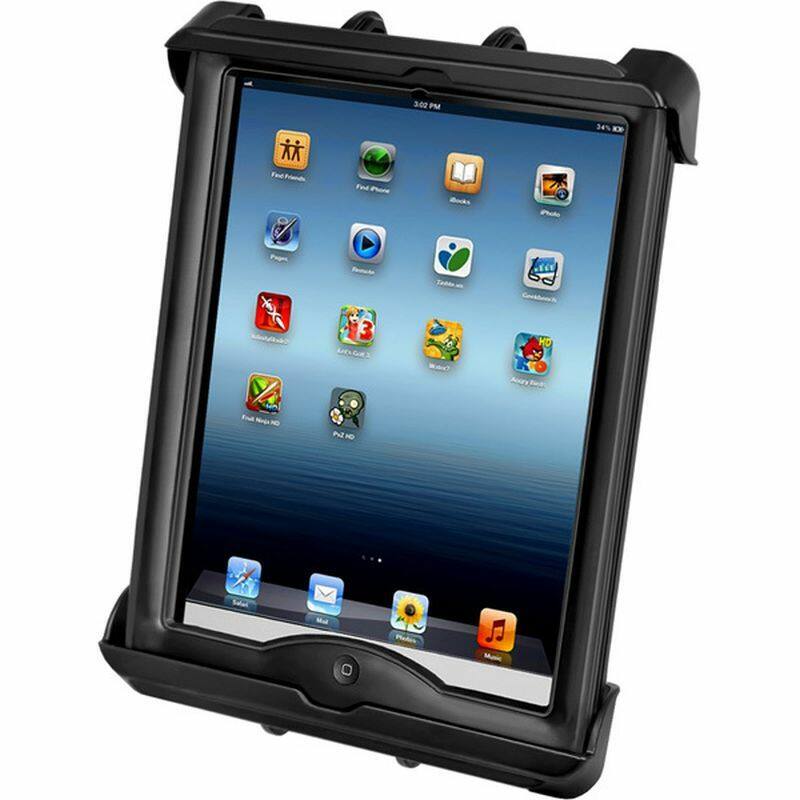

• RAM® Tab-Tite™ spring-loaded cradle (back plate)
• Two sets of interchangeable cup ends

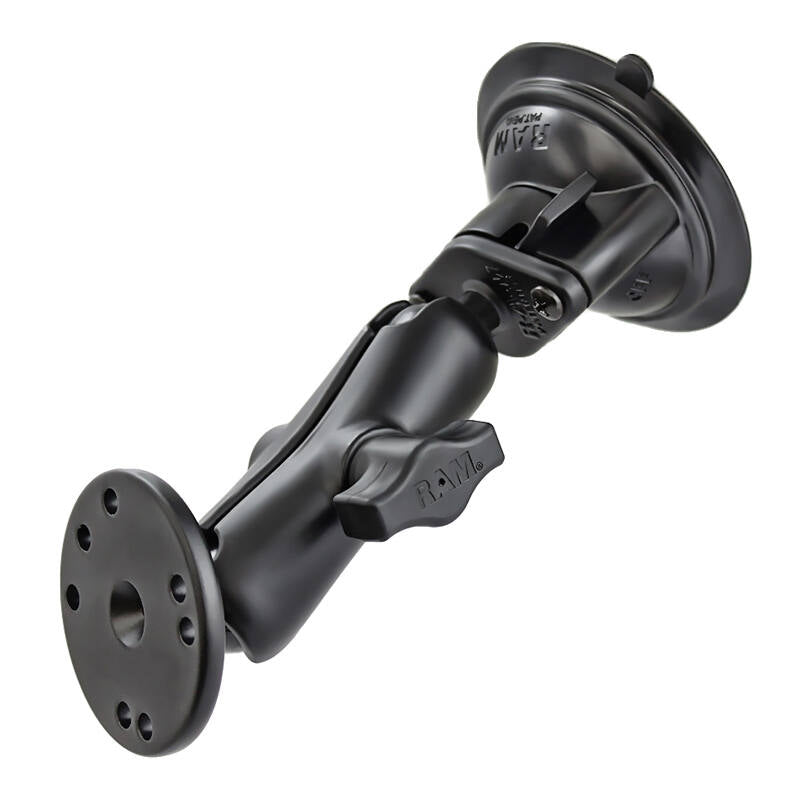

• RAM® Twist-Lock™ suction cup base with 1" ball
• RAM® medium double socket arm
• Diamond base adapter with 1" ball
• Assembly hardware

FAQs

Does it fit an iPad in a LifeProof case? Yes, this kit is built for 10" tablets in LifeProof nüüd, Lifedge and other heavy-duty cases, and includes two cup sets to suit different sizes.

Will it hold on my dashboard? The suction base needs a smooth, non-porous surface like glass. For a textured dash, use a RAM® adhesive disk and suction to that.

How fast does it ship? Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.

Videos

Watch the RAM® Tab-Tite™ overview on YouTube
