RAM Tab-Tite Cradle - Samsung Active2, Active3 and Active5 with 1.5" Ball Base

RAM-HOL-TAB-SAM29-202U RAM® Tab-Tite™ Holder for Samsung Tab Active2/3/5 with Round Base & 1.5" Ball

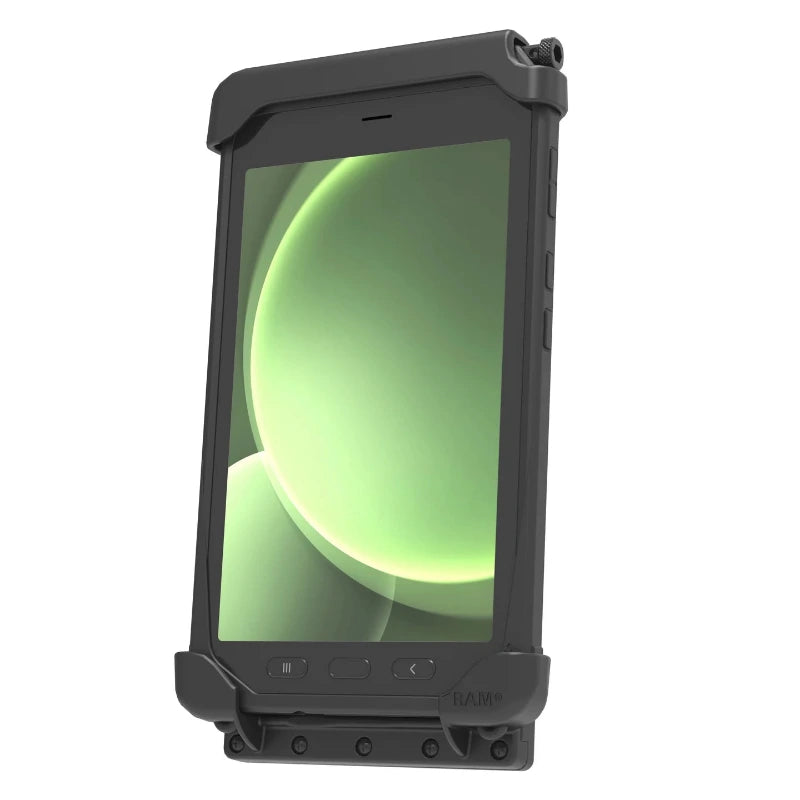

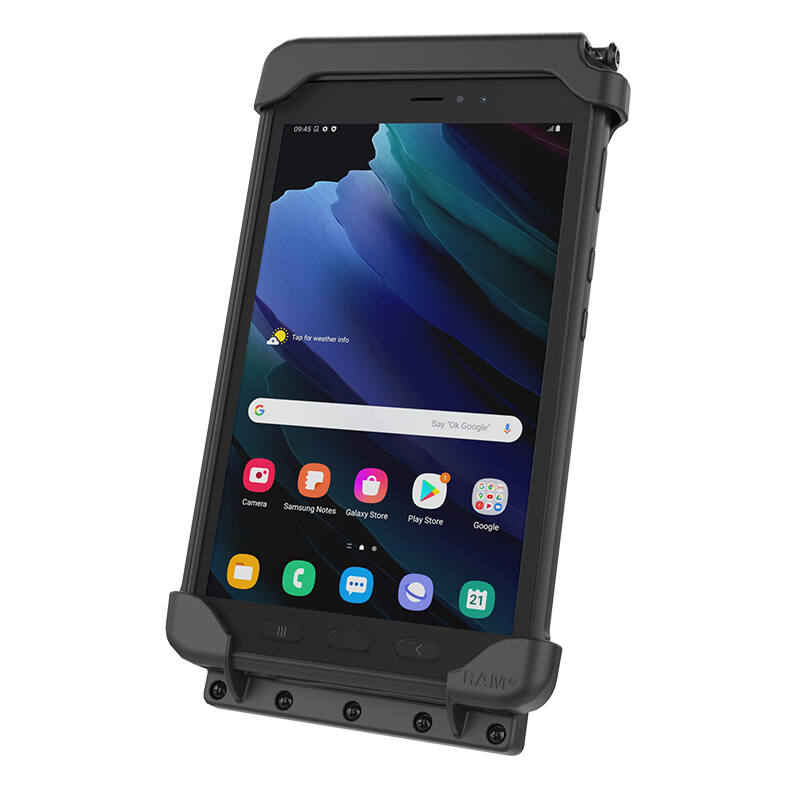

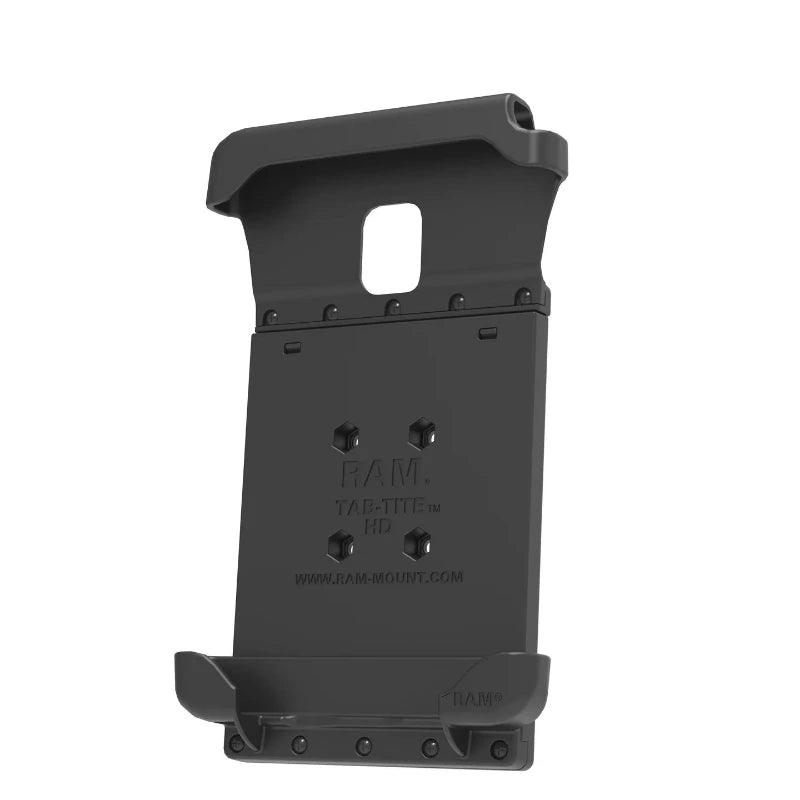

The RAM-HOL-TAB-SAM29-202U is a spring-loaded, quick-release Tab-Tite™ cradle with end cups sized for the Samsung Galaxy Tab Active2, Active3 and Active5 (in the OEM case or a RAM® Skin™), paired with a 1.5" C-size RAM® round ball base.

Key Features

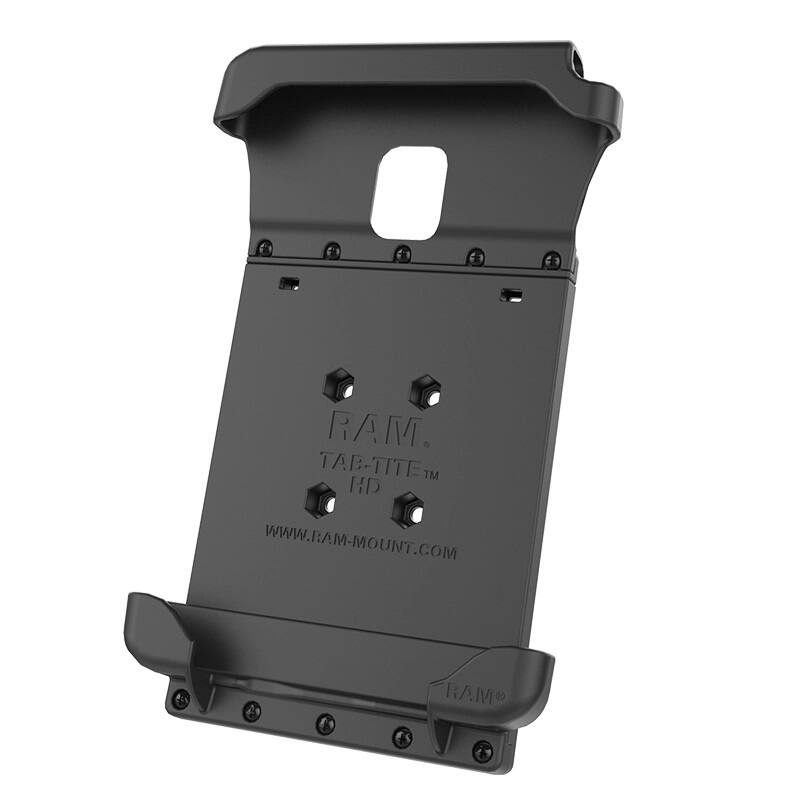

• Spring-loaded holder secures the Samsung Tab Active 2/3/5

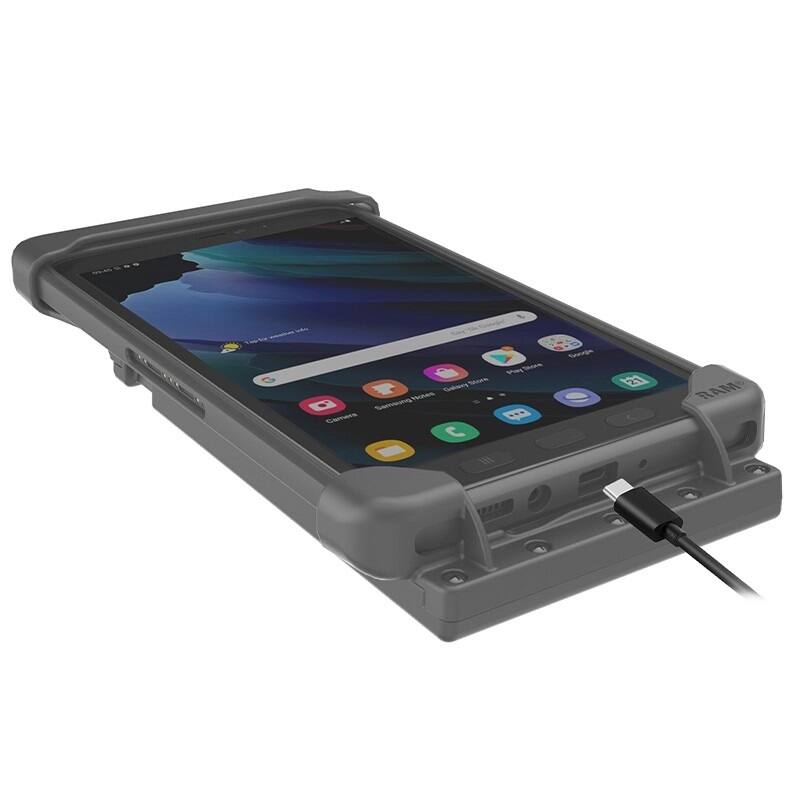

• Bottom cup exposes the charge port, supporting the Tab Active's battery-bypass feature when no battery is installed

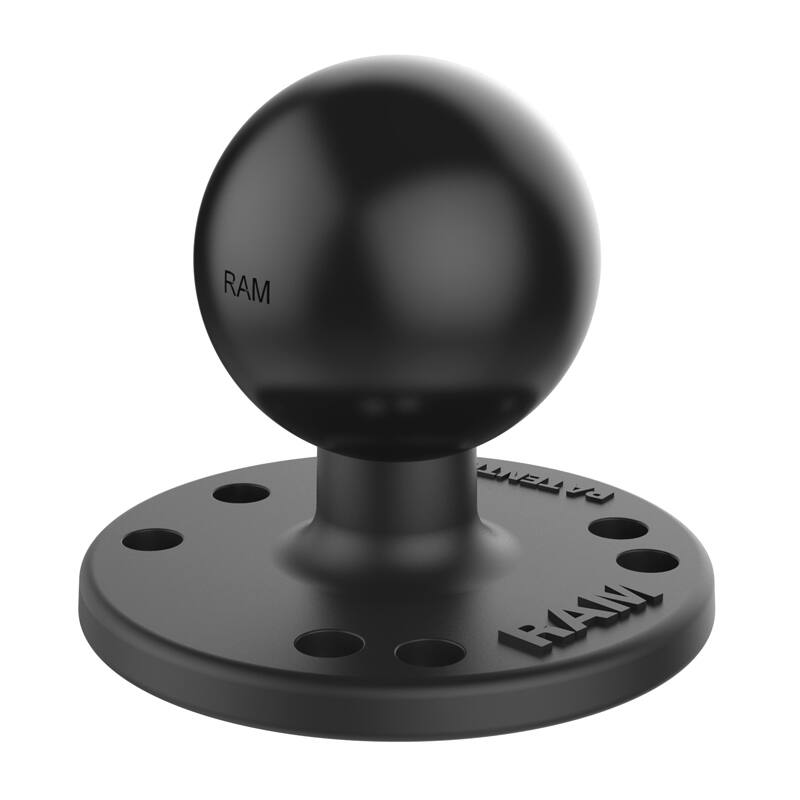

• Includes a C-size RAM® round ball base for attaching a C-size double socket arm
• Ball-and-socket technology allows near-infinite adjustability
• High-strength composite and powder-coated marine-grade aluminium construction
• Backed by a lifetime warranty

Compatible Devices

Samsung

• Galaxy Tab Active2
• Galaxy Tab Active3
• Galaxy Tab Active5

Dimensions & Specifications

• Overall dimensions: height 200mm (7 7/8"); width 139.7mm (5 1/2"); thickness 41.3mm (1 5/8")

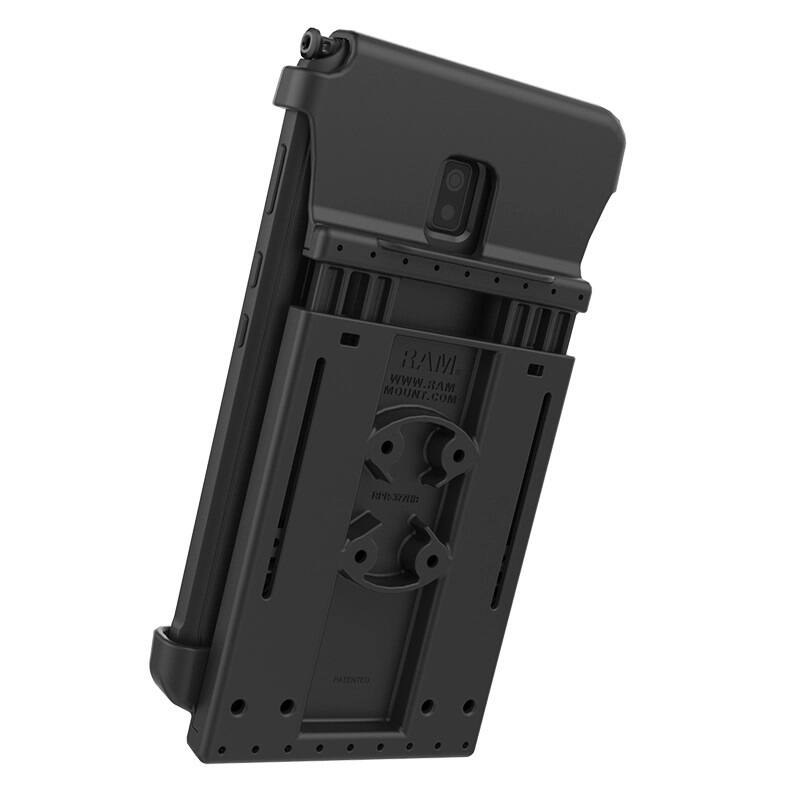

• Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496")
• Ball size: 1.5" rubber ball, C Size
• Material: high-strength composite, powder-coated marine-grade aluminium
• Weight: 372g (0.82 lbs)

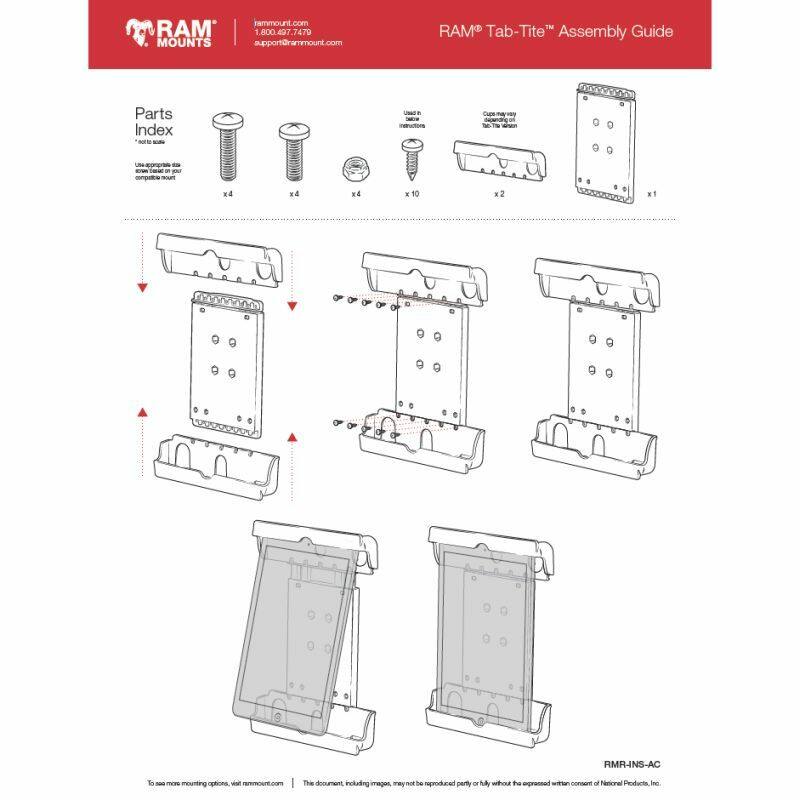

• Hardware included: assembly hardware — 4x #8-32 x 5/8" machine screws, 4x #8-32 x 1/2" machine screws, 4x #8-32 nylock nuts

FAQs

Does the AMPS mounting position stay centred when I rotate from portrait to landscape?
Yes — the hole pattern sits in the centre of the holder, so it stays in approximately the same position when rotating between portrait and landscape.
