RAM Tab-Tite End Cups for Panasonic FZ-G2 & FZ-A3

RAM-HOL-TAB34-CUPSU RAM® Tab-Tite™ End Cups for Panasonic FZ-G2 & FZ-A3

The RAM-HOL-TAB34-CUPSU is a replacement pair of RAM® Tab-Tite™ end cups for the Panasonic FZ-G2 and FZ-A3, as well as the Getac UX10. They snap onto any RAM® Tab-Tite™ or Tab-Lock™ backplate, so you can re-fit an existing cradle to a new device instead of buying a complete new mount.

Key Features

• Interchangeable RAM® Tab-Tite™ end cups for the Panasonic FZ-G2, FZ-A3 and Getac UX10
• Fit any RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU)
• High-strength composite construction for demanding environments
• Backed by RAM Mounts' lifetime warranty

Works With

Supplied as the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to make up a complete cradle. Once assembled, the cradle pairs with any RAM® ball-and-socket arm or base.

Compatible Devices

Getac

• UX10

Panasonic

• Toughbook FZ-G2
• Toughbook FZ-A3

Dimensions & Specifications

• Fits devices (in their case) within: height 266.7 to 317.5mm (10.5" to 12.5"), width 187.7 to 200.2mm (7.39" to 7.88"), depth 25.4 to 31.8mm (1" to 1.25")
• Material: high-strength composite
• Weight: 150 grams (0.33 lb)

What's Included

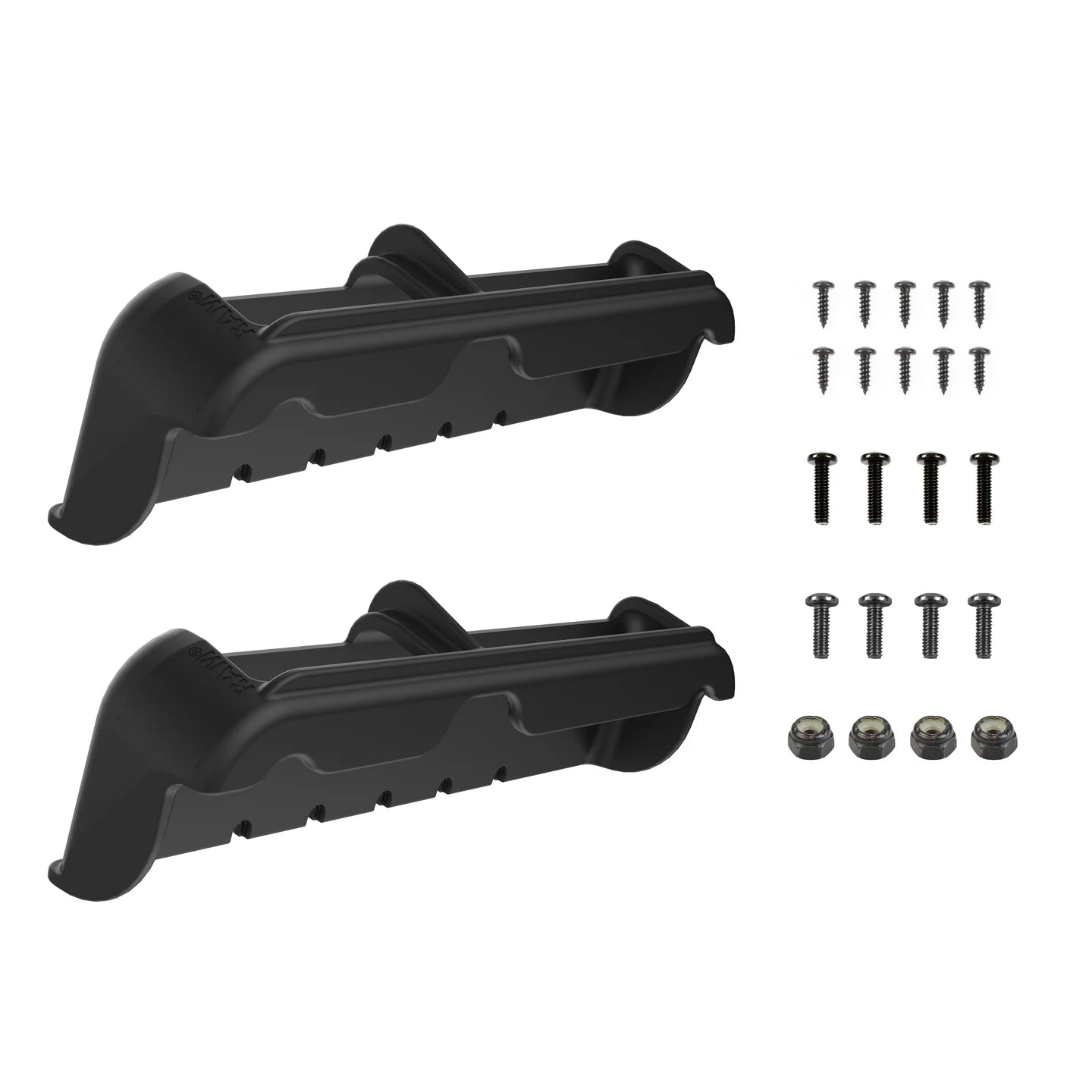

• 2 x RAM® Tab-Tite™ cup ends
• Mounting hardware: 10 x #4 x 3/8" sheet metal screws, 4 x #8-32 x 5/8" machine screws, 4 x #8-32 x 1/2" machine screws, 4 x #8-32 Nylock nuts

FAQs

Do these include the backplate? No, these are the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to build a complete cradle.

Will they fit my rugged tablet? These cups are custom-fitted to the FZ-G2, FZ-A3 and Getac UX10. Measure your device and compare with the dimensions above.
