RAM Tab-Tite Locking Cradle - Panasonic Toughpad FZ-A1 Tablet + More

RAM-HOL-TABL10U RAM® Tab-Lock™ Locking Cradle for Panasonic Toughpad FZ-A1 + More

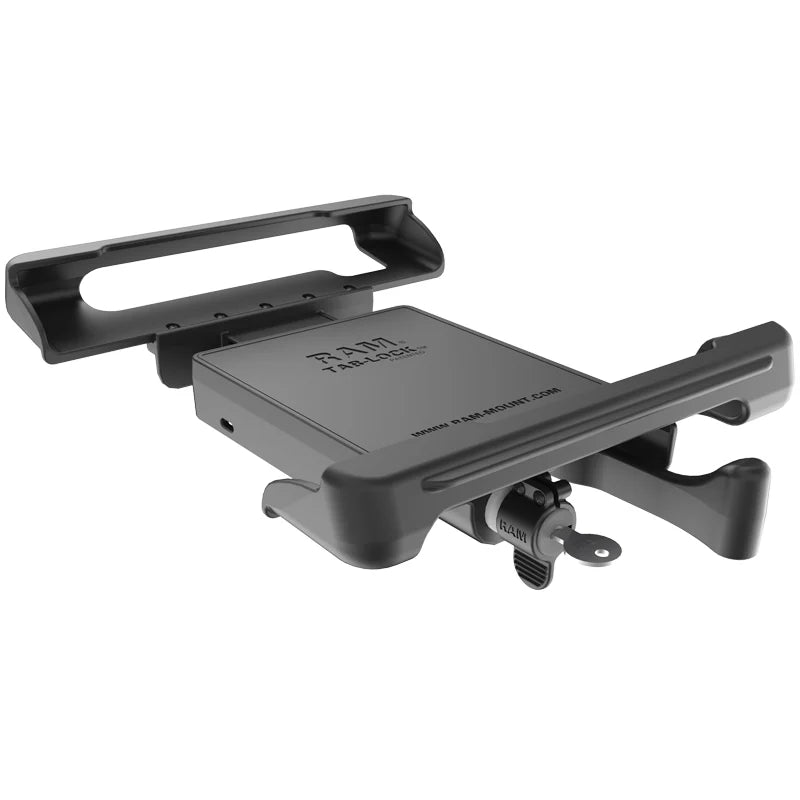

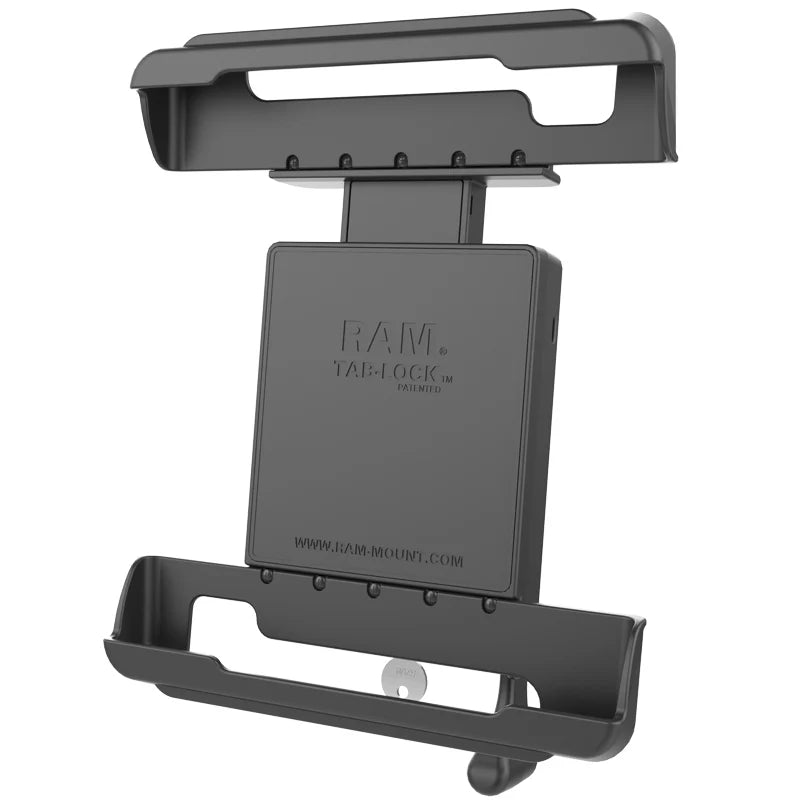

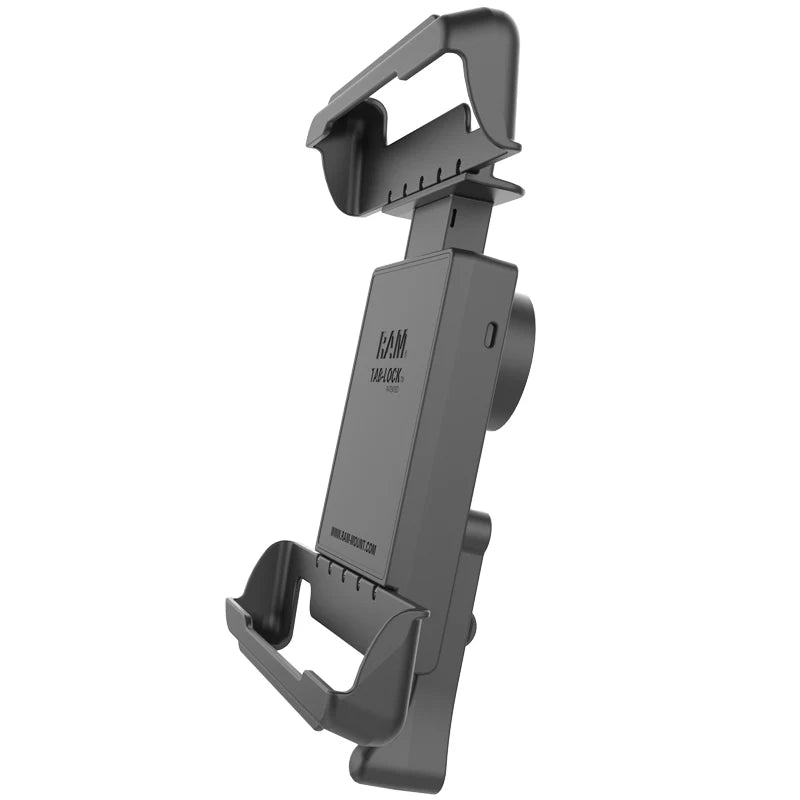

The RAM-HOL-TABL10U is a key-locking version of RAM's Tab-Tite™ cradle built for the Panasonic Toughpad FZ-A1 and a range of rugged tablets and 2-in-1s. It shares the same cradle body and AMPS mounting pattern as the standard Tab-Tite cradle, with a spring-loaded backplate, keyed lock, and interchangeable support cups for a secure, tool-free release.

Key Features

• Key-locking mechanism deters theft and unwanted tampering in public or shared settings
• Spring-loaded backplate with interchangeable support cups for a secure, quick-release fit
• Open-slotted support cups keep audio jacks, USB, power, and other ports accessible while mounted
• Manufactured from high-strength composite for durability in demanding environments
• Backed by RAM's lifetime warranty

Works With

Attaches to any RAM component or mount with the standard 4-hole AMPS pattern using the included hardware. Support cups are field-replaceable, so the same backplate and lock can be re-fitted for a different device down the track.

Dimensions & Specifications

• Fits tablets: 247–305mm H x 162–219mm W x 3.3–25.4mm D (9.75"–12" x 6.38"–8.62" x 0.13"–1")

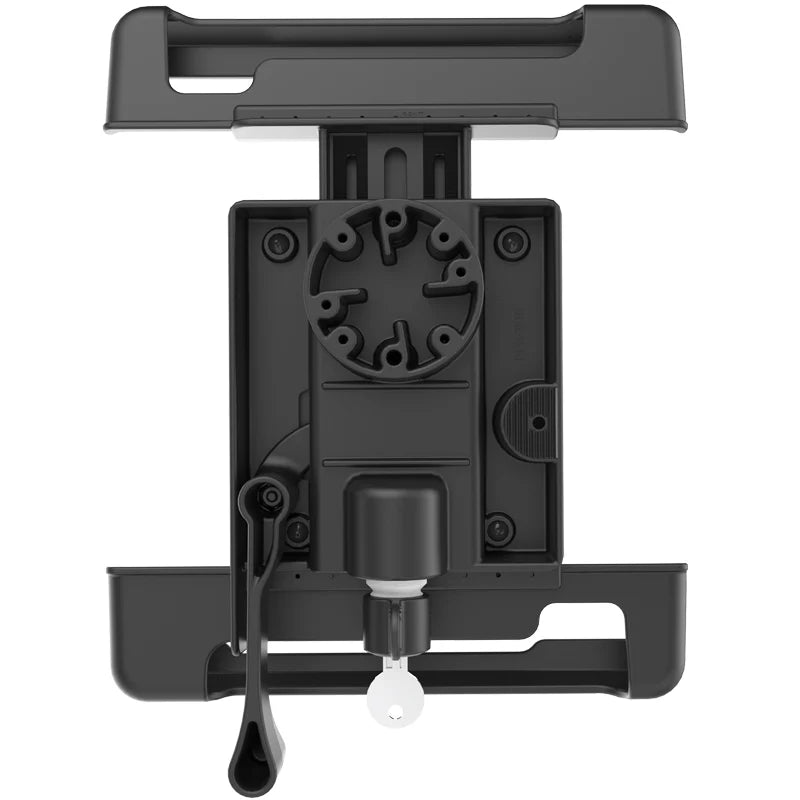

• Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496")
• Weight: 625g (1.38 lbs)
• Material: high-strength composite

Compatible Devices

Dell

• Latitude 5285

HP

• Pro X2 612

Panasonic

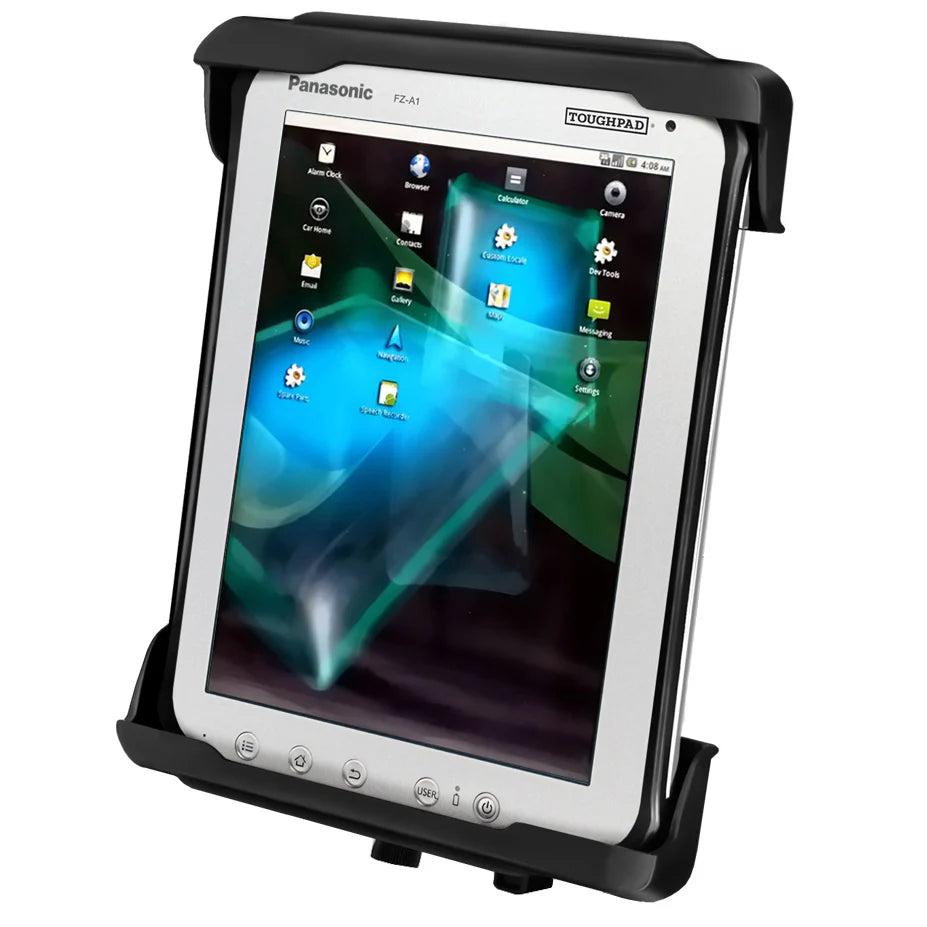

• Toughpad FZ-A1

Microsoft

• Surface 4 Pro in Incepto Case (needs RAM-HOL-TAB-RISER2U if used with a hand strap)

What's Included

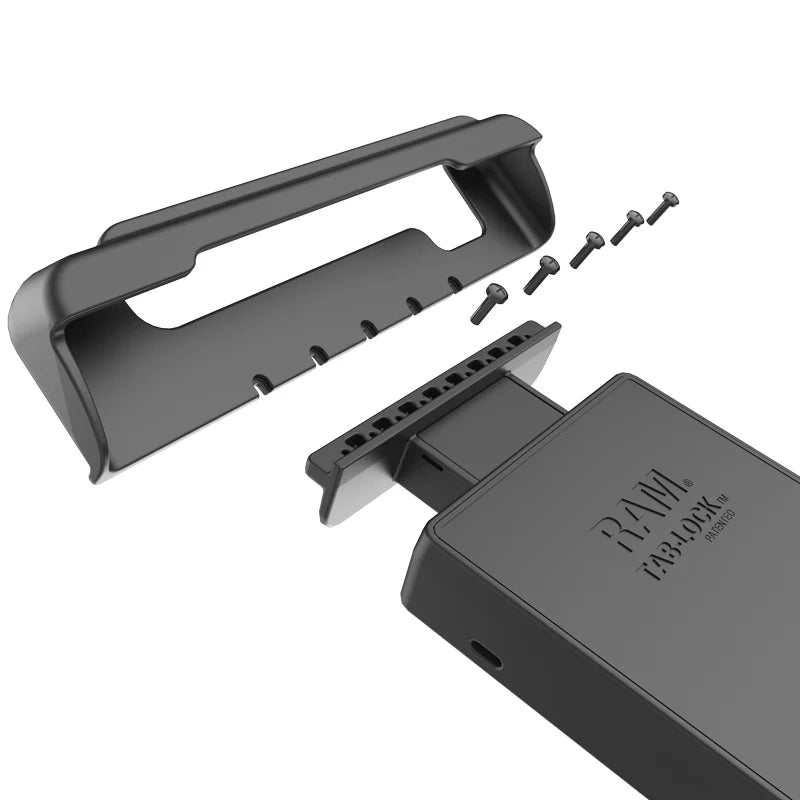

• RAM® Tab-Lock™ spring-loaded, key-locking cradle (backplate, support cups, and lock)
• 2 keys
• Assembly hardware: (4) #8-32 x 5/8" machine screws, (4) #8-32 x 1/2" machine screws, (4) #8-32 Nylock nuts

Product consists of holder only — tablet and case not included.

FAQs

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Will this fit my tablet if it's not listed? Check your tablet's dimensions against the sizes above — any tablet within that range will fit, even if the exact model isn't named.

What's the difference between this and the standard Tab-Tite cradle? The Tab-Lock version adds a key-locking mechanism to the same cradle body, for use in public or shared vehicles where theft deterrence matters.
