RAM Mounts

RAM Tab-Tite - Replacement Top Cups for RAM-HOL-TAB20U

Name: RAM Tab-Tite - Replacement Top Cups for RAM-HOL-TAB20U
Brand: RAM Mounts
SKU: RAM-HOL-TAB20-CUPSU
Price: 40.00 NZD
Availability: InStock

$40.00 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

19 in stock

Quantity

RAM-HOL-TAB20-CUPSU RAM® Tab-Tite™ End Cups for 9"-10.5" Tablets with Heavy-Duty Cases

The RAM-HOL-TAB20-CUPSU is a replacement pair of RAM® Tab-Tite™ end cups for most 9-10.5" tablets in heavy-duty cases. They snap onto any RAM® Tab-Tite™ or Tab-Lock™ backplate, so you can re-fit an existing cradle to a new device instead of buying a complete new mount.

Key Features

Interchangeable RAM® Tab-Tite™ end cups for most 9-10.5" tablets in heavy-duty cases
Fit any RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU)
High-strength composite construction for demanding environments
Backed by RAM Mounts' lifetime warranty

Works With

Supplied as the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to make up a complete cradle. Once assembled, the cradle pairs with any RAM® ball-and-socket arm or base.

Compatible Devices

View the full compatible device list

Apple

iPad (5th Generation) with Case
iPad (6th Generation) with Case
iPad (7th Generation) with Case
iPad 9.7 (2017) with Case
iPad 9.7 (2018) with Case
iPad Air with Case
iPad Air 2 with Case
iPad Pro 10.5 (2nd Generation) with Case

ASUS

ZenPad 10 with Case
ZenPad 3S 10 with Case
ZenPad Z10 with Case

Huawei

MediaPad M2 10.0 with Case

Lenovo

Tab 2 A10-70 with Case
Tab 4 10 with Case
Tab 4 10 Plus with Case
Tab3 10 Business with Case
Yoga Tab 3 10 with Case

LG

G Pad 10.1 with Case
G Pad II 10.1 with Case
G Pad X 10.1 with Case
G Pad X II 10.1 with Case

Samsung

Galaxy Tab 10.1 with Case
Galaxy Tab 3 10.1 with Case
Galaxy Tab 8.9 with Case
Galaxy Tab A 9.7 with Case
Galaxy Tab A 10.5 with Case
Galaxy Tab Active Pro with Case
Galaxy Tab E 9.6 with Case
Galaxy Tab Pro 10.1 with Case
Galaxy Tab S2 9.7 with Case
Galaxy Tab S3 9.7 with Case
Galaxy Tab S4 10.5 with Case
Galaxy Tab S6 with Case

Sony

Xperia Tablet Z with Case

Vankyo

MatrixPad Z4 10"

Dimensions & Specifications

Fits devices (in their case) within: height 241 to 308mm (9.5" to 12.125"), width 166 to 189mm (6.55" to 7.43"), depth 7.6 to 22mm (0.3" to 0.875")
Material: high-strength composite
Weight: 140 grams (0.31 lb)

What's Included

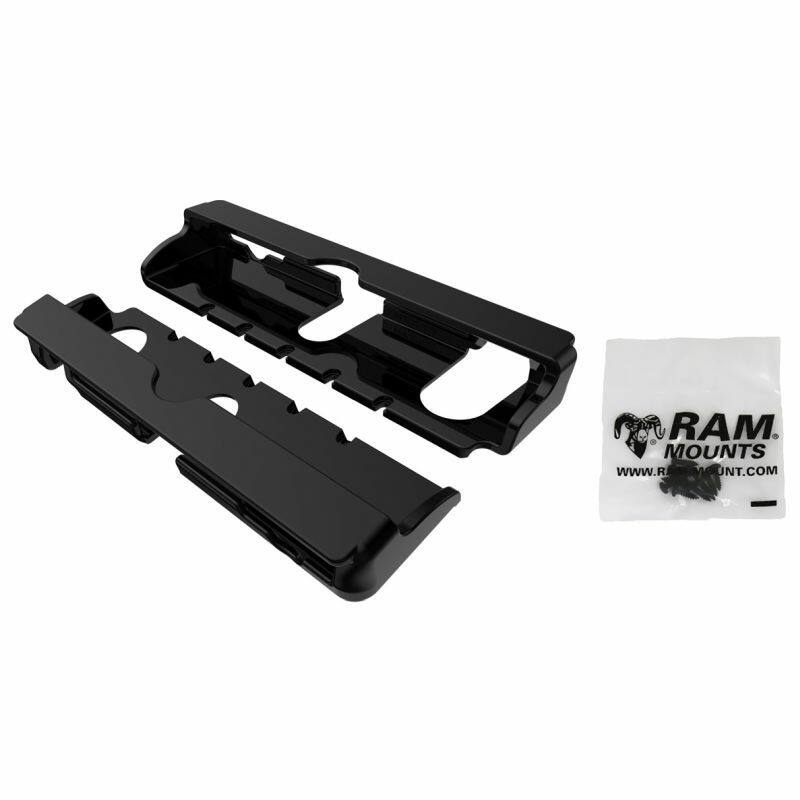

2 x RAM® Tab-Tite™ cup ends
Mounting hardware: 10 x #4 x 3/8" sheet metal screws, 4 x #8-32 x 5/8" machine screws, 4 x #8-32 x 1/2" machine screws, 4 x #8-32 Nylock nuts

FAQs

Do these include the backplate? No, these are the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to build a complete cradle.

Will they fit my tablet in a rugged case? Any 9-10.5" tablet, in a heavy-duty case, that sits within the dimensions above will fit. Measure your device in its case and compare.
