RAM Tab-Tite - Replacement Top Cups for RAM-HOL-TAB23U

RAM-HOL-TAB23-CUPSU RAM® Tab-Tite™ End Cups for 7-8" Tablets with Cases

The RAM-HOL-TAB23-CUPSU is a replacement pair of RAM® Tab-Tite™ end cups for most 7-8" tablets in rugged cases. They snap onto any RAM® Tab-Tite™ or Tab-Lock™ backplate, so you can re-fit an existing cradle to a new device instead of buying a complete new mount.

Key Features

• Interchangeable RAM® Tab-Tite™ end cups for most 7-8" tablets in cases
• Fit any RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU)
• High-strength composite construction for demanding environments
• Backed by RAM Mounts' lifetime warranty

Works With

Supplied as the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to make up a complete cradle. Once assembled, the cradle pairs with any RAM® ball-and-socket arm or base.

Compatible Devices

Samsung

• Galaxy Tab 4 8.0 with Otterbox Defender Case
• Galaxy Tab S 8.4 with Otterbox Defender Case
• Galaxy Tab E 8.0 with Verizon Rugged Case
• Galaxy Tab Active2

Dimensions & Specifications

• Fits devices (in their case) within: height 211.3 to 277.4mm (8.32" to 10.92"), width 112.5 to 134.6mm (4.43" to 5.3"), depth 3.3 to 15.75mm (0.13" to 0.62")
• Material: high-strength composite
• Weight: 91 grams (0.2 lb)

What's Included

• 2 x RAM® Tab-Tite™ cup ends
• Mounting hardware: 10 x #4 x 3/8" sheet metal screws, 4 x #8-32 x 5/8" machine screws, 4 x #8-32 x 1/2" machine screws, 4 x #8-32 Nylock nuts

FAQs

Do these include the backplate? No, these are the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to build a complete cradle.

Will they fit my tablet in a rugged case? Any 7-8" tablet, in its case, that sits within the dimensions above will fit. Measure your device in its case and compare.

Videos

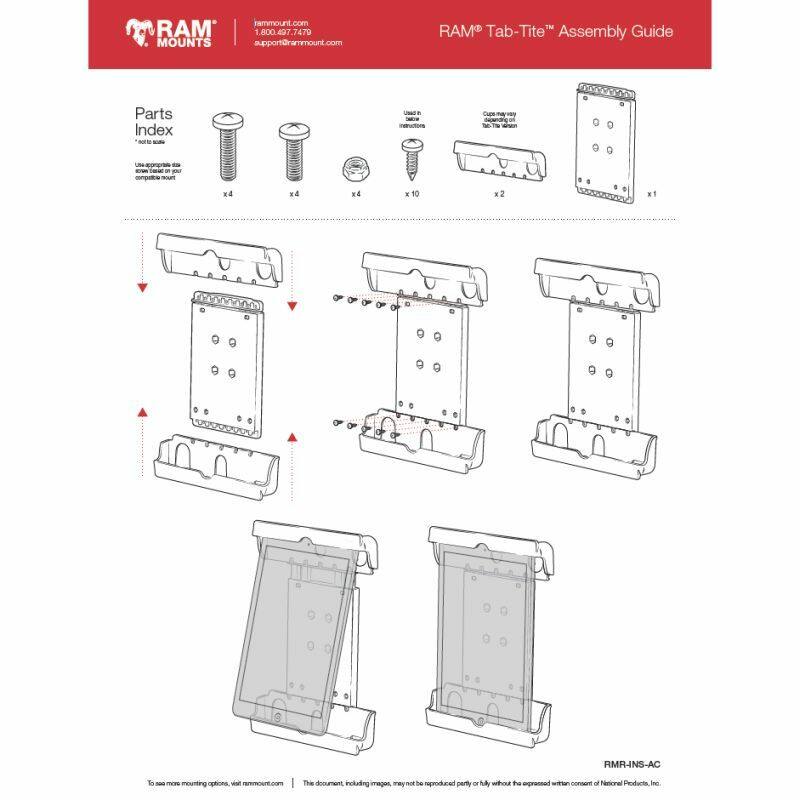

Watch the RAM® Tab-Tite™ assembly video
