RAM Tab-Tite - Replacement Top Cups for RAM-HOL-TAB27U

RAM-HOL-TAB27-CUPSU RAM® Tab-Tite™ End Cups for 8" Tablets

The RAM-HOL-TAB27-CUPSU is a replacement pair of RAM® Tab-Tite™ end cups for most 8" tablets, including the Apple iPad mini 2/3 and Samsung Galaxy Tab A 8.0. They snap onto any RAM® Tab-Tite™ or Tab-Lock™ backplate, so you can re-fit an existing cradle to a new device instead of buying a complete new mount.

Key Features

• Interchangeable RAM® Tab-Tite™ end cups for most 8" tablets
• Fit any RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU)
• High-strength composite construction for demanding environments
• Backed by RAM Mounts' lifetime warranty

Works With

Supplied as the cup ends only. A RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) is required to complete the cradle and is not included with this part. Once assembled, the cradle pairs with any RAM® ball-and-socket arm or base.

Compatible Devices

Apple

• iPad mini 2
• iPad mini 3

Dell

• Venue 8 (2014)
• Venue 8 Pro
• Venue 8 Pro 5855

Huawei

• MediaPad T1 8.0

Lenovo

• Ideapad Miix 300

LG

• G Pad F2 8.0
• G Pad X II 8.0

Nvidia

• Shield Tablet

Samsung

• Galaxy Tab A 8.0
• Galaxy Tab Pro 8.4

Dimensions & Specifications

• Fits devices (in their case) within: height 200 to 263.6mm (7.88" to 10.38"), width 109.2 to 134.6mm (4.3" to 5.3"), depth 0 to 9.4mm (0" to 0.37")
• Material: high-strength composite
• Weight: 82 grams (0.18 lb)

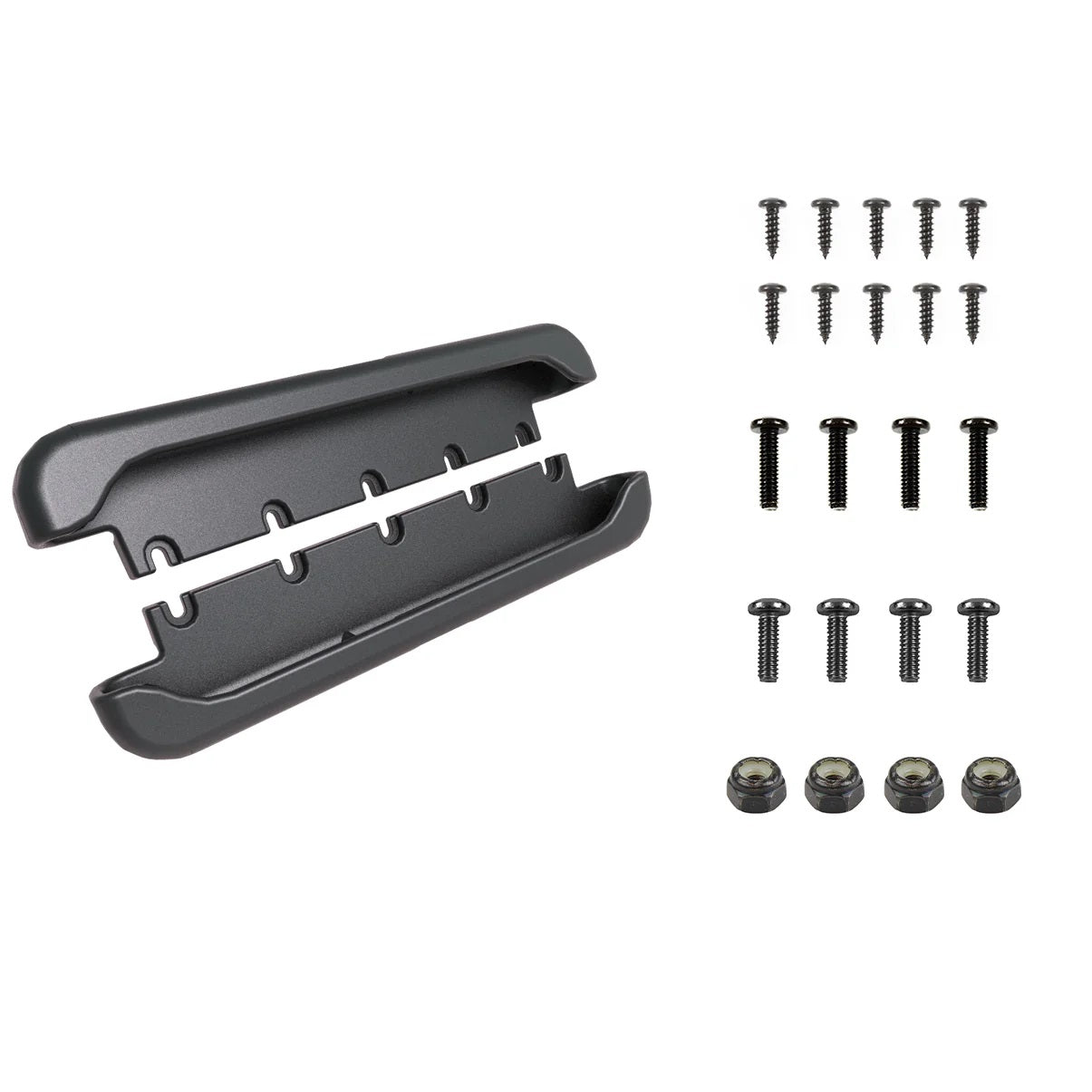

What's Included

• 2 x RAM® Tab-Tite™ cup ends
• Mounting hardware: 10 x #4 x 3/8" sheet metal screws, 4 x #8-32 x 5/8" machine screws, 4 x #8-32 x 1/2" machine screws, 4 x #8-32 Nylock nuts

FAQs

Do these include the backplate? No. A RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) is required and is not included with this part.

Will they fit my tablet? Any 8" tablet that sits within the dimensions above will fit. Measure your device in its case and compare.

Videos

Watch the RAM® Tab-Tite™ assembly video
