RAM Tab-Tite - Replacement Top Cups for RAM-HOL-TAB4U

Name: RAM Tab-Tite - Replacement Top Cups for RAM-HOL-TAB4U
Brand: RAM Mounts
SKU: RAM-HOL-TAB4-CUPSU
Price: 29.30 NZD
Availability: InStock

$29.30 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Low stock: 3 left

Quantity

RAM-HOL-TAB4-CUPSU RAM® Tab-Tite™ End Cups for 7"-8" Tablets with Cases

The RAM-HOL-TAB4-CUPSU is a replacement pair of RAM® Tab-Tite™ end cups for 7-8" tablets in cases. They snap onto any RAM® Tab-Tite™ or Tab-Lock™ backplate, so you can re-fit an existing cradle to a new device instead of buying a complete new mount.

Key Features

Interchangeable RAM® Tab-Tite™ end cups for 7-8" tablets with cases
Fit any RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU)
High-strength composite construction for demanding environments
Backed by RAM Mounts' lifetime warranty

Works With

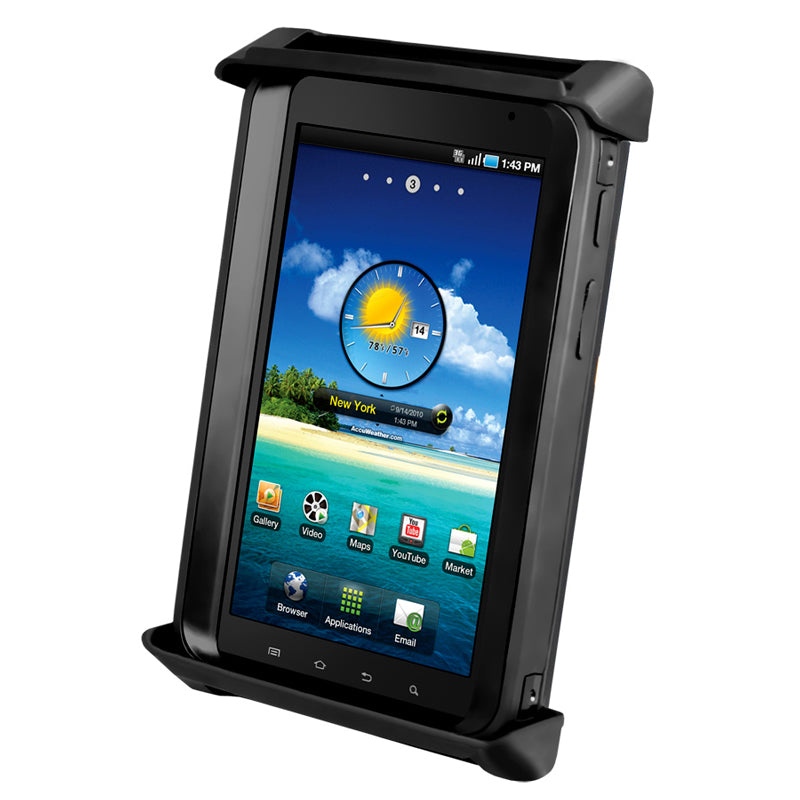

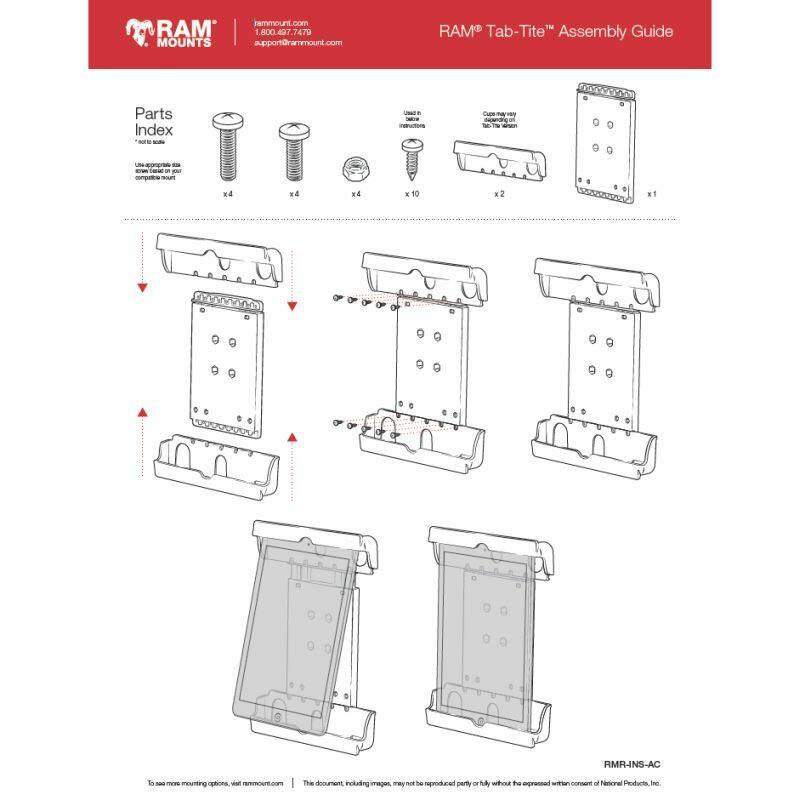

Supplied as the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to make up a complete cradle. Once assembled, the cradle pairs with any RAM® ball-and-socket arm or base.

Compatible Devices

View the full compatible device list

Amazon

Fire 7 with Case

ASUS

ZenPad C 7.0 with Case

Dell

Venue 7 with Case
Venue 7 (2014) with Case
Venue 7 3741 with Case

Google

Nexus 7 with Case

HP

Slate 7 with Case

Huawei

MediaPad T1 7.0 with Case
MediaPad T3 7 with Case

Lenovo

IdeaTab A1000 with Case
IdeaTab A3000 with Case
Tab 2 A7-10 with Case
Tab 2 A7-20 with Case
Tab 2 A7-30 with Case
Tab 7 Essential with Case
Tab A7-30 with Case
Tab A7-40 with Case
Tab A7-50 with Case
Tab3 7 with Case

LG

G Pad 7.0 with Case
G Pad X 8.0 with Case

Samsung

Galaxy Tab 3 7.0 with Case
Galaxy Tab 3 Lite 7.0 with Case
Galaxy Tab A 7.0 with Case
Galaxy Tab E 7.0 with Case

Zebra

ET1 Enterprise Tablet

Dimensions & Specifications

Fits devices (in their case) within: height 187.3 to 254mm (7.375" to 10"), width 101.6 to 134.9mm (4" to 5.31"), depth 3.3 to 26.9mm (0.13" to 1.06")
Material: high-strength composite
Weight: 91 grams (0.2 lb)

What's Included

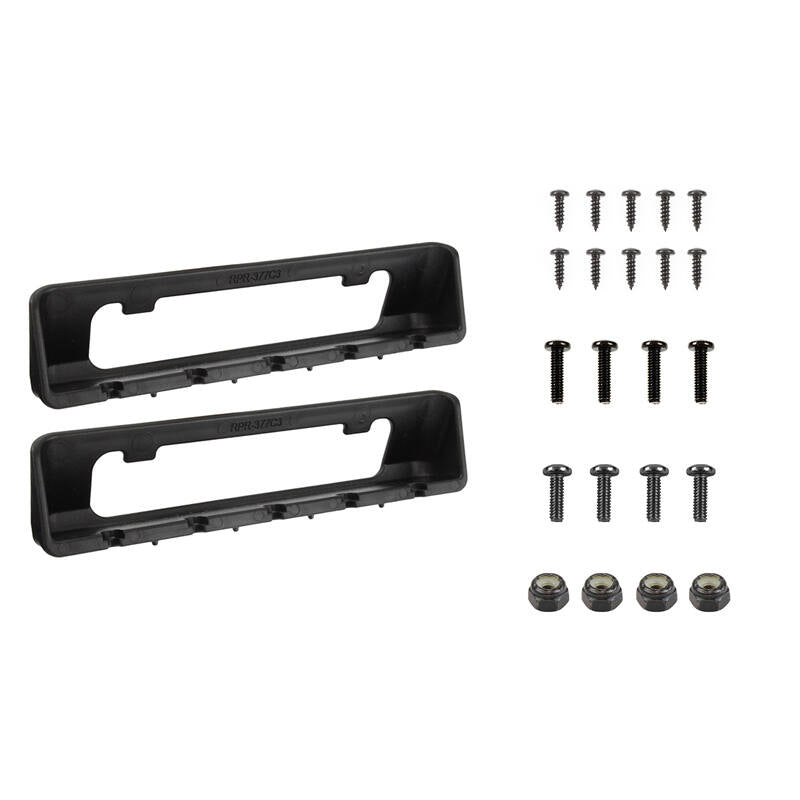

2 x RAM® Tab-Tite™ cup ends
Mounting hardware: 10 x #4 x 3/8" sheet metal screws, 4 x #8-32 x 5/8" machine screws, 4 x #8-32 x 1/2" machine screws, 4 x #8-32 Nylock nuts

FAQs

Do these include the backplate? No, these are the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to build a complete cradle.

Will they fit my tablet? Any 7-8" tablet, in its case, that sits within the dimensions above will fit. Measure your device in its case and compare.
