RAM Tab-Tite - Replacement Top Cups for RAM-HOL-TAB5U

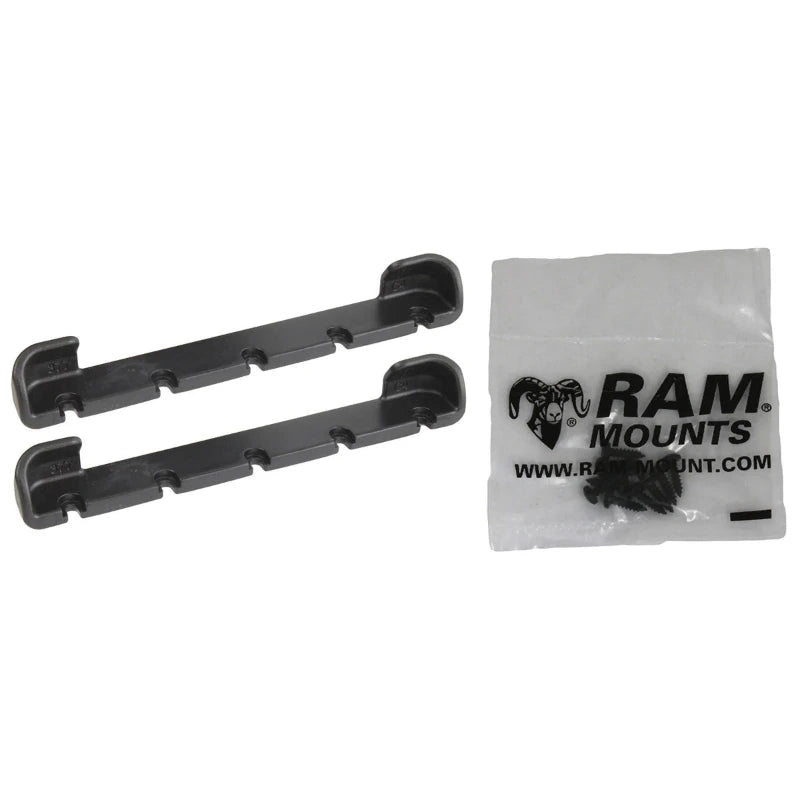

RAM-HOL-TAB5-CUPSU RAM® Tab-Tite™ End Cups for 7" Tablets (Open Cups)

The RAM-HOL-TAB5-CUPSU is a replacement pair of open-style RAM® Tab-Tite™ end cups for 7" tablets. They snap onto any RAM® Tab-Tite™ or Tab-Lock™ backplate, so you can re-fit an existing cradle to a new device instead of buying a complete new mount.

Key Features

• Interchangeable open-style RAM® Tab-Tite™ end cups for 7" tablets
• Fit any RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU)
• High-strength composite construction for demanding environments
• Backed by RAM Mounts' lifetime warranty

Works With

Supplied as the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to make up a complete cradle. Once assembled, the cradle pairs with any RAM® ball-and-socket arm or base.

Dimensions & Specifications

• Fits devices (in their case) within: height 177.8 to 250.8mm (7" to 9.875"), width 87.4 to 119.4mm (3.44" to 4.7"), depth 3.3 to 11.2mm (0.13" to 0.44")
• Material: high-strength composite
• Weight: 59 grams (0.13 lb)

What's Included

• 2 x RAM® Tab-Tite™ cup ends
• Mounting hardware: 10 x #4 x 3/8" sheet metal screws, 4 x #8-32 x 5/8" machine screws, 4 x #8-32 x 1/2" machine screws, 4 x #8-32 Nylock nuts

FAQs

Do these include the backplate? No, these are the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to build a complete cradle.

Will they fit my tablet? Any 7" tablet that sits within the dimensions above will fit. Measure your device in its case and compare.
