RAM Tab-Tite - Replacement Top Cups for RAM-HOL-TAB6U

RAM-HOL-TAB6-CUPSU RAM® Tab-Tite™ End Cups for Apple iPad 9.7 + More

The RAM-HOL-TAB6-CUPSU is a replacement pair of RAM® Tab-Tite™ end cups for most 10" tablets, including the Apple iPad 9.7. They snap onto any RAM® Tab-Tite™ or Tab-Lock™ backplate, so you can re-fit an existing cradle to a new device instead of buying a complete new mount.

Key Features

• Interchangeable RAM® Tab-Tite™ end cups for most 10" tablets
• Fit any RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU)
• High-strength composite construction for demanding environments
• Backed by RAM Mounts' lifetime warranty

Works With

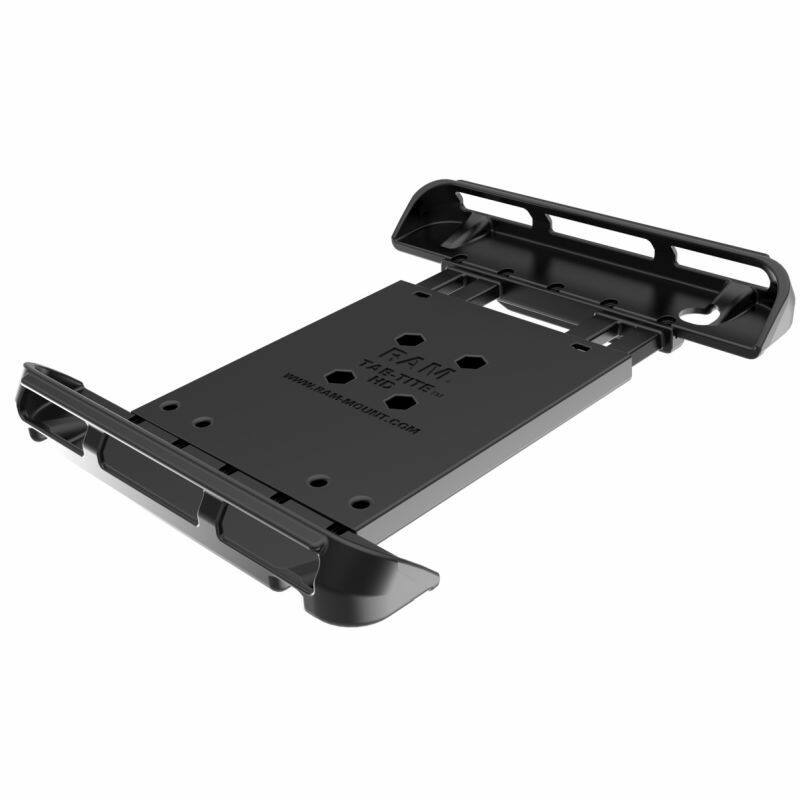

Supplied as the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to make up a complete cradle. Once assembled, the cradle pairs with any RAM® ball-and-socket arm or base.

Compatible Devices

Amazon

• Fire HD 10

Apple

• iPad 9.7 (2018)
• iPad Air
• iPad Air 2

Lenovo

• Miix 3
• Tab 2 A10-70
• Tab3 10 Business
• ThinkPad Tablet 2
• Yoga Book
• Yoga Tab 3 10

LG

• G Pad 10.1

Samsung

• Galaxy Tab 8.9
• Galaxy Tab Active Pro (without case)
• Galaxy Tab Pro 10.1

Vankyo

• MatrixPad Z4 10"

Dimensions & Specifications

• Fits devices (in their case) within: height 219 to 286mm (8.625" to 11.25"), width 154 to 173mm (6.05" to 6.80"), depth 3.3 to 12.7mm (0.13" to 0.50")
• Material: high-strength composite
• Weight: 295 grams (0.65 lb)

What's Included

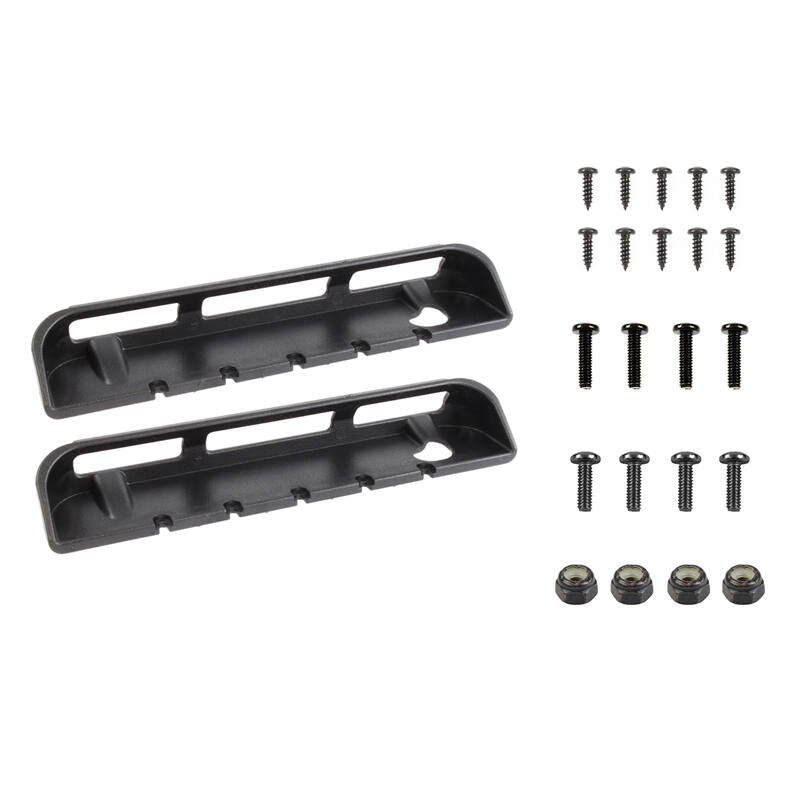

• 2 x RAM® Tab-Tite™ cup ends
• Mounting hardware: 10 x #4 x 3/8" sheet metal screws, 4 x #8-32 x 5/8" machine screws, 4 x #8-32 x 1/2" machine screws, 4 x #8-32 Nylock nuts

FAQs

Do these include the backplate? No, these are the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to build a complete cradle.

Will they fit my tablet? Any tablet that sits within the dimensions above will fit. Measure your device in its case and compare.

Videos

Watch the RAM® Tab-Tite™ assembly video
