RAP-B-401U - Tough-Claw Large - B Series (1" Ball)

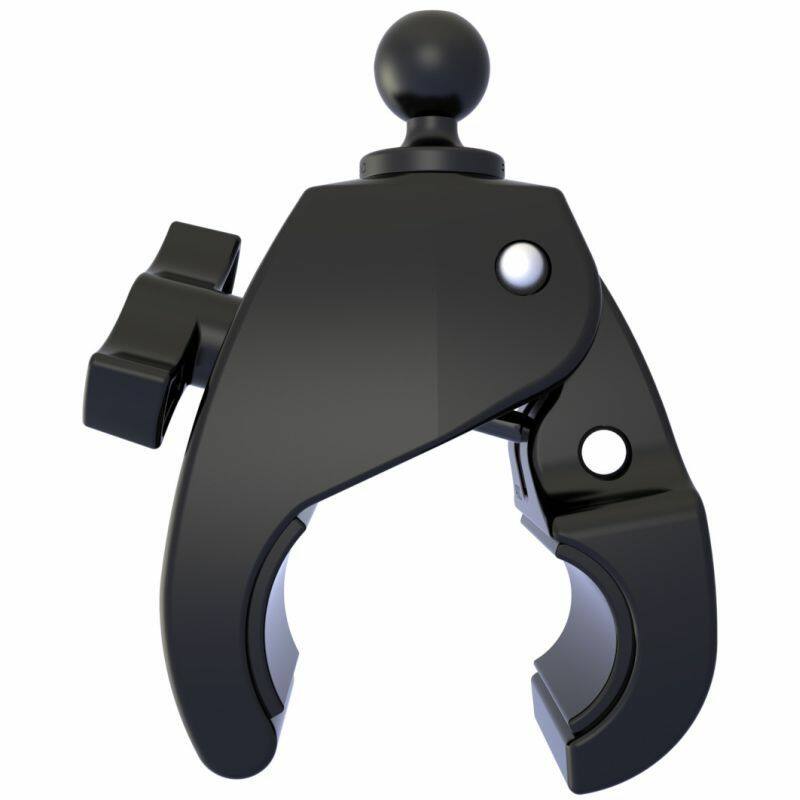

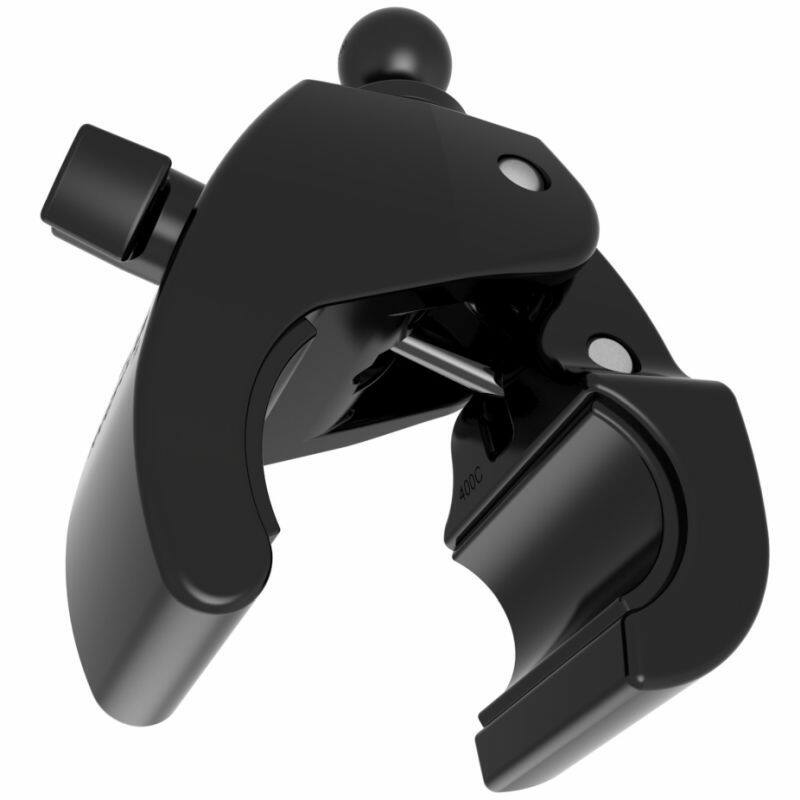

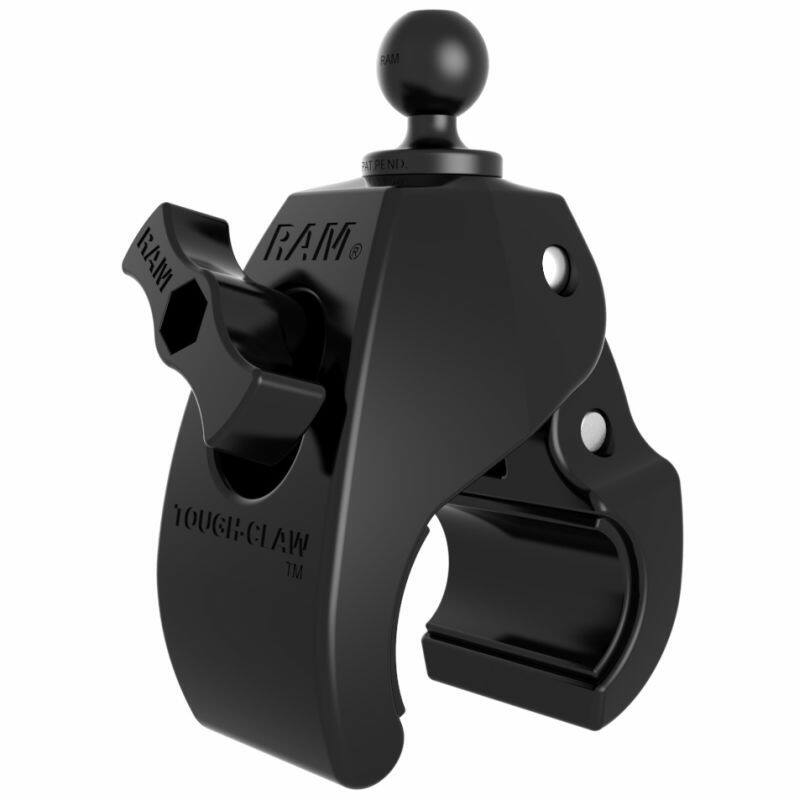

RAP-B-401U RAM® Tough-Claw™ Large Clamp Base with B Size (1") Ball

The RAP-B-401U is the large RAM® Tough-Claw™, a tool-free clamp base that grips round, square, and odd-shaped rails or bars from 25mm to 56mm (1" to 2.2") and finishes in a 1" B size rubber ball. It is the biggest jaw in the claw range, built for fat roll bars, boat rails, forklift cages, and other heavy tube the small and medium claws won't fit.

Key Features

• Tool-free clamp: drop it over the bar and hand-tighten the knob, no tools, on or off in seconds.
• Fits large rails and bars: 25mm to 56mm (1" to 2.2") on round or square tube, plus flat edges up to 56mm (2.2").

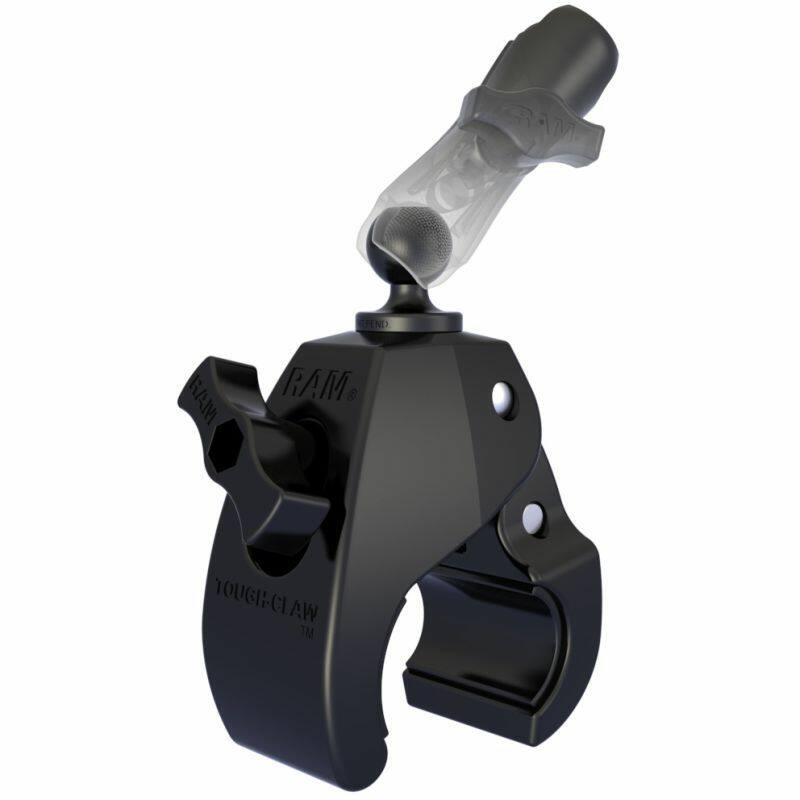

• B size (1") ball: connects to any B size RAM® double socket arm for near-infinite angle adjustment.
• Built to last: high-strength composite (glass-filled nylon) with stainless steel hardware, backed by RAM's lifetime warranty.
• Rubber jaw pads: grip firmly and protect the surface you clamp to.

Works With

The 1" B size ball pairs with any B size RAM® double socket arm and B size cradle or holder. Prefer the C size (1.5") version of this large claw? That's the RAP-401U.

Dimensions & Specifications

• Clamping range (rails/tubes): 25mm to 56mm (1" to 2.2")
• Clamping range (flat surfaces): 0 to 56mm (0" to 2.2")
• Height: 167mm (6.56")
• Width: 57mm (2.25")
• Weight: 476g (1.05 lb)
• Load rating: up to 907g (2 lb) in standard use, 454g (1 lb) in high-vibration or heavy-duty conditions
• Ball size: 1" B size
• Material: high-strength composite (glass-filled nylon), stainless steel hardware
• Warranty: lifetime

FAQs

What size rail does the large Tough-Claw fit?

Round or square rails and bars from 25mm to 56mm (1" to 2.2") outer diameter, plus flat edges up to 56mm (2.2"). For thinner bars, the medium (RAP-B-404U) or small (RAP-B-400U) claw will hold tighter.

What is the difference between the B and C ball versions?

Same clamp body, different ball. This B version finishes in a 1" ball for B size arms and cradles; the C version (RAP-401U) finishes in a 1.5" ball for C size components. Match the ball to the arm you already run.

Do I need tools to fit it?

No. Place the clamp over the bar and tighten the knob by hand. It comes off just as quickly when you need to move it.

Is it in stock in New Zealand?

The RAP-B-401U isn't a regular stock line for us, but we can bring it in on request. Get in touch to enquire and we'll confirm availability and lead time before you order.
