RAP-B-400U RAM® Tough-Claw™ Small Clamp Base with B Size (1") Ball

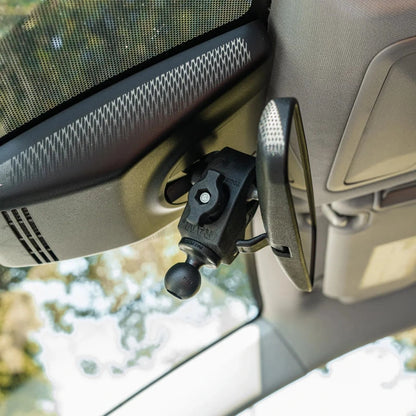

The RAP-B-400U is the small RAM® Tough-Claw™, a tool-free clamp base that grips round, square, and odd-shaped rails or bars from 16mm to 29mm (0.625" to 1.14") and finishes in a 1" B size rubber ball. That ball connects to any B size RAM® double socket arm, so you can mount a phone, tablet, action camera, or rod holder almost anywhere there is a bar to clamp to: aircraft yokes, motorbike and bike handlebars, kayak rails, roll bars, and wheelchair frames.
Key Features
-
Tool-free clamp: drop it over the rail and tighten the knob by hand, no tools needed, and it comes off just as quickly when you want to move it.
-
Fits small rails and bars: 16mm to 29mm (0.625" to 1.14") on round or square tube, plus flat edges up to 29mm (1.14").
-
B size (1") ball: connects to the full range of B size RAM® double socket arms for near-infinite angle adjustment.
-
Built to last: high-strength composite (glass-filled nylon) with stainless steel hardware, backed by RAM's lifetime warranty.
-
Rubber jaw pads: grip firmly and protect the surface you clamp to.
Works With
The 1" B size ball pairs with any B size RAM® double socket arm and B size cradle or holder, so it slots straight into a B size setup. Need C size (1.5") components instead? Use the matching RAP-400U small Tough-Claw with C size ball.
Dimensions & Specifications
-
Clamping range (rails/tubes): 16mm to 29mm (0.625" to 1.14")
-
Clamping range (flat surfaces): 0 to 29mm (0" to 1.14")
-
Height: 122mm (4.81")
-
Width: 30mm (1.18")
-
Weight: 159g
-
Load rating: up to 907g (2 lb) in standard use, 454g (1 lb) in high-vibration or heavy-duty conditions
-
Ball size: 1" B size
-
Material: high-strength composite (glass-filled nylon), stainless steel hardware
-
Warranty: lifetime
FAQs
What size rail does the small Tough-Claw fit?
Round or square rails and bars from 16mm to 29mm (0.625" to 1.14") outer diameter, plus flat edges up to 29mm (1.14"). For thicker bars, step up to the medium (RAP-B-404U) or large (RAP-B-401U) claw.
What is the difference between the B and C ball versions?
Same clamp body, different ball. This B size version finishes in a 1" ball for B size arms and cradles. The C size version (RAP-400U) finishes in a 1.5" ball for heavier C size components. Match the ball to the arm you are running.
Do I need tools to fit it?
No. Place the clamp over the rail and tighten the knob by hand. It comes off just as fast, which is why a lot of our customers run it on wheelchairs and other mobility gear.
Is it in stock in New Zealand?
Yes. We hold the RAP-B-400U in our Auckland warehouse and dispatch in-stock orders within one business day.
