RAM Tough-Wedge seat mount - with B series base - Universal Vehicle Base

RAM-B-407U RAM® Tough-Wedge™ Seat Base with 1" Ball Diamond Base

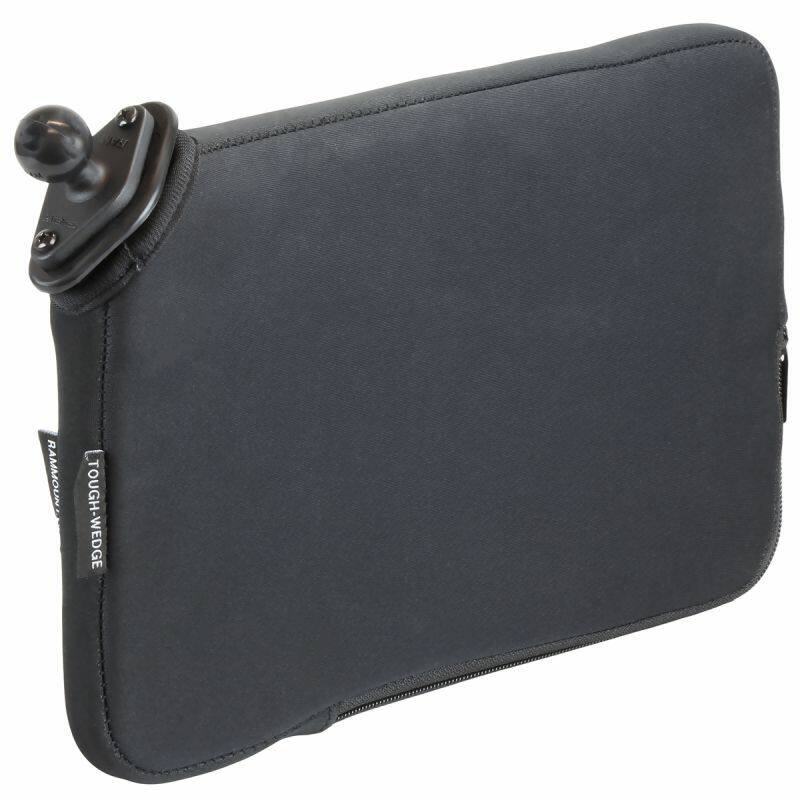

The RAM-B-407U is the RAM® Tough-Wedge™ seat base fitted with a RAM-B-238U diamond base and a 1" B-size ball. It slides into the gap between your seat and centre console for a no-drill, no-glue mount you can move between vehicles, ready to take any RAM® B-size arm and cradle.

Key Features

• Slides between the seat and console for tool-free install, no drilling or glue.
• Diamond base with 1" B-size ball connects to any RAM® B-size double socket arm.
• Moves between vehicles easily; also fits seat-back pockets for rear-seat use.
• High-strength composite, neoprene and powder-coated marine-grade aluminium. Lifetime warranty.

What's in the Kit

• RAP-407BU RAM® Tough-Wedge™ seat base

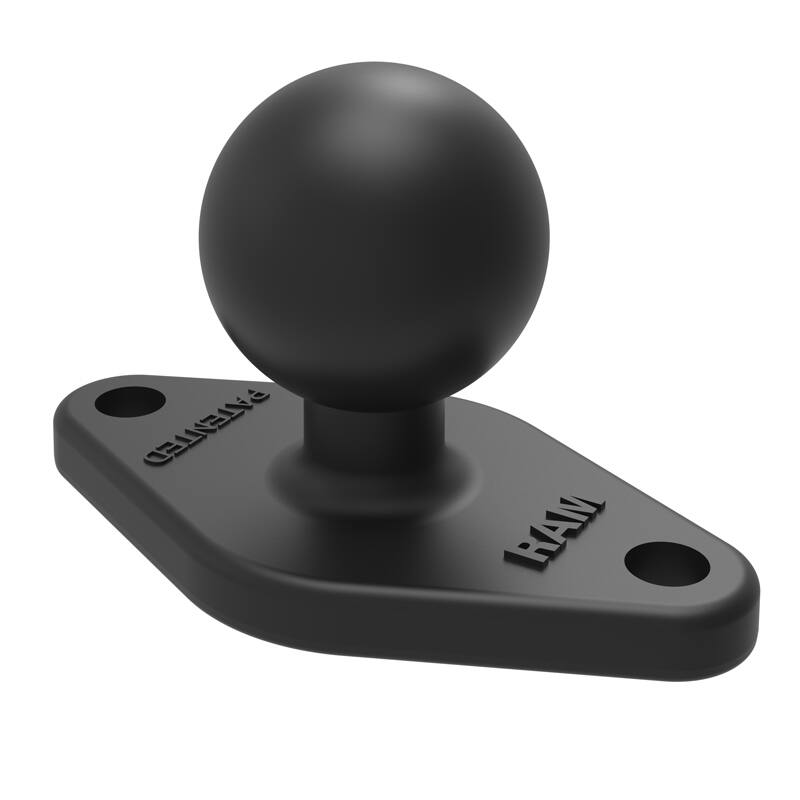

• RAM-B-238U diamond base with 1" ball

Works With

Any RAM® B-size (1") double socket arm and cradle. Want a long arm included? See RAM-B-407-201U-C.

Dimensions & Specifications

• Wedge length: 336mm (13.23")
• Wedge height: 209mm (8.23")
• Wedge depth: 25mm (0.98")
• Inside wedge depth: 9.5mm to 22mm (0.37" to 0.87")

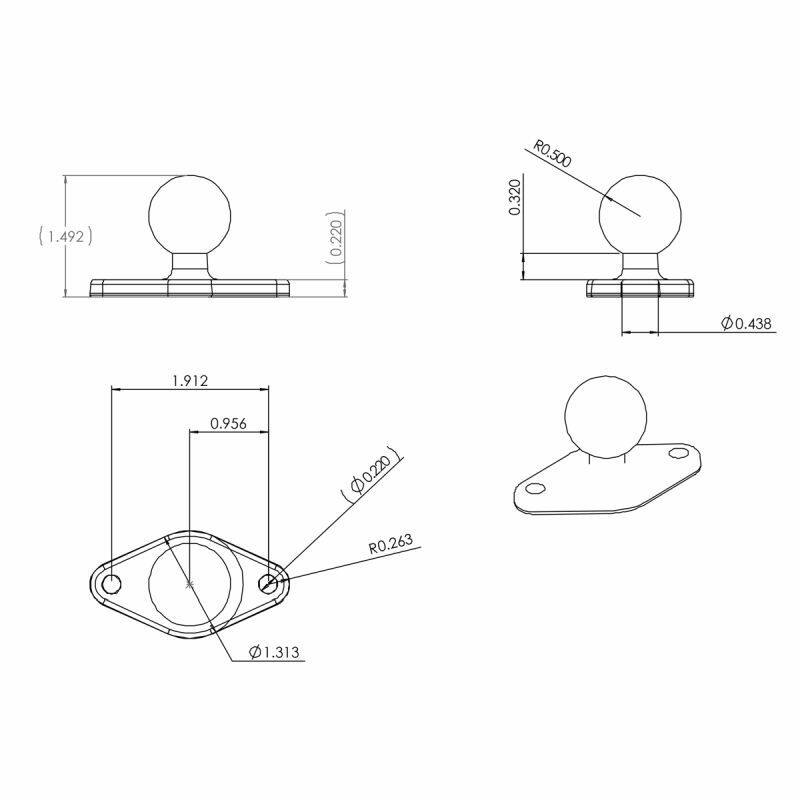

• Diamond base: 61.7mm x 33.3mm (2.43" x 1.31"), 2-hole AMPS 1.912" (48.6mm)
• Ball size: B Size (1")
• Materials: high-strength composite, neoprene, powder-coated marine-grade aluminium
• Weight: 626g (1.38 lb)

FAQs

Does it need drilling?
No. It wedges into the gap beside your seat, so there's no drilling or glue, and it moves between vehicles in seconds.

What can I mount on it?
The 1" ball takes any RAM® B-size arm and cradle, so you can run a phone, GPS, radio or small tablet.

Tight gap?
A pump accessory is available for trickier spaces; get in touch and we'll sort it.

How fast does it ship?
If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
