RAM-B-407-201U-C RAM® Tough-Wedge™ Seat Base with Long Arm and Diamond Base

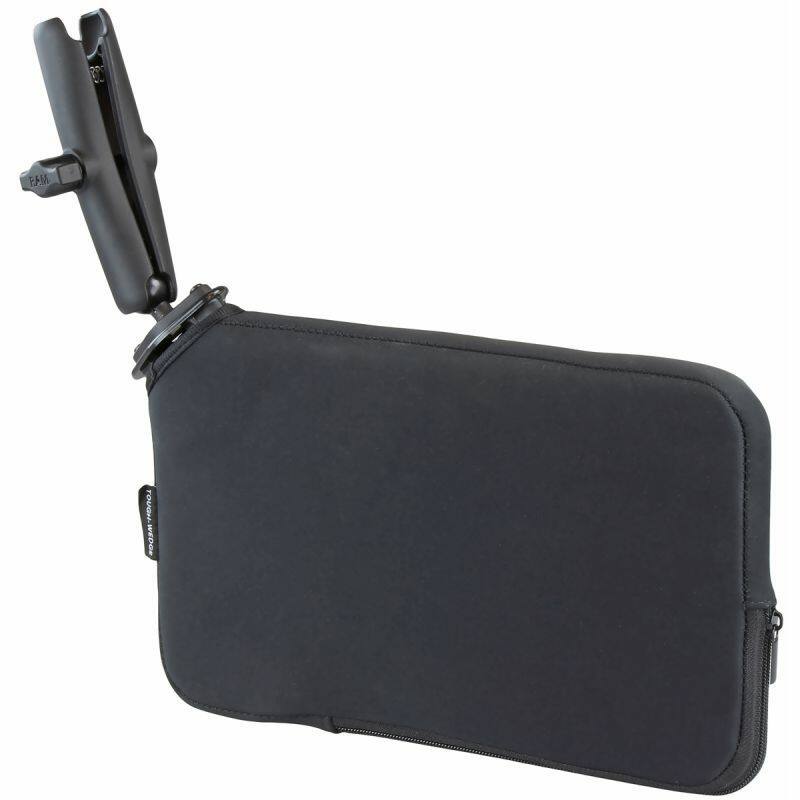

The RAM-B-407-201U-C is the complete RAM® Tough-Wedge™ seat mount: the wedge base, a RAM-B-238U diamond base and a long B-size double socket arm. It wedges in beside your seat with no drilling or glue and reaches out on the long arm to put your device right where you want it, ready for any RAM® B-size cradle.
Key Features
Slides between the seat and console for tool-free install, no drilling or glue.
Long B-size double socket arm with 1" ball joints for extra reach and near-infinite angle adjustment.
Moves between vehicles easily; also fits seat-back pockets for rear-seat use.
High-strength composite, neoprene and powder-coated marine-grade aluminium. Lifetime warranty.
What's in the Kit
RAP-407BU RAM® Tough-Wedge™ seat base
RAM-B-238U diamond base with 1" ball

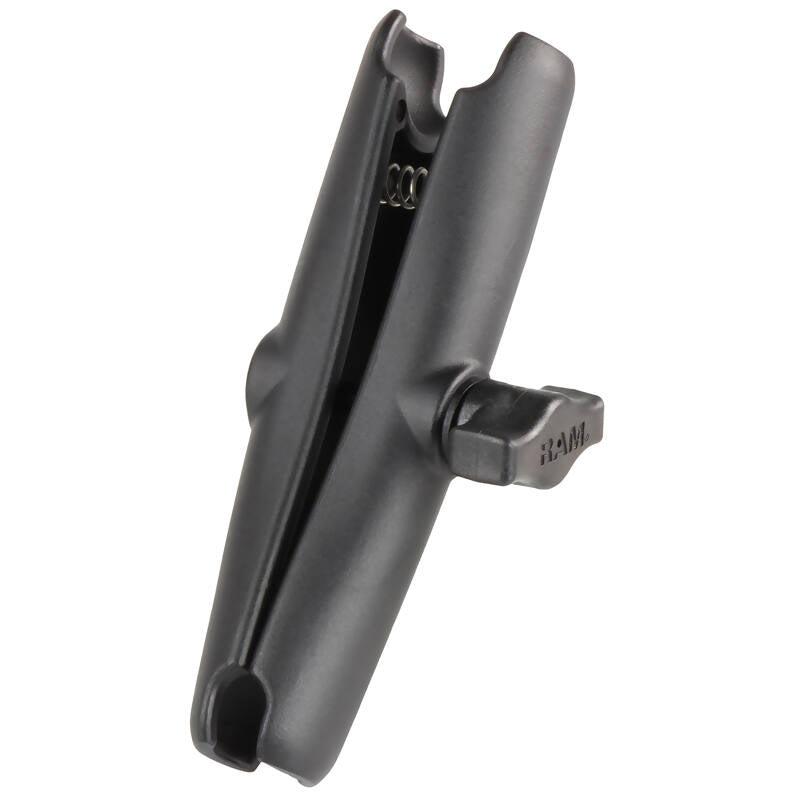

RAM-B-201U-C long double socket arm (B-size)
Works With

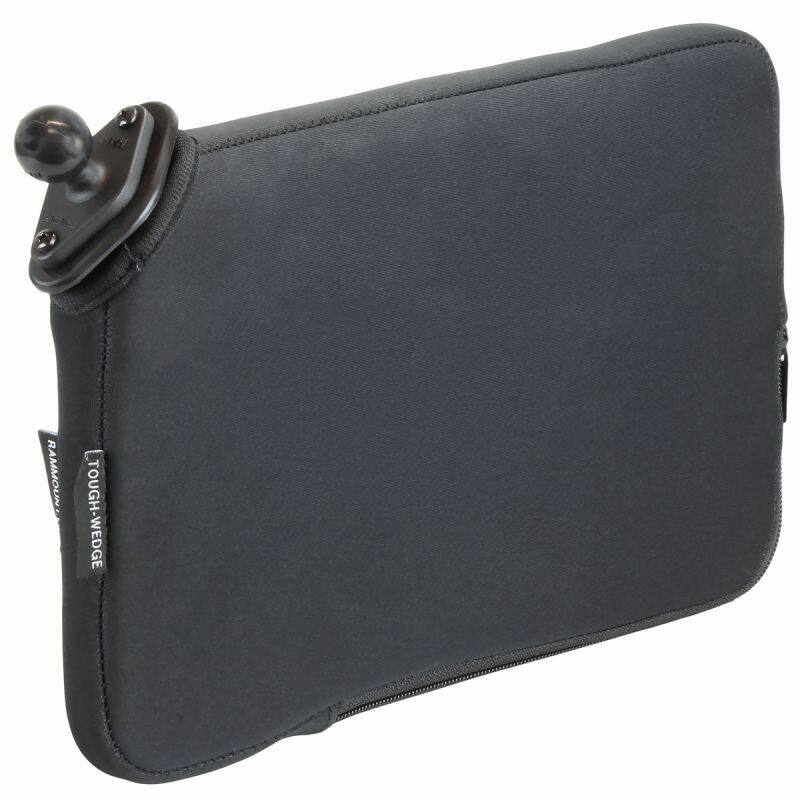

Any RAM® B-size (1") cradle on the arm. Just the base and ball, no arm? See RAM-B-407U.
Dimensions & Specifications
Wedge length: 336mm (13.23")
Wedge height: 209mm (8.23")
Wedge depth: 25mm (0.98")
Inside wedge depth: 9.5mm to 22mm (0.37" to 0.87")

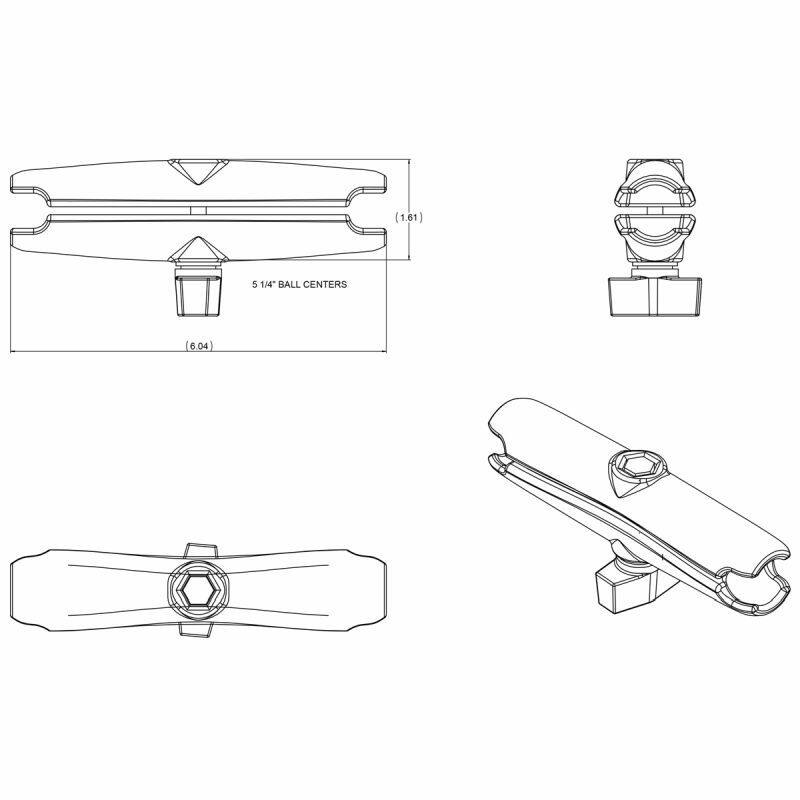

Arm length: overall 152mm (6"), socket-to-socket 134mm (5.25")
Diamond base: 61.7mm x 33.3mm (2.43" x 1.31"), 2-hole AMPS 1.912" (48.6mm)
Does it need drilling? No. It wedges into the gap beside your seat, so there's no drilling or glue, and it moves between vehicles in seconds.
How far does the arm reach? The long arm is 152mm (6") overall, so you can bring the device closer or angle it well clear of the console.
Tight gap? A pump accessory is available for trickier spaces; get in touch and we'll sort it.
How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
