RAM Mounts

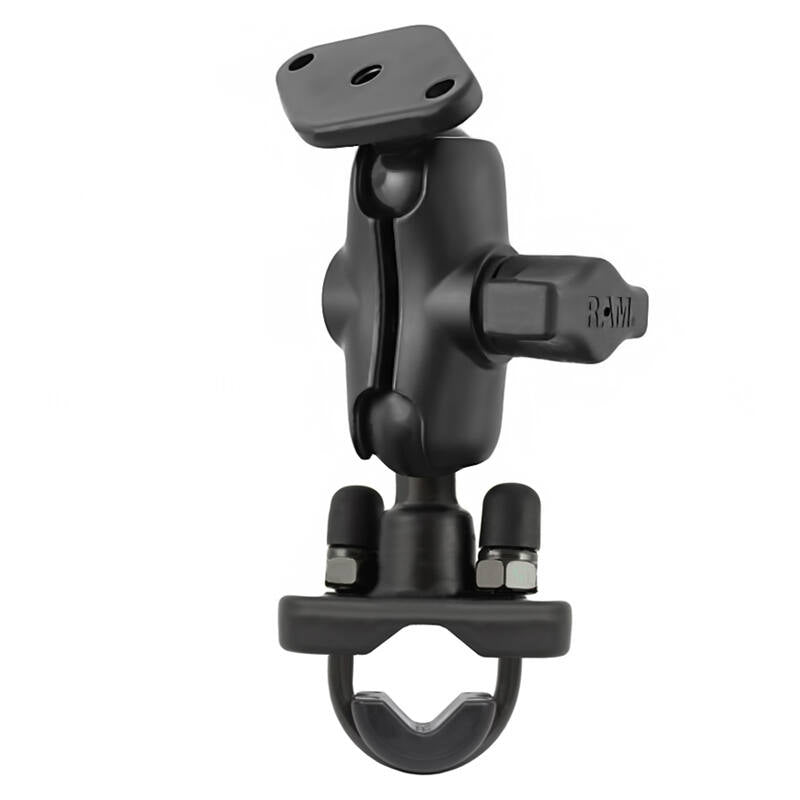

RAM U-Bolt Rail Handlebar Base with Diamond Plate and Short Arm

RAM U-Bolt Rail Handlebar Base with Diamond Plate and Short Arm

SKU:RAM-B-149ZU-A

Regular price $88.40 NZD
Regular price Sale price $88.40 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-149ZU-A RAM® Handlebar U-Bolt Double Ball Mount - B Size Short


Features

* Diamond adaptor ball base contains 2 hole AMPs pattern for connecting to a wide variety of device holders
* Includes zinc-coated U-bolt base that accommodates rails from .5" to 1.25" in diameter
* Short length B size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty


This consists of a zinc coated U-bolt base, short length double socket arm and diamond adaptor base. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.


The diamond adaptor base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.

The U-Bolt base will accommodate rails from 12.7 to 31.8mm diameter. A composite rail adaptor can narrow the rail to a minimum width of 0.5”.

The short double socket alloy arm has a socket at both ends that accommodates 1", B-series ball bases. This product does not include the pin spring. A standard 96 mm version (RAM-B-201U) and long version (RAM-B-201U-C at 152mm) are also available.


Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")

U-Bolt Dimensions:
12.7mm to 31.8mm (0.50" to 1.25")

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
1" Rubber Ball "B" Size

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)


Weight:
286 grams (0.63 lbs.)


Components:

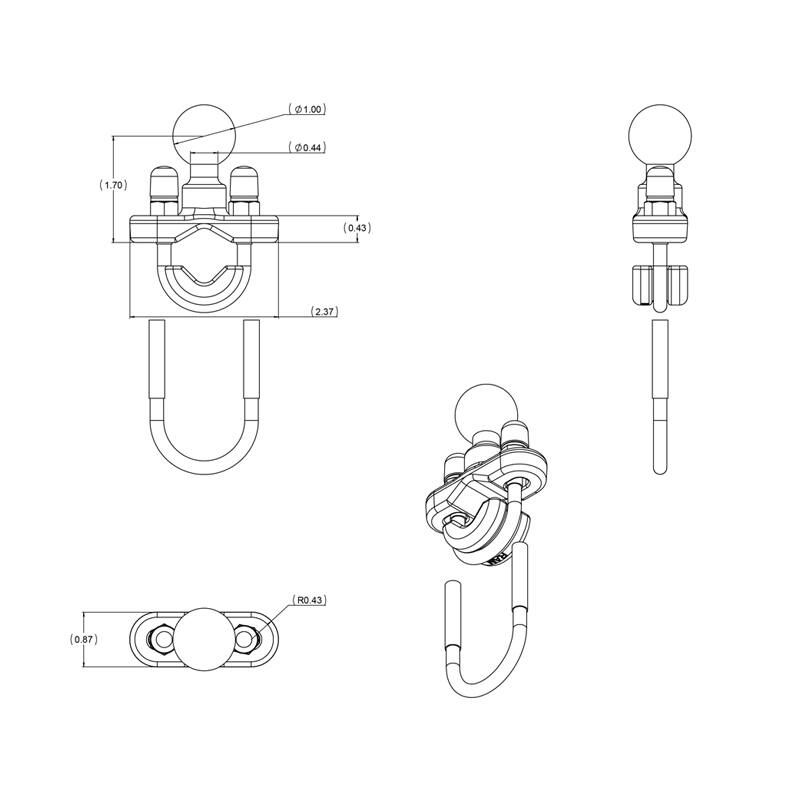

RAM-B-231ZU RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS
RAM-B-201U-A DBL SOCKET ARM B BALL A LENGTH
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
