RAM-B-177-UN9U - RAM® X-Grip® Mount with Glare Shield Clamp Base for 9"-10" Tablets
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-10" tablets

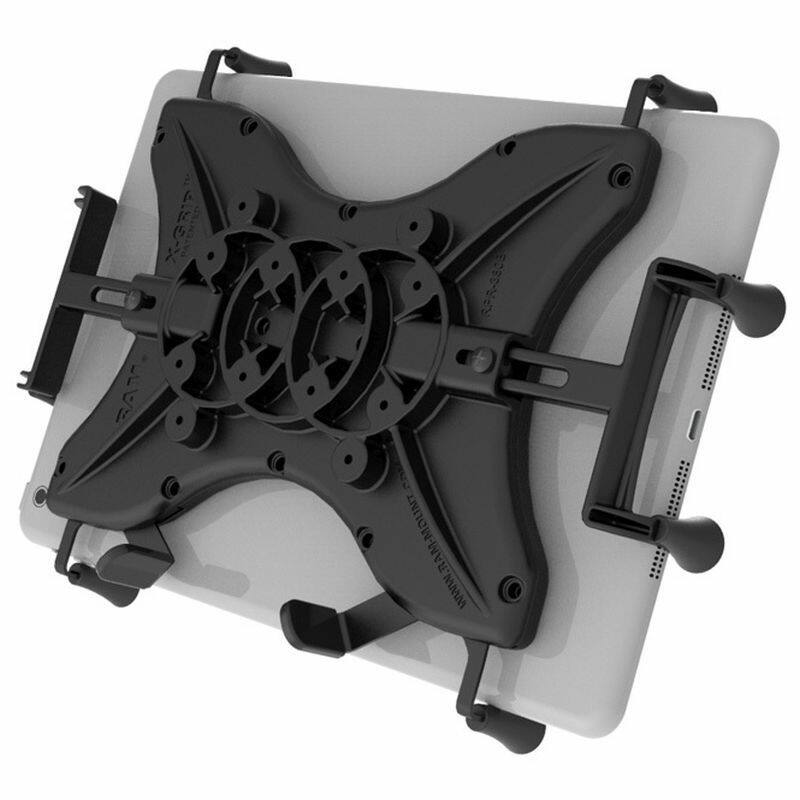

* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* Flat surface clamp provides stable base on surfaces such as aircraft glare shields, boat windscreen frames etc from 0 - 15.9mm thick
* RAM® Mounts double socket arm with ball and socket technology allows for near-infinite adjustability
* Backed by a lifetime warranty

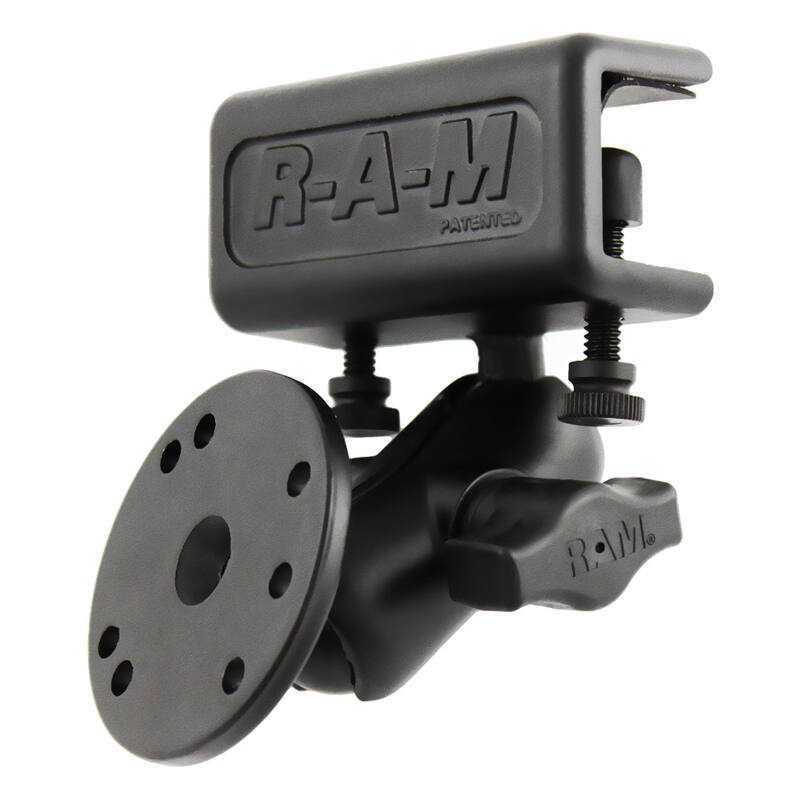

The glare-shield mount is simply located by the clamp on any clamping surface up to 15.9mm thick and gently snug the nylon thumb screws. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles.

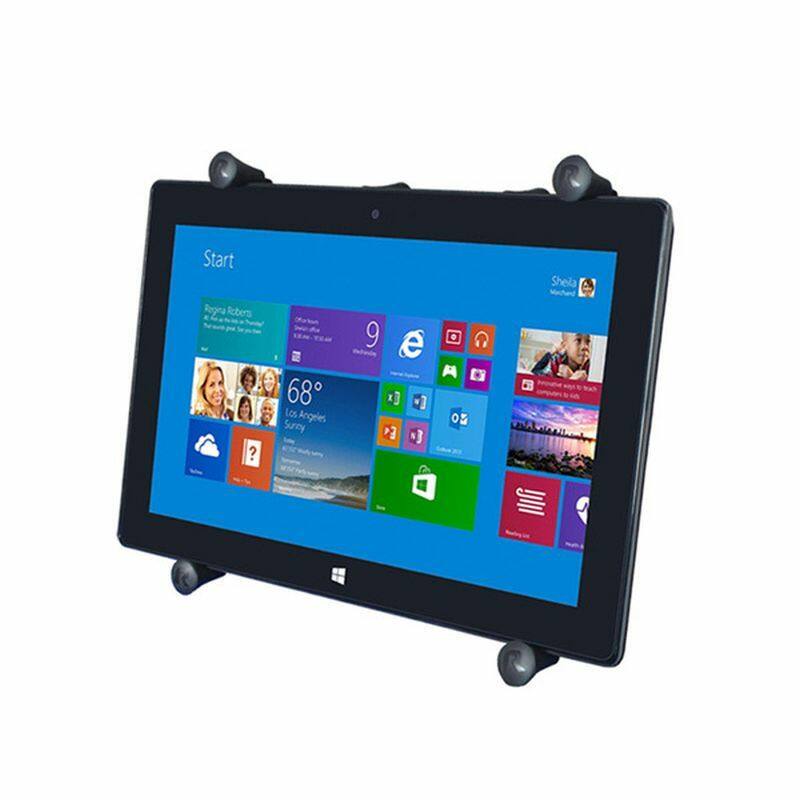

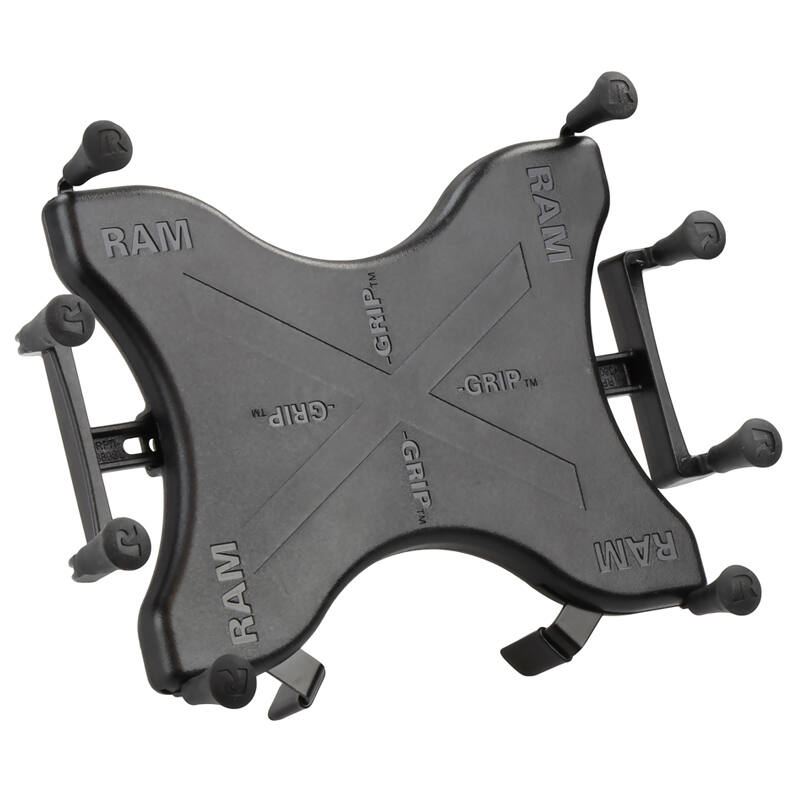

The X-Grip consists of a composite spring-loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. It expands and contracts for perfect fit of most 10" tablets with or without sleeves such as the iPad Air and Galaxy tab 10.1, as well as some smaller tablets.
The cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions:
Min Width = 158.75mm (6.25”)
Max Width = 205.7mm (8.1”)
Max length = 260.4mm (10.25”) with support - unlimited without supports
Max Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN9U
Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Glareshield Clamp Range
0 - 15.875mm (0 to 0.625") max
Weight:
793 grams (1.75 lbs)
Components
RAM-B-201U-A SHORT DOUBLE SOCKET ARM FOR 1" BALL

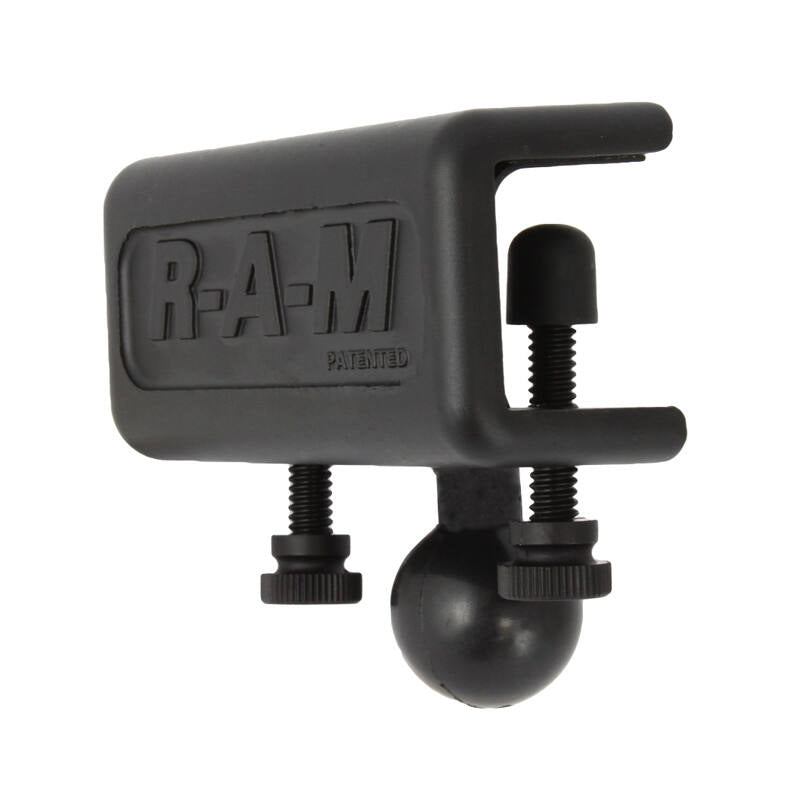

RAM-B-259U windshield mounting base
RAM-HOL-UN9U X-GRIP UNIVERSAL 10" TABLET HOLDER
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
