RAM-B-316-1-UN9 RAM® X-Grip® with RAM® Pod™ I Vehicle Mount for 9"-10" Tablets
Features

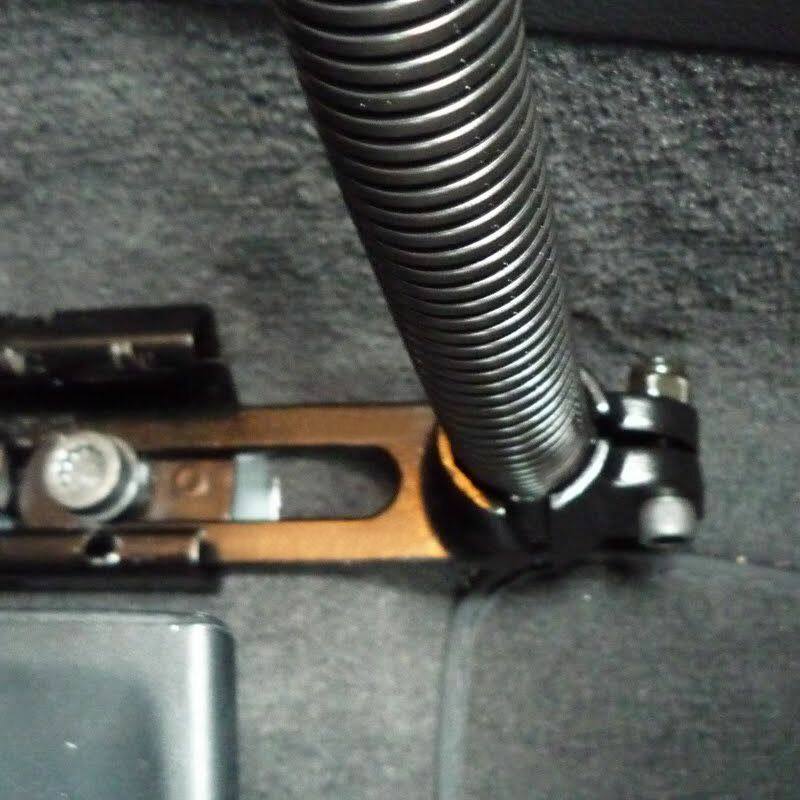

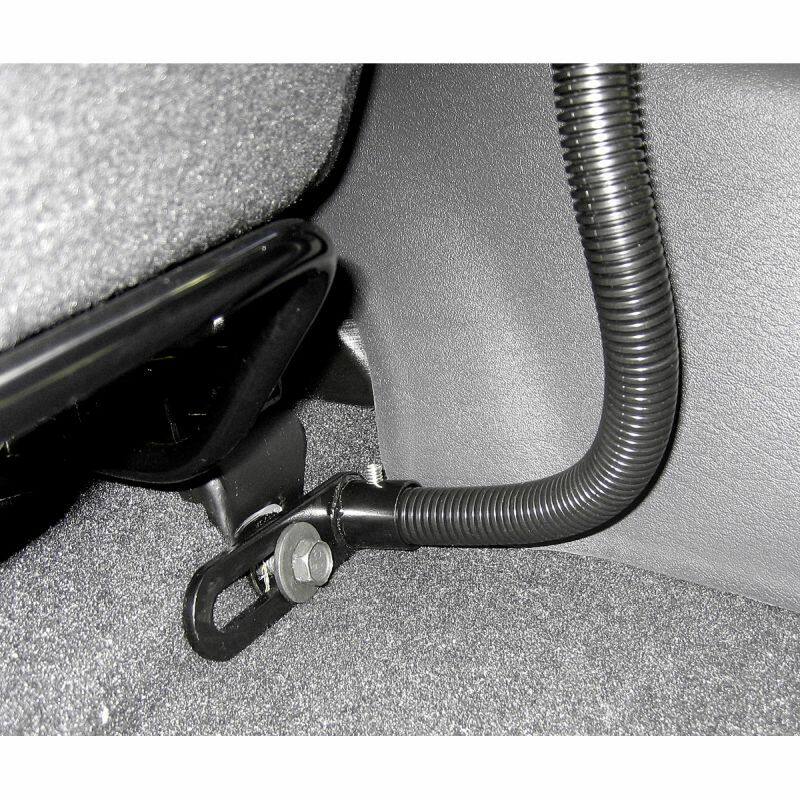

* Universal vehicle mount attaches to seat rail without any drilling necessary; 457mm aluminum rod can be bent to your ideal position

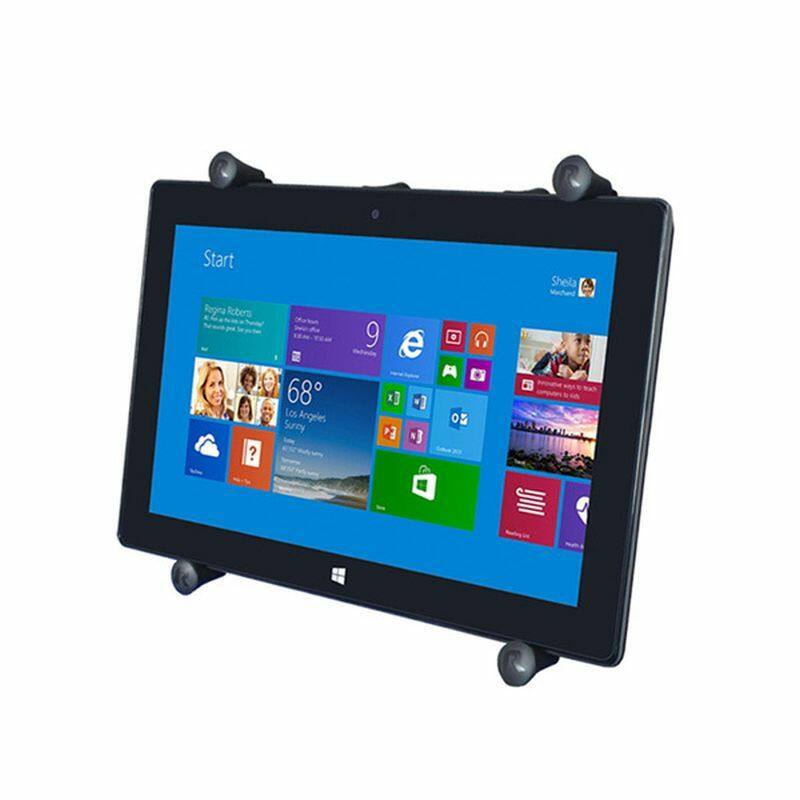

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-10" tablets
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

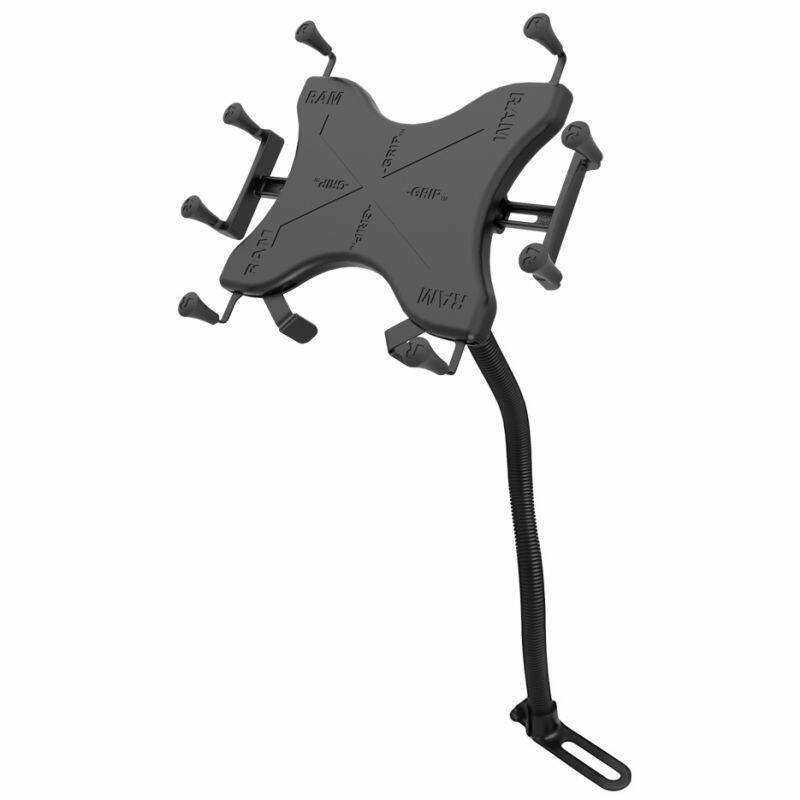

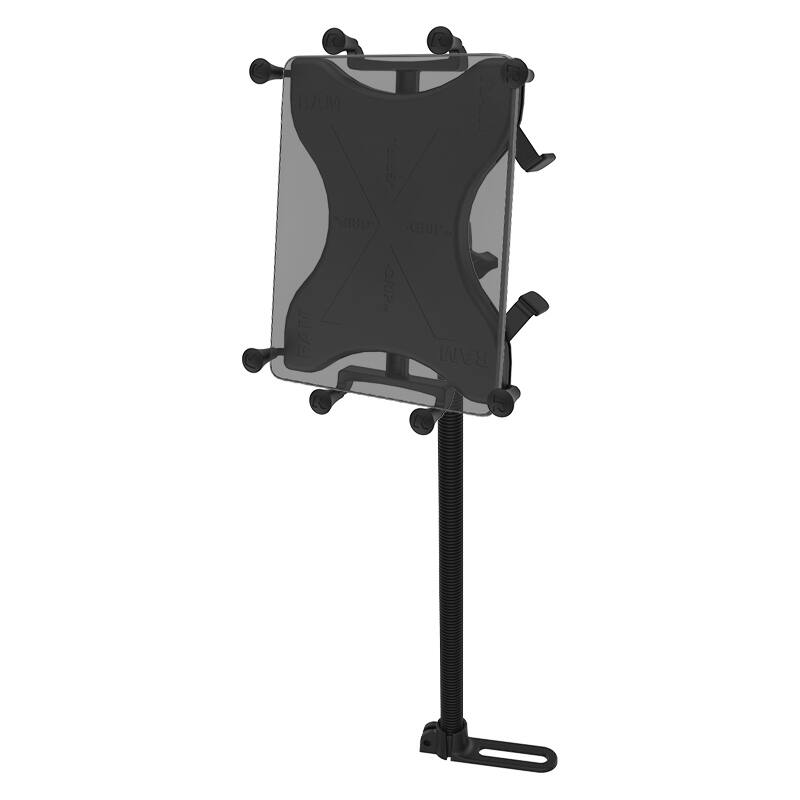

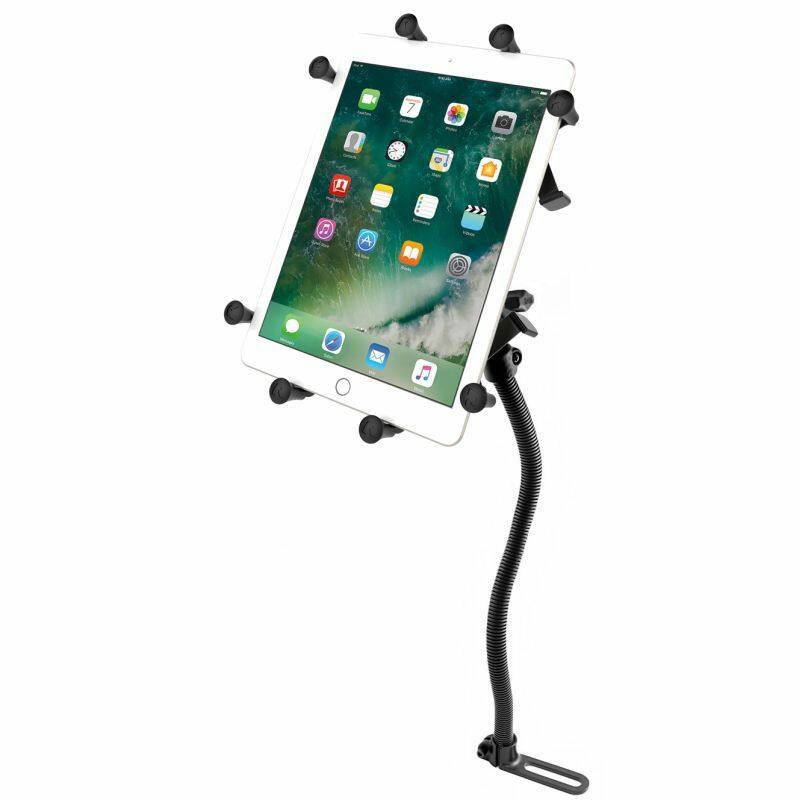

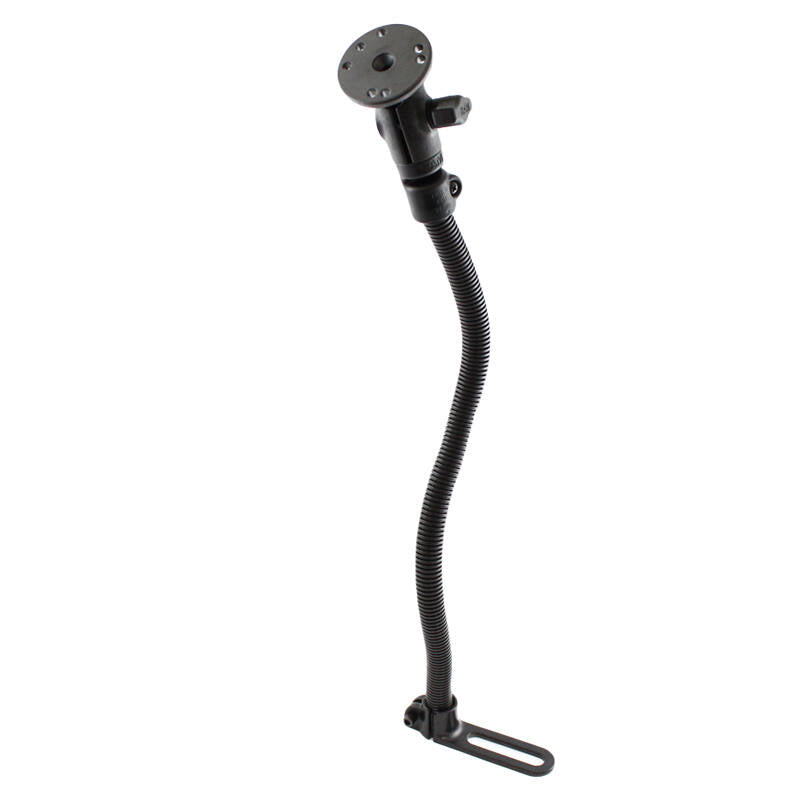

This consists of the RAM POD I universal No-Drill® vehicle base, 457mm rigid aluminium rod, socket system and universal RAM® X-Grip® for 10" tablets. The base of the mount connects to your seat rail without any drilling necessary. The 18" rigid aluminium rod can be bent to position your device to its optimum viewing location.

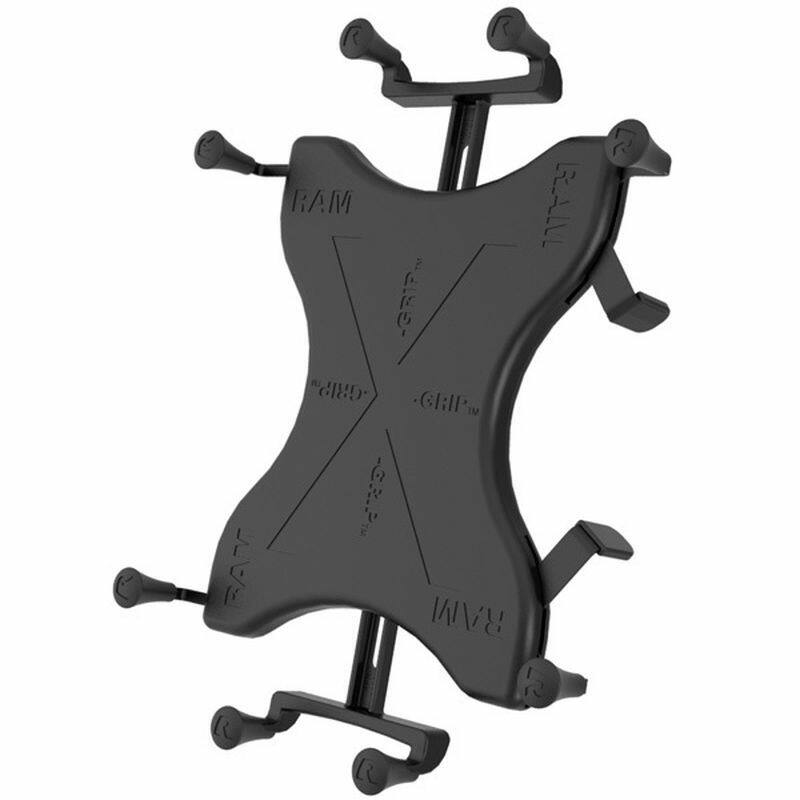

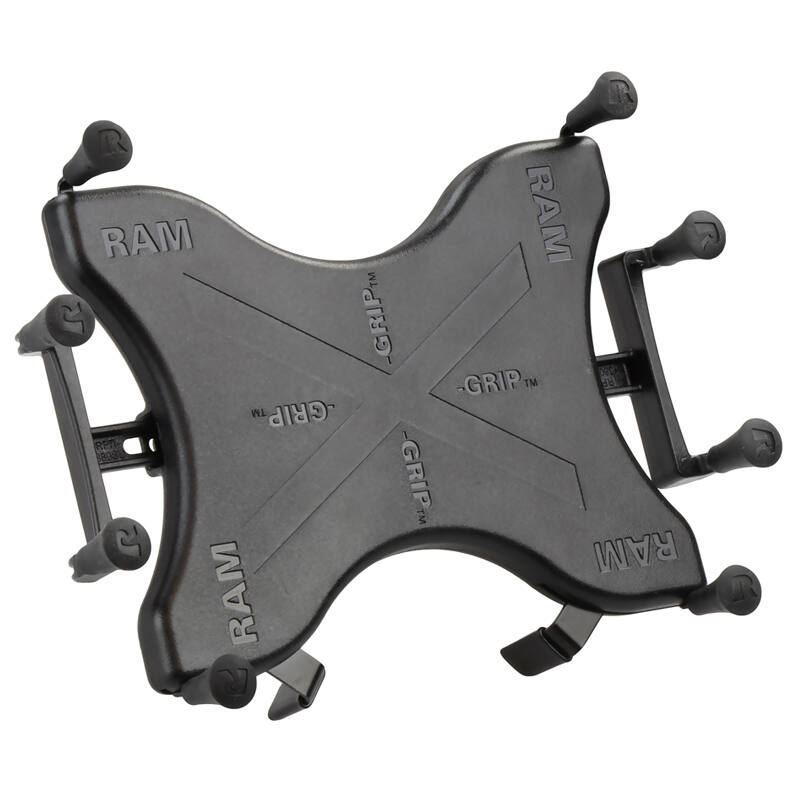

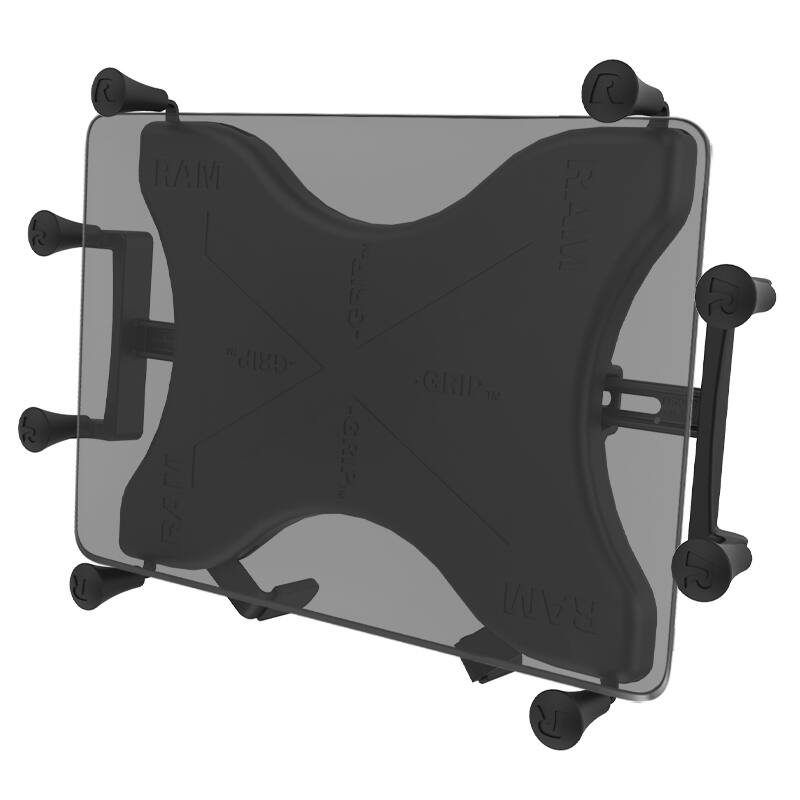

The included X-Grip is a composite spring-loaded cradle with expandable grip arms and an additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet which expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets.
The cradle is compatible with devices that will fit the dimensions listed below. Check the dimensions of your device with a case/sleeve/skin.

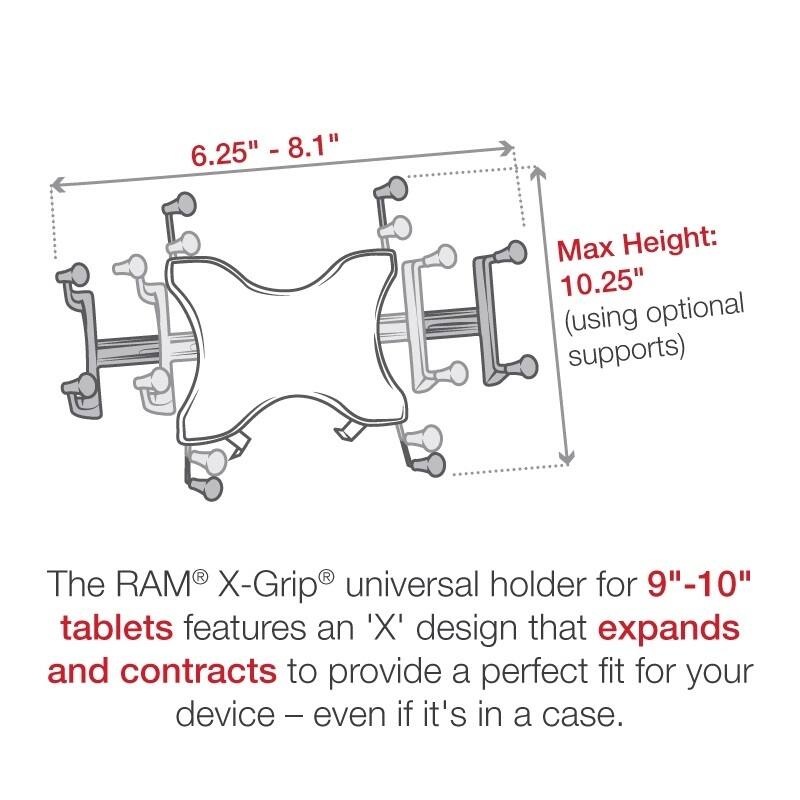

Cradle Dimensions
Min Width = 158.75mm (6.25”)
Max Width = 205.7mm (8.1")
Max length with supports 260.4mm (10.25”) (unlimited without supports)
Max Thickness = 22.2mm (0.875")
Compatible Devices:
For a list of many of the compatible devices for this cradle see RAM-HOL-UN9U
Arm Length
457mm (18")
Materials
Marine-grade aluminium
High strength composite
Weight:
1.04kg
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
