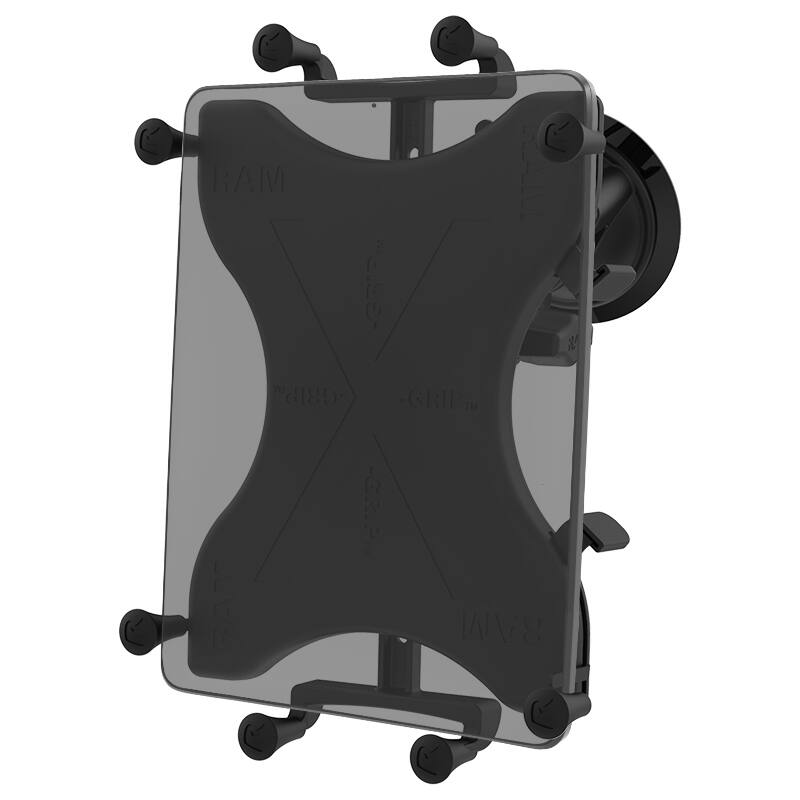

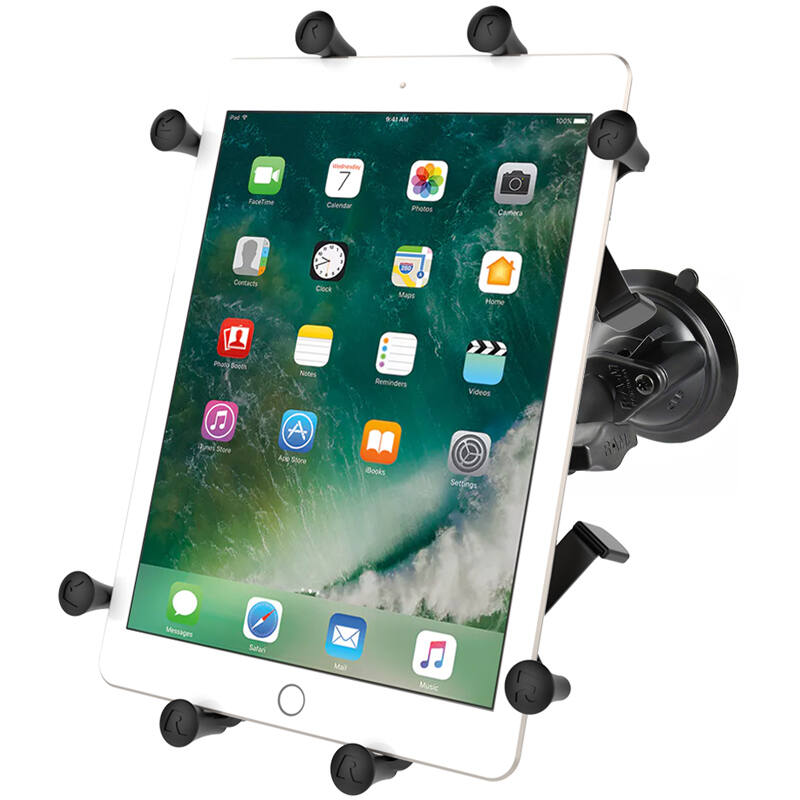

RAM-B-166-UN9U RAM® X-Grip® with RAM® Twist-Lock™ Suction Cup Mount for 9"-10" Tablets
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-10" tablets
* Includes RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The 84mm suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The mount is designed with a RAM 1" diameter patented rubber ball and socket system allows for almost infinite adjustment and perfect viewing angles.

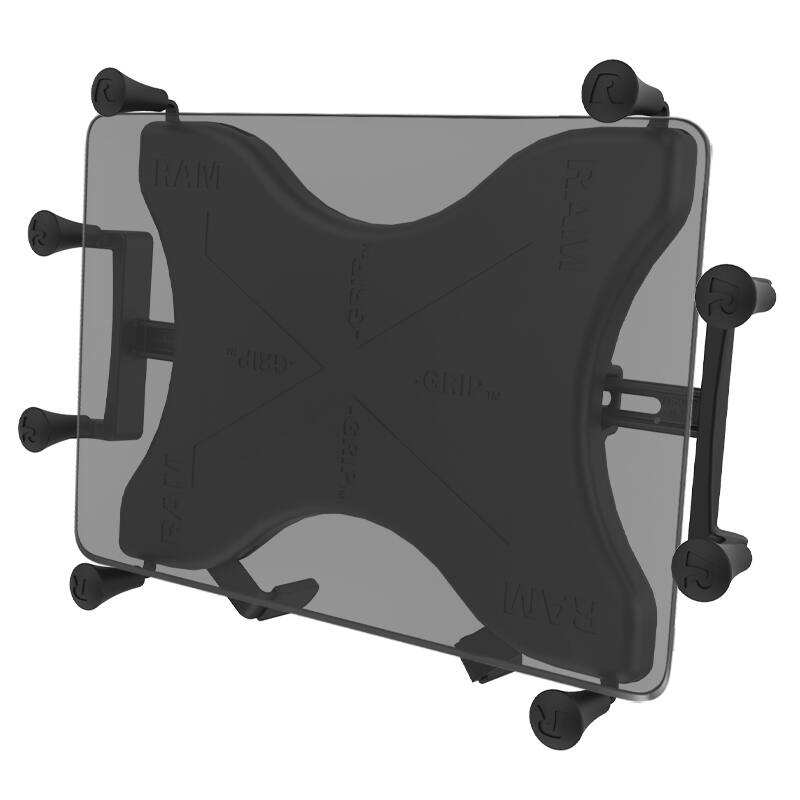

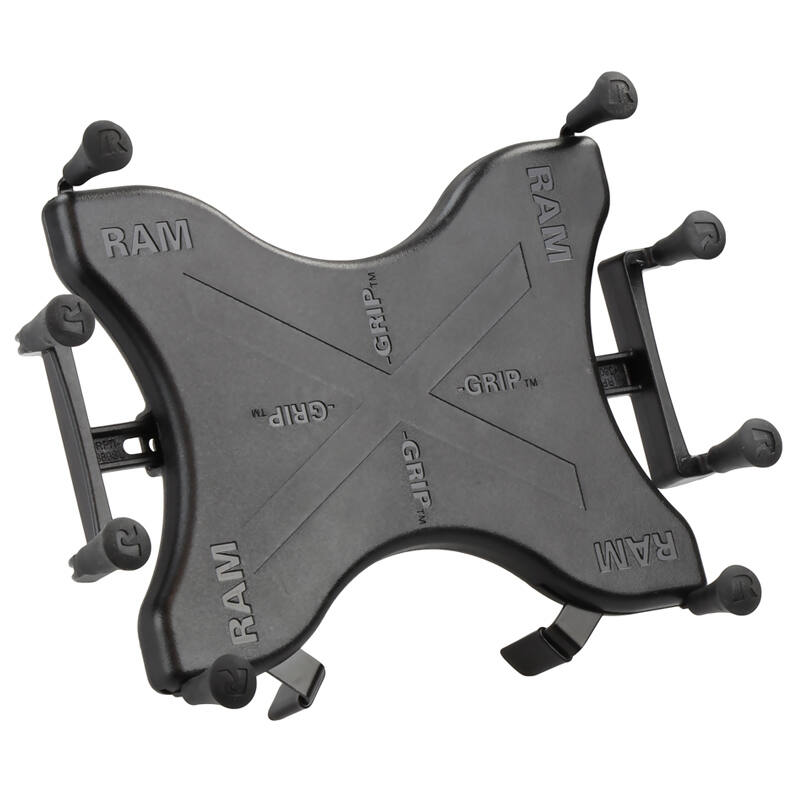

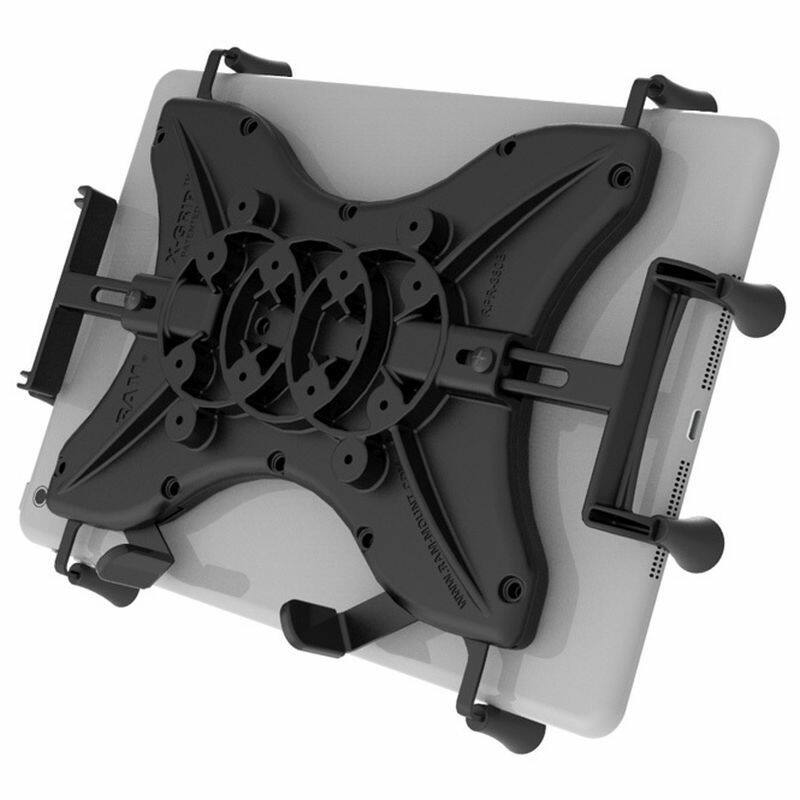

The X-Grip composite spring-loaded cradle has expandable grip arms and an additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The cradle expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets that will fit the dimensions listed below. Check the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
Min Width = 158.75mm (6.25”)
Max Width = 205.7mm (8.1”)
Max length with supports 260.4mm (10.25”) (unlimited without supports)
Max Thickness = 22.2mm (0.875")
Arm Dimensions:
Overall: 94mm (3.69")
Socket-To-Socket: 76mm (3")
Components:
RAM-HOL-UN9U X-GRIP UNIVERSAL 10" TABLET HOLDER
RAM-B-224-1U 83mm DIA. SUCTION CUP BASE
RAM-B-202U 62mm DIA.BASE
RAM-B-201U DOUBLE SOCKET ARM
YouTube:
Base:
https://www.youtube.com/watch?v=L8bbzMCMaUg
Arm:
https://www.youtube.com/watch?v=sihcgjafFI4
X-Grip:
https://www.youtube.com/watch?v=EC-bdR3KAww
