RAM Mounts

RAM X-Grip Universal Cradle for 10" Tablets with Tough-Claw Base

RAM X-Grip Universal Cradle for 10" Tablets with Tough-Claw Base

SKU:RAM-B-400-C-UN9-v

Regular price $339.00 NZD
Regular price Sale price $339.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

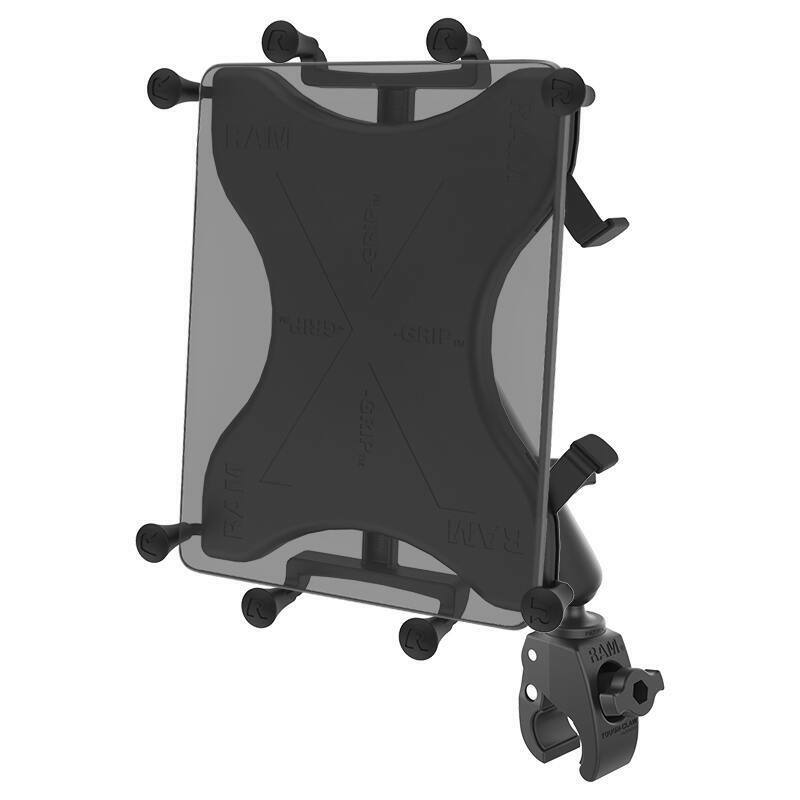

RAM-B-400-C-UN9 RAM® X-Grip® with RAM® Tough-Claw™ Small Clamp

Features

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-10" tablets
* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in outer diameter
* Rubber pads provide stable gripping and protection of mounting surface
* Made of high-strength composite, Marine Grade Stainless Steel Components and Powder Coated Marine Grade Aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

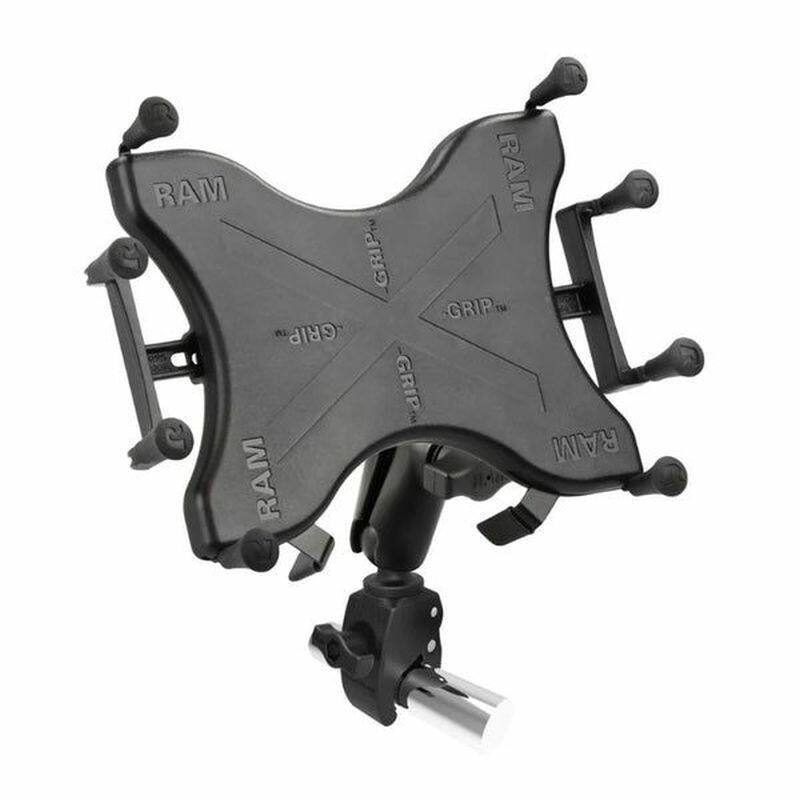

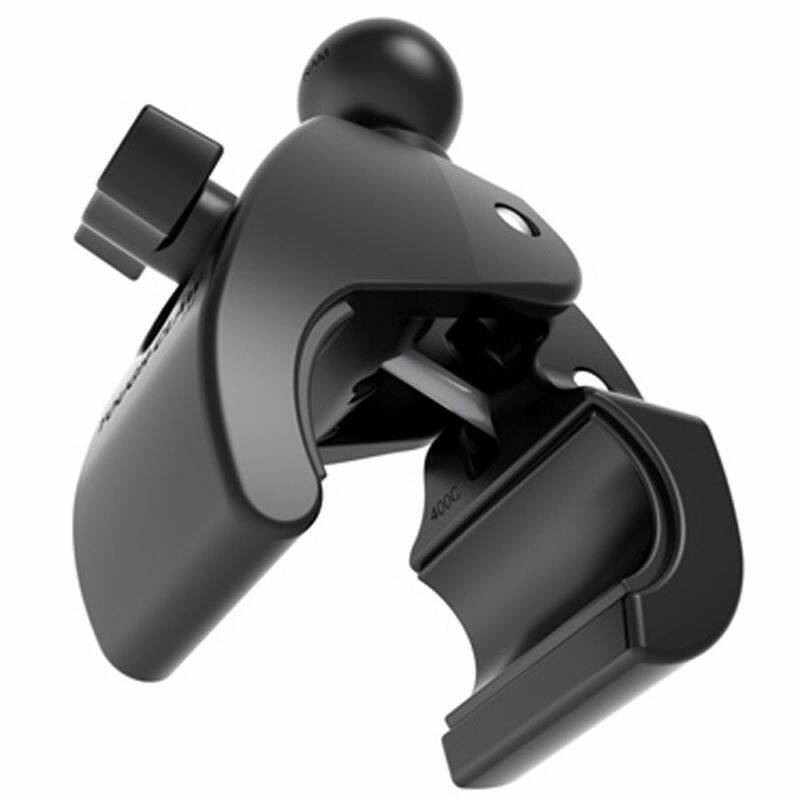

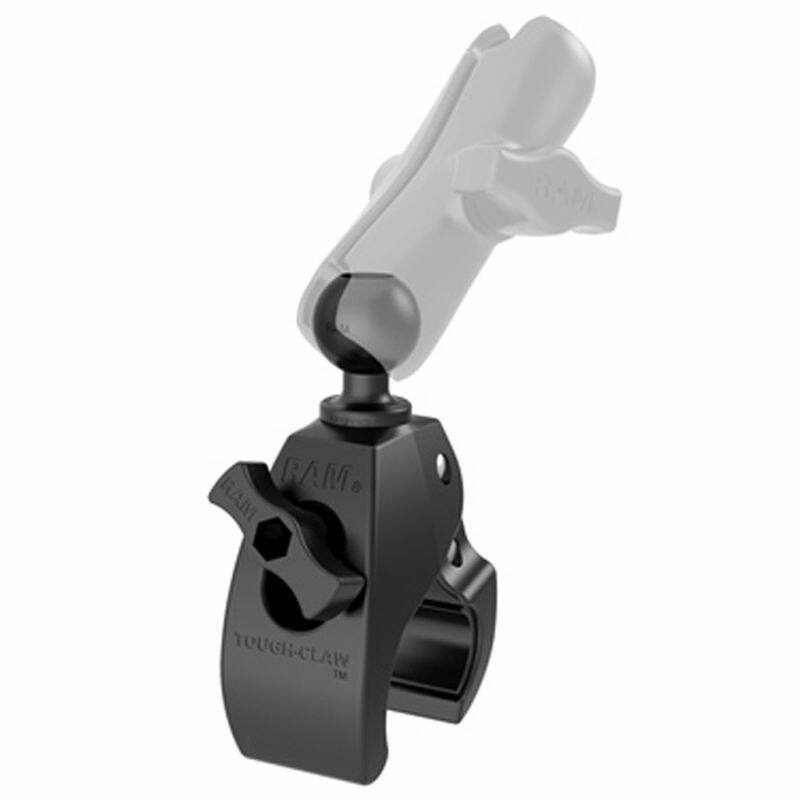

The Tough-Claw™ rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars from 16mm to 28mm outer diameter.

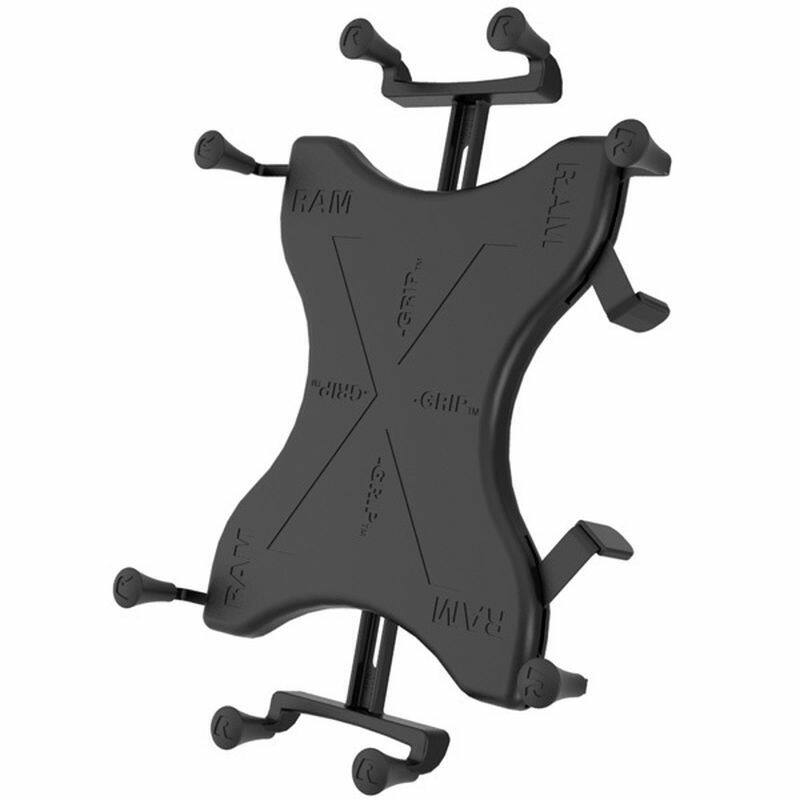

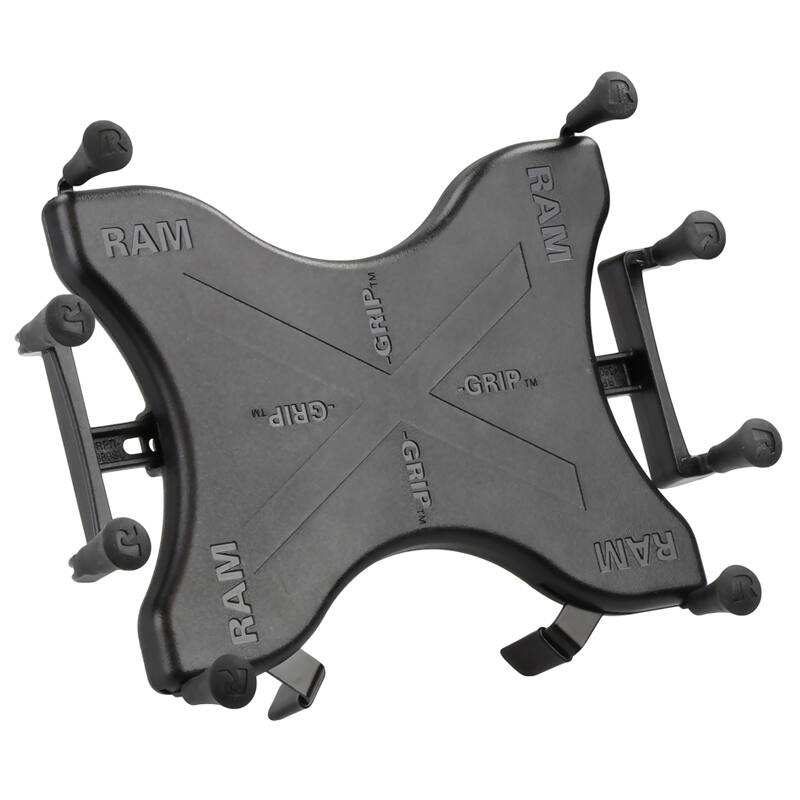

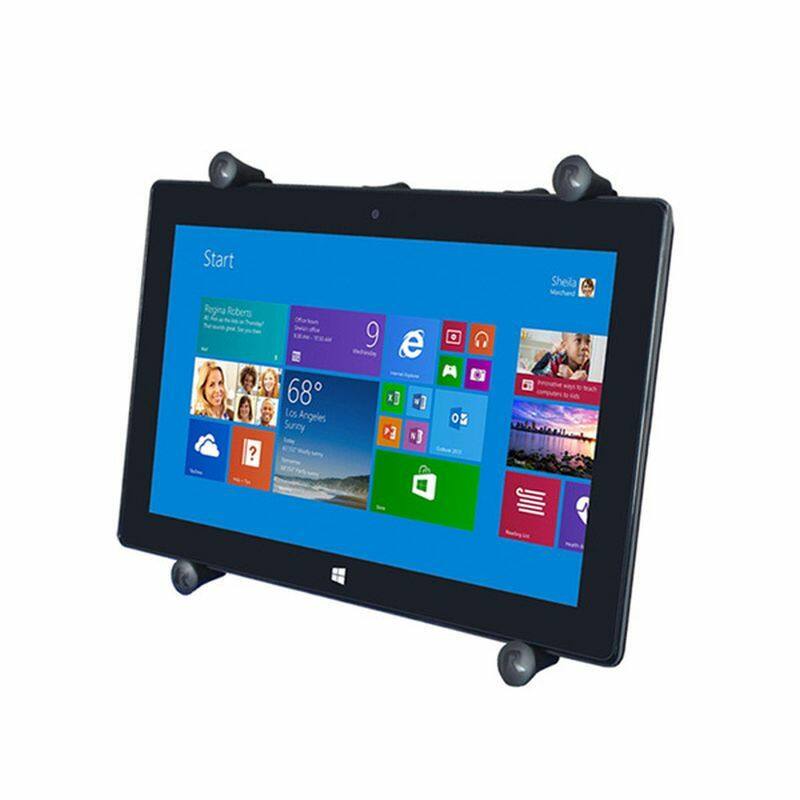

The X-Grip expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets and is compatible with devices that will fit the dimensions listed below. Check the dimensions of your device with a case/sleeve/skin when determining the overall size.


Cradle Dimensions

Min Width = 158.75mm (6.25”)
Max Width = 205.7mm (8.1”)
Max length with supports 260.4mm (10.25”) (unlimited without supports)
Max Thickness = 22.2mm (0.875")


Compatible Devices
For a list of many of the compatible devices see the RAM-HOL-UN9U

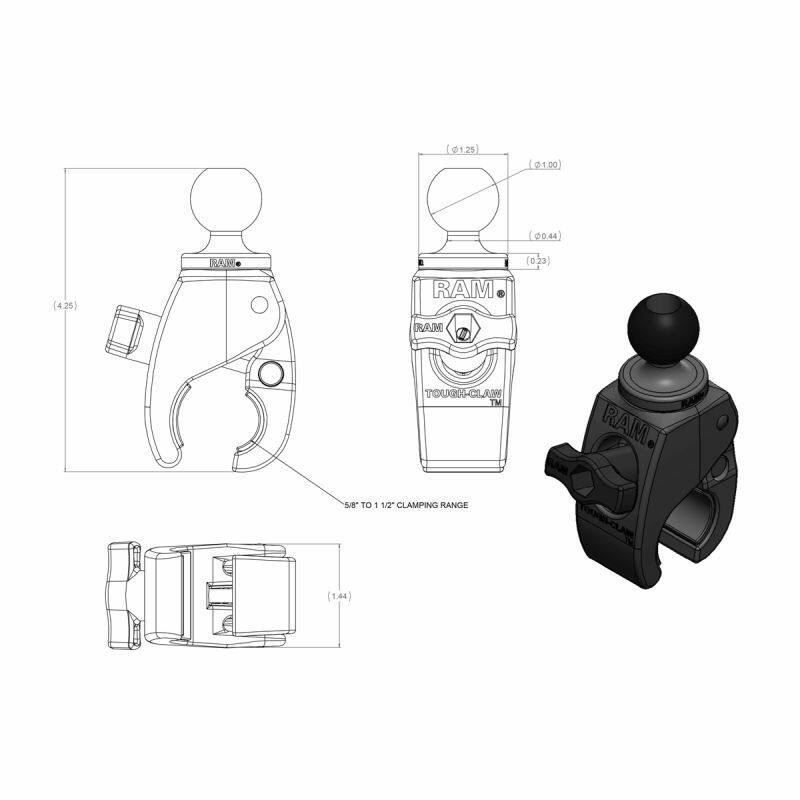

Tough Claw Clamping Range:
Rails/Tubes:
16 to 28mm (0.625" to 1.14")
Flat Surfaces: 0 to 28mm (1.14")

Arm Dimensions
Overall:
152 mm (6")
Socket-To-Socket:
134 mm (5.25")


Ball Size:
1" (B size)


Materials
Marine Grade Stainless Steel Components
Powder Coated Marine Grade Aluminium
High Strength Composite


Components:
RAM-HOL-UN9U X-GRIP TABLET HOLDER
RAP-B-400U SMALL TOUGH CLAW
RAM-B-201U-C DBL SOCKET ARM
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL
