RAP-401-9-BC-UN9U - RAM® X-Grip® with RAM® Tough-Claw™ 9" Pipe Mount for 9"-10" Tablets
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-10" tablets
* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* Large version Tough-Claw designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 25-56mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* Made of Marine-grade aluminium, high-strength composite and steel components for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

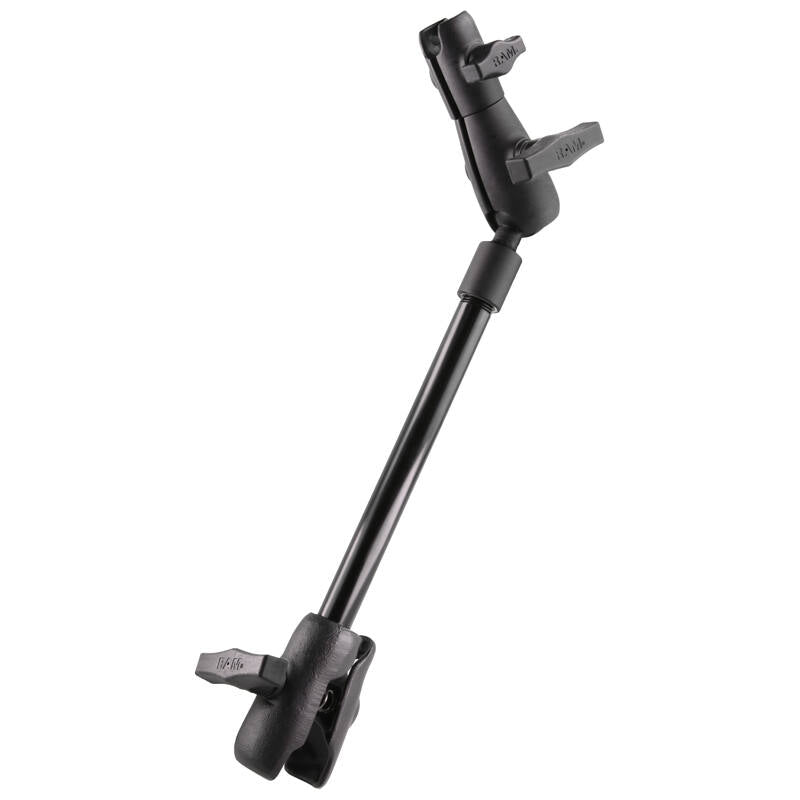

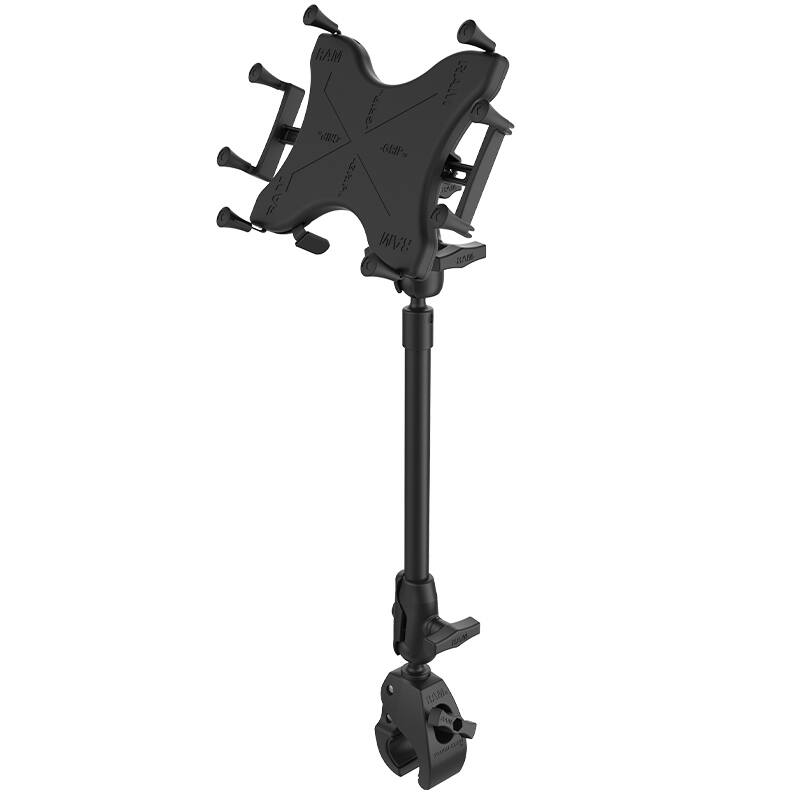

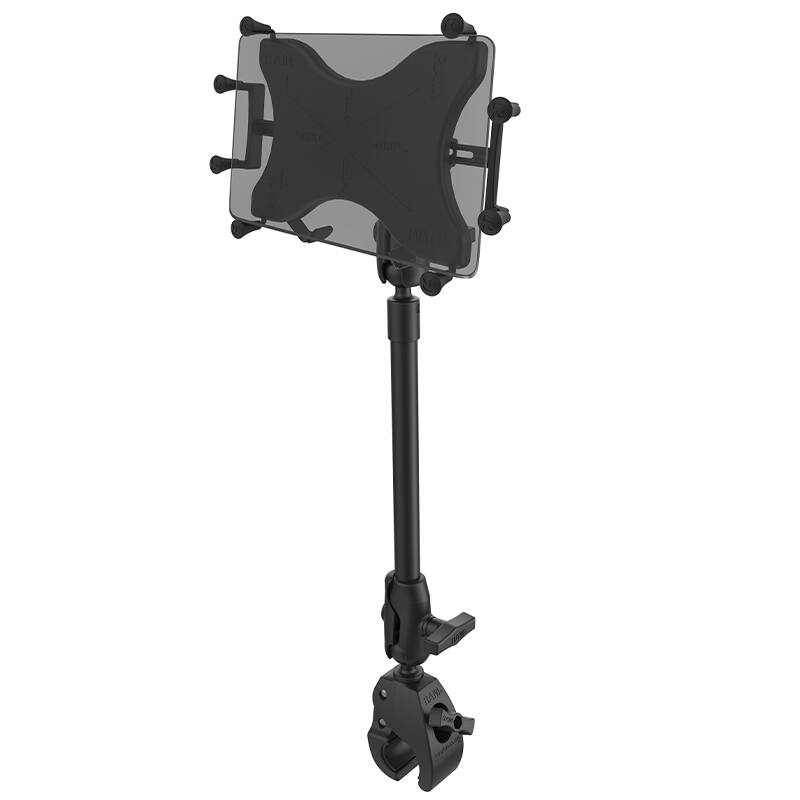

This bedside or wheelchair mounting kit for 9”-10” tablets includes the large RAM® Tough-Claw™ clamping base, 9” extension pole, swiveling double socket arm, and the RAM® X-Grip® universal tablet holder.

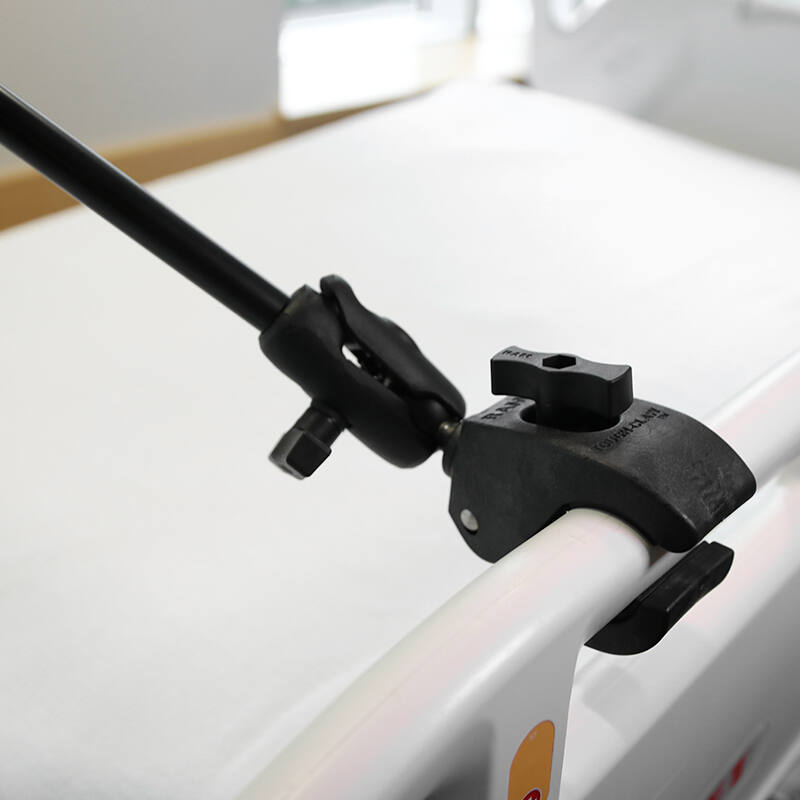

The RAM® Tough-Claw™ attaches with the twist of a knob to bedside rails and bars that range from 25.4mm to 56mm in outer diameter. Both a 228mm / 9” long extension pole and swiveling double socket arm can be easily adjusted to keep the RAM® X-Grip® universal tablet holder in an ideal viewing and operating position.

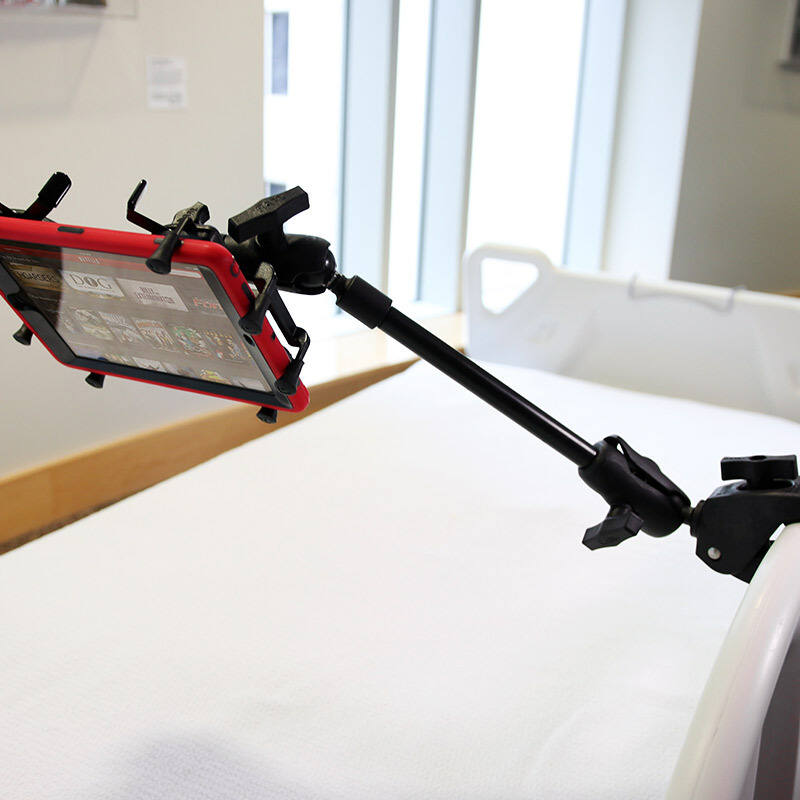

If used as a bed mount- when not in use, the tablet holder and extension pole can simply be rotated away from the bed.

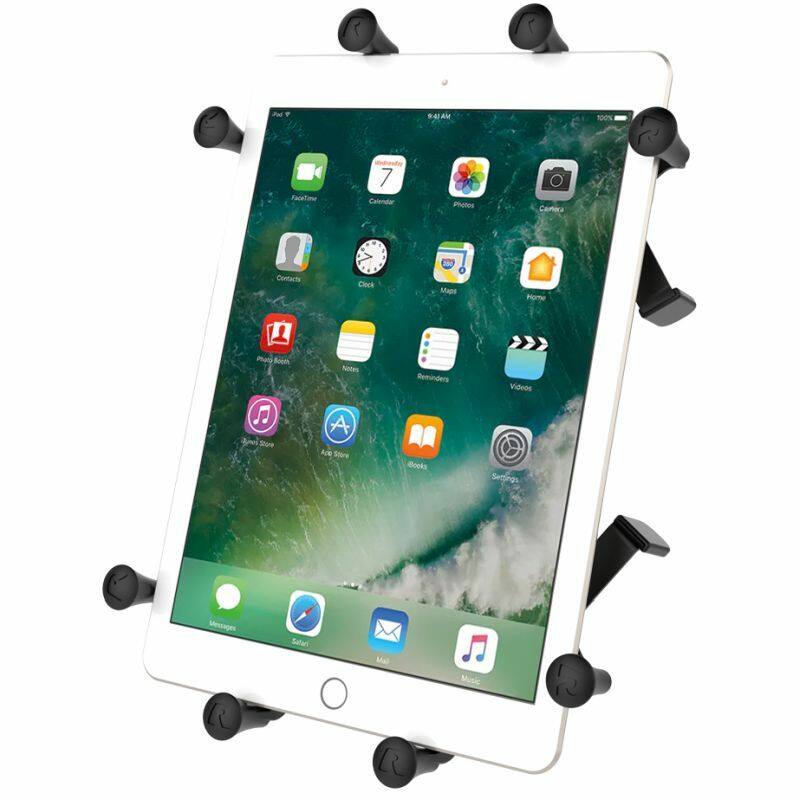

The included -UN9 X-Grip consists of a composite spring-loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet.
The RAM-HOL-UN9U expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets.
The cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
Minimum Width = 158.75mm / 6.25”
Maximum Width = 205.7mm / 8.1”
Max length with supports 260.4mm / 10.25” (unlimited without supports)
Maximum Thickness = 22.2mm / 0.875"
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN9U
Clamping Range
Rails/Tubes:
25.4mm to 56mm (1" to 2.2")
Flat Surfaces:
0mm to 56mm (0" to 2.2")
Overall Height:
26"/660mm
BALL/SOCKET SIZE
Bottom of Arm: C Size (1.5")
Top of Arm: B Size (1")
LOAD CAPACITY
900g/ 2 lbs
MATERIALS
Marine-grade aluminium
High strength composite
Weight
630 grams /3.6 lbs.
COMPONENTS:

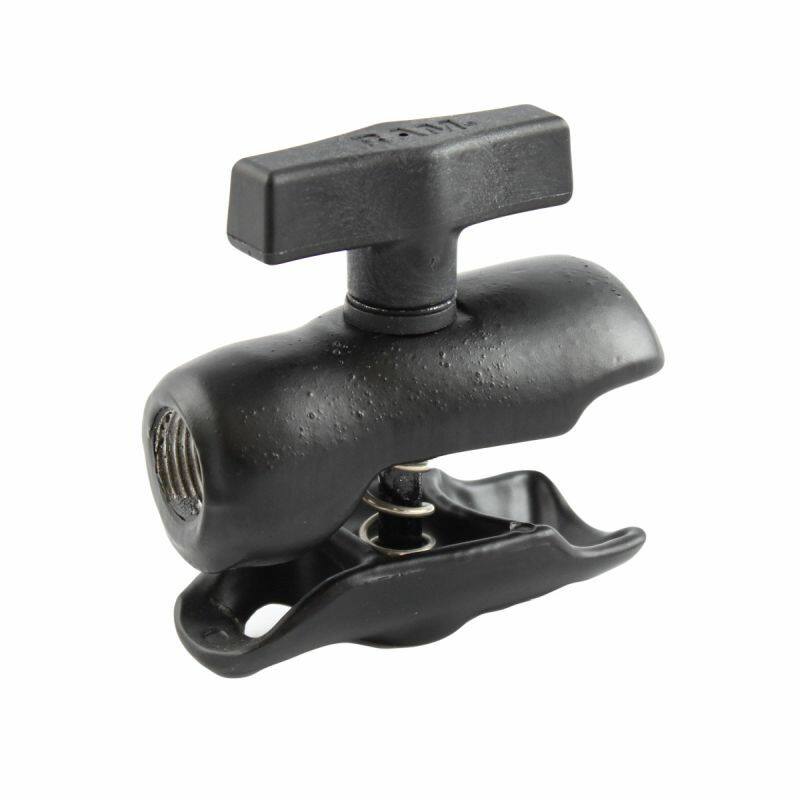

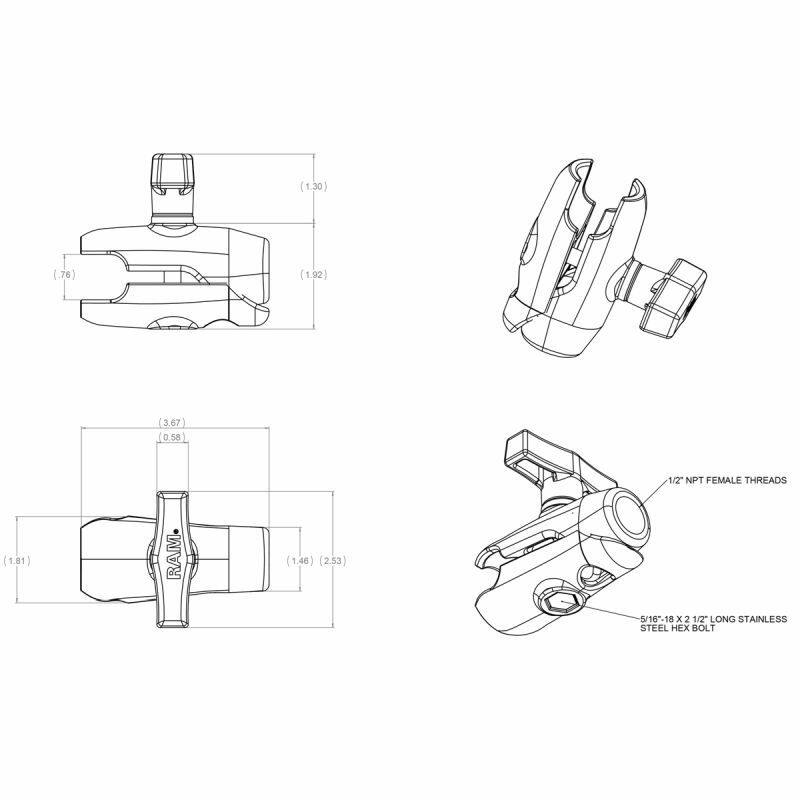

RAM-200-1U Single Socket Arm with 1/2" NPT Female Hole for C Size 1.5" Balls
RAM-PA8209 1/2" X 9" LONG PIPE NIPPLE aluminium

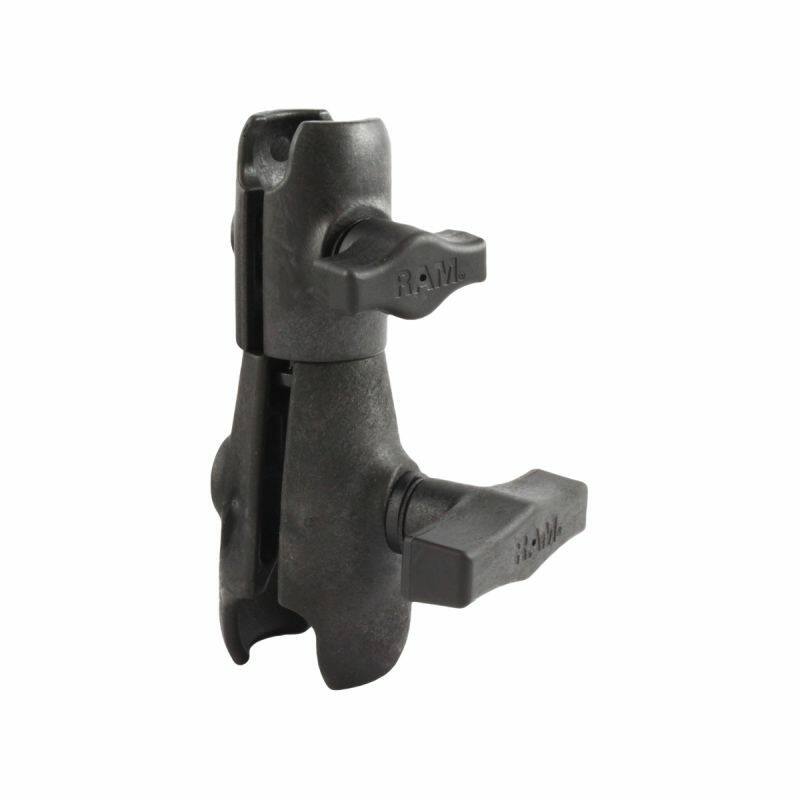

RAP-BC-201U Composite Swivel Double Socket Arm for 1" & 1.5" Balls

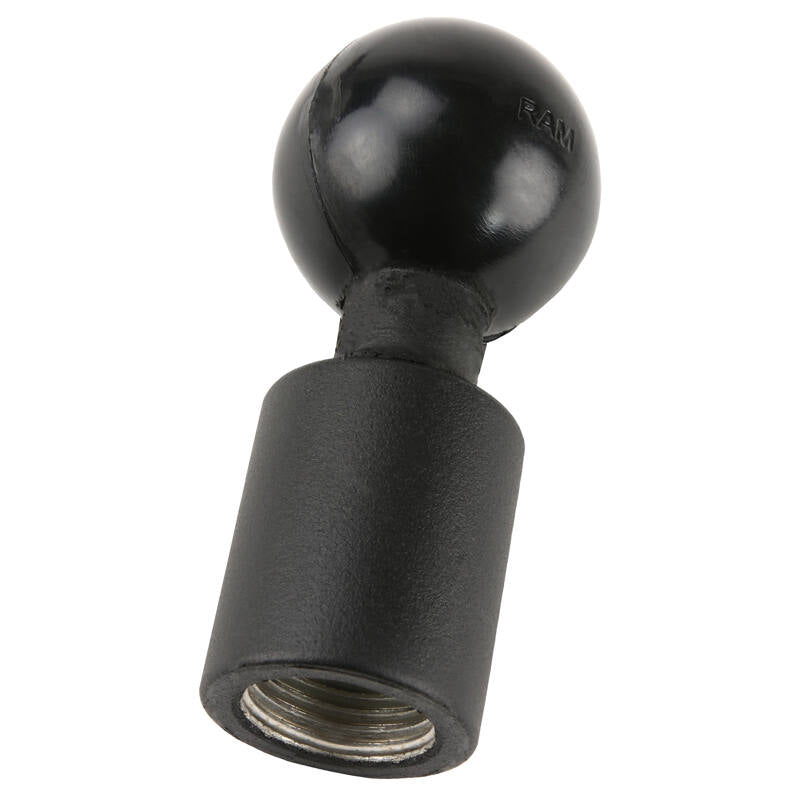

RAM-218-1U BASE WITH 1/2" NPT THREADED HOLE

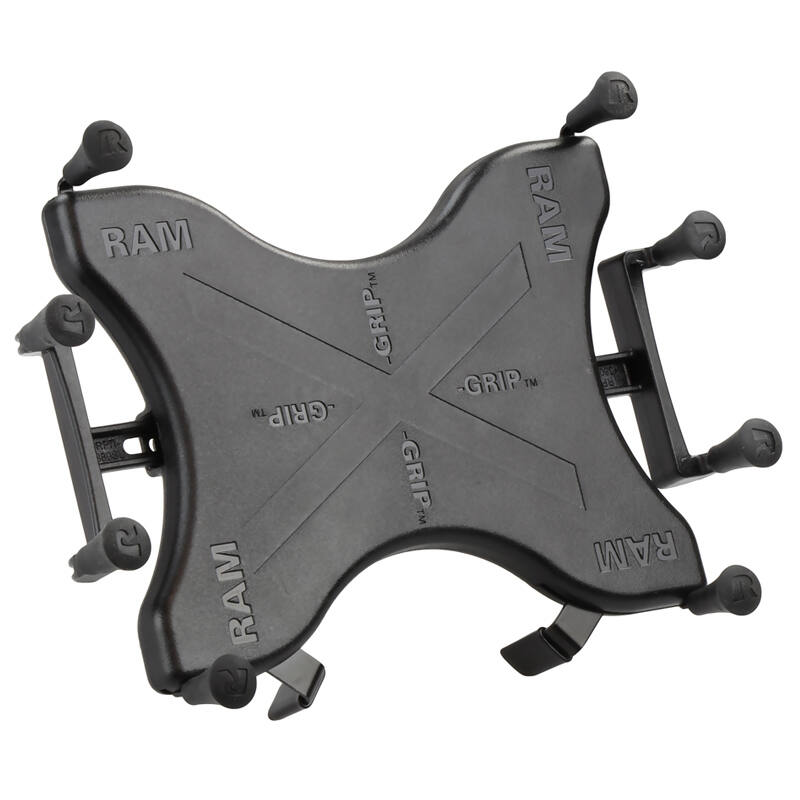

RAM-HOL-UN9U X-GRIP UNIVERSAL 10" TABLET HOLDER

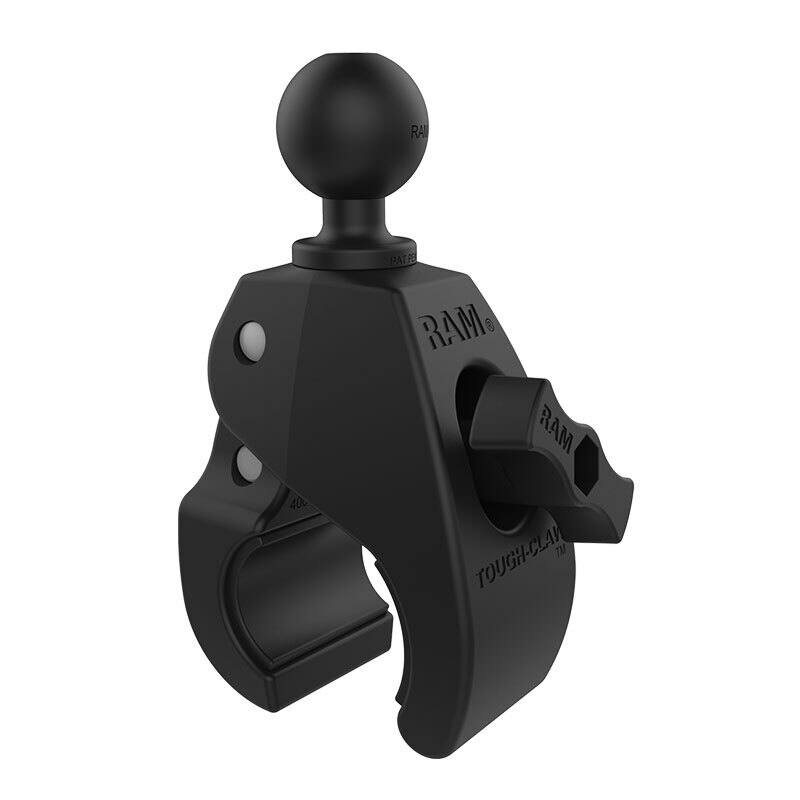

RAP-401U Large Tough-Claw with 1.5" Diameter Rubber Ball
RAm-B-202U 63mm DIA.BASE WITH 1" BALL
