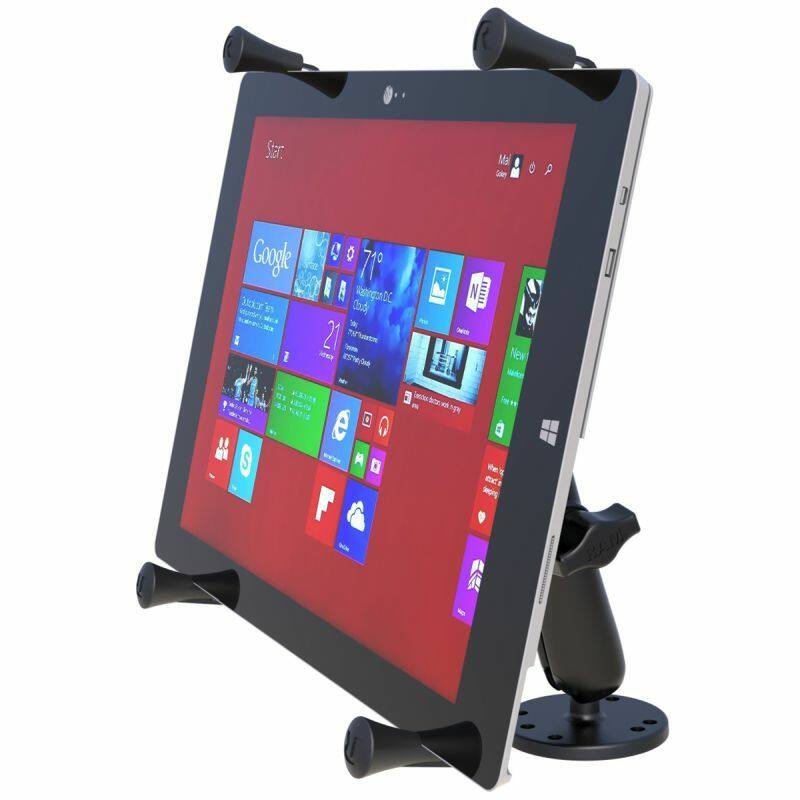

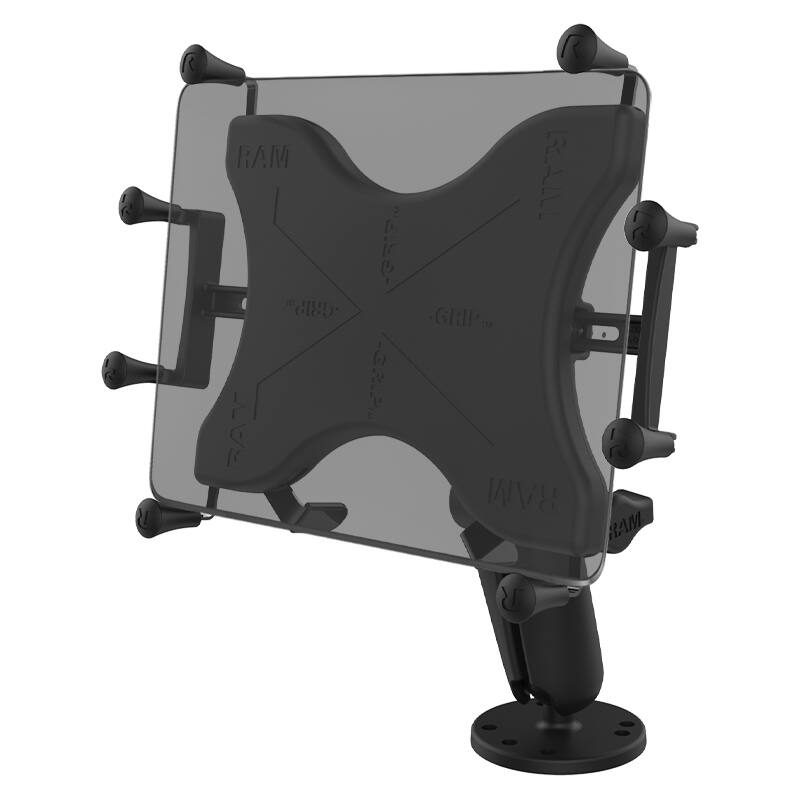

RAM X-Grip Universal Cradle for 12" Tablets with Flat Surface Base & Long Arm

RAM X-Grip Universal Cradle for 12" Tablets with Flat Surface Base & Long Arm

SKU:RAM-B-101-C-UN11U-v

Regular price $300.60 NZD
Regular price Sale price $300.60 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-101-C-UN11U RAM® X-Grip® Drill-Down Double Ball Mount for 12" Tablets


Features

* Complete flat surface, drill-down mounting solution for the RAM® X-Grip® 12" tablet holder
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet

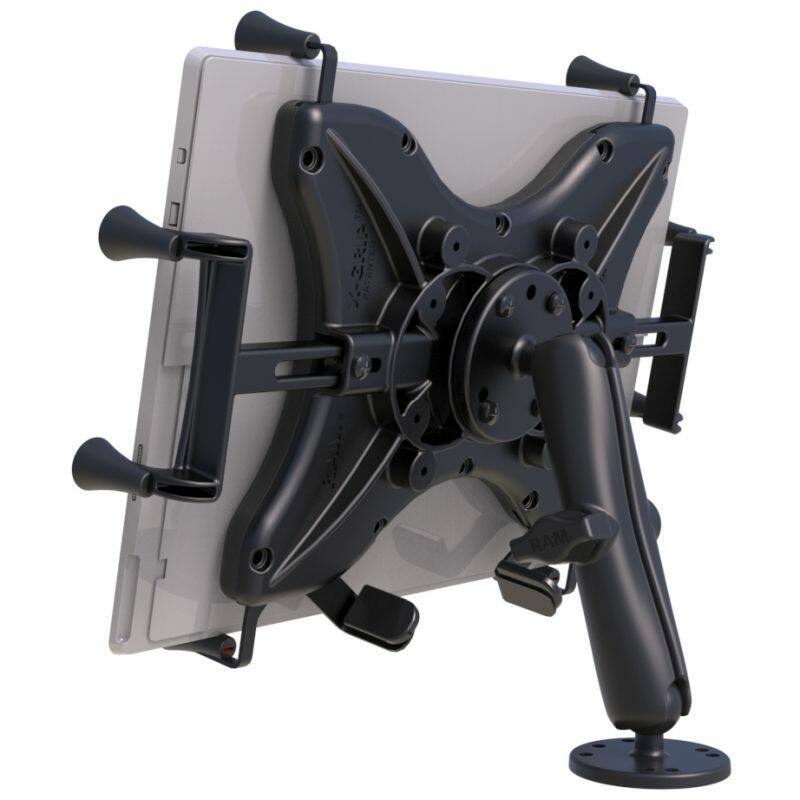

* Easy access grip knobs on the back of the holder allow for the quick release of your device
* Round 64mm base plate is ideal screw down base with 4 and 3 hole AMPs patterns
* B Series long RAM arm with ball and socket technology allows for almost infinite adjustment angles
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

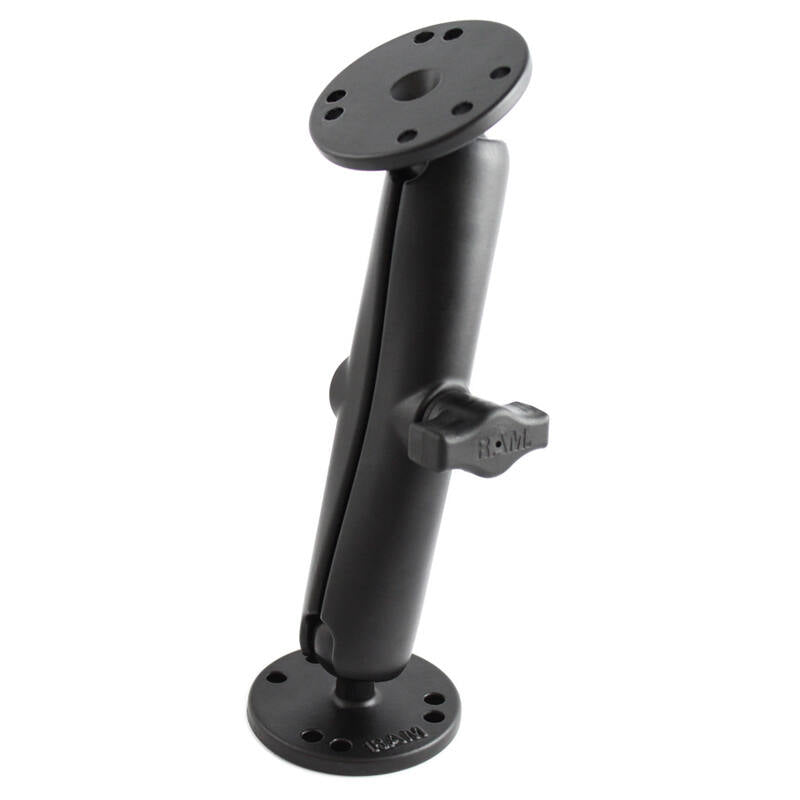

The base consists of a LONG (152mm) double socket arm and two 2.5" (64mm) diameter round bases. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The base plates allow this mount to be screwed / bolted to almost any flat surface.

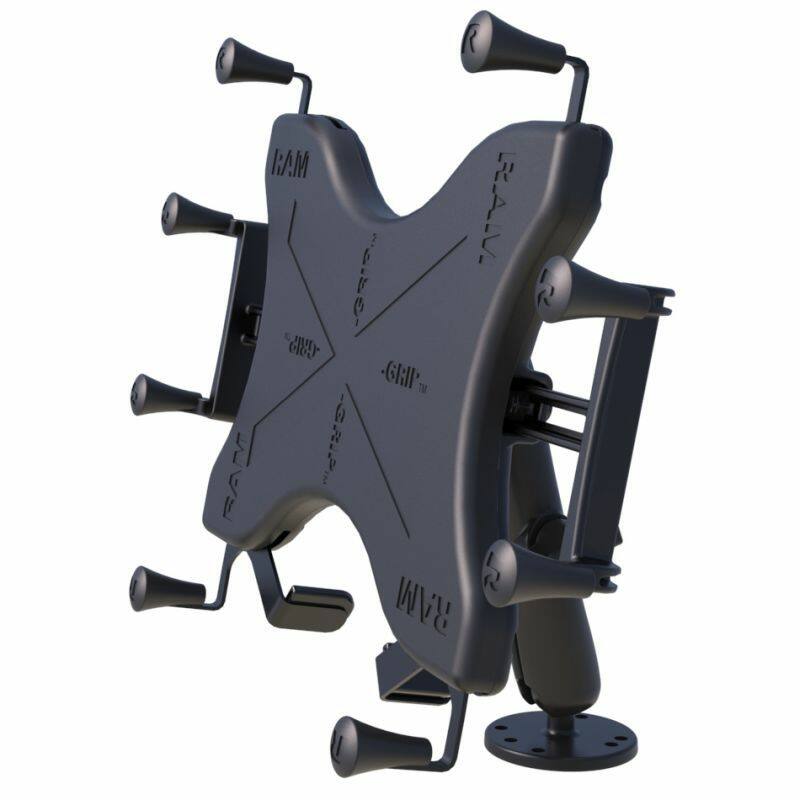

The X-Grip cradle is spring-loaded with expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. It expands and contracts for perfect fit of most 12" (305mm) tablets with or without sleeves, as well as some smaller tablets.


The cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.


Cradle Dimensions

Minimum Width = 184.2mm (7.25”)
Maximum Width = 222.3mm (8.75”)
Max length with supports 260.4mm (10.25”) (unlimited without supports)
Maximum Thickness = 22.2mm (0.875")


Compatible Devices

For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN11U


Arm Dimensions:
Overall Length:
152 mm (6”)
Socket-To-Socket Length:
134 mm (5.25”)


Material:
Powder Coated Marine Grade Aluminium
Stainless steel components
High-strength composite


Round Plate hole pattern:
4-Hole AMPS: 30mm x 38mm (1.181" x 1.496")
3-Hole 120-Degree: 46.02mm (1.812") Diameter


Weight Capacity
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)



Ball Size
1" Rubber "B" Ball Size


Weight
830 grams (1.85lbs)

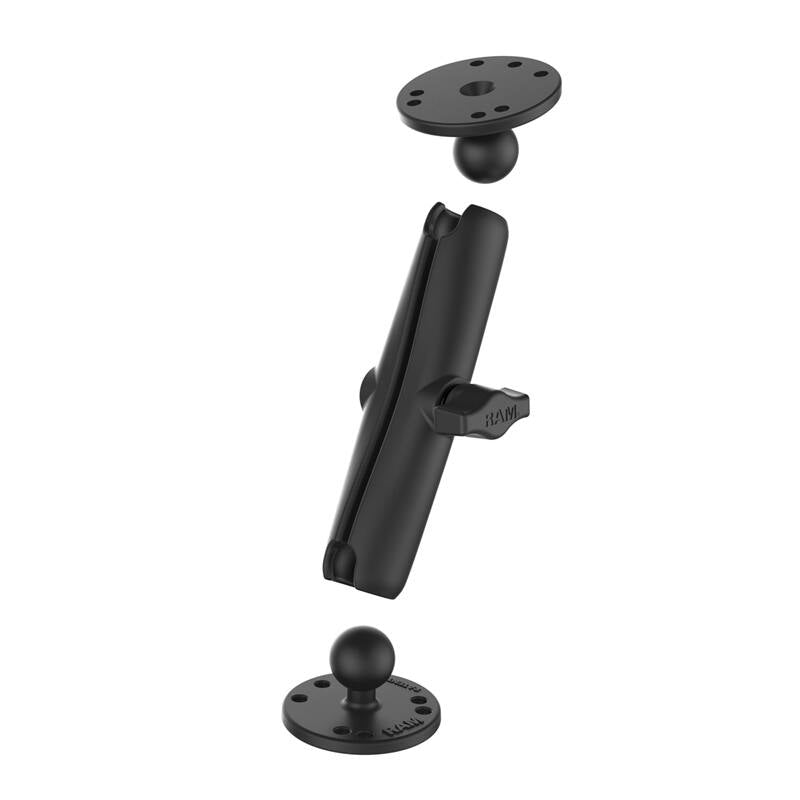

Components:

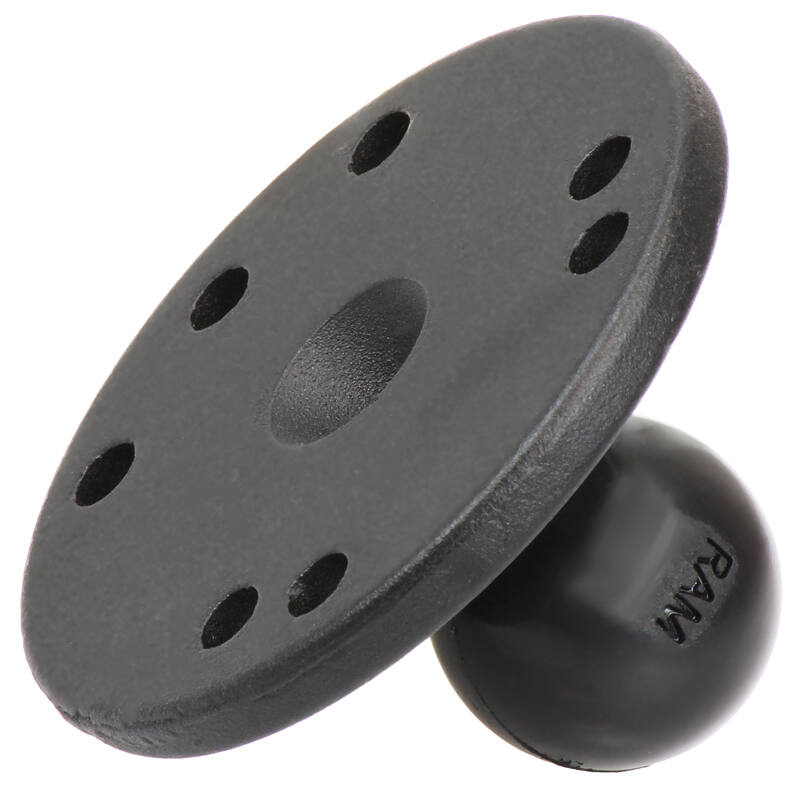

RAM-B-202U - Round Plate (x2)
RAM-B-201U-C - Long Double Socket Arm

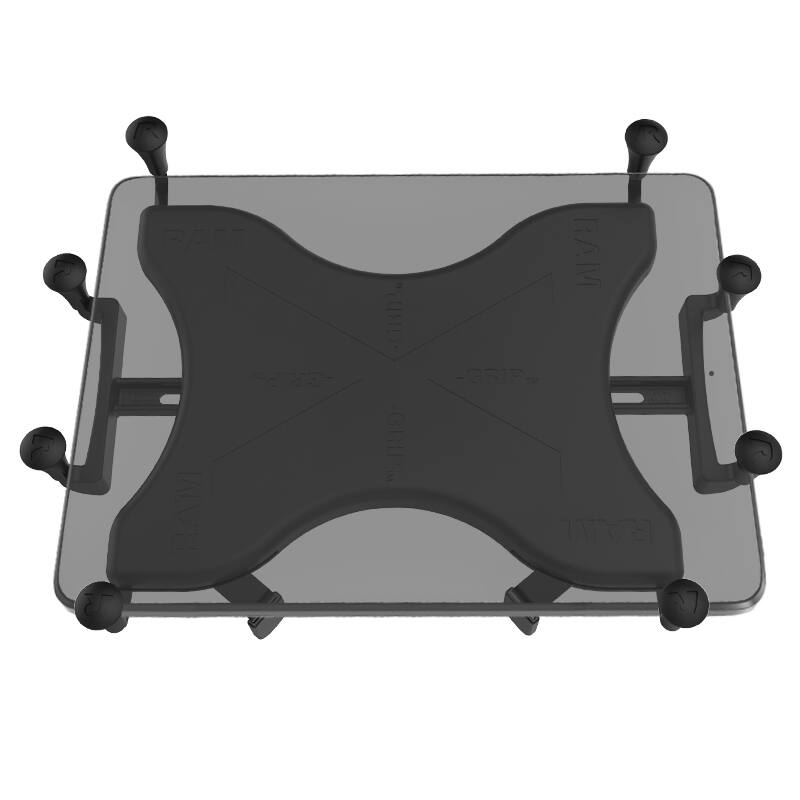

RAM-HOL-UN11U - X-Grip
