RAM-B-149Z-UN11U RAM® X-Grip® Large Tablet Mount with Handlebar U-Bolt Base
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" tablets
* Includes U-bolt base that accommodates rails from 12.7 to 32mm in diameter and a medium length, B size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

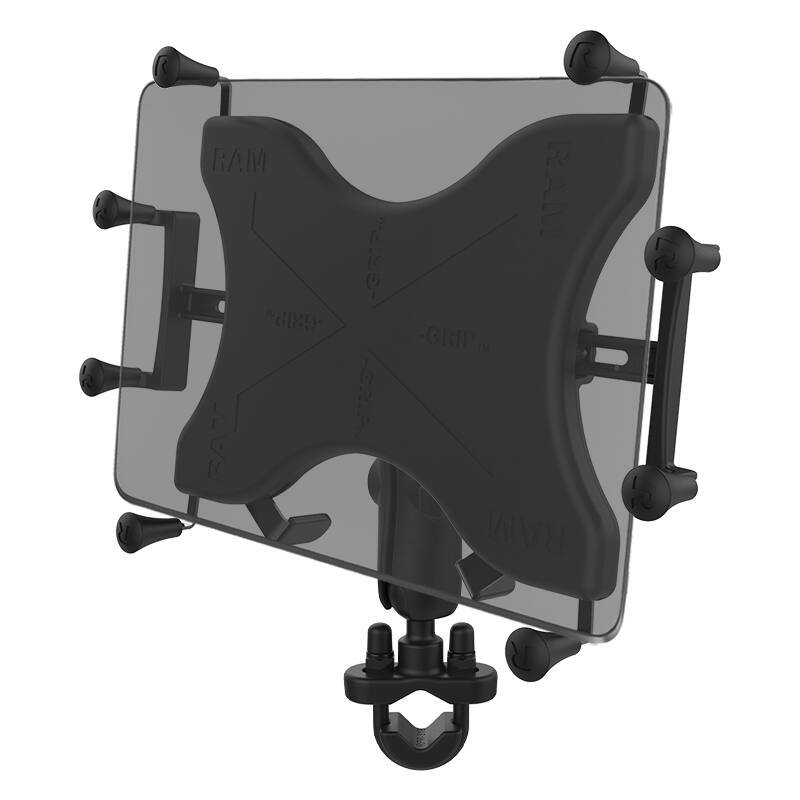

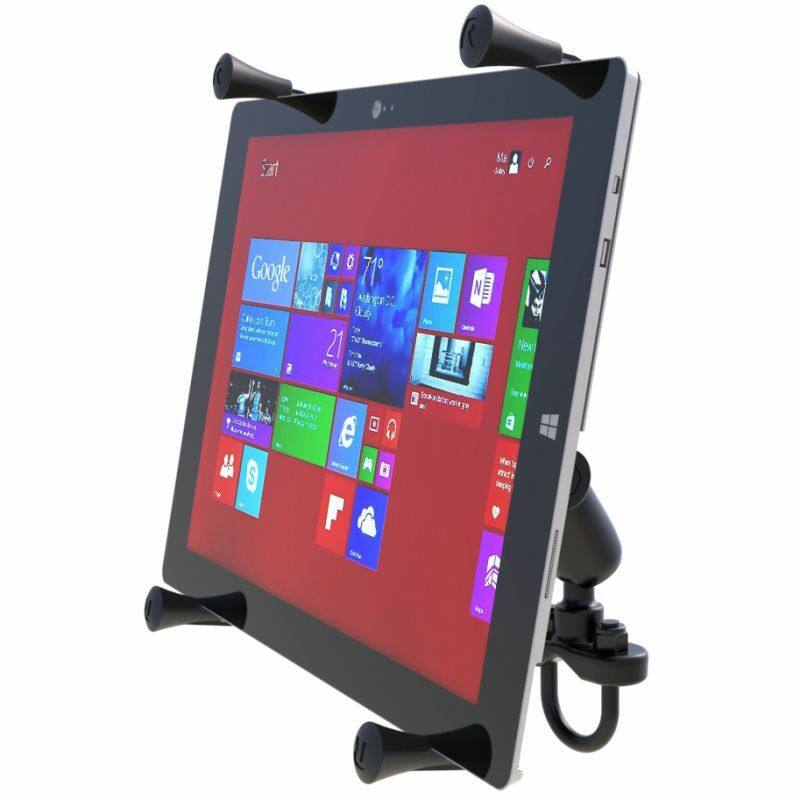

This complete mounting solution for 12" Tablets consists of a zinc coated u-bolt base, double socket arm, round base adapter and universal RAM® X-Grip® cradle.

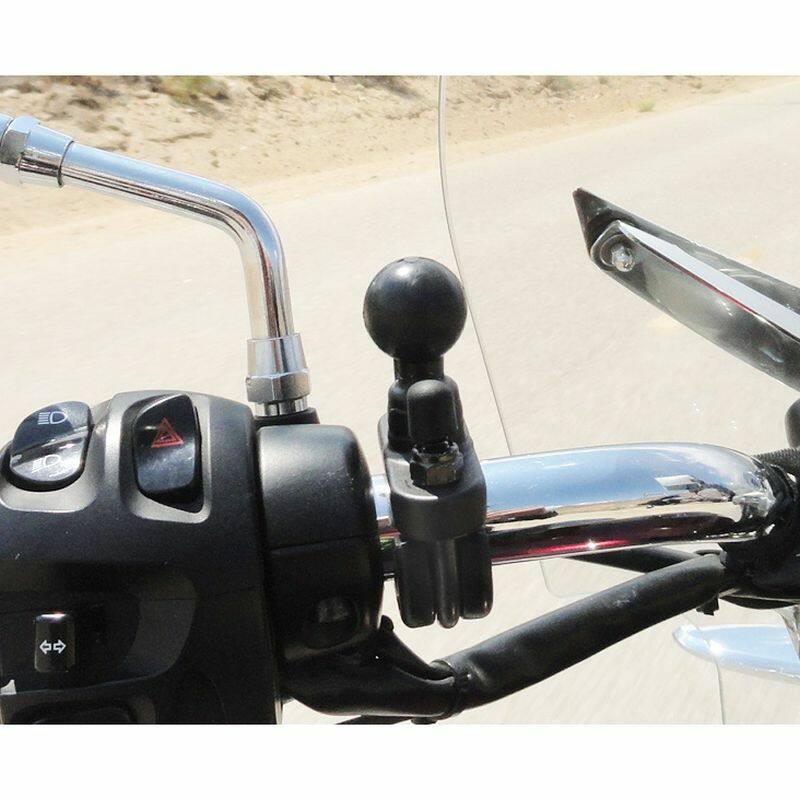

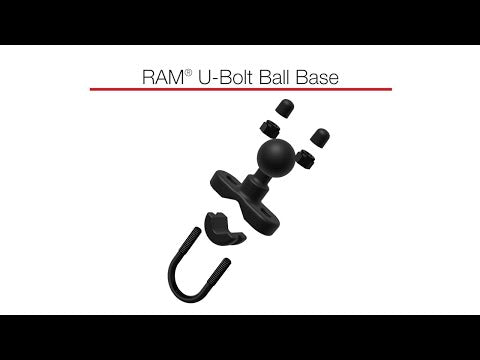

The U-Bolt base has the RAM 1" diameter patented rubber ball and socket system that allows for almost infinite adjustment and perfect viewing angles. The rubber ball sits at right angles to the mounting rail and a U-bolt mounting. This base will fit all common motorcycle and bicycle handlebars as well as any other similar sized posts. Includes black cover caps to cover the exposed ends of the U-bolt.

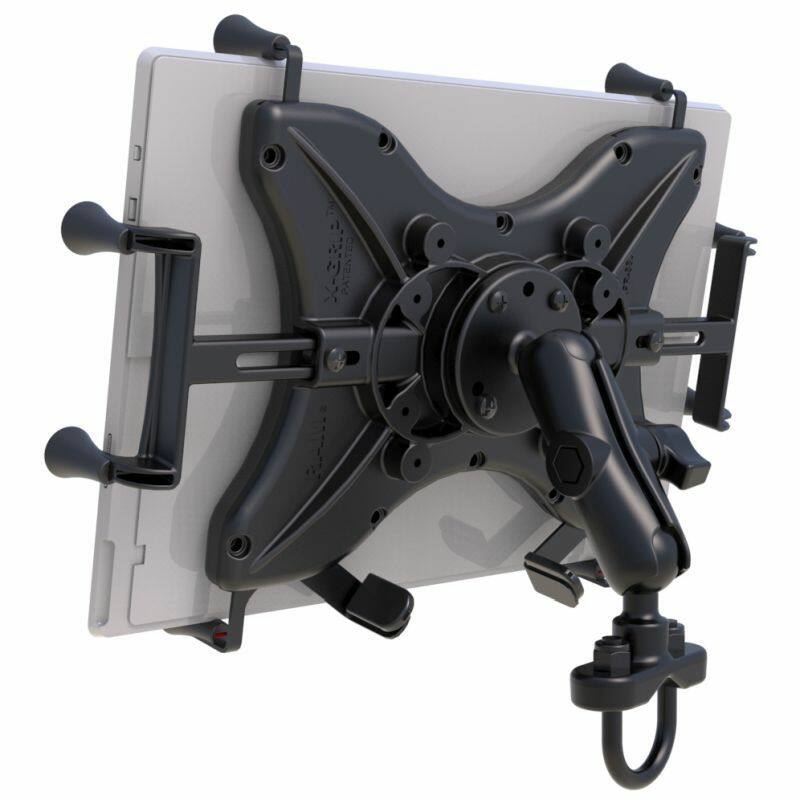

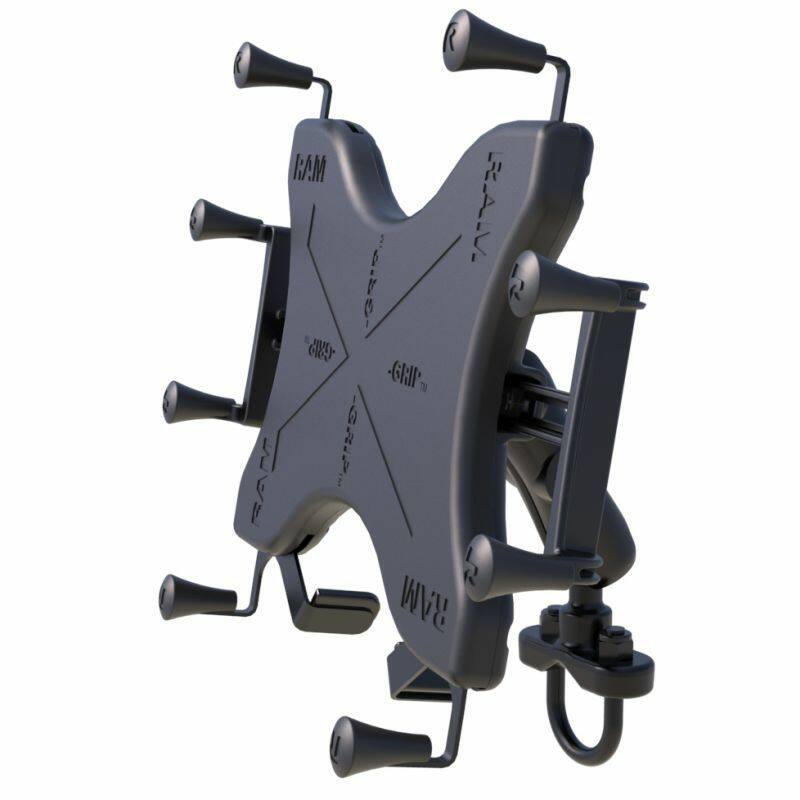

The X-Grip consists of a composite spring-loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. It expands and contracts for perfect fit of most 12" tablets with or without sleeves, as well as some smaller tablets.
The cradle is compatible with devices that will fit the dimensions listed below. Please check the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
Min Width = 184.2mm (7.25”)
Max Width = 222.3mm (8.75”)
Max Length with supports 260.4mm (10.25”) (unlimited without supports)
Max Thickness = 22.2mm (0.875")
Compatible Devices
12" Tablets - For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN11U
U-Bolt Dimensions:
12.7-32mm (0.5" to 1.25") diameter.
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
Powder Coated Marine Grade Aluminium
High-strength composite
Ball Size
1" Rubber "B" Ball Size
Weight
830 grams (1.85lbs)
Components:

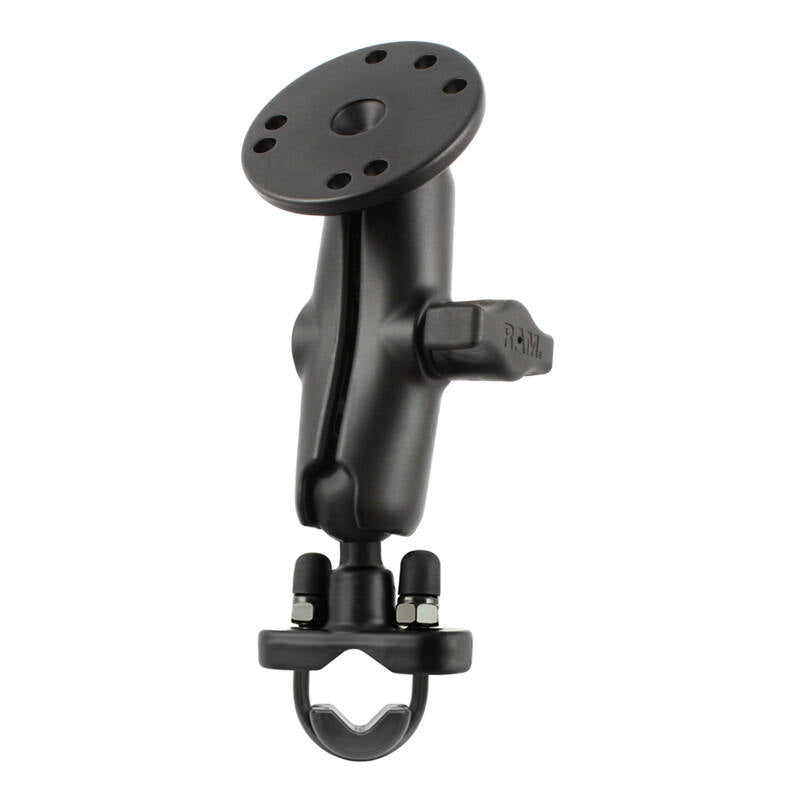

RAM-B-202U - Round Plate
RAM-B-201U - Double Socket Arm
RAM-HOL-UN11U - X Grip for 12" tablets
RAM-B-231ZU - Rail Base
YouTube:
https://www.youtube.com/watch?v=EmCOIzDwOxI&t=1s
https://www.youtube.com/watch?v=Ip0bJ7nNpLs
