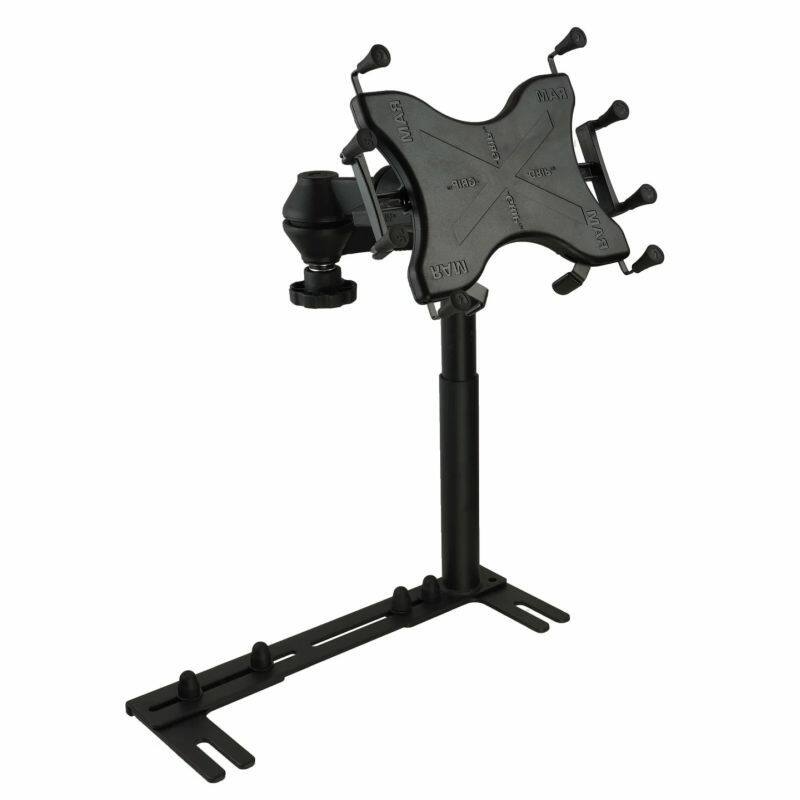

RAM-VB-196-1-UN11 RAM® X-Grip® 12" Tablet Mount with No-Drill™ Universal Base (RHD vehicles)
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" tablets

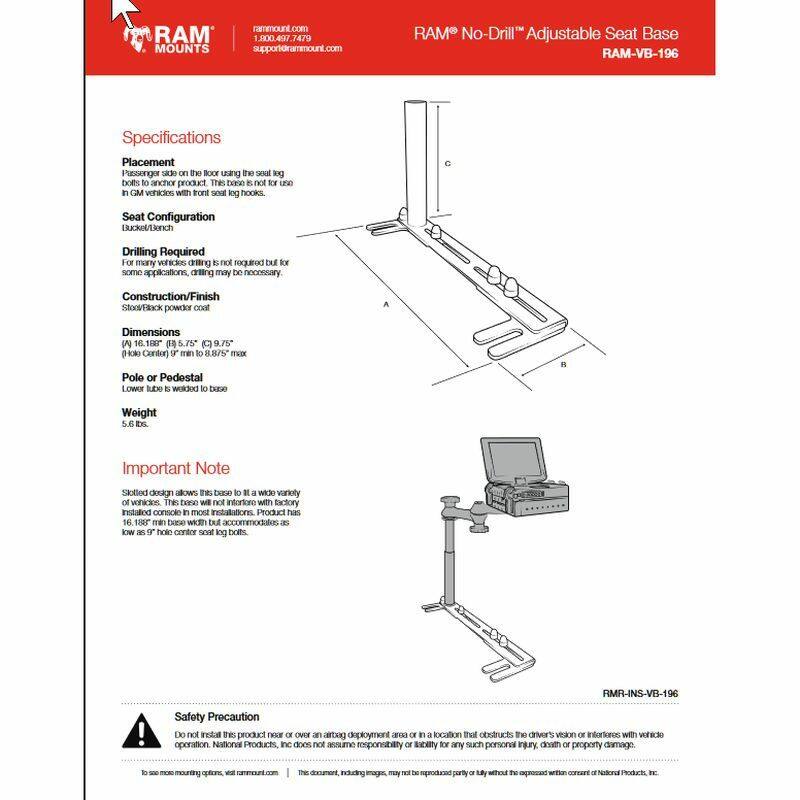

* RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

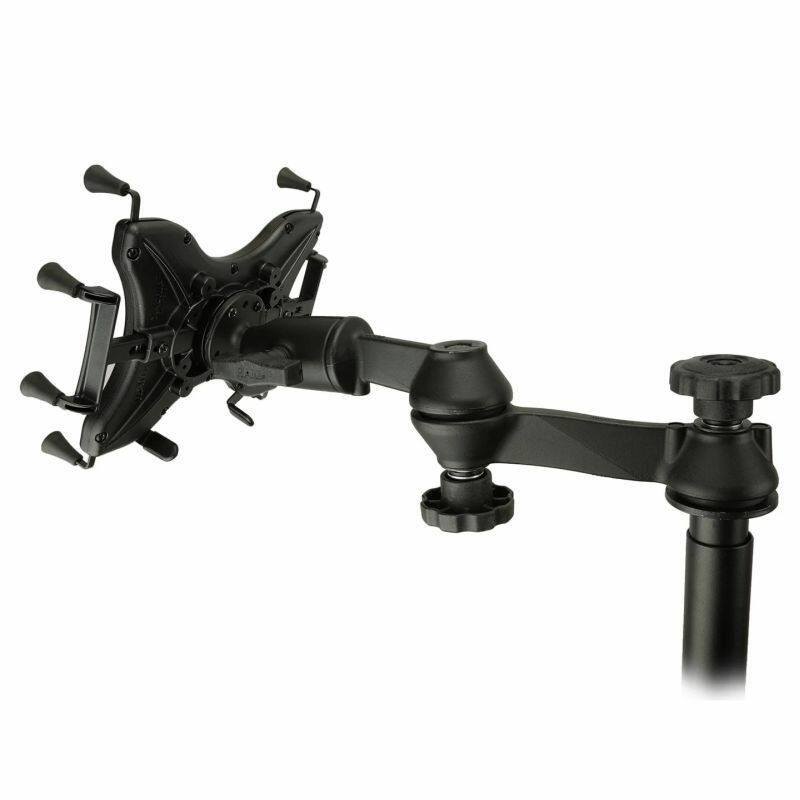

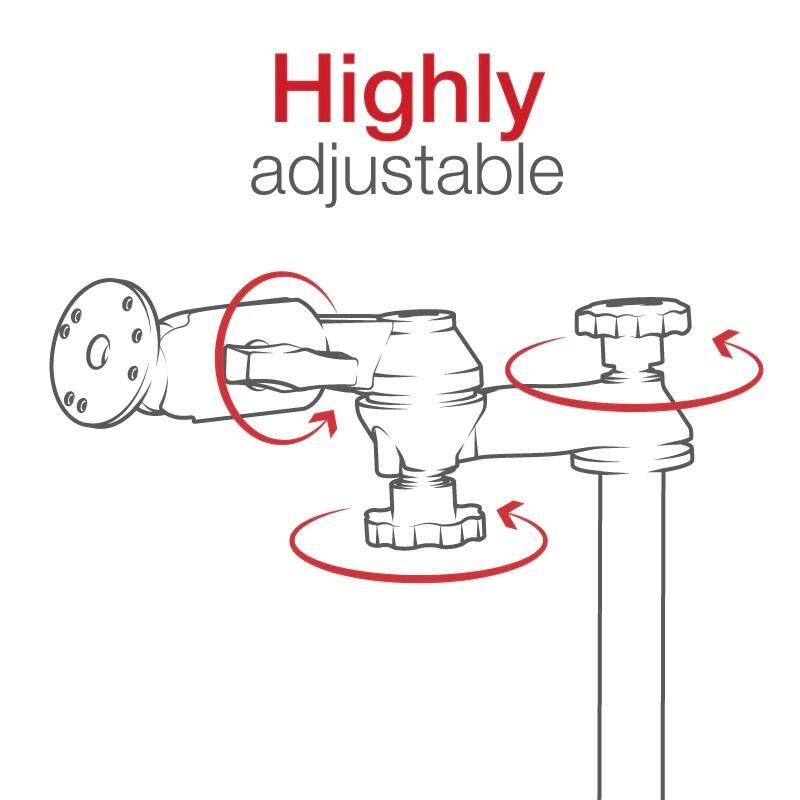

* Dual articulating swing arm allows for ideal device placement
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

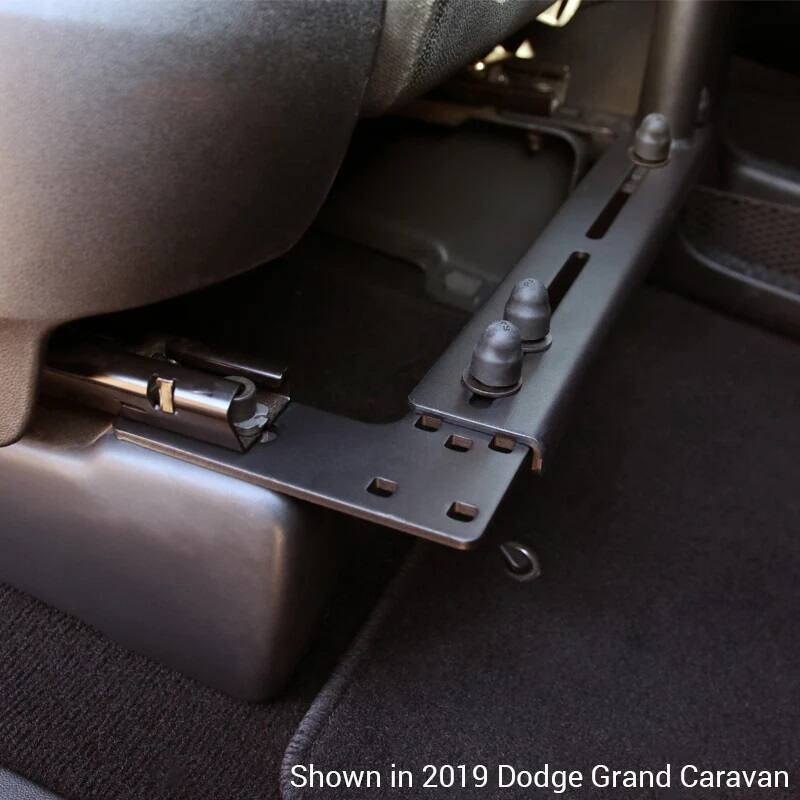

This vehicle bundle consists of the RAM® No-Drill™ mounting system and the RAM® X-Grip® universal holder for 12" tablets. Designed to install quickly and easily into a range of vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device.

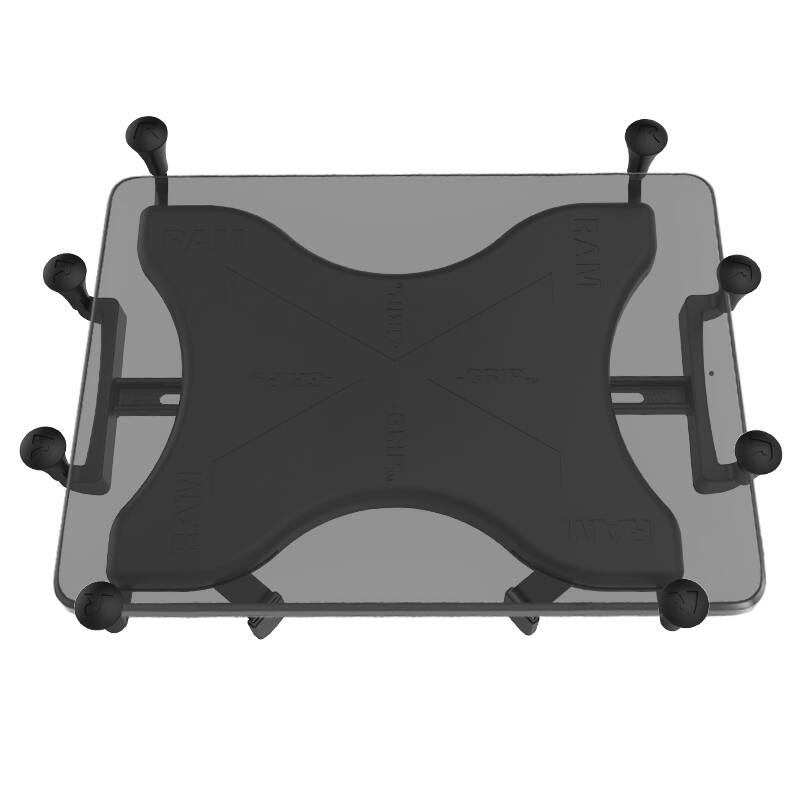

The RAM® X-Grip® universal holder for 12" tablets features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Included are easy access grip knobs located on the back of the cradle for quick release of your tablet. he RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. This version of the RAM® X-Grip® holder is compatible with tablets that will fit the dimensions listed below.
Please check the dimensions of device with its case, sleeve, or skin when determining the overall size.

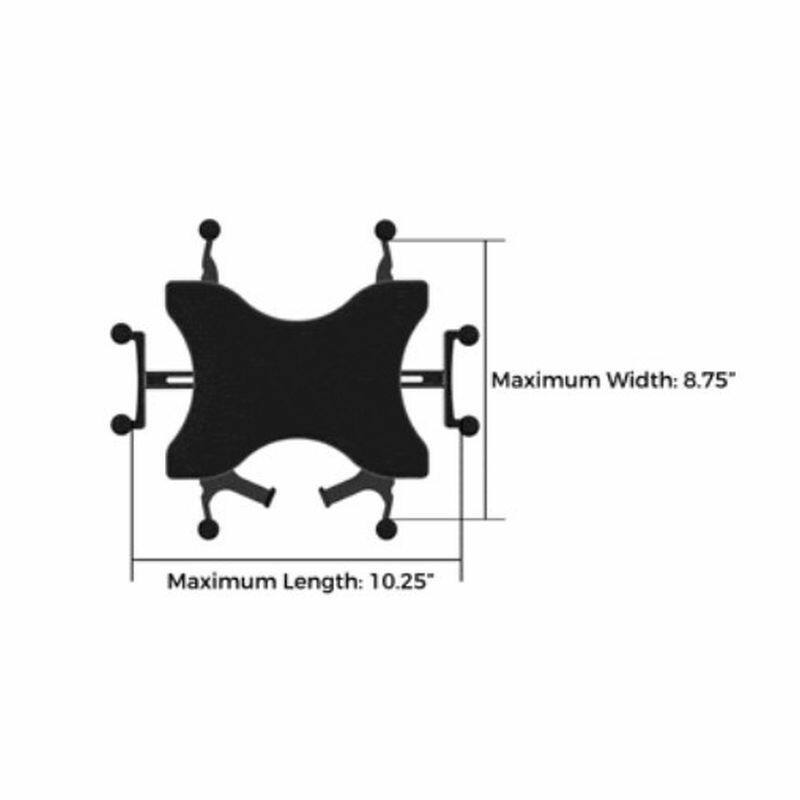

Cradle Dimensions
Min Width = 184.2mm (7.25”)
Max Width = 222.3mm (8.75”)
Max Length with supports 260.4mm (10.25”) (unlimited without supports)
Max Thickness = 22.2mm (0.875")
HARDWARE INCLUDED
Assembly Hardware
Stabilizer Foot
PRODUCT DIMENSIONS
Height Range: 463mm to 610mm (18.25" - 24")
HOLE PATTERN
Seat Bolt Distance: 228mm to 479mm (9"-18.875") (centre to centre)
BALL/SOCKET SIZE
C Size (1.5")
MATERIALS
Powder coated steel
Marine grade-aluminium
High strength composite
Components:

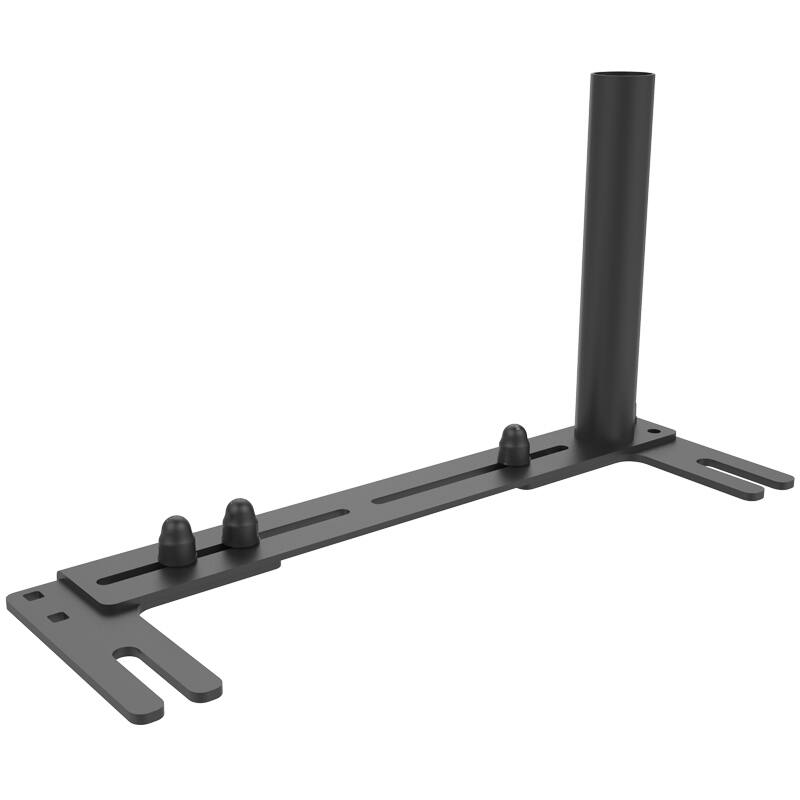

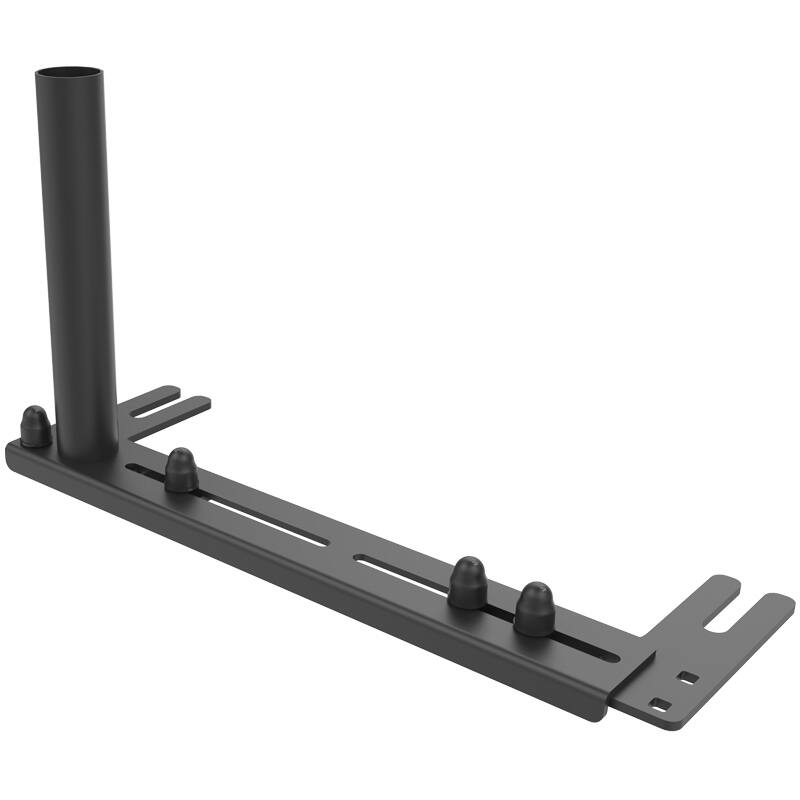

RAM-VB-196-1 RAM VEHICLE SYST RHD MOUNTING BASE

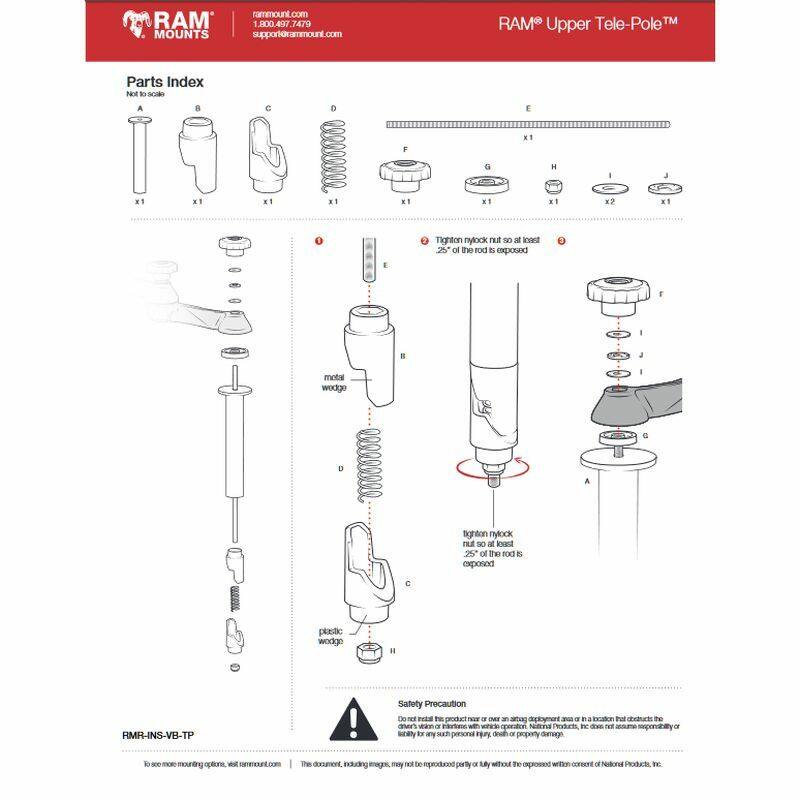

RAM-VP-TTM8U RAM 8" Upper Pole

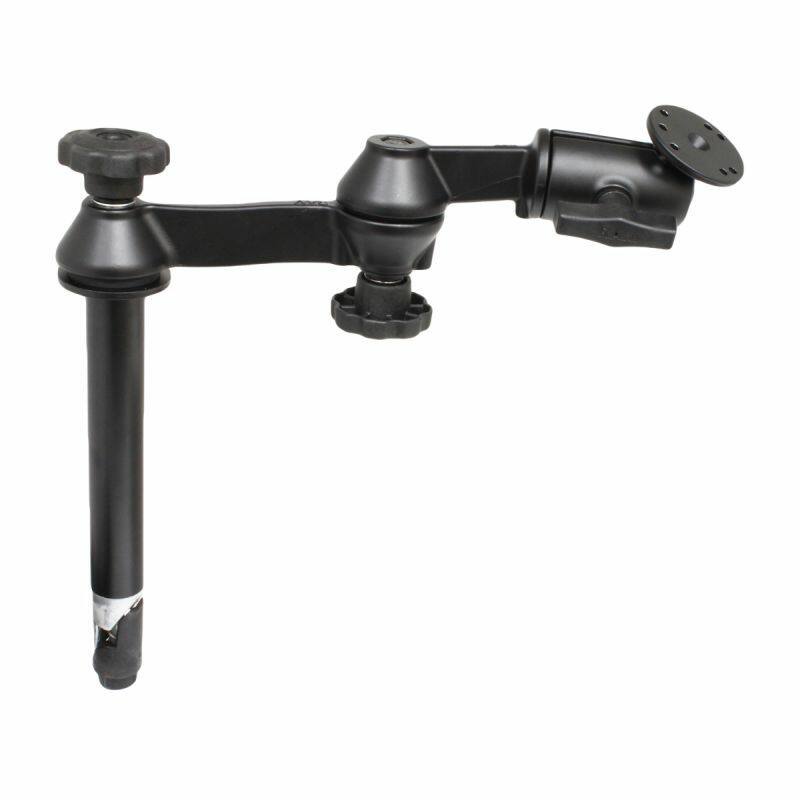

RAM-VB-110-1U RAM 305mm Double Swing Arm with 63mm Diameter Round Base
1RAM-HOL-UN11U RAM X-Grip Universal 305mm Class Tablet Holder
YouTube:
https://youtu.be/1HGlKR5-Mv0
