RAM Mounts

RAM X-Grip Universal Cradle for 12" Tablets with Suction Cup Mount

RAM X-Grip Universal Cradle for 12" Tablets with Suction Cup Mount

SKU:RAM-B-166-UN11U-v

Regular price $314.04 NZD
Regular price Sale price $314.04 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

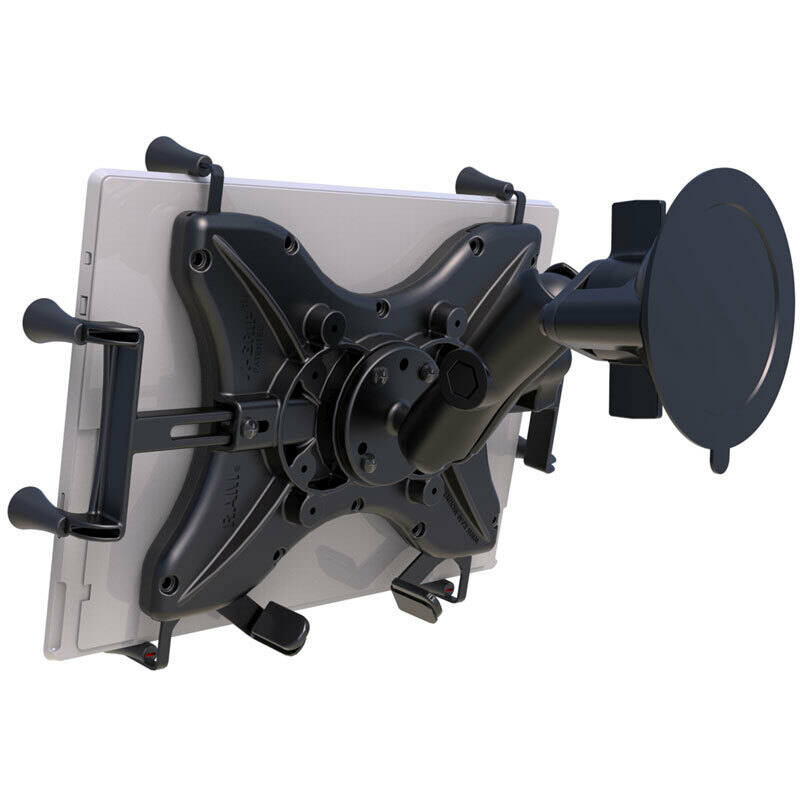

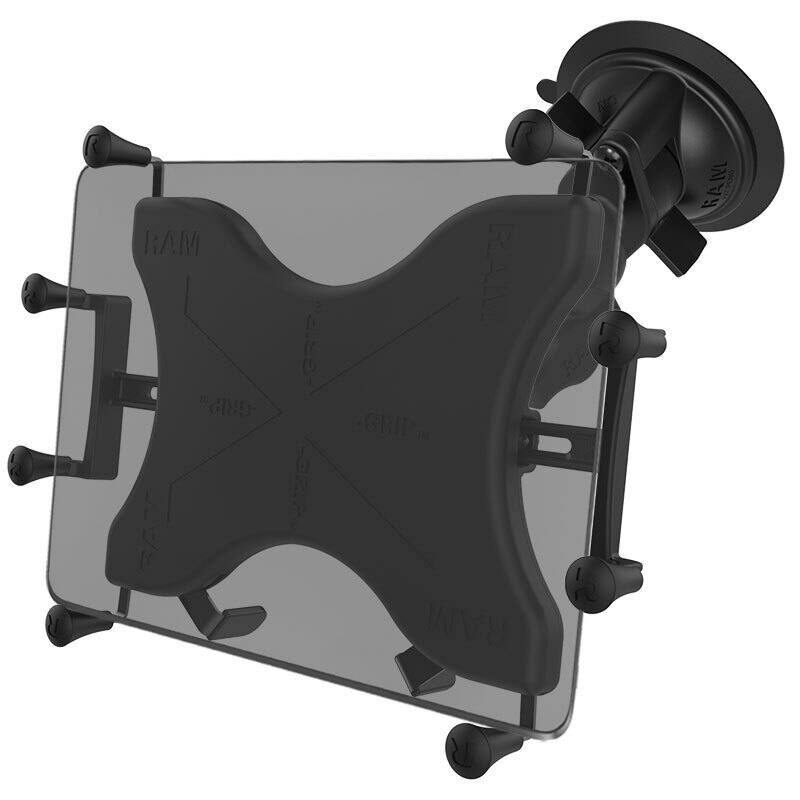

RAM-B-166-UN11U RAM® X-Grip® Large Tablet Mount with RAM® Twist-Lock™ Suction Cup Base

Features

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" tablets
* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* Suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces
* B Series RAM double socket arm allows for easy adjustment and infinite viewing angles
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty


An ideal solution for mounting a 12" Tablet on a flat surface such as a bench top where fast tool-less installation and removal is desired.

This RAM solution consists of an 84mm / 3.3" twist lock suction cup base, double socket arm, and universal X-Grip® cradle for 12" Tablets.

The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

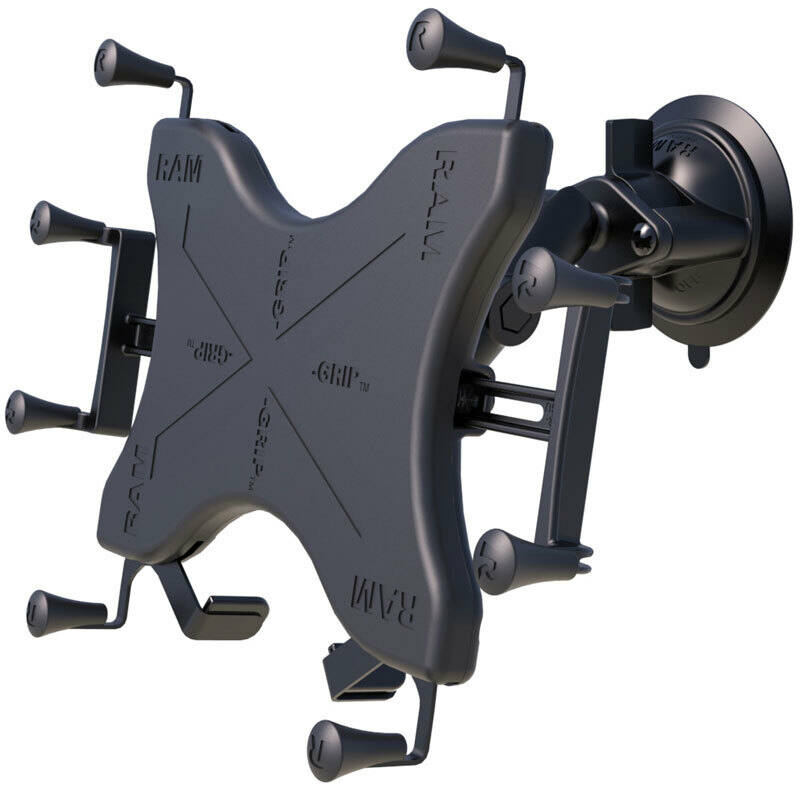

The X-Grip is a composite spring-loaded cradle with expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. It expands and contracts for perfect fit of most 305mm / 12" tablets with or without sleeves, as well as some smaller tablets.


The cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.


Cradle Dimensions

Min Width = 184.2mm (7.25”)
Max Width = 222.3mm (8.75”)
Max Length with supports 260.4mm (10.25”) (unlimited without supports)
Max Thickness = 22.2mm (0.875")


Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN11U


Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")


Components:
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
RAM-HOL-UN11U X-Grip Universal 305mm Class Tablet Holder
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-224-1U 83mm DIA. SUCTION CUP BASE with 1" BALL
