RAM-B-103-C-EXA-UN11U RAM® X-Grip® for 12" Tablets with Long arm and 9" Tough-Track Base
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" tablets
* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* 228mm Tough track base allows quick and easy movement of the device between multiple locations
* Long B Series arm with double socket technology allows for easy adjustment and infinite viewing angles
* Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

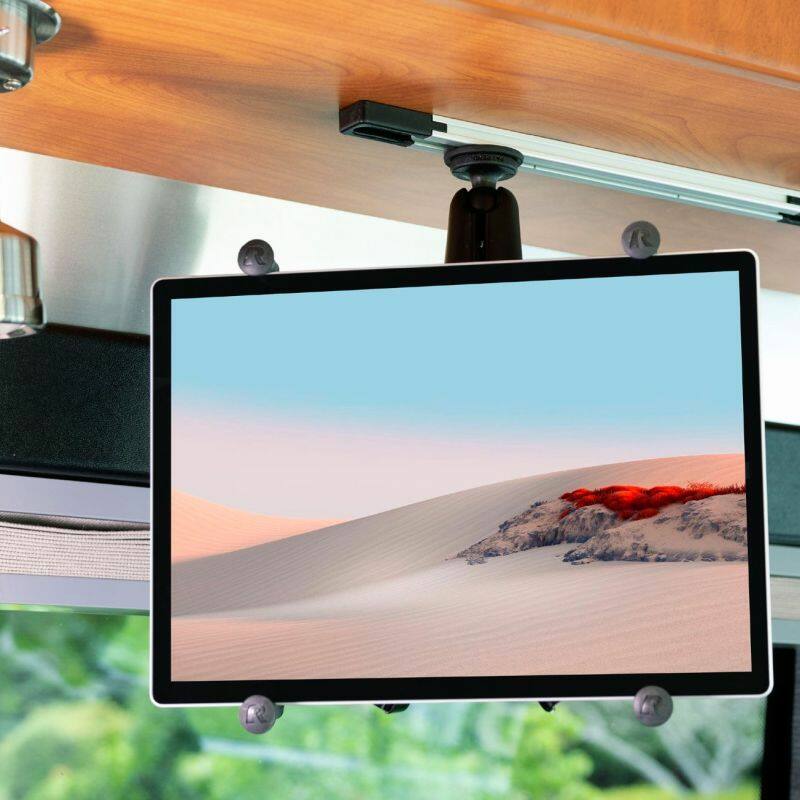

We have combined the large X-Grip with a Tough-Track base to make an ideal mounting solution for your kitchen, motorhome, RV, Boat or your workplace.
The base consists of a LONG double socket arm and a 228mm Modular Aluminum RAM® Tough-Track™. The mount is designed with a 1" diameter patented rubber ball and socket system that allows for almost infinite adjustment and perfect viewing angles. The track base allows you to easily move the Tablet between viewing positions.
The X-Grip consists is a composite spring-loaded cradle with expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. It expands and contracts for perfect fit of most 12" tablets with or without sleeves, as well as some smaller tablets.
The cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.
Cradle Dimensions
Min Width = 184.2mm / 7.25”
Max Width = 222.3mm / 8.75”
Max length with supports 260.4mm / 10.25” (unlimited without supports)
Max Thickness = 22.2mm / 0.875"
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN11U
Material:
Powder Coated Marine Grade Aluminium
Extruded Aluminium
High Strength Composite
Tough Track Dimensions
228mm (9”)
Arm Dimensions:
Overall Length:
152 mm (6”)
Socket-To-Socket Length:
134 mm (5.25”)
Ball Size
1" Rubber "B" Ball Size
Components:

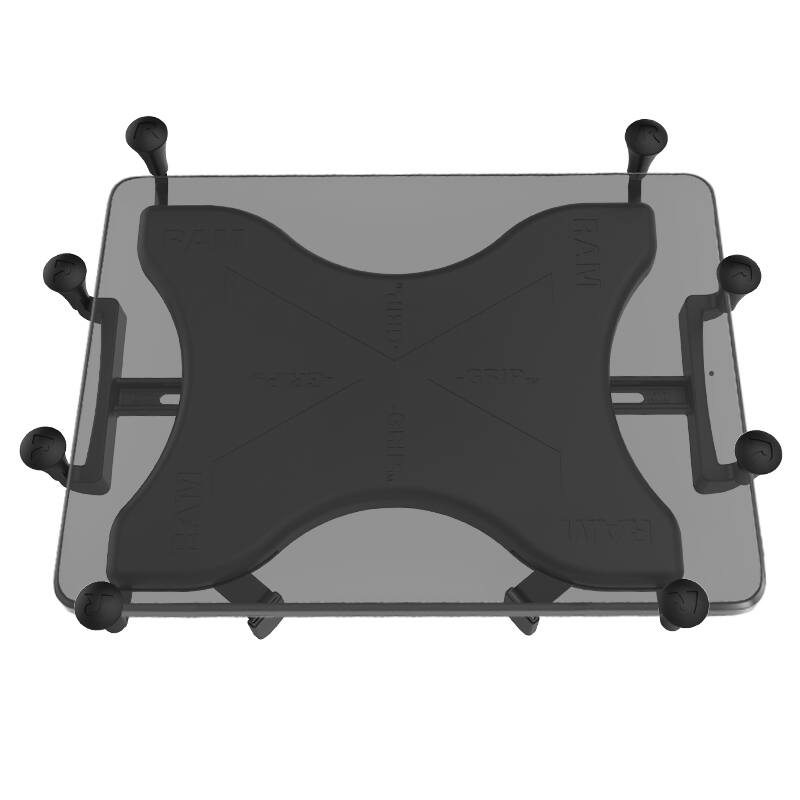

RAM-HOL-UN11U X-Grip Universal 305mm Class Tablet Holder
RAM-B-201U-C DBL SOCKET ARM B BALL C LENGTH

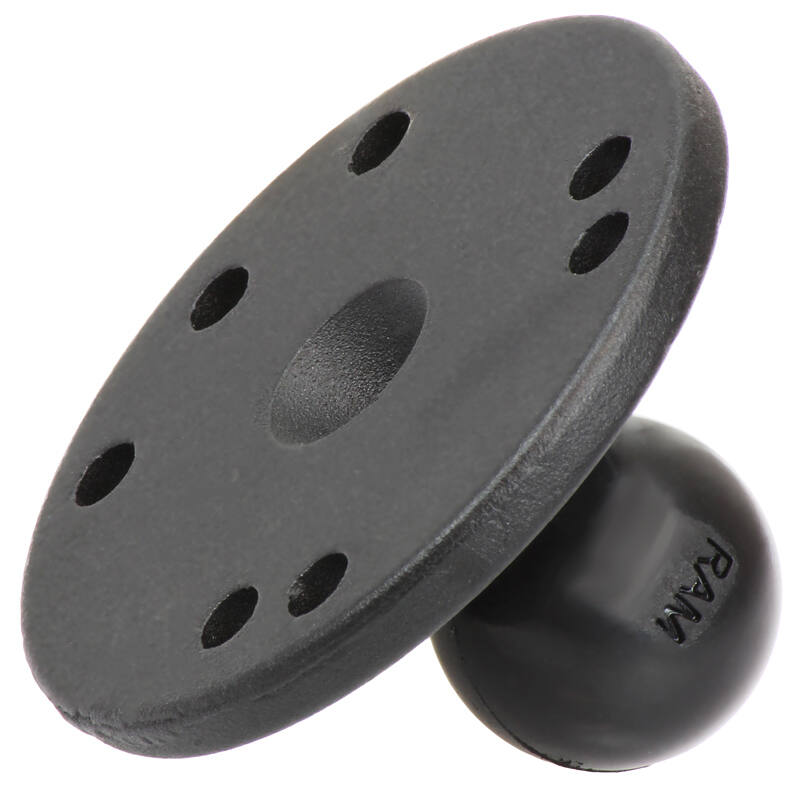

RAM-B-202U 62mm DIA.BASE WITH 1" BALL

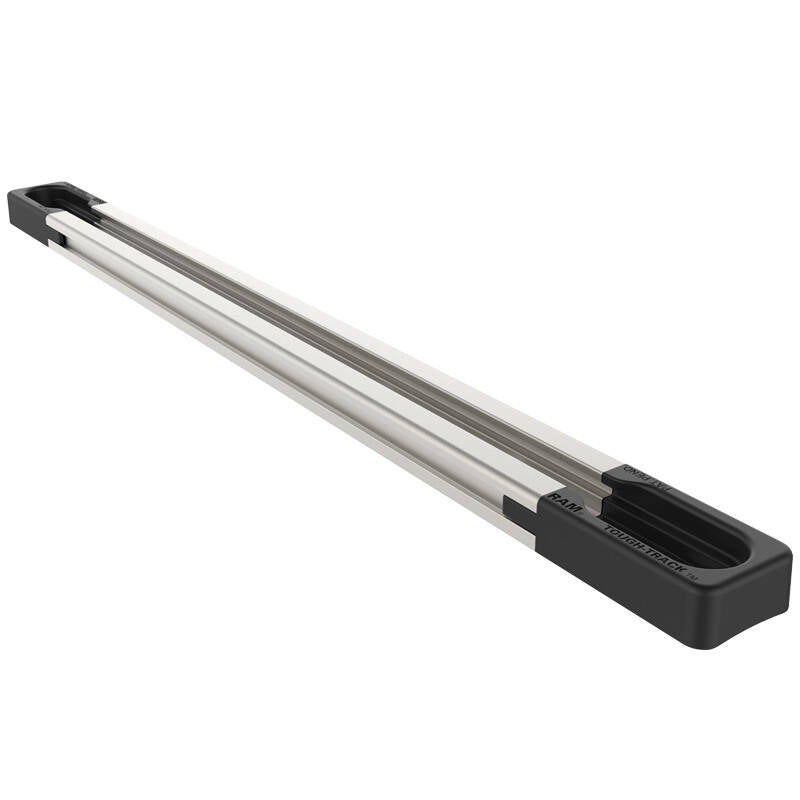

RAM-TRACK-EXA-9U 9"/ 228mm Alloy Tough Track

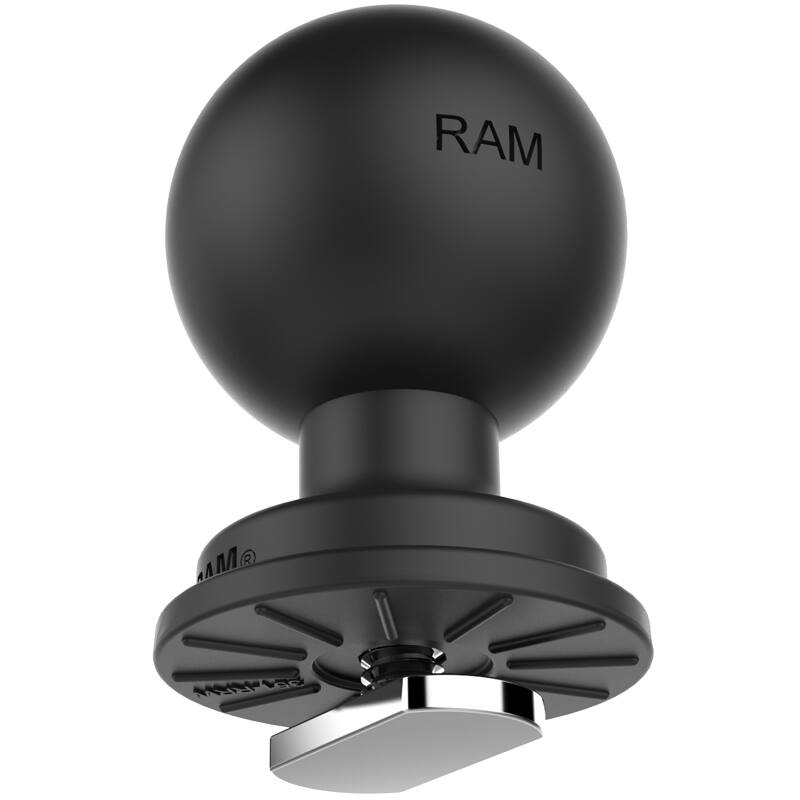

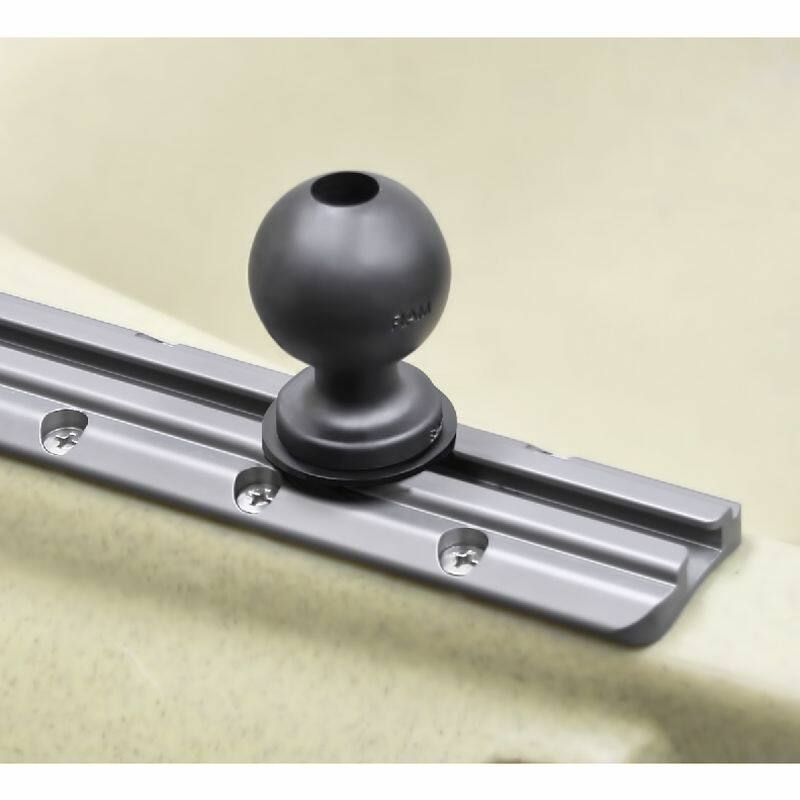

RAP-B-354U-TRA1 1" Track Ball with T-Bolt Attachment
YouTube:
https://www.youtube.com/watch?v=EmCOIzDwOxI&t=1s
