RAM X-Grip Universal Cradle for 7"- 8" Tablets w/ Pivot Dual Suction Cup Base

RAM-B-189-PIV1-UN8U – RAM® X-Grip® Universal Cradle for 7"–8" Tablets with Pivoting Dual Suction Cup Base

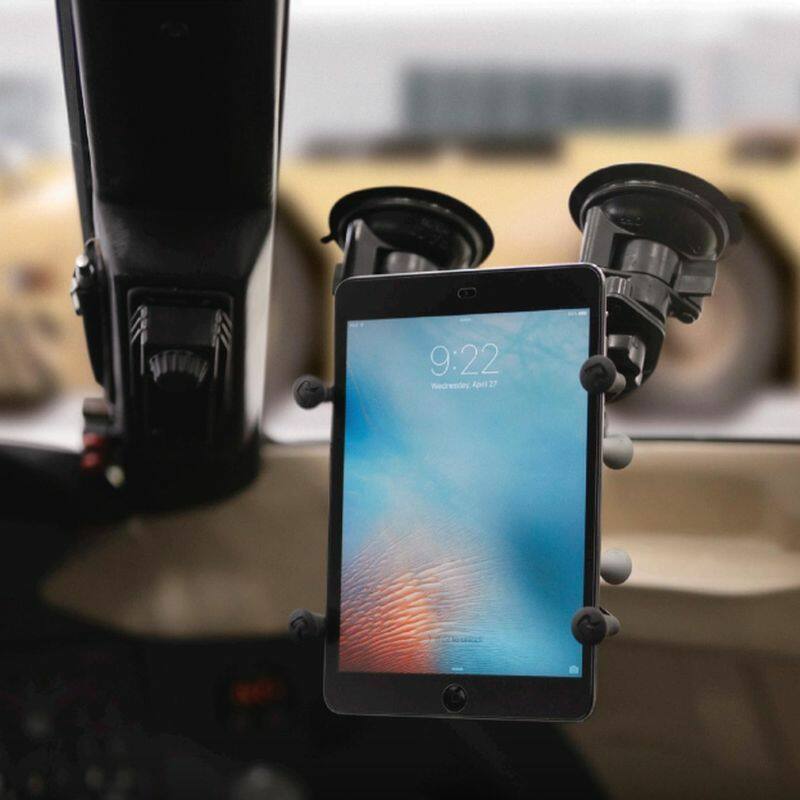

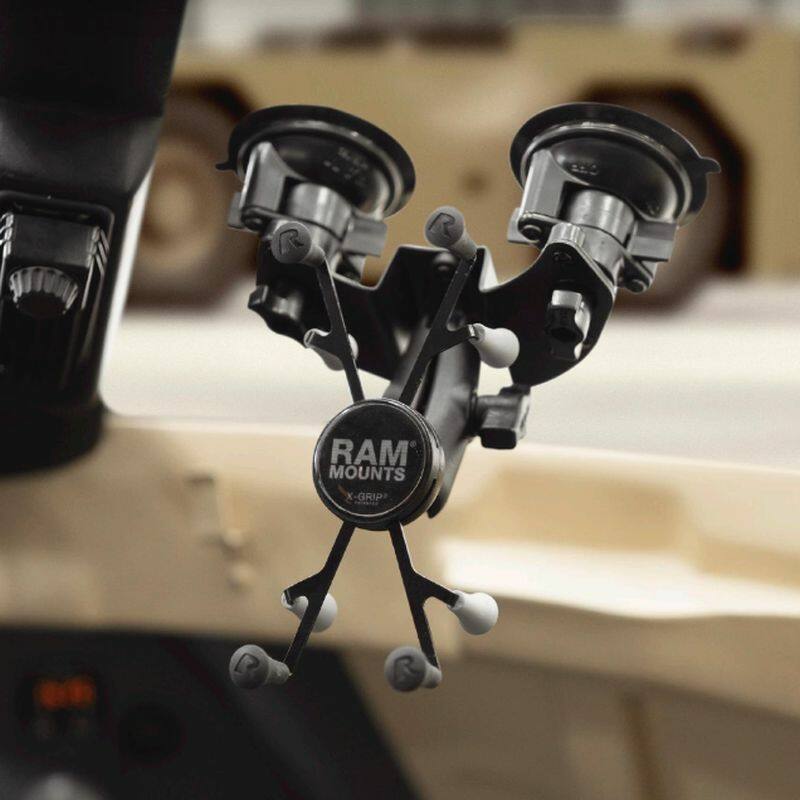

The RAM-B-189-PIV1-UN8U mounts most 7"–8" tablets to a windscreen or smooth surface. It pairs the spring-loaded RAM® X-Grip® cradle with a dual articulating Twist-Lock™ suction base, where each cup pivots independently, plus a medium double socket arm. Because the cups move on their own, the base sits flat on strongly curved windows and surfaces where a fixed twin base would struggle.

Key Features

• Spring-loaded X-Grip® cradle grips most 7"–8" tablets without hiding the screen; includes a device tether for outdoor use
• Easy-access grip knobs on the back release the tablet quickly
• Dual articulating suction base — each cup pivots independently to sit flat on curved windows and surfaces
• Cups reposition to suit convex or concave surfaces
• Medium double socket arm; RAM ball-and-socket design adjusts to almost any angle
• High-strength composite, powder-coated aluminium alloy and steel; lifetime warranty on the mount hardware, with the suction cups excluded as a wear item

Works With

Most 7"–8" tablets that fit the cradle dimensions below. Each cup articulates independently and can be repositioned to suit convex or concave surfaces, so the base follows curves a fixed twin-cup base cannot; on flat or gently curved glass the fixed version, the RAM-B-189-C-UN8U, does the same job for less. Verify your device's size with any case or sleeve fitted before ordering.

Dimensions & Specifications

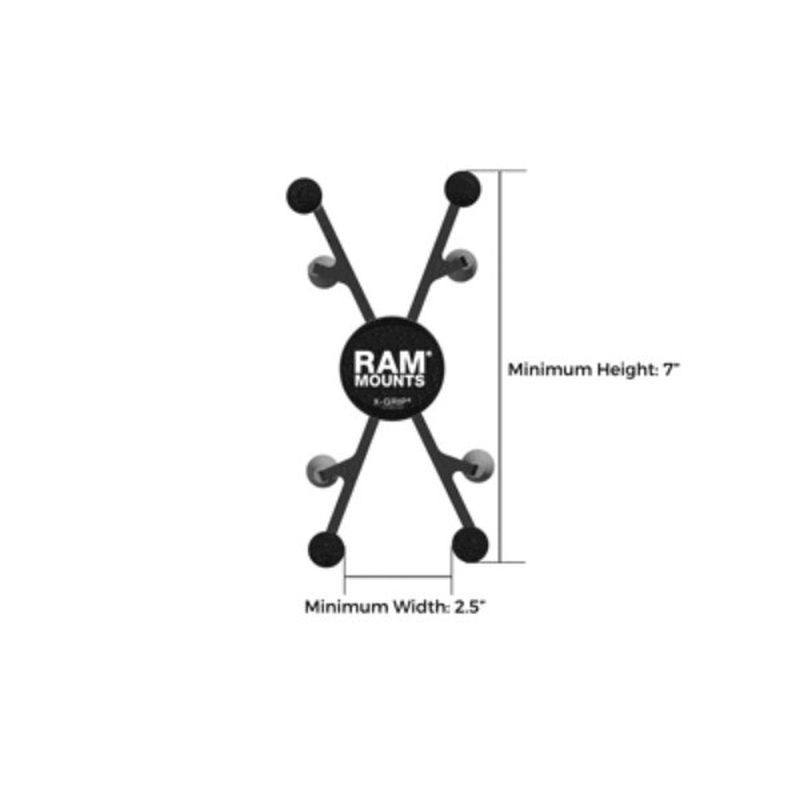

• Cradle minimum width: 63.5mm (2.5"), at which the minimum height is 177.8mm (7")

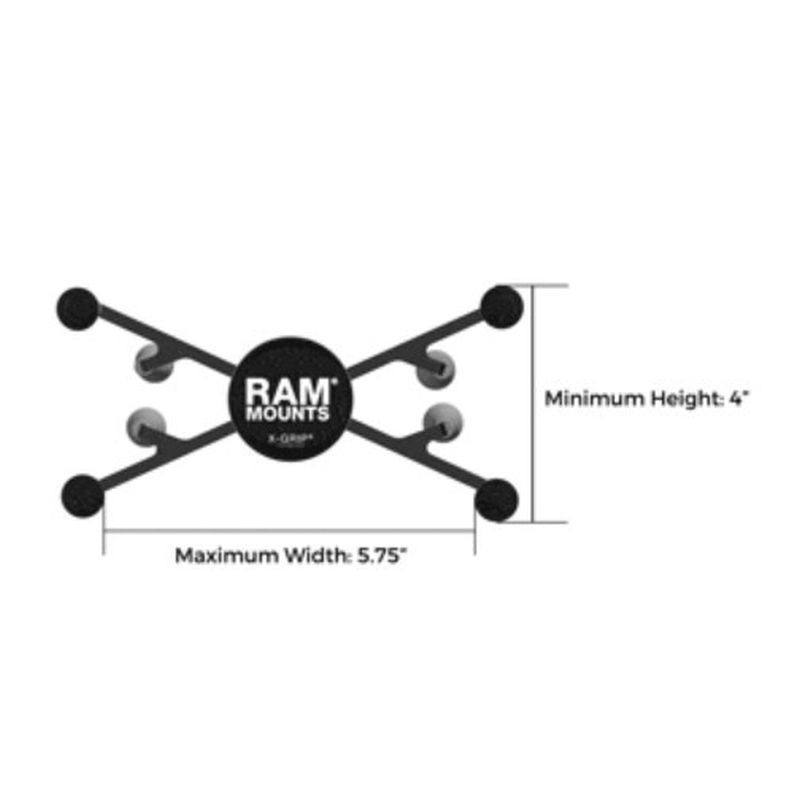

• Cradle maximum width: 146.05mm (5.75"), at which the minimum height is 101.6mm (4")
• Cradle maximum thickness: 22.2mm (0.875")
• Suction cup base diameter: 83.8mm (3.3") per cup
• Arm overall length: 94mm (3.69"); socket-to-socket 76mm (3")
• Materials: high-strength composite, powder-coated aluminium alloy, steel

Compatible Devices

Fits most 7"–8" tablets within the cradle dimensions above. For a fuller device list, see our RAM-HOL-UN8BU listing for the cradle on its own.

What's Included

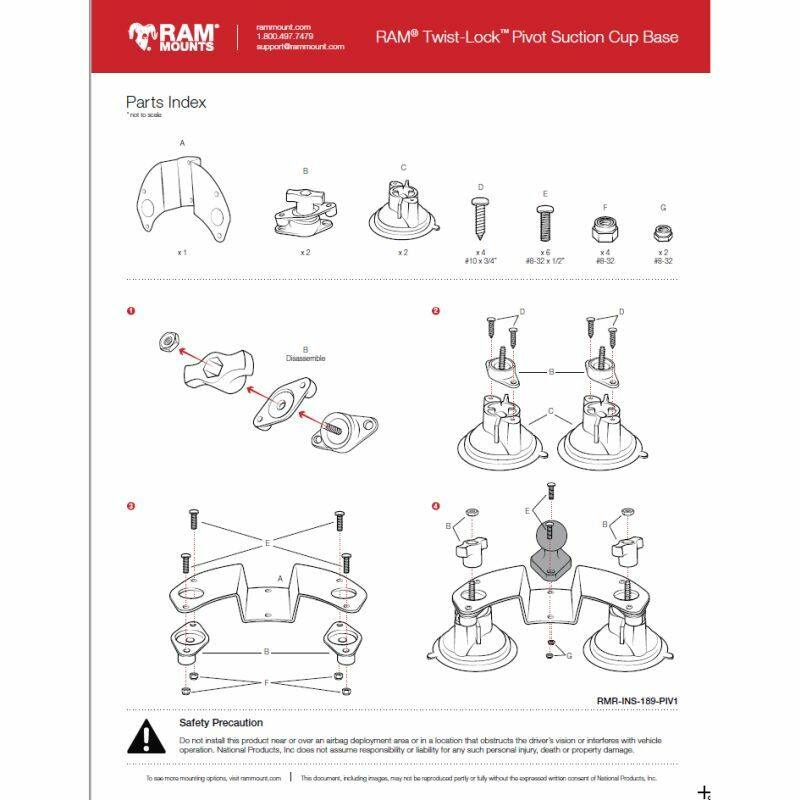

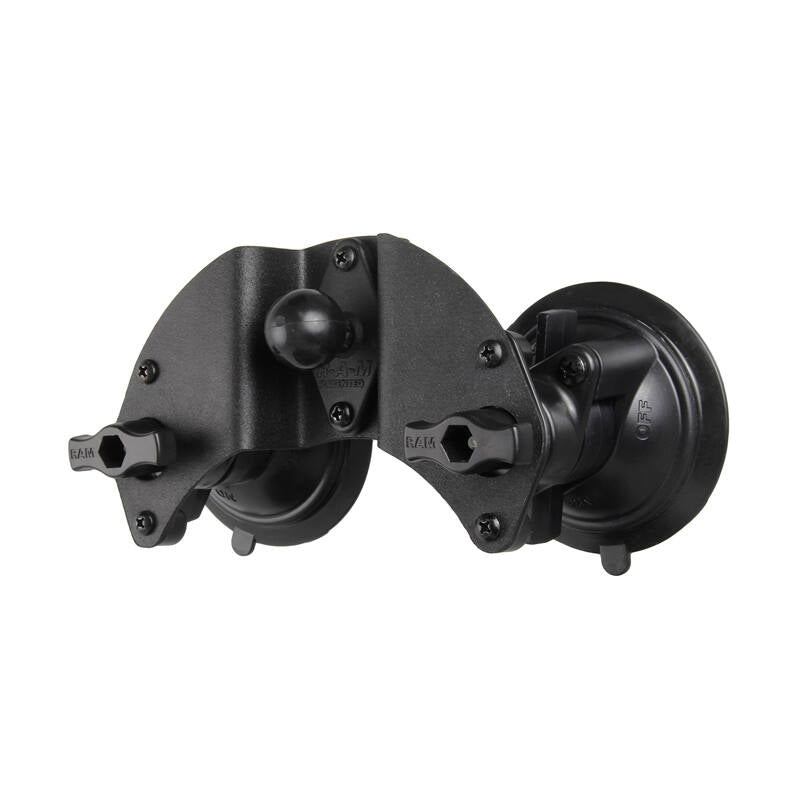

• RAM-B-189B-PIV1U twist-lock dual pivot suction base with 1" ball
• RAM-B-201U medium double socket arm

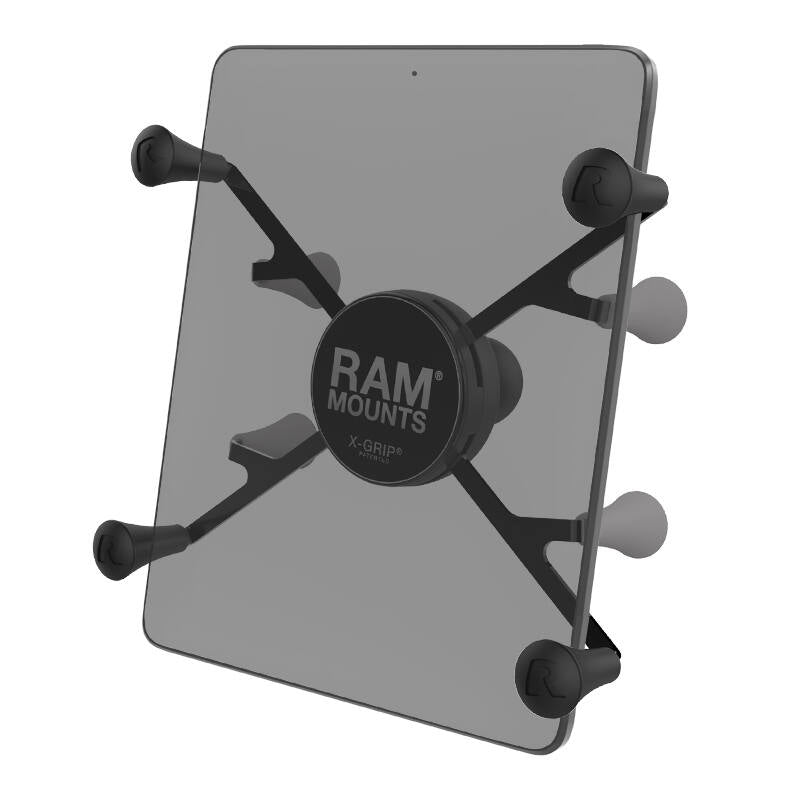

• RAM-HOL-UN8BU X-Grip® spring-loaded cradle with device tether and spare grip knobs

Care & Warranty

• Smooth, non-porous surfaces only — anything rough or textured lets air past the seal and the cups will not hold.
• Clean the surface thoroughly before you apply the cups.
• If the vehicle is left sitting in extreme heat or cold, release the cups and stow the mount rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cups are excluded from warranty cover. The base, arm and cradle hardware are covered as normal.

Videos

• RAM X-Grip cradle overview

FAQs

How is this different from the standard dual suction version? Each suction cup articulates independently and can be repositioned to suit convex or concave surfaces, so the base follows a curve that a fixed twin-cup base cannot sit flat against. On flat or gently curved glass the fixed version, the RAM-B-189-C-UN8U, does the same job for less.

Will it fit my tablet? It suits most 7"–8" tablets within the cradle dimensions above. Measure your device with its case on to be sure.

Are the suction cups covered by the warranty? No. RAM® treat suction cups as a general wear item, so they sit outside the lifetime warranty. The rest of the mount hardware is covered as normal.

What surfaces will the cups stick to? Glass and other smooth, non-porous surfaces, flat or curved. Textured dashboards, matte plastic and anything with a grain won't hold. Clean both the cup face and the surface before mounting.
