RAM Yoke Clamp Base - Composite with 1" Rubber Ball

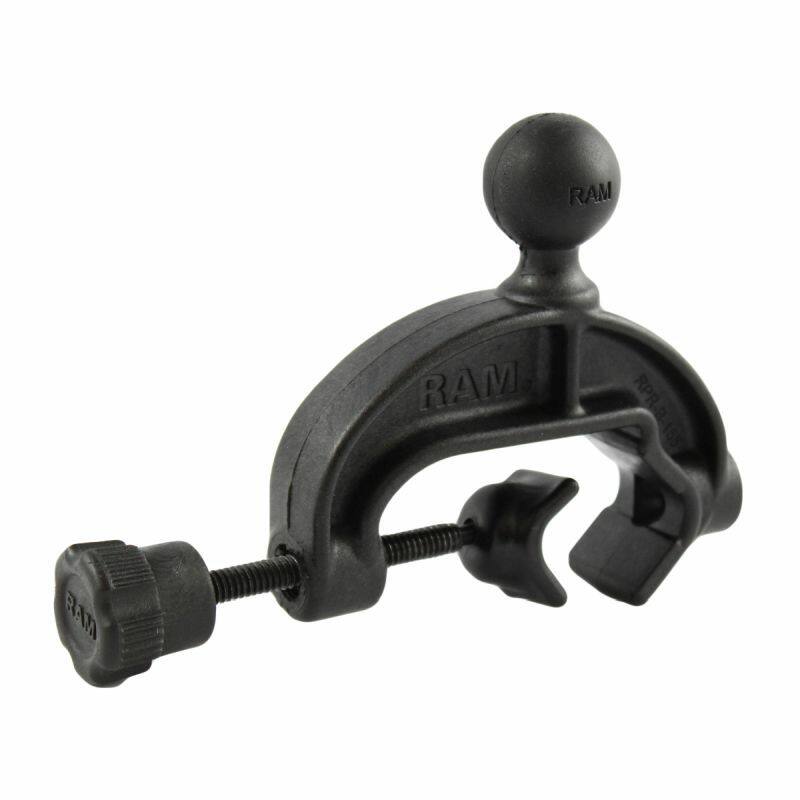

RAP-B-121BU RAM® Composite Yoke Clamp Base with 1" Ball

The RAP-B-121BU is a lightweight, high-strength composite yoke clamp base with a 1" B-size ball. It clamps to glare shields, yokes, rails and tubing without tools, and is a popular cockpit base for GPS units, tablets and radios. On this composite version the ball sits on top of the clamp rather than to the side.

Key Features

• Clamps yokes, rails and other surfaces from 15.9 to 31.8mm (0.625" to 1.25") in diameter
• 1" B-size ball connects to any RAM® B-size double socket arm for near-infinite adjustability
• Modular design: swap the clamp to suit different surfaces, or add a second ball to mount another device
• Light yet strong high-strength composite construction
• Backed by a lifetime warranty

Works With

Holds firm to most glare shields, yokes and tubing, so almost any aircraft can use it, and it is just as handy on a golf cart, workbench or exercise equipment. Note it differs from the alloy RAM-B-121BU / RAM-B-121BAU in that the ball is positioned on top of the clamp rather than to the side.

Dimensions & Specifications

• Clamp range: 15.9 to 31.8mm (0.625" to 1.25") diameter
• Ball size: 1" rubber ball (B size)
• Material: high-strength composite
• Weight: 159g (0.35 lb)

Also Available

Add a second ball with the RAP-B-121BBU Add-A-Ball, which fits the opposite side of the clamp to the adjustment knob. For the alloy version, see the RAM-B-121BU.
