RAM Twist-Lock Composite Suction Mount with Round Plate & 1/4"-20 Stud

RAP-B-166-202AU RAM® Twist-Lock™ Composite Suction Cup Camera Mount with 1/4"-20 Stud

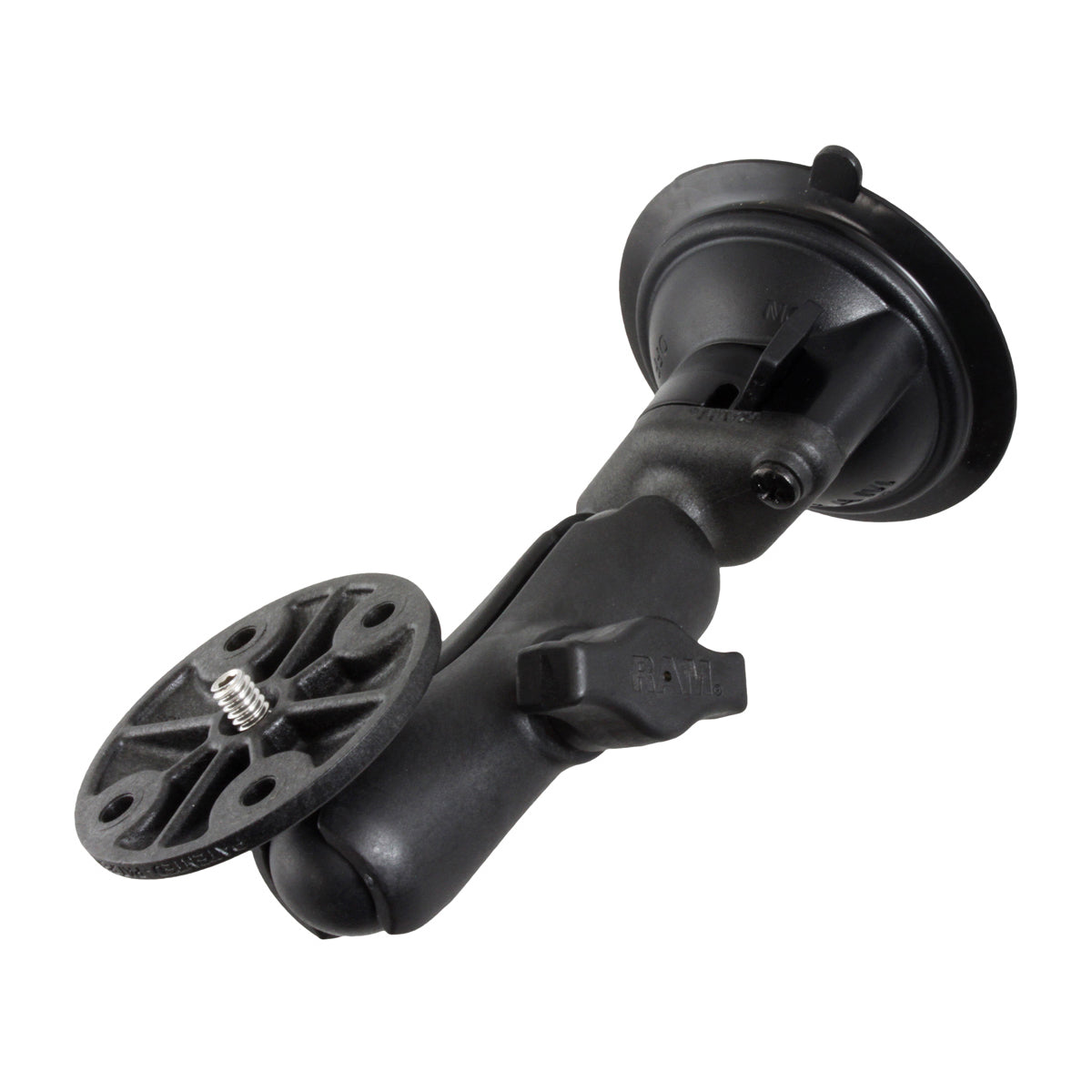

The RAP-B-166-202AU is the lightweight composite version of our RAM® Twist-Lock™ suction camera mount: a composite suction base, double socket arm, and a round camera base with a 1/4"-20 male threaded stud. It fits any camera or camcorder with a standard 1/4"-20 socket onto a windscreen or other smooth, non-porous surface, with no drilling needed. It shares the same fitment as the aluminium-armed RAM-B-166-202AU, at a lighter weight.

Key Features

• Twist-Lock™ suction base grips glass and non-porous surfaces, including RAM adhesive disks
• Round camera base with a centred 1/4"-20 threaded steel stud supports the camera resting on top of it

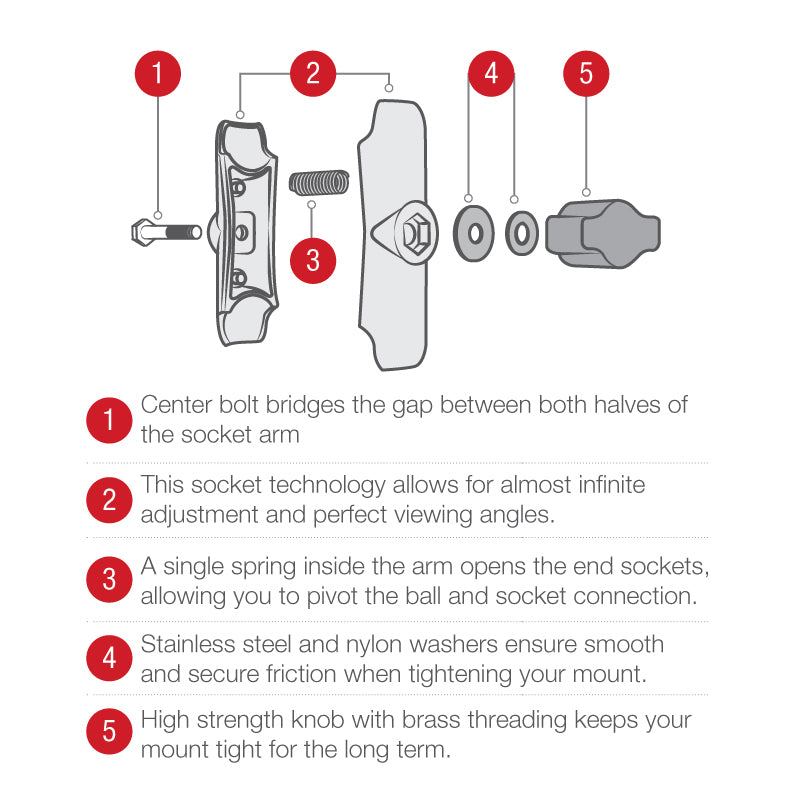

• Double socket arm; ball-and-socket design allows near-infinite positioning
• High-strength composite construction: lighter than the aluminium-armed RAM-B-166-202AU
• Connects to any standard female 1/4"-20 thread on cameras and camcorders; backed by RAM's lifetime warranty

What's Included

• RAP-B-224-1U composite Twist-Lock suction cup base with 1" B-size ball
• RAP-B-201U composite double socket arm
• RAP-B-202AU 63.5mm (2.5") composite round base with 1/4"-20 male camera thread

Dimensions & Specifications

• Suction cup diameter: 84mm (3.3")
• Thread: 1/4"-20 x 0.25"
• Socket-to-socket length: 76mm (3")
• Hole pattern: 4-hole AMPS, 1.181" x 1.496"
• Base diameter: 63.5mm (2.5")
• Ball size: B size, 1" rubber ball
• Weight: 304g (0.67 lb)
• Load capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
• Materials: high-strength composite

Compatible Devices

Any camera or camcorder with a standard 1/4"-20 female threaded socket.

Out of stock at the moment: please enquire and we will confirm availability and lead time for you.
