RAM Tab-Tite - Replacement Top Cups for RAM-HOL-TAB30U

RAM-HOL-TAB30-CUPSU RAM® Tab-Tite™ End Cups for Samsung Galaxy Tab S2 8.0 + More

The RAM-HOL-TAB30-CUPSU is a replacement pair of RAM® Tab-Tite™ end cups for the Samsung Galaxy Tab S2 8.0, Apple iPad mini 4/5 and ASUS ZenPad Z8s. They snap onto any RAM® Tab-Tite™ or Tab-Lock™ backplate, so you can re-fit an existing cradle to a new device instead of buying a complete new mount.

Key Features

• Interchangeable RAM® Tab-Tite™ end cups for the Galaxy Tab S2 8.0, iPad mini 4/5 and ASUS Z8s
• Fit any RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU)
• High-strength composite construction for demanding environments
• Backed by RAM Mounts' lifetime warranty

Works With

Supplied as the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to make up a complete cradle. Once assembled, the cradle pairs with any RAM® ball-and-socket arm or base.

Compatible Devices

Apple

• iPad mini 4 (lightning connector blocked)
• iPad mini 5 (lightning connector blocked)

ASUS

• ZenPad Z8s

Samsung

• Galaxy Tab S2 8.0

Dimensions & Specifications

• Fits devices (in their case) within: height 198.6 to 263.5mm (7.82" to 10.375"), width 120.7 to 136.5mm (4.75" to 5.375"), depth 0 to 7.9mm (0" to 0.3125")
• Material: high-strength composite
• Weight: 77 grams (0.17 lb)

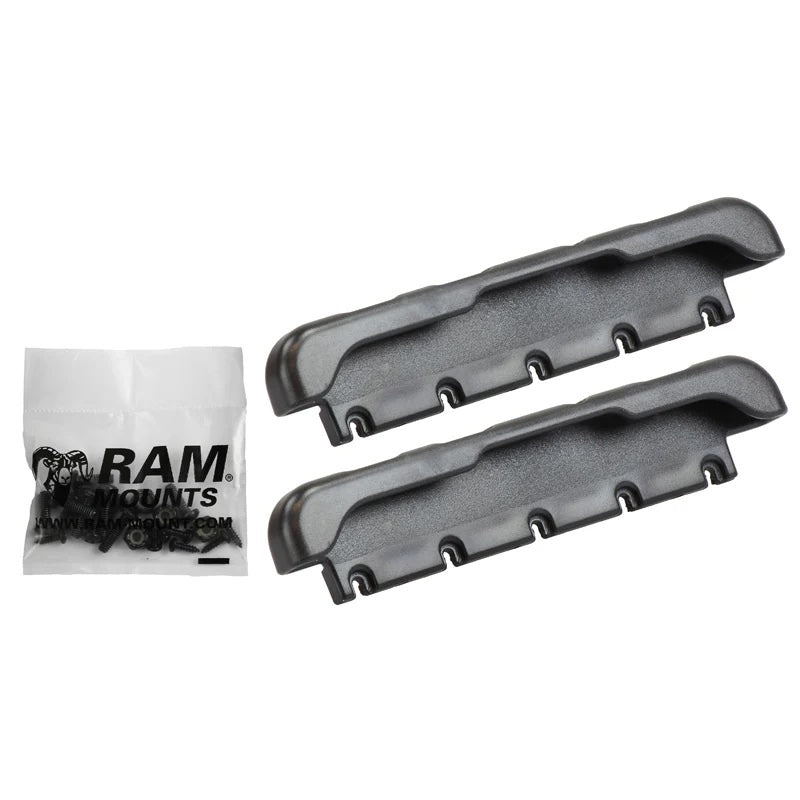

What's Included

• 2 x RAM® Tab-Tite™ cup ends
• Mounting hardware: 10 x #4 x 3/8" sheet metal screws, 4 x #8-32 x 5/8" machine screws, 4 x #8-32 x 1/2" machine screws, 4 x #8-32 Nylock nuts

FAQs

Do these include the backplate? No, these are the cup ends only. You need a RAM® Tab-Tite™ or Tab-Lock™ backplate (RAM-HOL-ACU) to build a complete cradle.

Can I charge my iPad mini in these cups? No. With the iPad mini 4/5 the lightning connector is blocked by the cup, so charging while mounted is not possible.

Videos

Watch the RAM® Tab-Tite™ assembly video
