RAM Tab-Lock Holder for Samsung Galaxy Tab A 8.0, iPad Mini + More

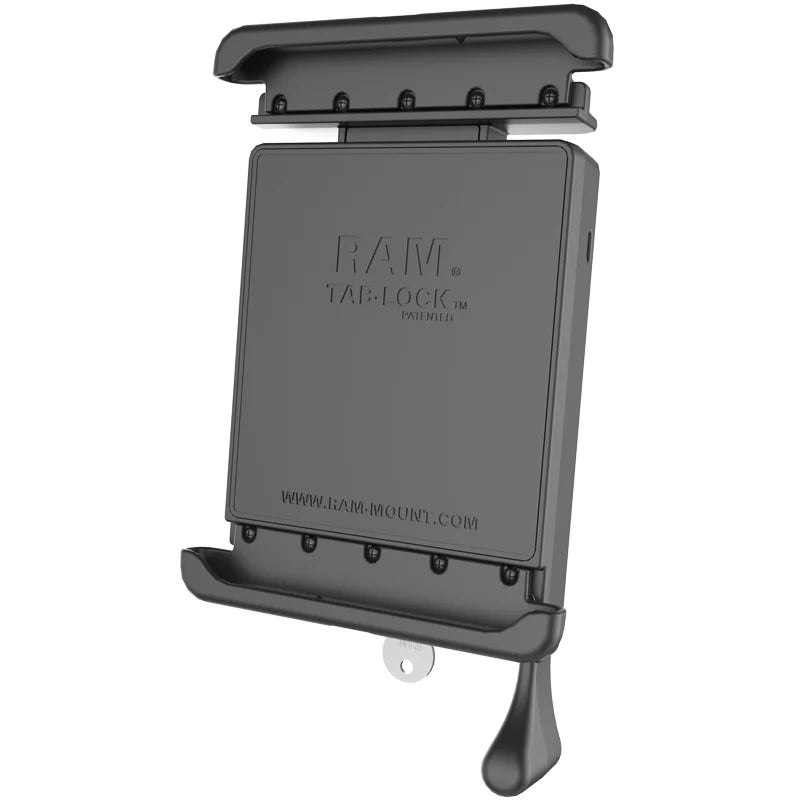

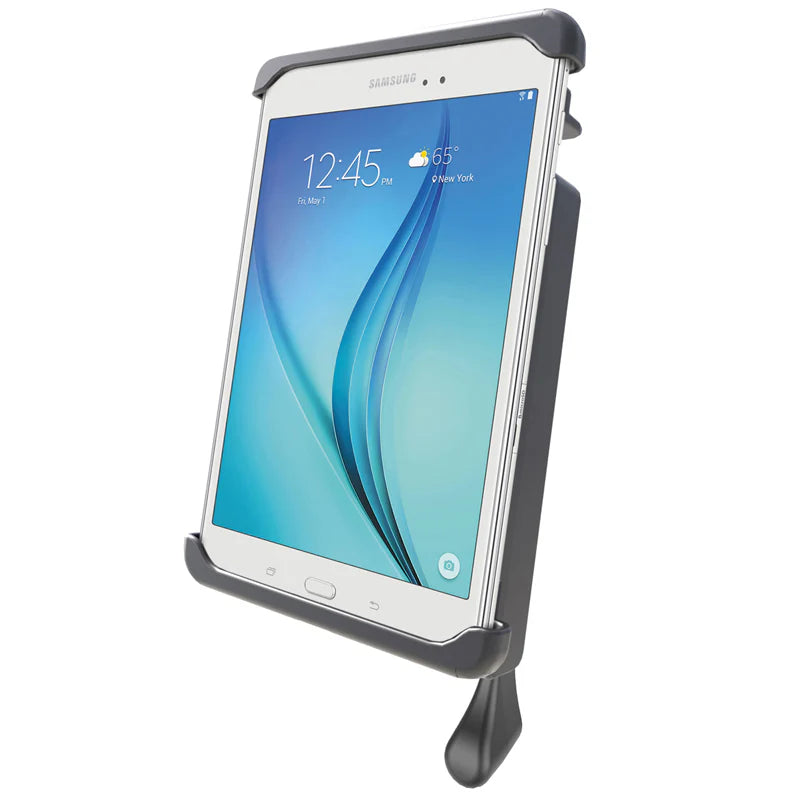

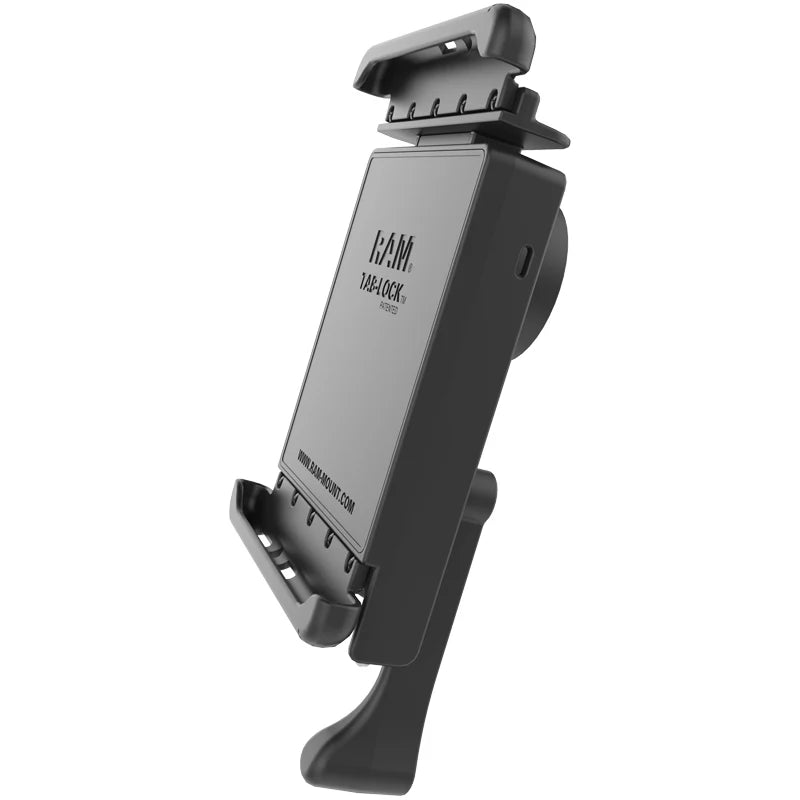

RAM-HOL-TABL27U RAM® Tab-Lock™ Locking Cradle for Samsung Galaxy Tab A 8.0, iPad Mini + More

The RAM-HOL-TABL27U is a key-locking version of RAM's Tab-Tite™ cradle for 8" tablets, built around the Samsung Galaxy Tab A 8.0 and 8.0 with S Pen. It shares the same cradle body and AMPS mounting pattern as the standard Tab-Tite cradle, with a spring-loaded backplate, keyed lock, and interchangeable support cups for a secure, tool-free release. This cradle is not compatible with the Samsung Galaxy Tab A 8.0 (2017) — for that model, see the RAM-HOL-TABL24U.

Key Features

• Key-locking mechanism deters theft and unwanted tampering in public or shared settings
• Spring-loaded backplate with interchangeable support cups for a secure, quick-release fit
• Open-slotted support cups keep ports accessible while mounted
• Manufactured from high-strength composite for durability in demanding environments
• Backed by RAM's lifetime warranty

Works With

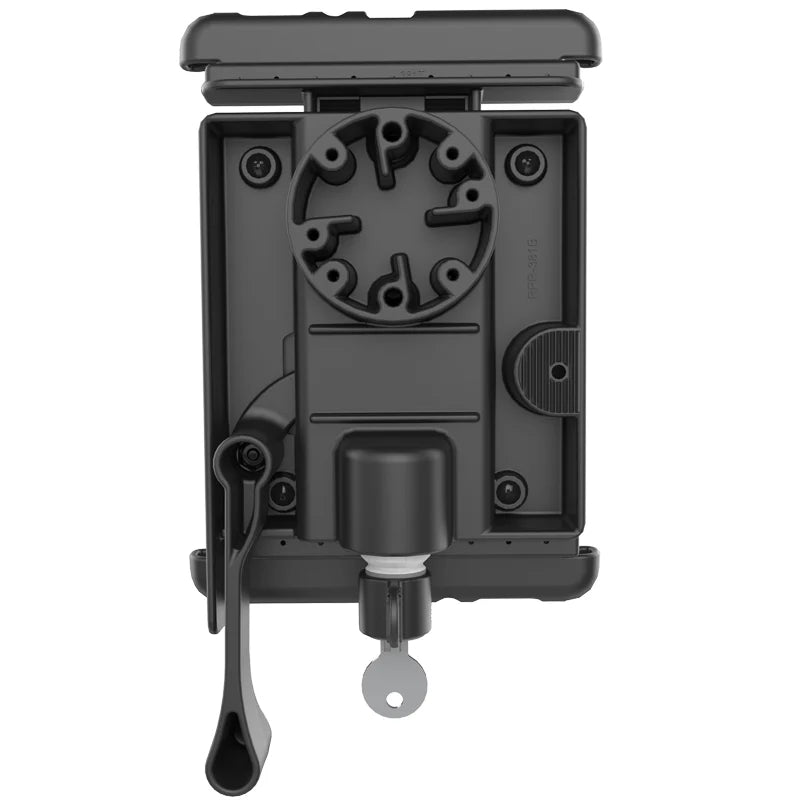

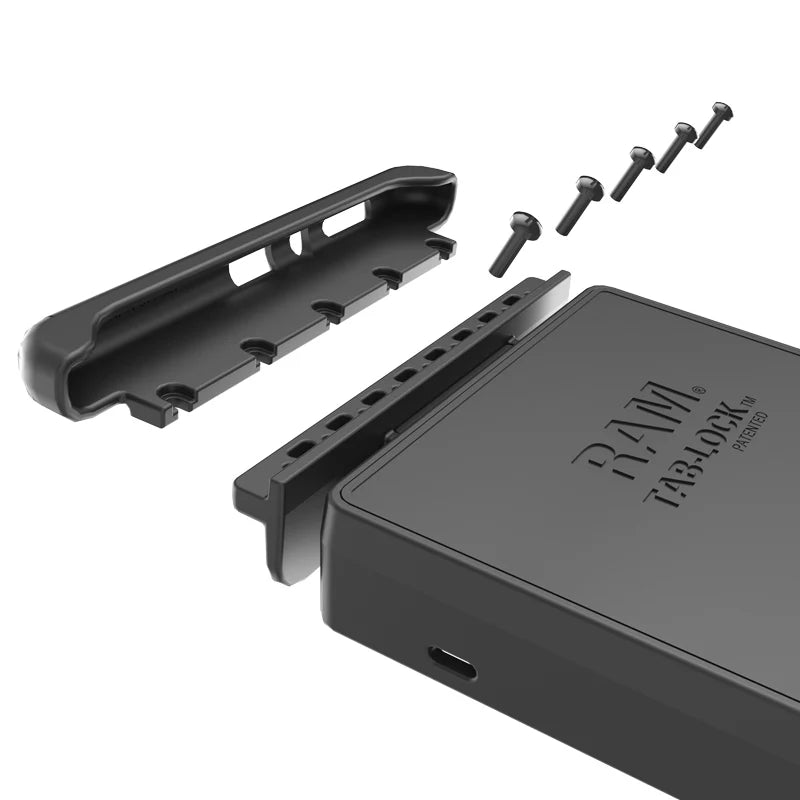

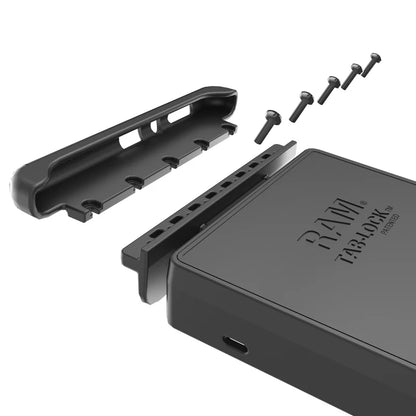

Attaches to any RAM component or mount with the standard 4-hole AMPS pattern using the included hardware. Support cups are field-replaceable, so the same backplate and lock can be re-fitted for a different device down the track.

Dimensions & Specifications

• Fits tablets: 200–263.6mm H x 109.2–134.6mm W x 0–9.4mm D (7.88"–10.38" x 4.3"–5.3" x 0"–0.37")
• Hole pattern: 4-hole AMPS, 30mm x 38mm (1.181" x 1.496")
• Weight: 553g (1.22 lbs)
• Material: high-strength composite

Compatible Devices

Apple

• iPad mini 2
• iPad mini 3

Dell

• Venue 8 (2014)
• Venue 8 Pro
• Venue 8 Pro 5855

Huawei

• MediaPad T1 8.0

Lenovo

• Ideapad Miix 300

LG

• G Pad F2 8.0
• G Pad X II 8.0

Nvidia

• Shield Tablet

Samsung

• Galaxy Tab A 8.0
• Galaxy Tab Pro 8.4

What's Included

• RAM® Tab-Lock™ spring-loaded, key-locking cradle (backplate, support cups, and lock)
• 2 keys
• Assembly hardware: (2) #8 x 5/8" sheet metal screws, (2) M4 x 32mm machine screws, (2) M4 Nylock nuts

Product consists of holder only — tablet and case not included.

FAQs

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Does this fit the Samsung Galaxy Tab A 8.0 (2017)? No — for that specific model, see the RAM-HOL-TABL24U instead.

Will this fit my tablet if it's not listed? Check your tablet's dimensions against the sizes above — any tablet within that range will fit, even if the exact model isn't named.

What's the difference between this and the standard Tab-Tite cradle? The Tab-Lock version adds a key-locking mechanism to the same cradle body, for use in public or shared vehicles where theft deterrence matters.
