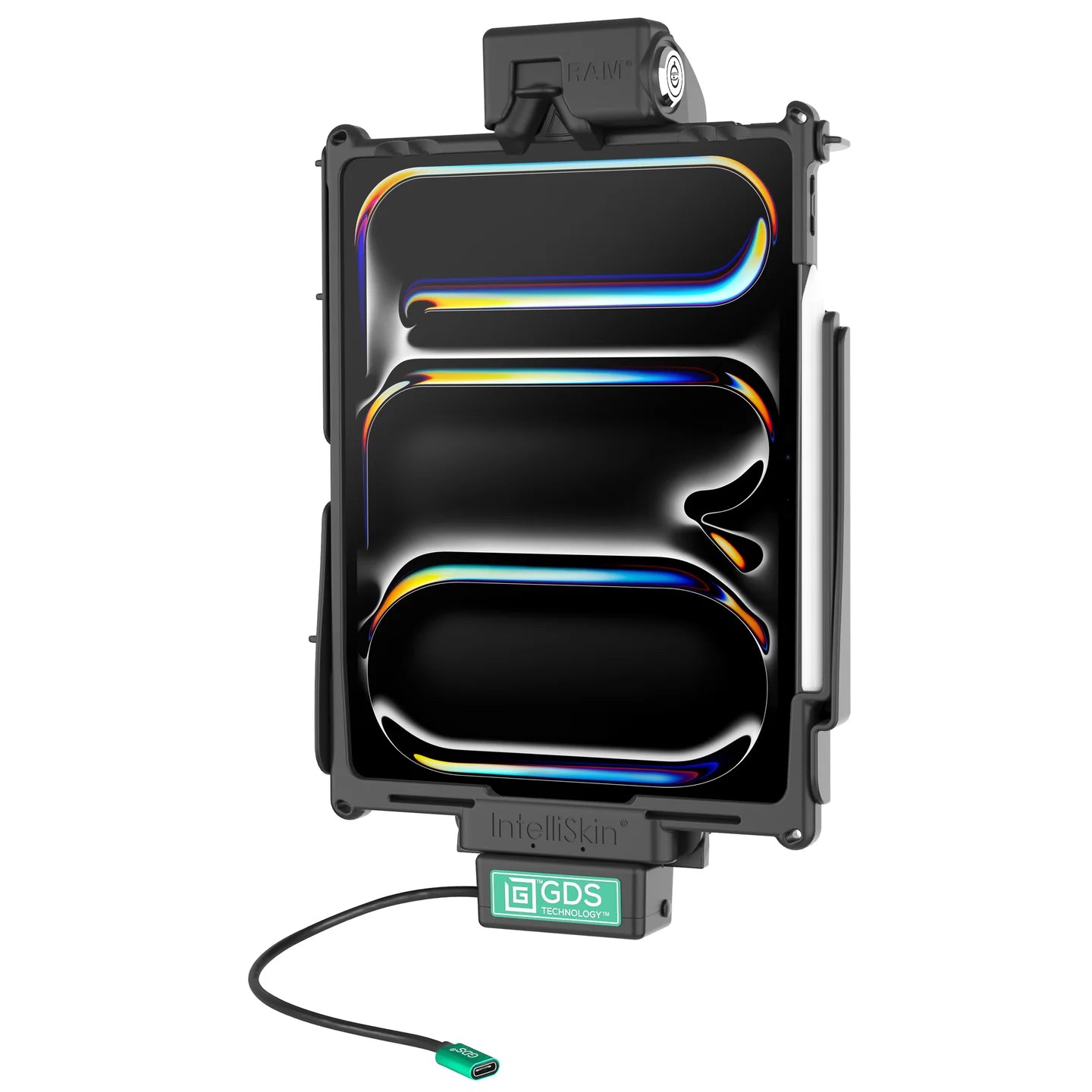

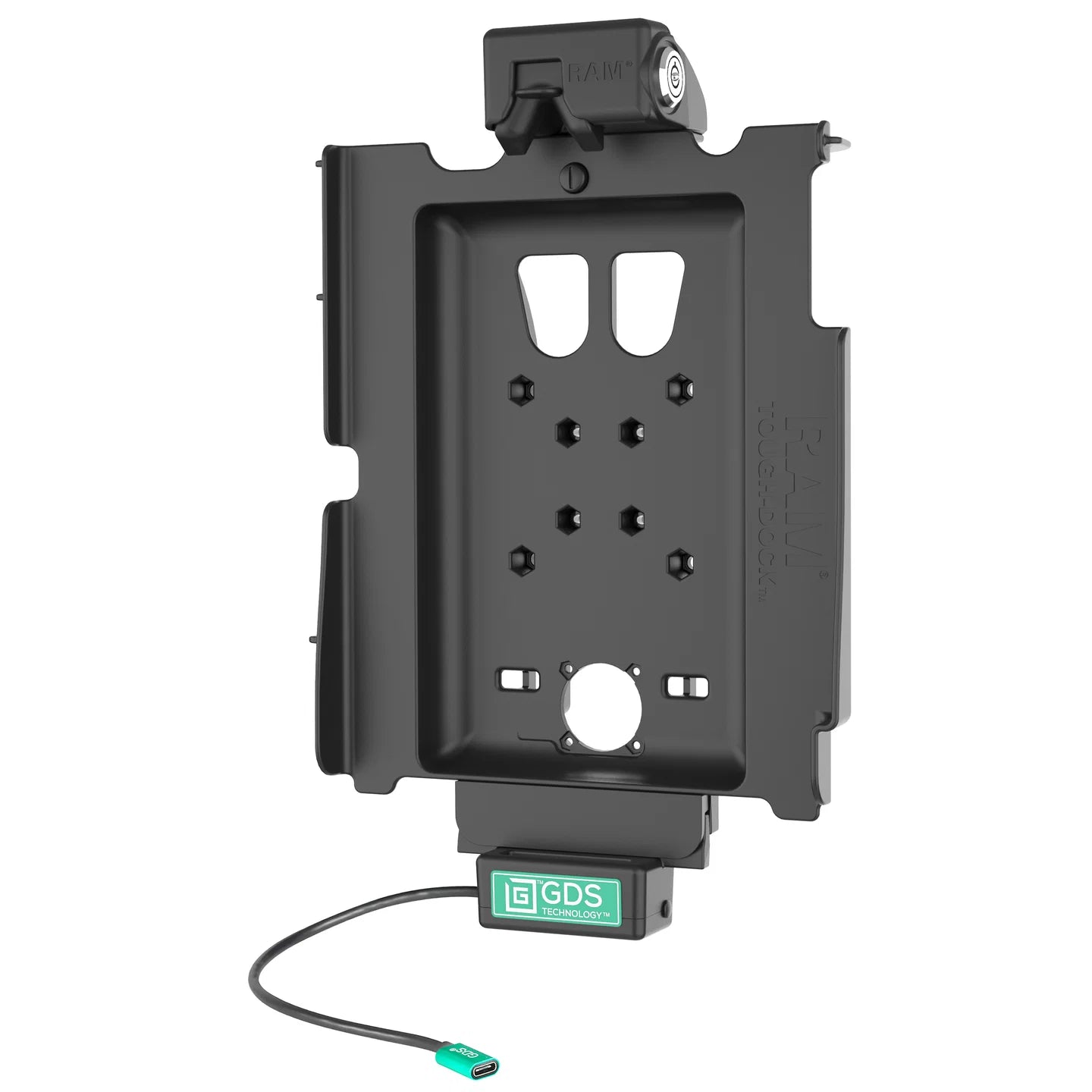

RAM GDS Tough-Dock Locking for Apple iPad Pro 12.9 3rd-6th Gen, Pro 13 & Air 13

RAM-GDS-DOCKL-AP37CPU – Locking GDS® Tough-Dock™ for Apple iPad Pro 12.9 3rd-6th Gen, Pro 13 & Air 13

The RAM-GDS-DOCKL-AP37CPU is the key-locking version of the AP37 Tough-Dock. It holds and charges a large-format Apple iPad wrapped in an IntelliSkin® Next Gen sleeve, and a keyed latch across the top of the dock stops the tablet being lifted out. That matters in forklifts, service vans and any vehicle left unattended with the tablet still in the cab. Two keys are supplied.

Key Features

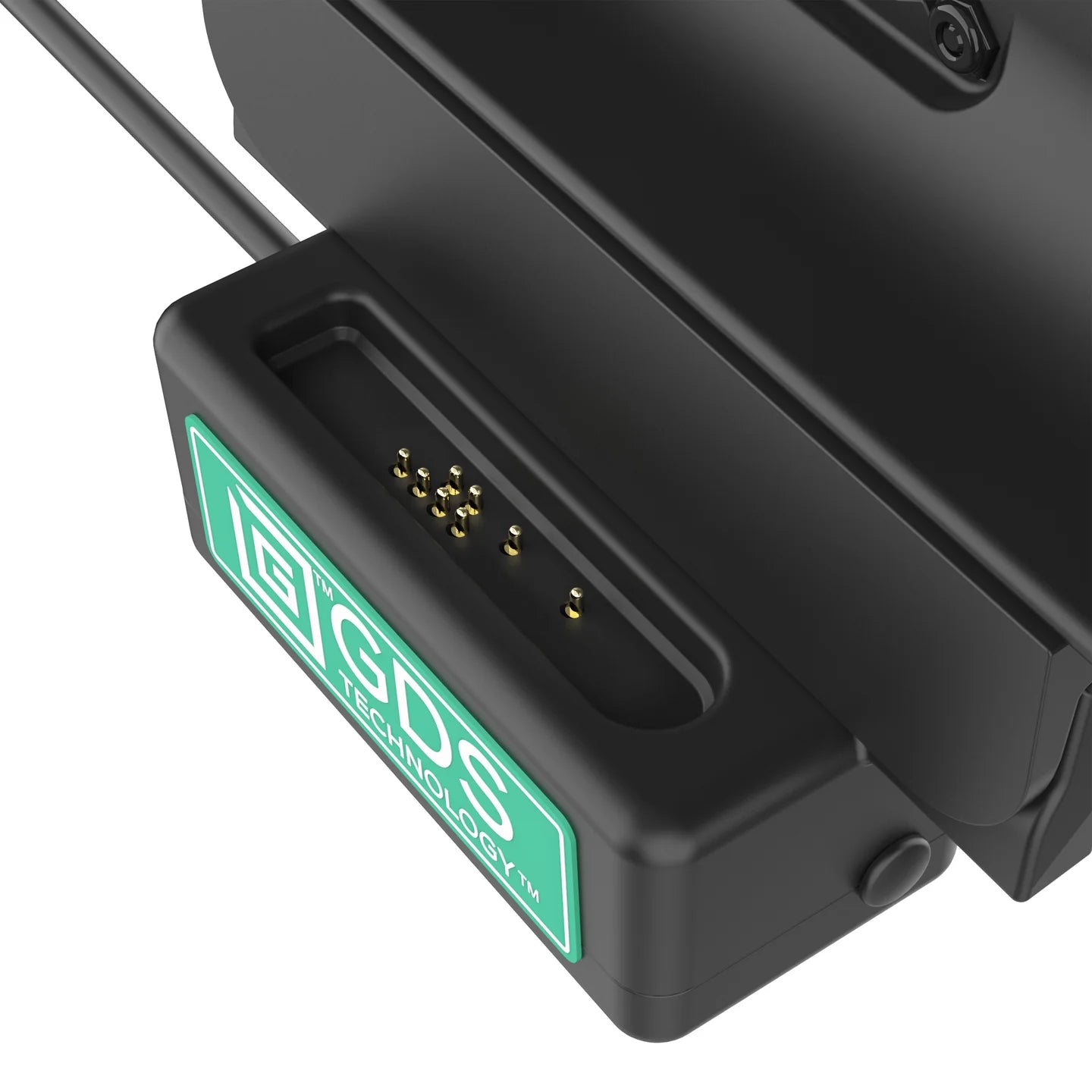

• Spring-loaded, key-locking vehicle dock with GDS® Technology™; integrated pogo pin connector charges the tablet on docking

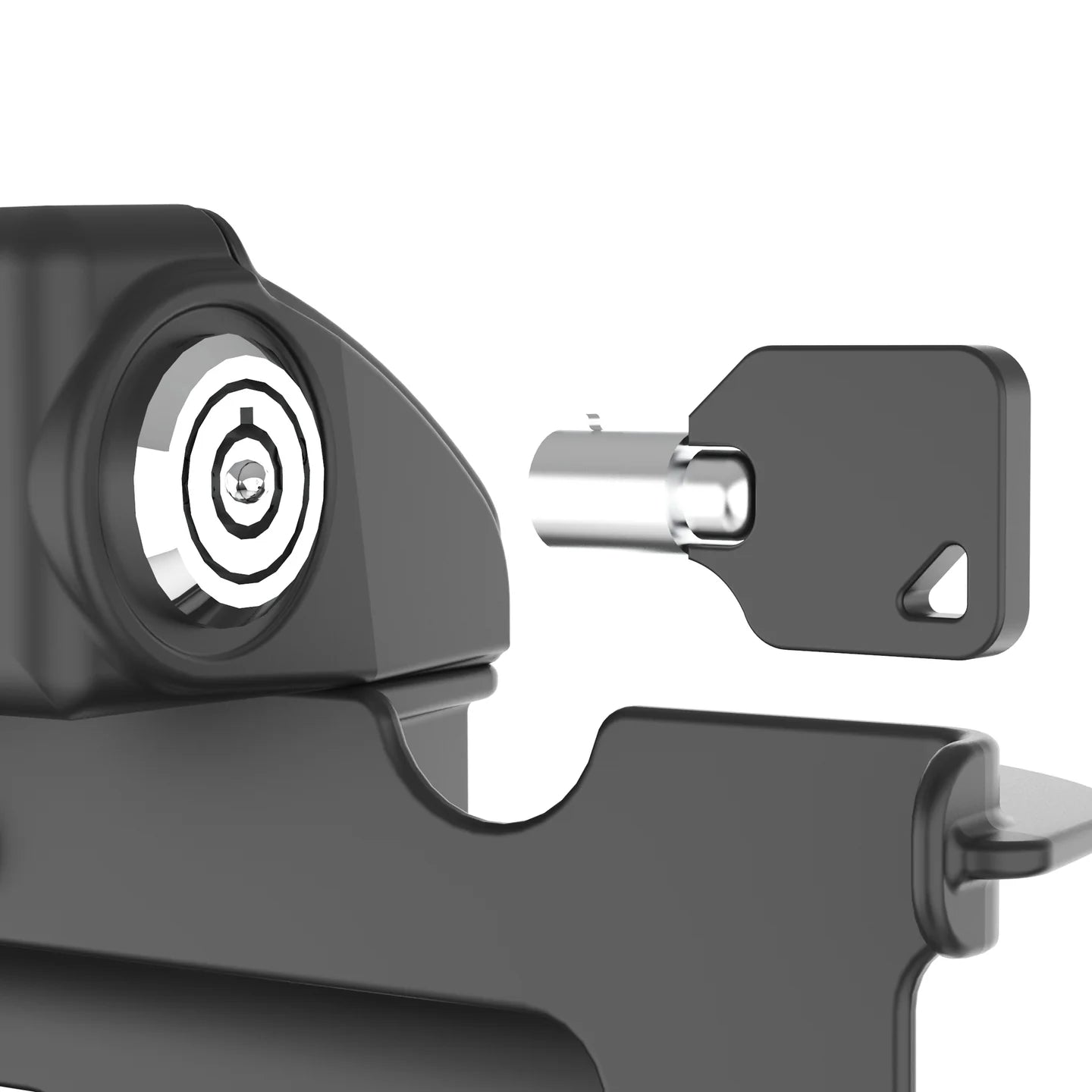

• Keyed top latch secures the tablet in the dock; two keys supplied
• USB Type-C female connector in the bottom docking cup supplies power to the dock
• Designed for large-format iPads wrapped in an IntelliSkin® Next Gen protective sleeve
• RAM® Mounts Compatible™ and works with the GDS® Hand-Stand™ hand strap and kickstand attachment

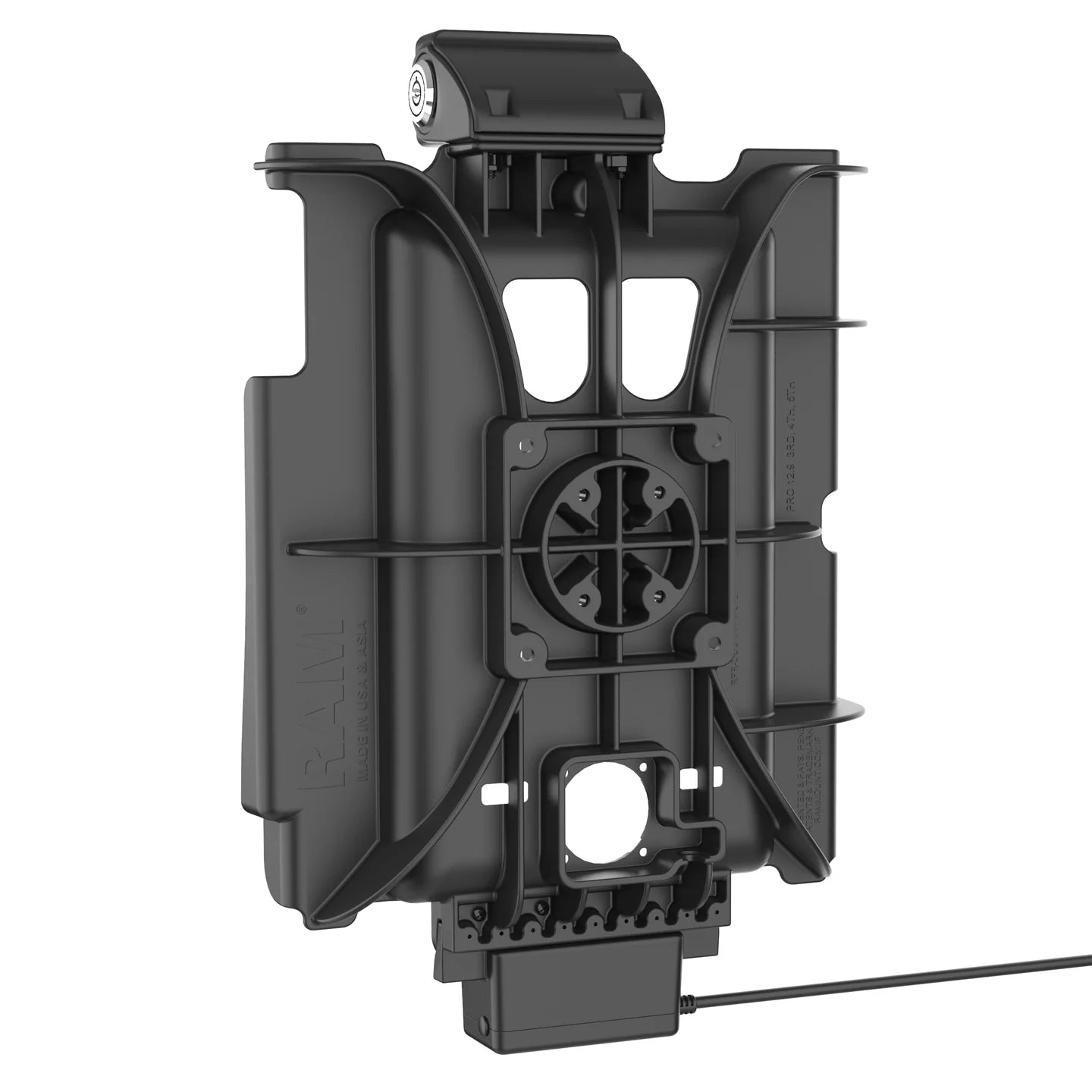

• Mounts via a 4-hole AMPS ball adaptor or a 75 x 75mm VESA arm
• Backed by a 3-year warranty

Works With

Apple iPad Pro 12.9" (3rd, 4th, 5th and 6th Gen), iPad Pro 13 and iPad Air 13, each wrapped in the matching IntelliSkin® Next Gen sleeve. The sleeve is not included and is required; the dock charges through the sleeve's pogo pins, not through the iPad's own port. The dock connects to RAM® ball and socket systems via a 4-hole AMPS pattern ball adaptor, sold separately. If you don't need the lock, the RAM-GDS-DOCK-AP37CPU is the non-locking dock and charges considerably faster; if you want the lock plus active cooling, see the RAM-GDS-DOCKLF-AP37CPU Cool-Dock.

Dimensions & Specifications

• Hole pattern: 4-hole AMPS, 1.181" x 1.496" (30mm x 38mm); 75 x 75mm VESA
• Output voltage: 5V–12V at 3A; power output 15W
• Input connector: USB Type-C
• Material: high-strength composite
• Weight: 827g (1.82 lb)
• Hardware included: (4) #8-32 x 5/8" machine screws, (4) #8-32 nyloc nuts, (2) keys
• Warranty: 3 years

FAQs

Why does the locking dock charge slower than the plain one?

It uses a different dock cup. This one delivers 15W at 5V to 12V, where the non-locking RAM-GDS-DOCK-AP37CPU delivers up to 60W at 5V to 20V. A 12.9" iPad will still charge on 15W, but slowly under heavy use. If charge speed matters more than security, take the non-locking dock.

How secure is the lock?

It is a keyed latch, not a safe. It stops an opportunist walking off with the tablet and it stops the iPad bouncing out over rough ground. Someone determined with tools will still get it out.

Do I need an IntelliSkin sleeve as well?

Yes. The dock charges through the pogo pins on an IntelliSkin® Next Gen sleeve, so the iPad has to be wearing one. It is not included with the dock.

Do I need a special charger?

Yes; a Power Delivery (PD) charger is required to supply sufficient power to this dock.

When will my order ship?

We don't hold this dock on the shelf in Auckland; we bring it in to order. Please get in touch before ordering and we'll confirm the lead time for you.
