RAM-463-TRA1U - Aluminium Track Ball with T-Bolt - C Series (1.5" Ball)

RAM-463-TRA1U RAM® Aluminium Track Ball™ with T-Bolt Attachment

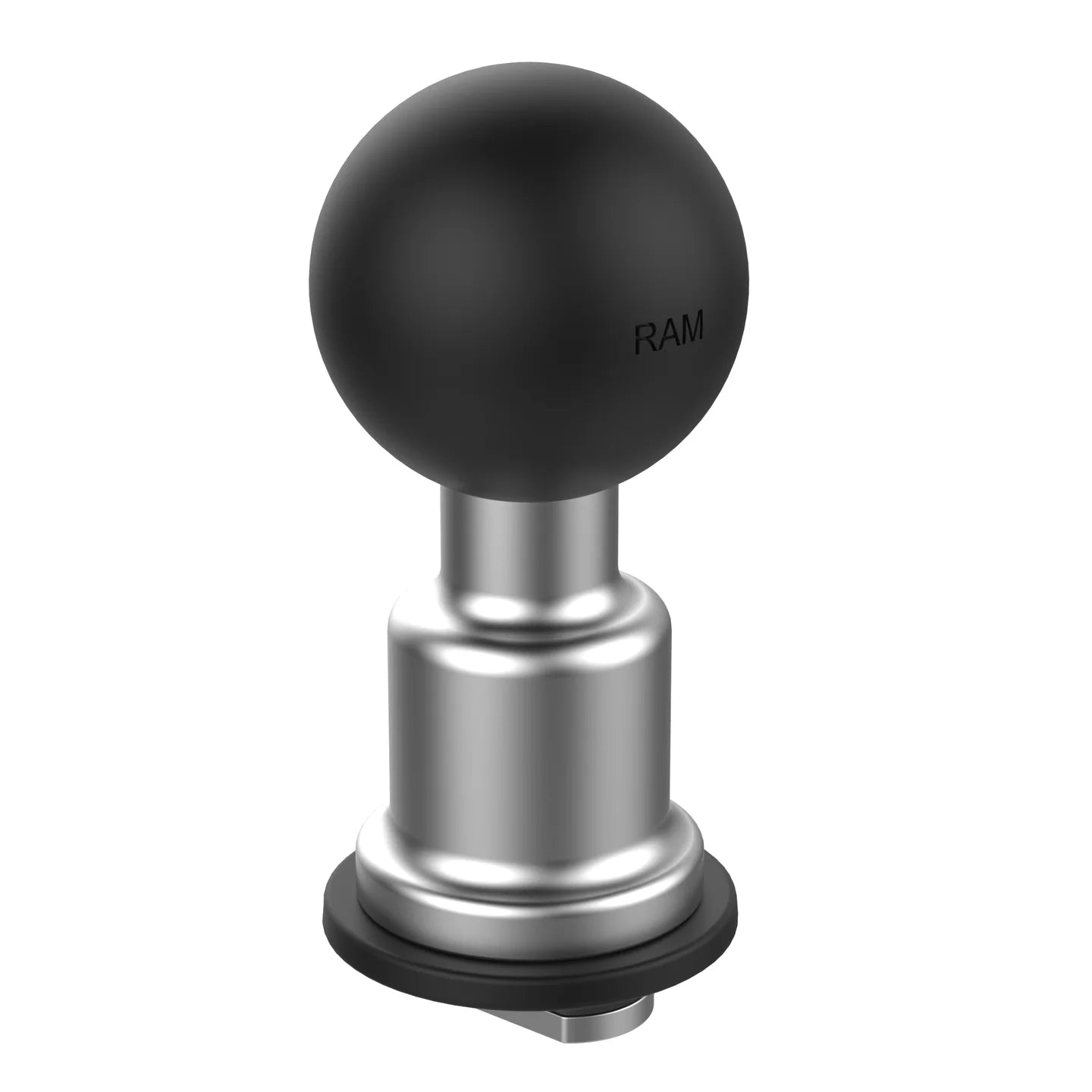

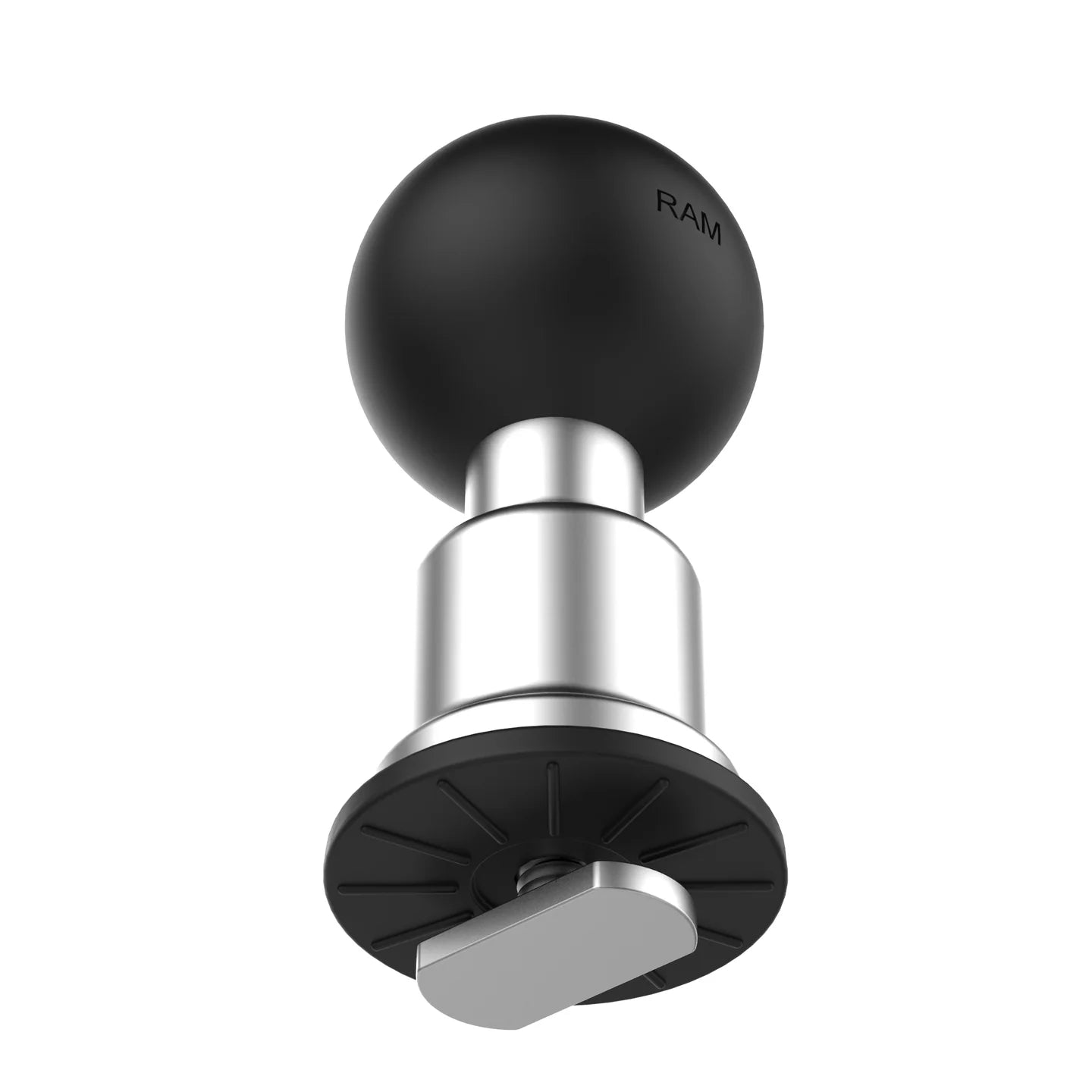

The RAM-463-TRA1U is a 38.1mm (1.5") C-size rubber ball moulded onto a marine-grade aluminium base, supplied with a rubber friction washer and a stainless steel T-bolt. Drop it into virtually any accessory track, including the RAM® Tough-Track™, twist the ball clockwise to lock it down, and you have a 1.5" ball ready for any RAM® C-size arm. It is the heavier-duty sibling of the 1" RAM-B-463-TRA1U.

Key Features

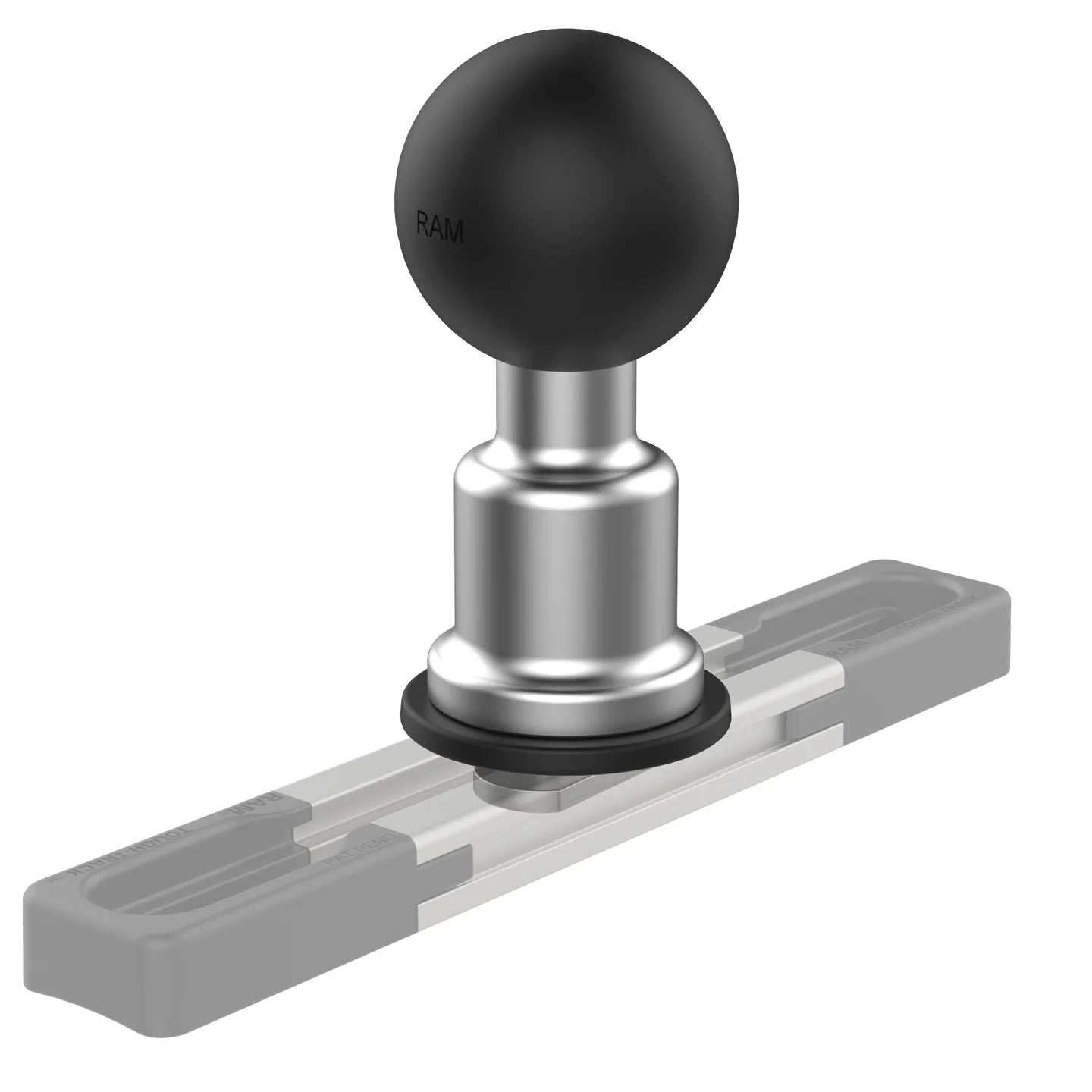

• Fits virtually any track system, including the full RAM® Tough-Track™ range
• Twist to lock: the stainless steel T-bolt and rubber friction washer clamp the ball in place, and back off just as easily when you want to reposition it
• C-size 1.5" ball carries up to 1.81kg (4 lb), so it suits fish finders, larger tablets and rougher water than the B-size version
• Marine-grade aluminium base with stainless steel hardware, for salt water, vibration and general abuse
• Moves anywhere along the track, so you can reposition the mount without drilling anything new
• 1/4"-20 threaded socket in the base, which the supplied T-bolt screws into
• Backed by RAM's lifetime warranty

Works With

Any RAM® C-size component that takes a 1.5" ball, including the RAM-201U-B short double socket arm. It drops straight into RAM® Tough-Track™ sections such as the RAM-TRACK-EXA-9U 228mm aluminium rail or the RAP-TRACK-A9U 229mm composite track, and suits most kayak and boat accessory tracks that accept a T-bolt. For a side-loading composite track base with the same 1.5" ball, see the RAP-354-AAPRU.

Dimensions & Specifications

• Ball size: 38.1mm (1.5") C-size rubber ball
• Base plate diameter: 31.8mm (1.25")
• Threaded socket: 1/4"-20, 22.2mm (0.875") deep
• T-bolt: 1/4"-20 x 22.2mm (7/8") long, head 12.2mm x 24.1mm (0.48" x 0.95")
• Weight capacity: 1.81kg (4 lb) standard use, 1.36kg (3 lb) heavy-duty use
• Material: marine-grade aluminium with stainless steel hardware
• Weight: 118g (0.26 lb)

What's Included

• 1 x RAM-463U pin-lock ball adapter with 1/4"-20 female thread (C size)
• 1 x RAP-354TU stainless steel T-bolt, 1/4"-20 x 22.2mm (7/8")
• 1 x rubber friction washer

FAQs

Which tracks does it fit?
Virtually any accessory track that takes a T-bolt, including the RAM® Tough-Track™ range and most kayak and boat side tracks. Insert or slide the T-bolt into the track, then twist the ball clockwise to tighten.

B-size or C-size: which do I need?
Match the ball to the arm and holder you are running. The 1" B-size version carries up to 907g (2 lb) and suits phones and GPS units, while this 1.5" C-size version carries up to 1.81kg (4 lb) and is the better choice for fish finders, larger tablets and rough water.

Can I move it after it is fitted?
Yes. Twist the ball anticlockwise to loosen, slide it to where you want it, then twist clockwise again. Nothing is drilled, so the track carries all the fixings.
