RAM-B-463-TRA1U - Aluminium Track Ball with T-Bolt - B Series (1" Ball)

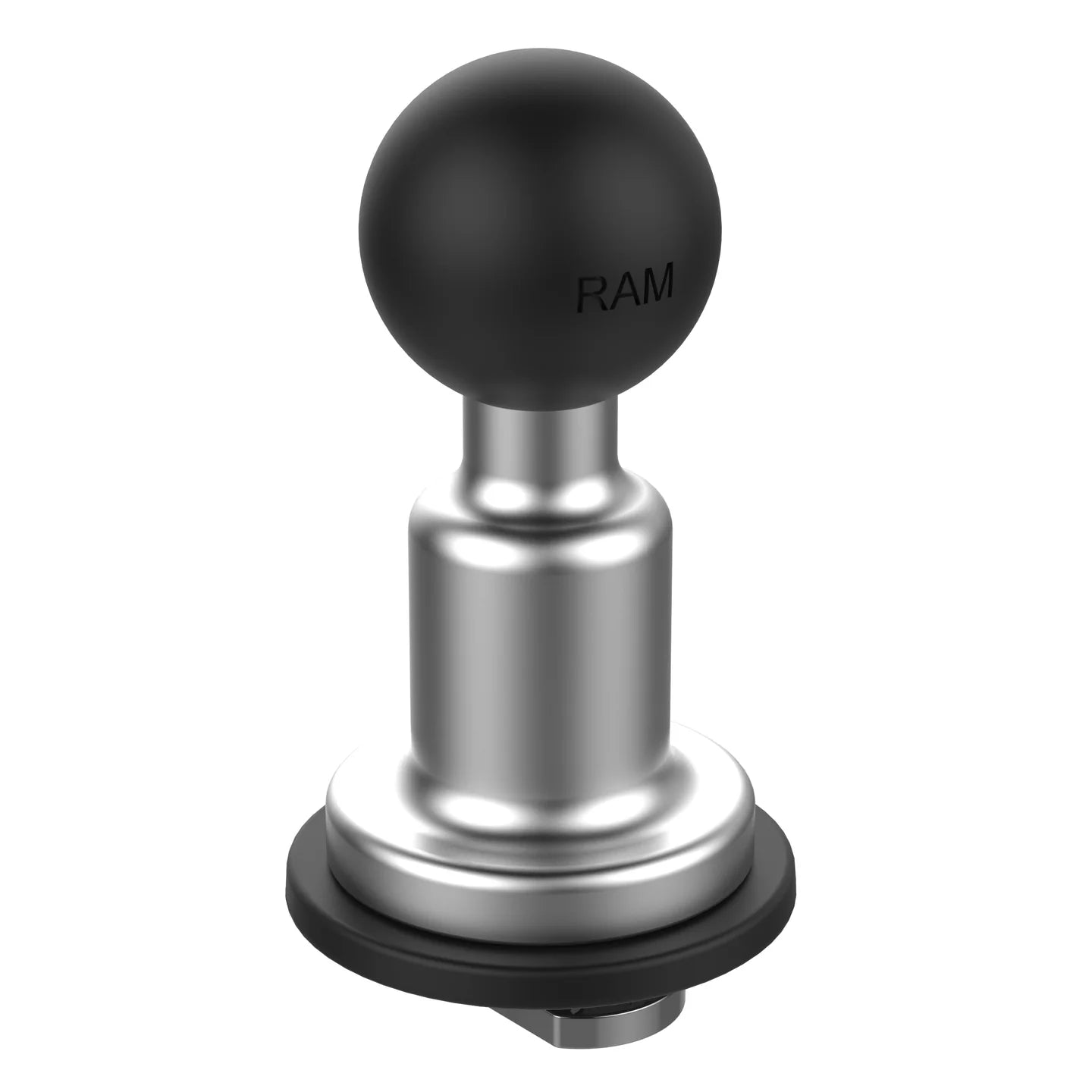

RAM-B-463-TRA1U RAM® Aluminium Track Ball™ with T-Bolt Attachment

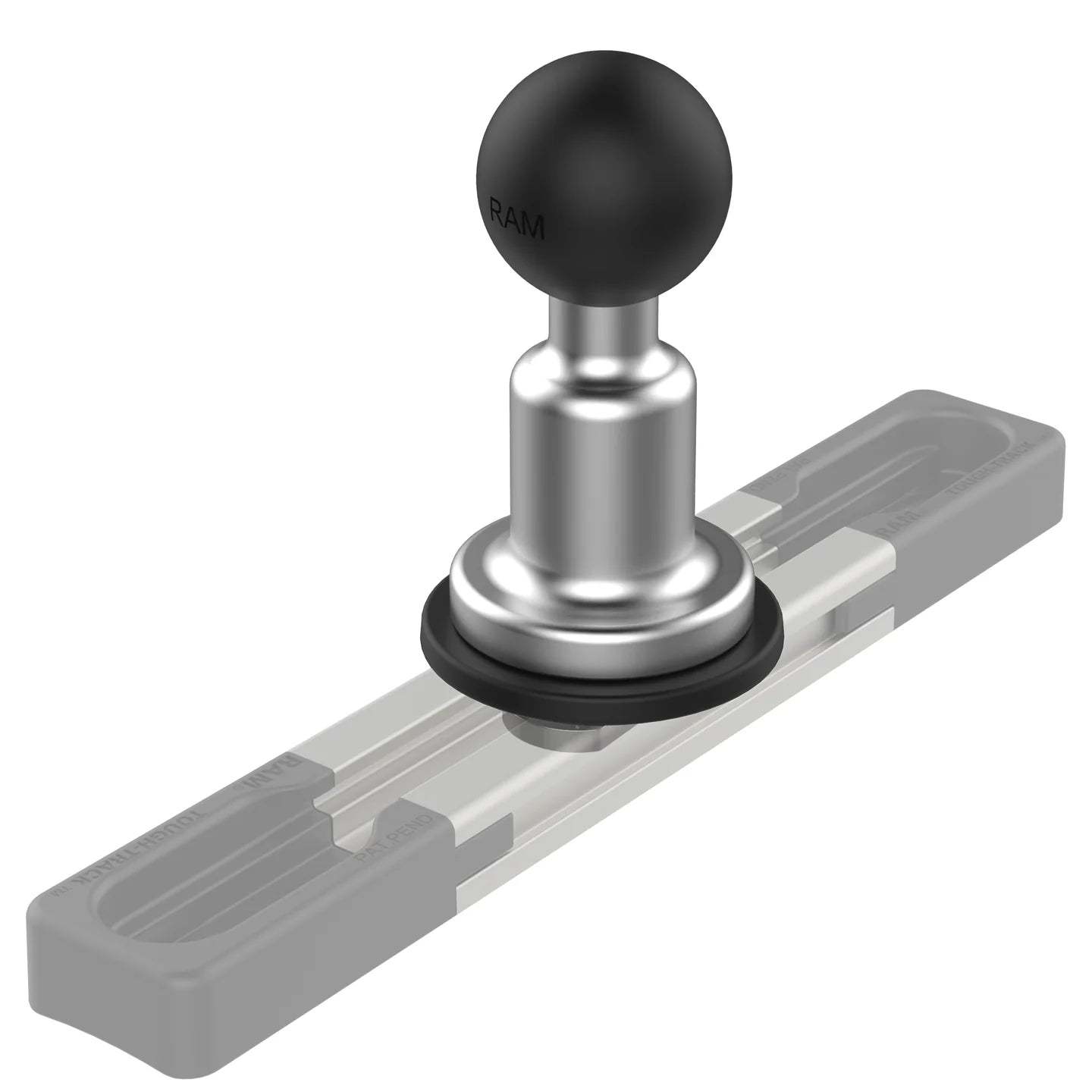

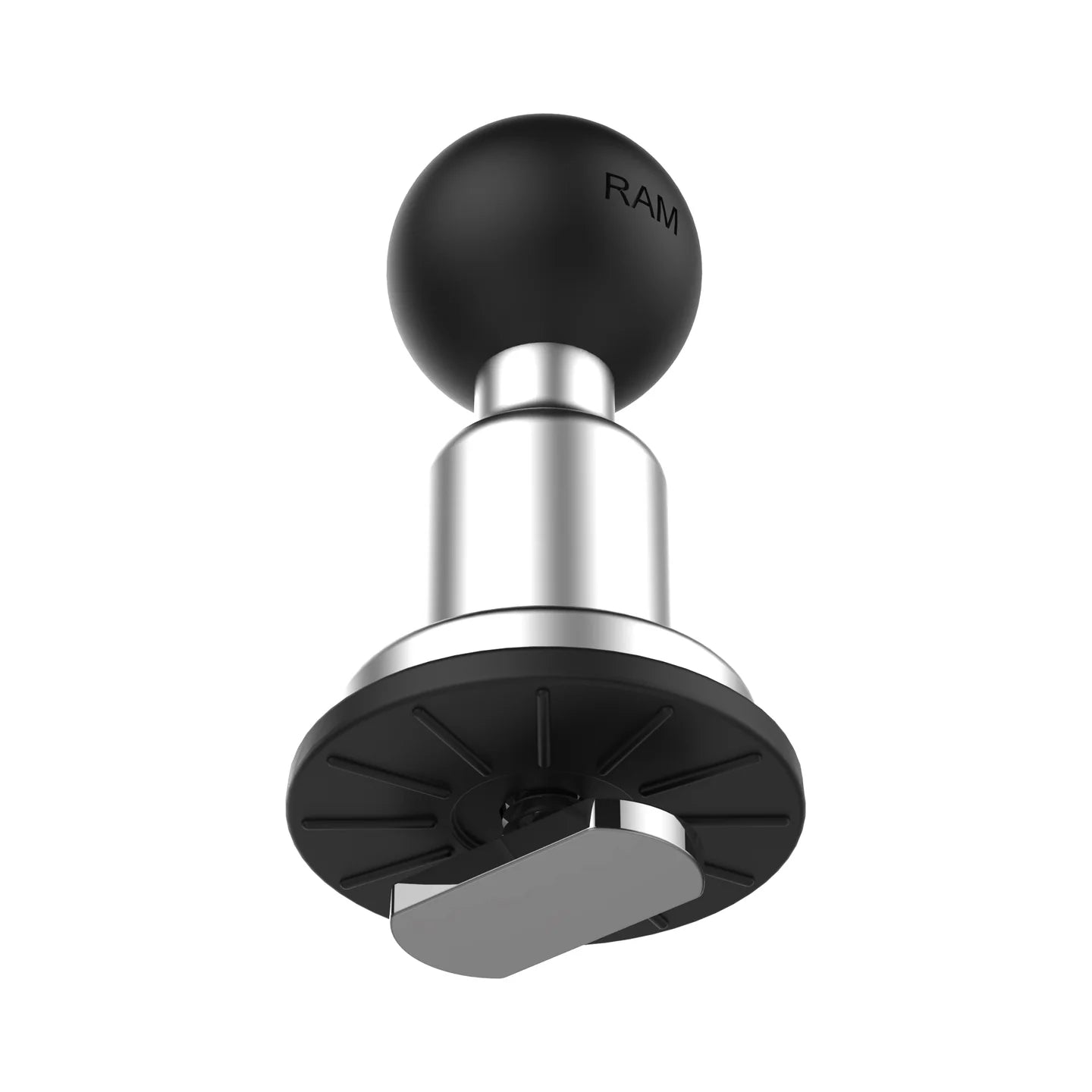

The RAM-B-463-TRA1U is a 25.4mm (1") B-size rubber ball moulded onto a marine-grade aluminium base, supplied with a rubber friction washer and a stainless steel T-bolt. Drop it into virtually any accessory track, including the RAM® Tough-Track™, twist the ball clockwise to lock it down, and you have a 1" ball ready for any RAM® B-size arm.

Key Features

• Fits virtually any track system, including the full RAM® Tough-Track™ range
• Twist to lock: the stainless steel T-bolt and rubber friction washer clamp the ball in place, and back off just as easily when you want to reposition it
• Marine-grade aluminium base with stainless steel hardware, for salt water, vibration and general abuse
• Moves anywhere along the track, so you can reposition the mount without drilling anything new
• 1/4"-20 threaded socket in the base, which the supplied T-bolt screws into
• Backed by RAM's lifetime warranty

Works With

Any RAM® B-size component that takes a 1" ball, including the RAM-B-201U medium double socket arm. It drops straight into RAM® Tough-Track™ sections such as the RAM-TRACK-EXA-9U 228mm aluminium rail or the RAP-TRACK-A9U 229mm composite track, and suits most kayak and boat accessory tracks that accept a T-bolt. If you need a side-loading track base with a 1.5" ball instead, look at the RAP-354-AAPRU.

Dimensions & Specifications

• Ball size: 25.4mm (1") B-size rubber ball
• Overall height: 60mm (2.36")
• Base plate diameter: 31.8mm (1.25")
• Threaded socket: 1/4"-20, 22.2mm (0.875") deep
• T-bolt: 1/4"-20 x 22.2mm (7/8") long, head 12.2mm x 24.1mm (0.48" x 0.95")
• Weight capacity: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
• Material: marine-grade aluminium with stainless steel hardware
• Weight: 68g (0.15 lb)

What's Included

• 1 x RAM-B-463U pin-lock ball adapter with 1/4"-20 female thread (B size)
• 1 x RAP-354TU stainless steel T-bolt, 1/4"-20 x 22.2mm (7/8")
• 1 x rubber friction washer

FAQs

Which tracks does it fit?
Virtually any accessory track that takes a T-bolt, including the RAM® Tough-Track™ range and most kayak and boat side tracks. Insert or slide the T-bolt into the track, then twist the ball clockwise to tighten.

Can I move it after it is fitted?
Yes. Twist the ball anticlockwise to loosen, slide it to where you want it, then twist clockwise again. Nothing is drilled, so the track carries all the fixings.

Aluminium or composite: which should I choose?
This is the aluminium version. RAM's aluminium parts are stiffer and better suited to rough or marine use, while the composite equivalents save a little weight and cost for lighter loads.

How fast does this ship?
If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
