RAM Apple MagSafe Adaptor with Diamond Base Drill-Down Mount (2020)

RAM-B-102-AP-MAGU (2020) Drill-Down Mount with Apple MagSafe Adaptor

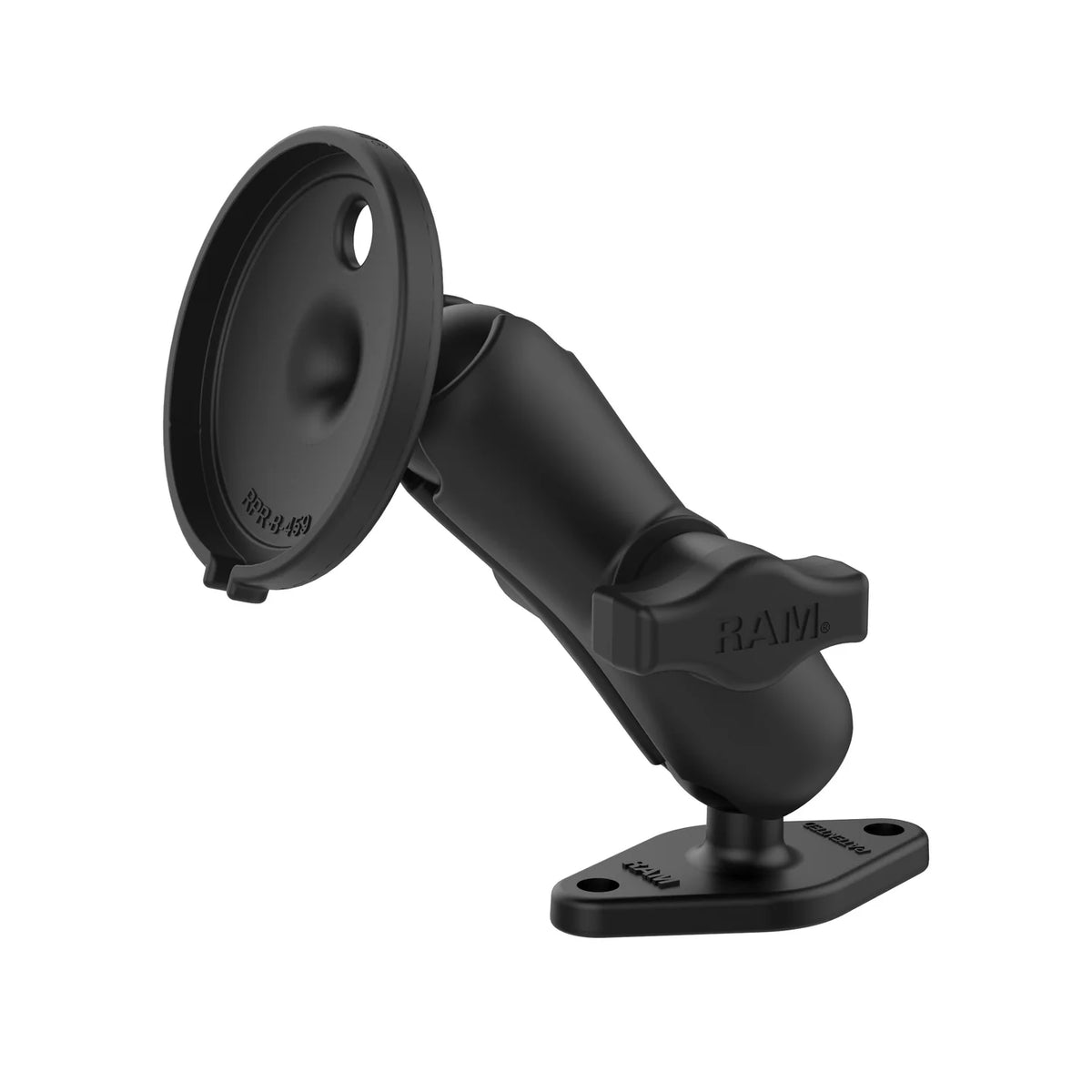

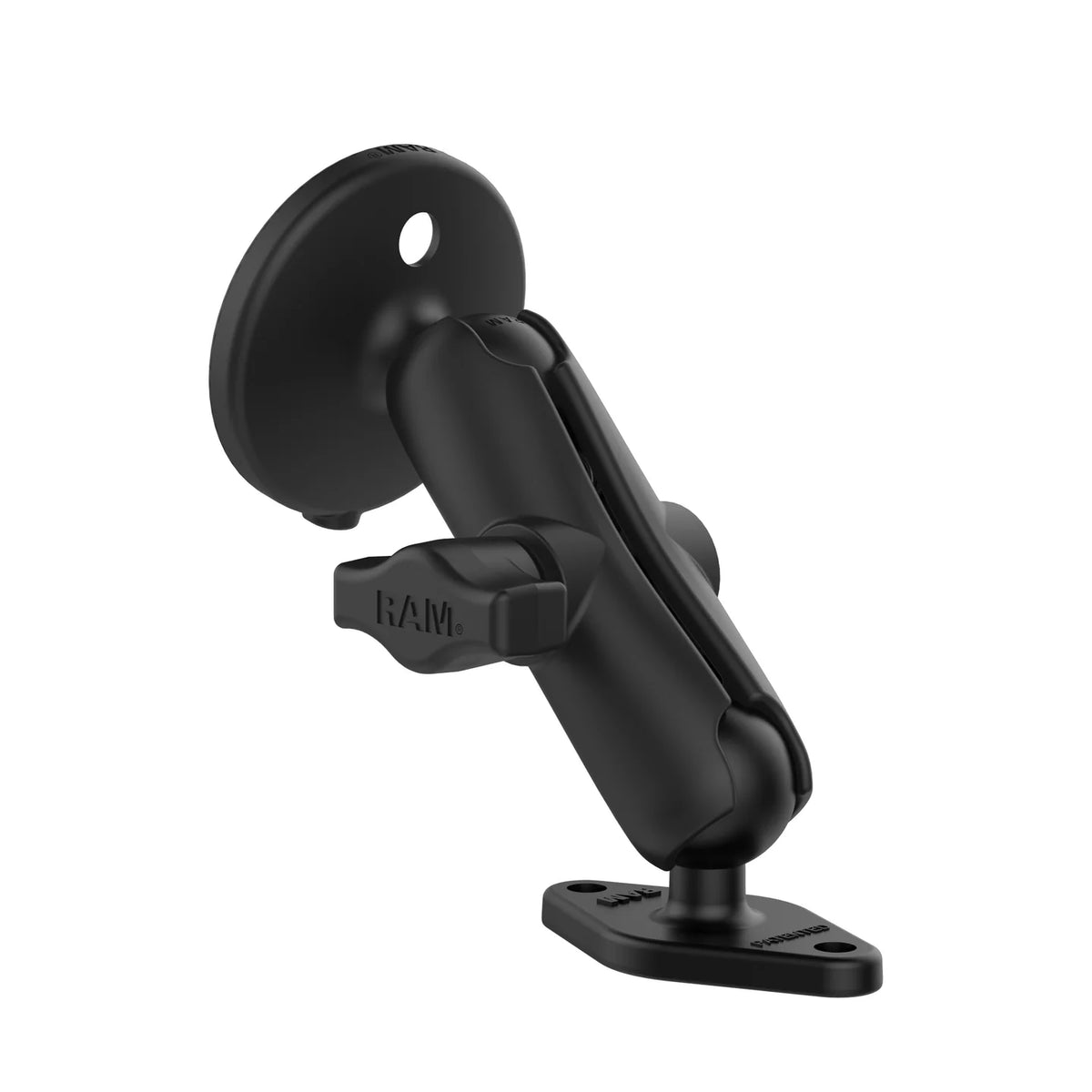

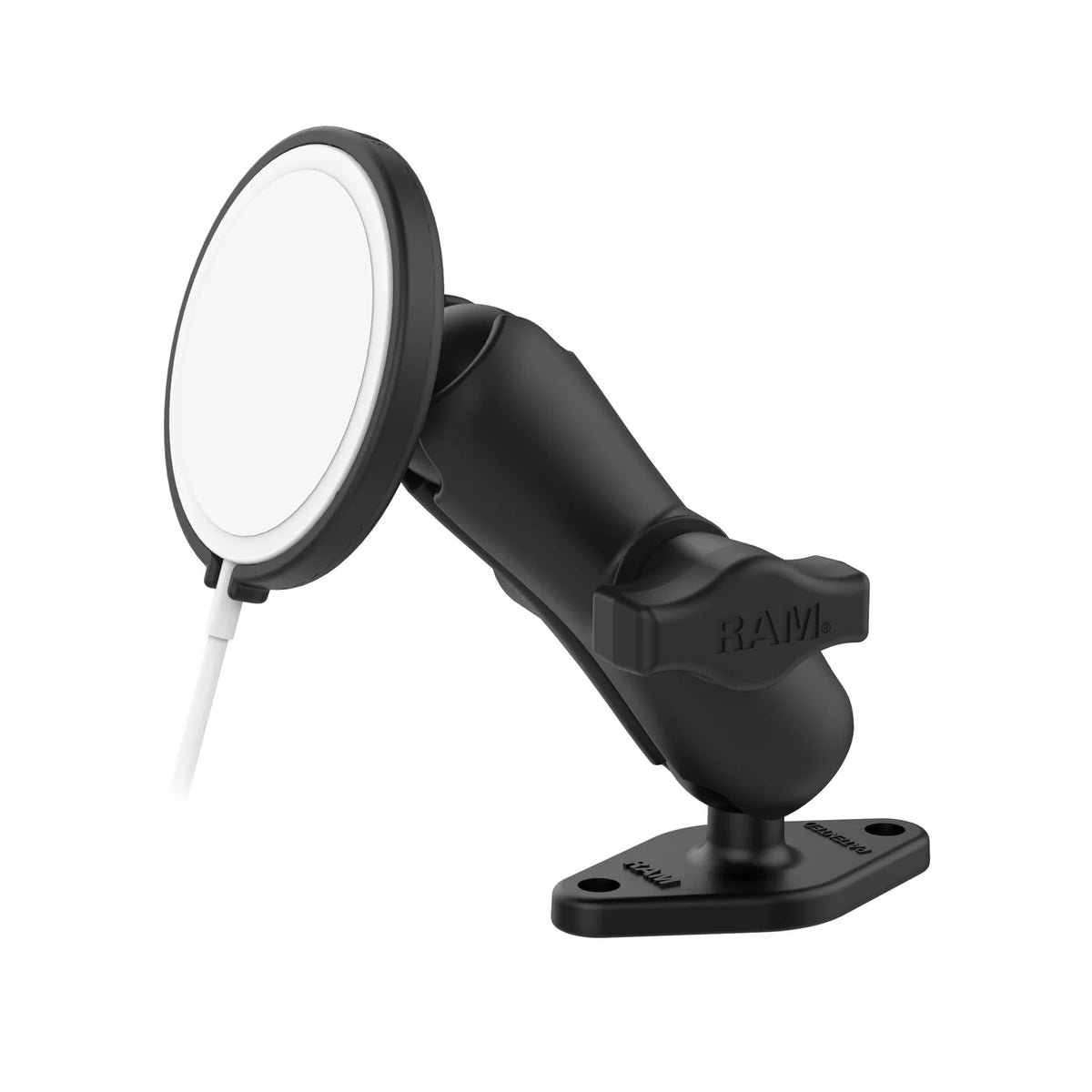

The RAM-B-102-AP-MAGU (2020) turns the original Apple MagSafe charger into a permanent, bolt-down phone mount. It pairs a RAM® ball adaptor for the 2020 MagSafe charging puck with a medium B-Size double socket arm and a diamond base with the 2-hole AMPS pattern, for dashboards, consoles and panels.

Key Features

• MagSafe adaptor: precise fit for the original (2020) Apple MagSafe charging puck; charger not included
• Diamond base: 2-hole AMPS pattern for a secure drill-down installation
• Medium double socket arm: ball-and-socket design for near-infinite adjustment
• Marine-grade aluminium and high-strength composite construction
• Lifetime warranty

Works With

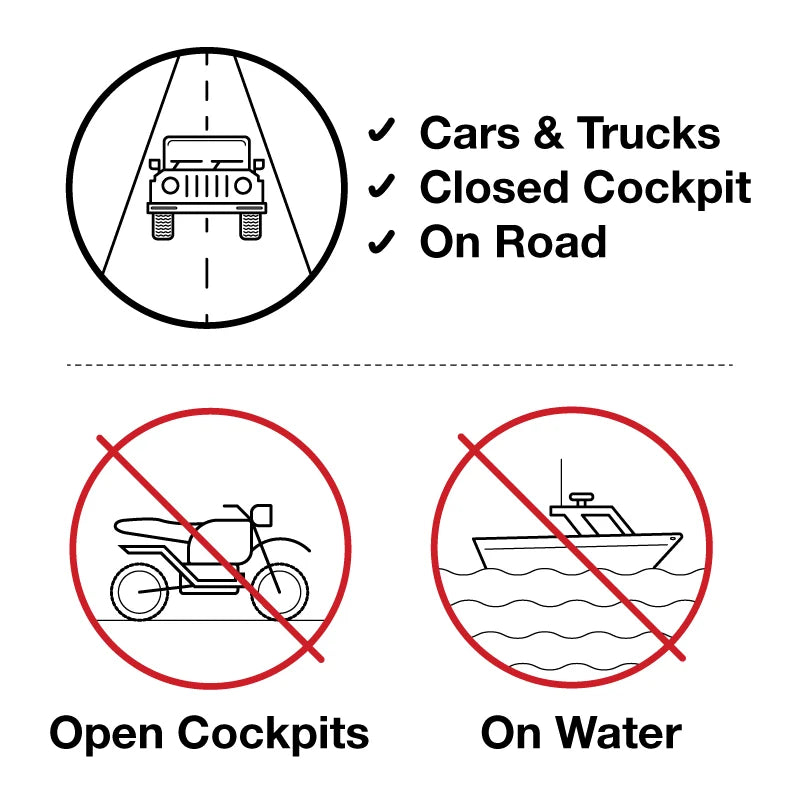

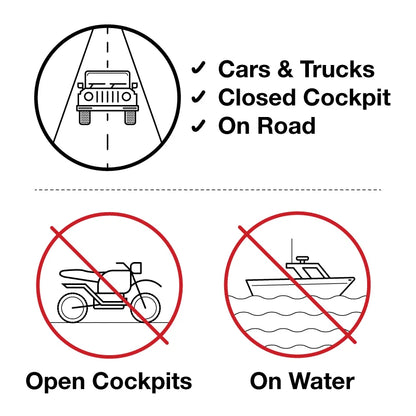

iPhone 12 and iPhone 13 series (including mini, Pro and Pro Max), with or without an official Apple MagSafe case. Not compatible with standard (non-MagSafe) cases. Designed for light-duty and/or closed-cockpit use. This kit only fits the original 2020 MagSafe charger; for the 25W MagSafe charger (2024 and later, including iPhone 16), see the RAM-B-102-AP-MAG-1U 25W MagSafe drill-down mount.

Other ways to mount the same adaptor: the RAM-B-166-AP-MAGU suction cup mount, or the RAP-B-202-AP-MAGU adaptor on its own to fit an existing RAM B-Size arm.

Dimensions & Specifications

• Ball size: B-Size, 25.4mm (1")
• Arm: medium, 76mm (3") socket to socket
• Base hole pattern: 2-hole AMPS, 48.6mm (1.912") hole centres
• Materials: marine-grade aluminium; high-strength composite
• Weight: 200g (0.44 lb)
• Weight capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use

Components

• RAP-B-202-AP-MAGU ball adaptor for Apple MagSafe (2020)

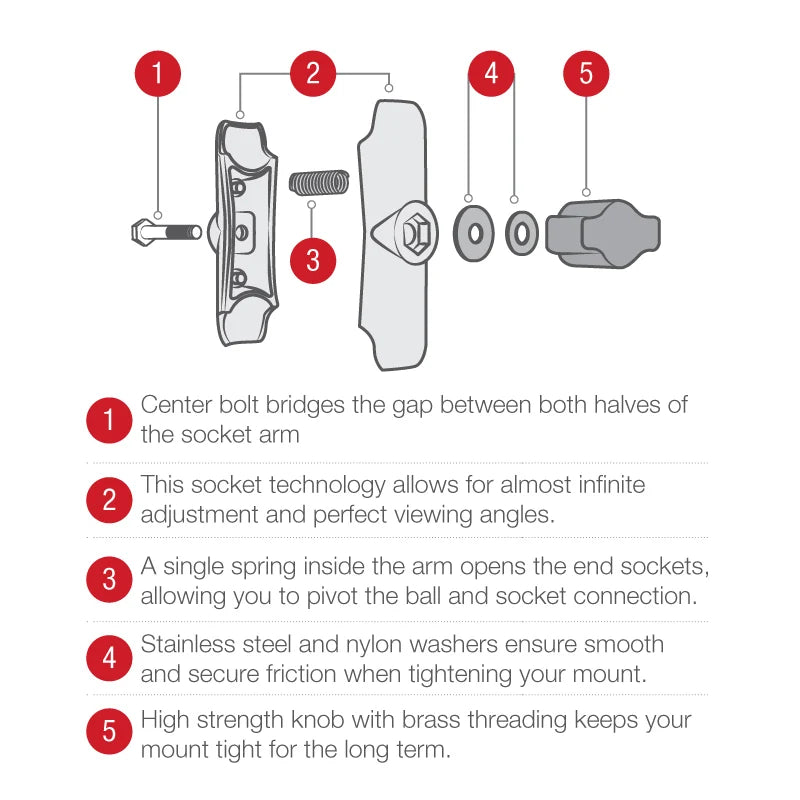

• RAM-B-201U medium double socket arm
• RAM-B-238U diamond base with 1" ball

FAQs

Does this include the MagSafe charger? No. This is the RAM mounting kit only; the Apple MagSafe charger is sold separately.

Which MagSafe charger do I have? The original 2020 charger has a smooth, rubber-coated cable. If your cable is braided, it's the newer 2024+ charger (including the 25W version for iPhone 16) and this adaptor won't fit it; use the RAM-B-102-AP-MAG-1U instead.
