RAM® Drill-Down Mount for Apple 25W MagSafe

RAM-B-102-AP-MAG-1U Drill-Down Mount for Apple 25W MagSafe

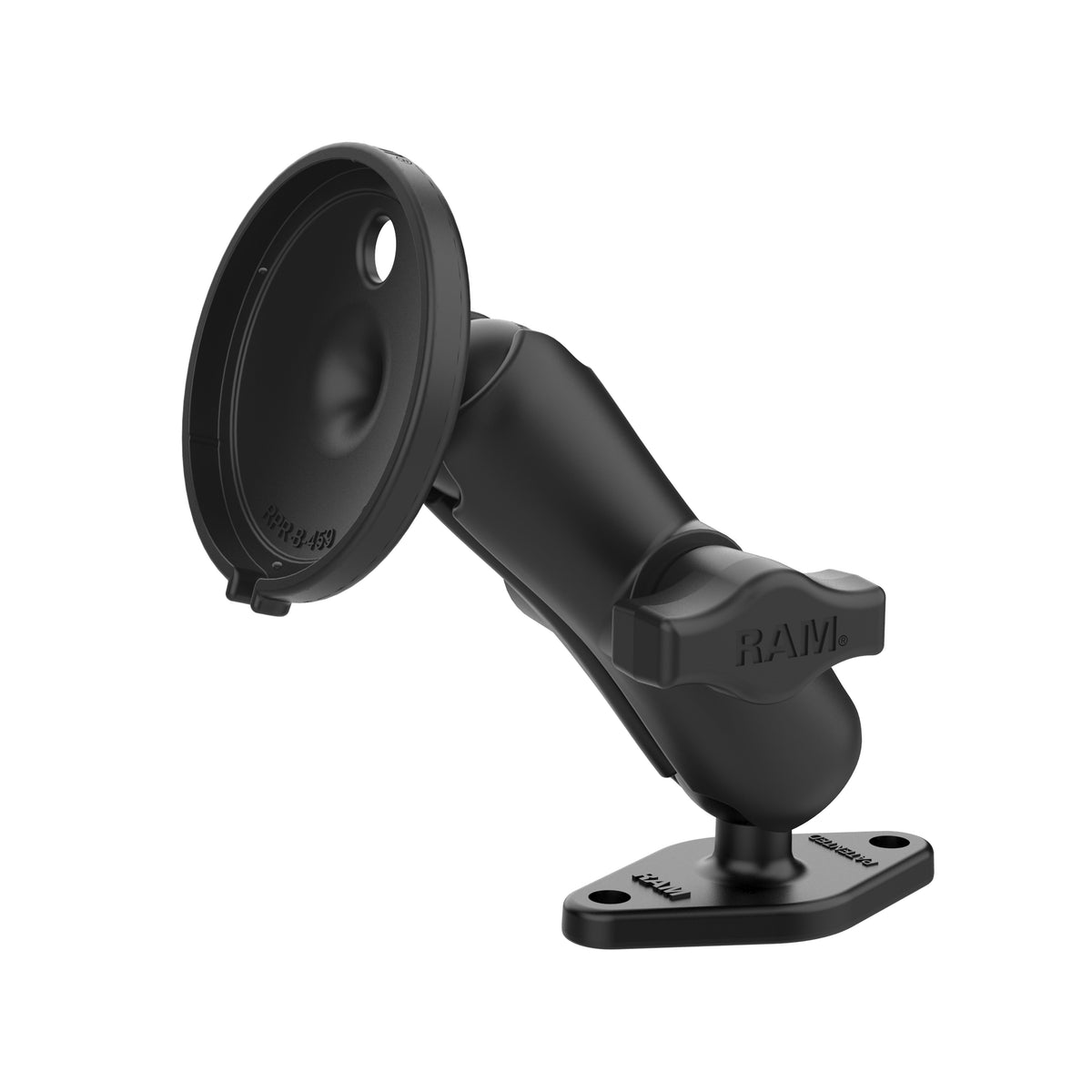

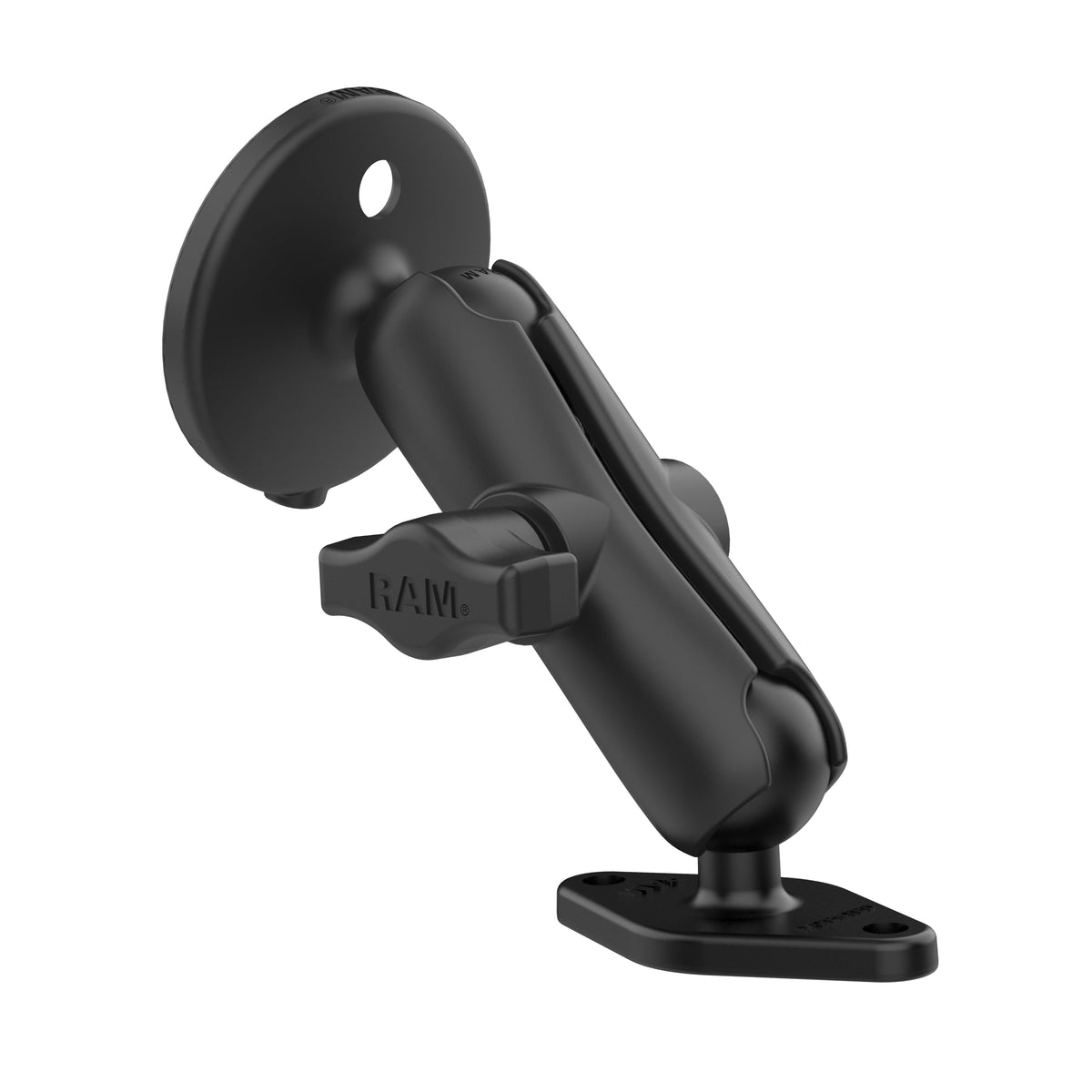

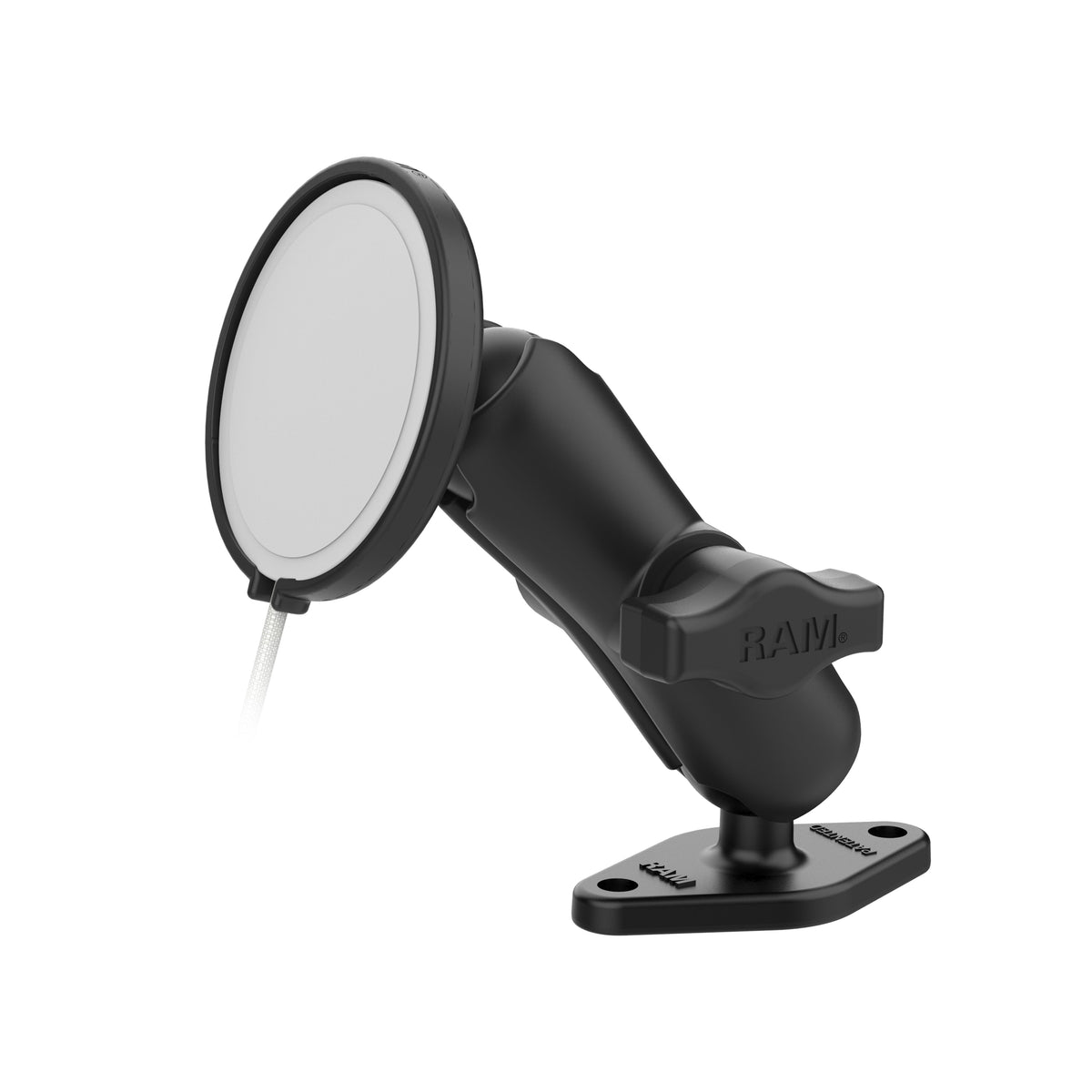

The RAM-B-102-AP-MAG-1U turns the Apple 25W MagSafe charger (2024 and later) into a permanent, bolt-down phone mount. It pairs a RAM® ball adaptor for the newer MagSafe charging puck with a medium B-Size double socket arm and a diamond base with the 2-hole AMPS pattern, for dashboards, consoles and panels.

Key Features

• 25W MagSafe adaptor: snug fit for the Apple MagSafe charging puck released in 2024 and later; charger not included
• Diamond base: 2-hole AMPS pattern for a secure drill-down installation
• Medium double socket arm: ball-and-socket design for near-infinite adjustment
• Marine-grade aluminium and high-strength composite construction
• Lifetime warranty

Works With

iPhone 12 and later, including iPhone 16 models, with the Apple 25W MagSafe charger. A MagSafe-compatible case is recommended for a secure magnetic hold. Designed for light-duty and/or closed-cockpit use. This kit does not fit the original 2020 MagSafe charger; for that one, see the RAM-B-102-AP-MAGU (2020) drill-down mount.

Already have a RAM B-Size arm? The RAP-B-202-AP-MAG-1U adaptor is available on its own. For a no-drill option, see the RAP-B-378-AP-MAG-1U flex adhesive mount.

Dimensions & Specifications

• Ball size: B-Size, 25.4mm (1")
• Arm: medium, 76mm (3") socket to socket
• Base hole pattern: 2-hole AMPS, 48.6mm (1.912") hole centres
• Materials: marine-grade aluminium; high-strength composite
• Weight: 200g (0.44 lb)
• Weight capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use

Components

• RAP-B-202-AP-MAG-1U ball adaptor for Apple 25W MagSafe
• RAM-B-201U medium double socket arm
• RAM-B-238U diamond base with 1" ball

FAQs

Does this include the MagSafe charger? No. This is the RAM mounting kit only; the Apple MagSafe charger is sold separately.

Which MagSafe charger do I have? The newer 2024+ charger (including the 25W version) has a braided cable, and that's the one this kit fits. If your cable is smooth and rubber-coated, it's the original 2020 charger; use the RAM-B-102-AP-MAGU instead.

How fast does this ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
