RAM-B-348-A-237U - 1/4"-20 Stud to 1/4"-20 Hole Camera Mount - B Series (1" Ball)

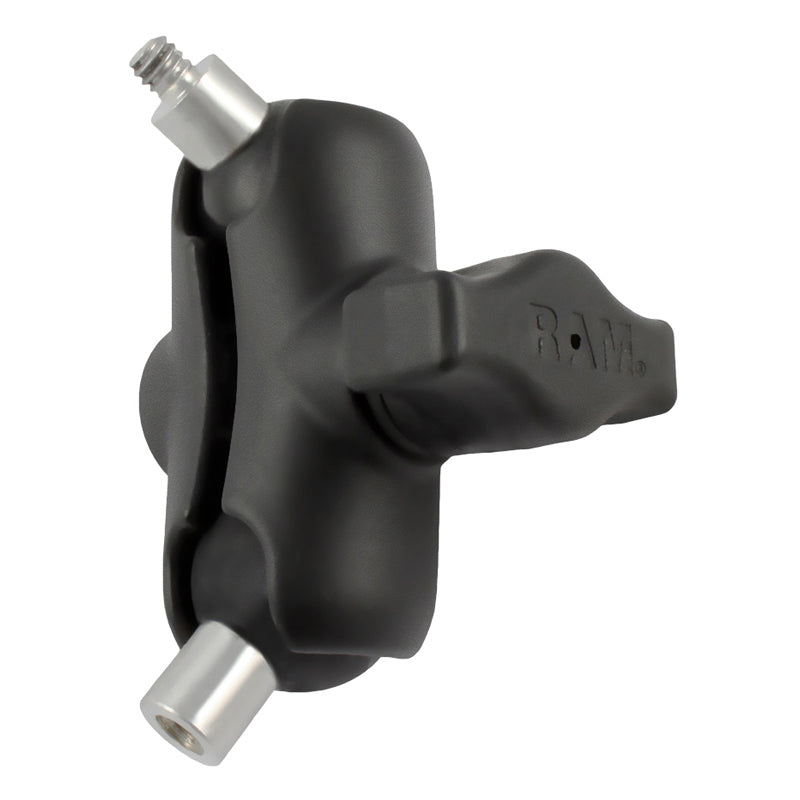

RAM-B-348-A-237U - RAM® Mount with 1/4"-20 Threaded Stud and 1/4"-20 Threaded Hole

The RAM-B-348-A-237U is a short double ball mount with a 1/4"-20 male stud at one end and a 1/4"-20 female threaded hole at the other. It lets you fit a camera, camcorder or anything else with a standard tripod thread onto an existing 1/4"-20 stud or bolt, with full ball-and-socket adjustment in between.

Key Features

• 1/4"-20 male threaded stud matches the standard tripod socket on most cameras and camcorders
• 1/4"-20 female threaded hole turns any existing 1/4"-20 stud or bolt into the mounting point
• Short B size double socket arm; one knob releases both balls for near-infinite adjustment
• Powder-coated marine-grade aluminium, backed by a lifetime warranty

Works With

Any camera or camcorder with a standard 1/4"-20 female tripod socket, fitted to any existing 1/4"-20 male stud or bolt. Everything here is standard B size (1") RAM® hardware, so the arm and balls interchange with the rest of the B series range.

If you need a base at the bottom rather than a threaded hole, look at the RAM-B-101-A-237U drill-down version or the RAM-B-166-A-237U suction cup version.

Dimensions & Specifications

• Socket-to-socket length: 44.5mm (1.75")
• Ball size: 1" rubber ball, B size (both ends)
• Threads: 1/4"-20 male stud one end, 1/4"-20 female hole the other
• Weight capacity: standard use 907g (2 lb), heavy-duty use 454g (1 lb)
• Weight: 132g (0.29 lb)
• Material: powder-coated marine-grade aluminium
• Warranty: lifetime

What's Included

• 1 x RAM-B-237U 1" ball with 1/4"-20 male threaded stud
• 1 x RAM-B-201U-A short double socket arm, B size
• 1 x RAM-B-348U 1" ball with 1/4"-20 female threaded hole

FAQs

Will this fit my camera?

If your camera or camcorder has the standard 1/4"-20 tripod thread in its base, yes. That covers most compact cameras, DSLRs, camcorders and action camera adapters.

What does the threaded hole end attach to?

Any existing 1/4"-20 male stud or bolt: a tripod head, a bracket already fitted to your vehicle, or a bolt you fit yourself. If you would rather bolt or stick the mount down to a surface, one of the base versions above will suit you better.

Can I buy just one part?

Yes. All three components are stocked separately and are linked above.

When will my order ship?

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
