RAM Drink Holder - Self-Levelling 16oz with Torque Base (Medium Bars) & Short Arm

RAM-B-408-75-1-A-132U – RAM® Level Cup™ 16oz Drink Holder with Torque™ Medium Rail Base (Short Arm)

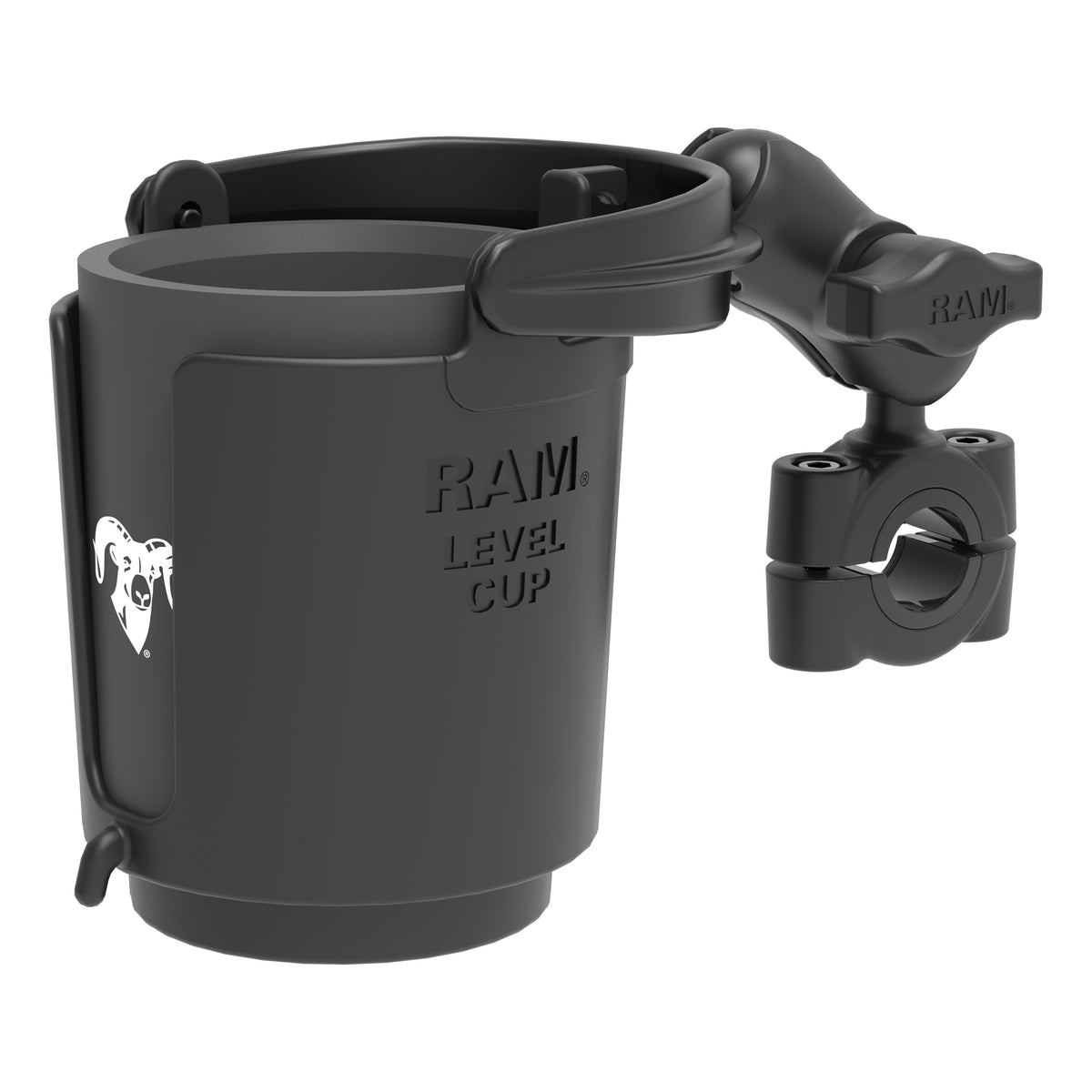

The RAM-B-408-75-1-A-132U is a self-levelling drink holder for handlebars and rails. It pairs the RAM® Level Cup™ 16oz (473ml) with a Torque™ base that clamps bars from 19mm to 25mm (0.75" to 1") in diameter and a short B Size double socket arm. The gimballed cup pivots on two axes, so your drink stays upright through corners, bumps and lean.

Key Features

• Self-levelling gimbal with two pivot points keeps cans, cups, bottles and mugs upright on the move
• Fits containers 63.5mm to 88.9mm (2.5" to 3.5") in diameter, sized for 355ml to 473ml (12oz to 16oz) drinks
• Torque™ rail base fits bars 19mm to 25mm (0.75" to 1") in diameter; sizing inserts are included for a snug fit that protects the bar surface
• Nylon-insert locknuts resist loosening in high-vibration environments
• Short B Size double socket arm keeps the cup tucked in close, with ball-and-socket adjustment at both ends
• Integrated eyelet and hook for an optional tether over open containers; insulated koozie included
• Powder-coated marine-grade aluminium and high-strength composite; backed by a lifetime warranty

What's Included

• RAM-B-132BU: Level Cup™ 16oz drink holder with 1" ball and koozie
• RAM-B-201U-A: B Size double socket arm, short length
• RAM-B-408-75-1U: Torque™ medium rail base with 1" ball

Works With

Any round bar or rail from 19mm to 25mm in diameter, which covers most motorcycle handlebars. Carrying bigger bottles or a 32oz insulated cup? See the RAM-B-408-75-1-A-417U Level Cup™ XL on the same Torque™ base. For bars from 28.6mm to 38.1mm, pair the Level Cup™ and short arm with the RAM-B-408-112-15U large Torque™ base instead.

Dimensions & Specifications

• Drink size: 355ml to 473ml (12oz to 16oz)
• Container diameter: 63.5mm to 88.9mm (2.5" to 3.5")
• Torque™ base clamping range: 19mm to 25mm (0.75" to 1") diameter
• Arm overall length: 60.5mm (2.38")
• Arm socket-to-socket length: 44.5mm (1.75")
• Ball size: 1" rubber ball, B Size
• Weight capacity: 907g (2 lbs) standard use, 454g (1 lb) heavy-duty use
• Weight: 413g (0.91 lbs)
• Materials: powder-coated marine-grade aluminium, high-strength composite

Hardware Included

• (2) #10-24 x 1" socket head cap screws
• (2) #10-24 nylock nuts
• (2) 0.75" composite bushings
• (2) 0.9" composite bushings
• (1) 88.9mm rubber strip
• (1) 5/32" hex key wrench

FAQs

What size drinks does it take?
Cans, cups, bottles and mugs from 63.5mm to 88.9mm (2.5" to 3.5") across, up to around 473ml (16oz). For anything bigger, go for the Level Cup™ XL version linked above.

Will it fit my handlebars?
If the bar measures between 19mm and 25mm (0.75" to 1") in diameter where you want to clamp, yes. Two sets of sizing bushings and a rubber strip are included to take up the difference and protect the finish.

How fast does it ship?
If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
