RAM-B-166-326U - EZY-Mount Quick Release Mount - Twist-Lock Suction Cup - Medium Arm

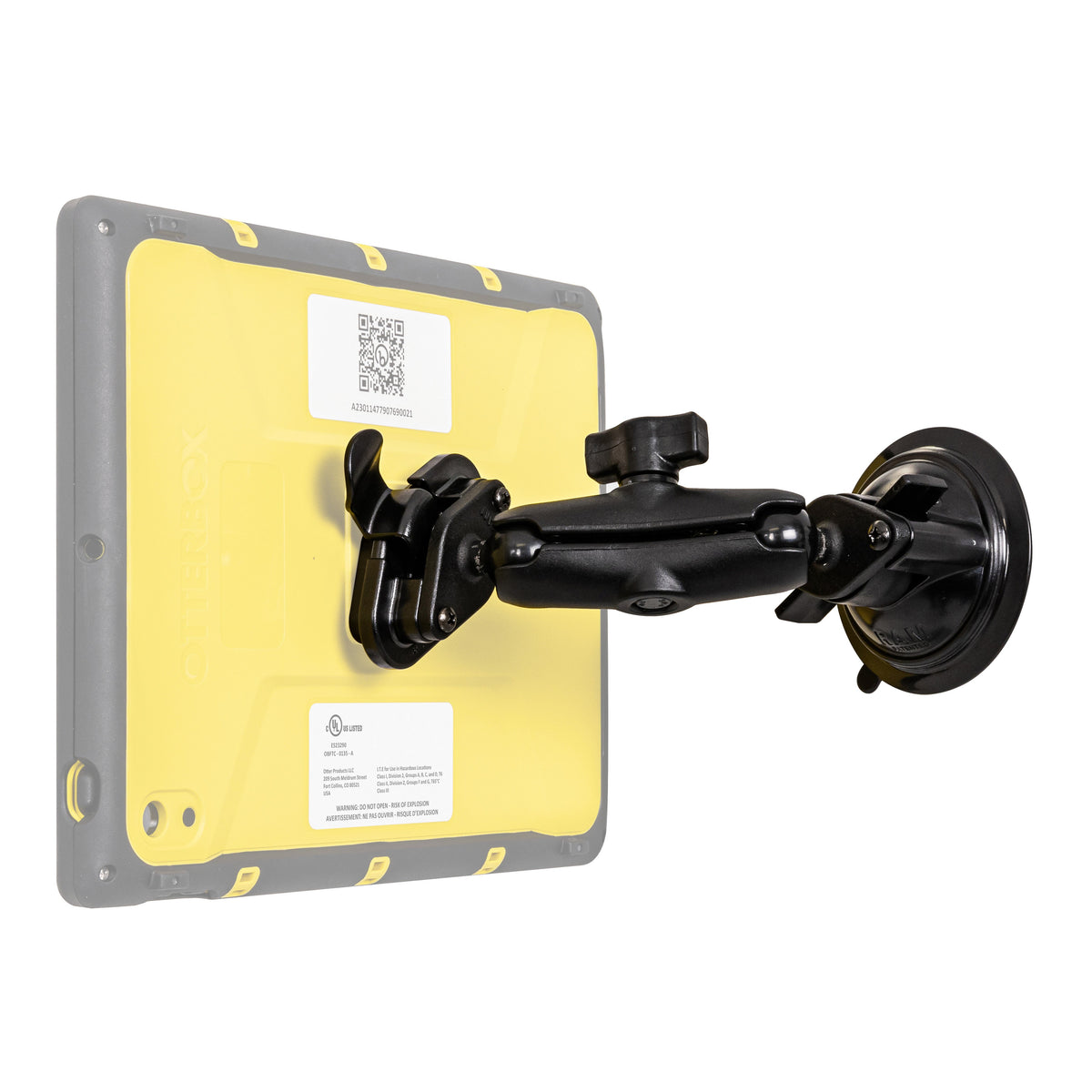

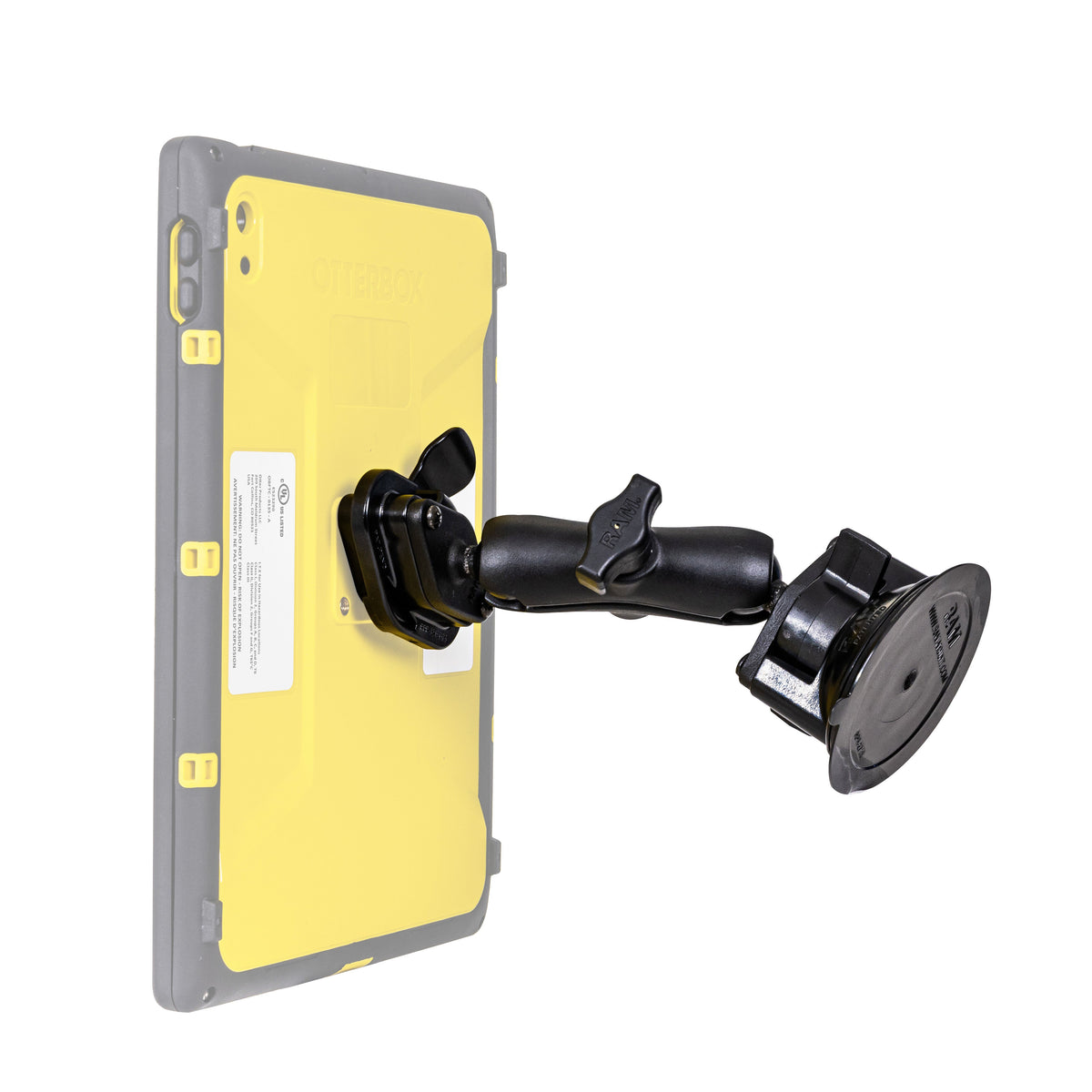

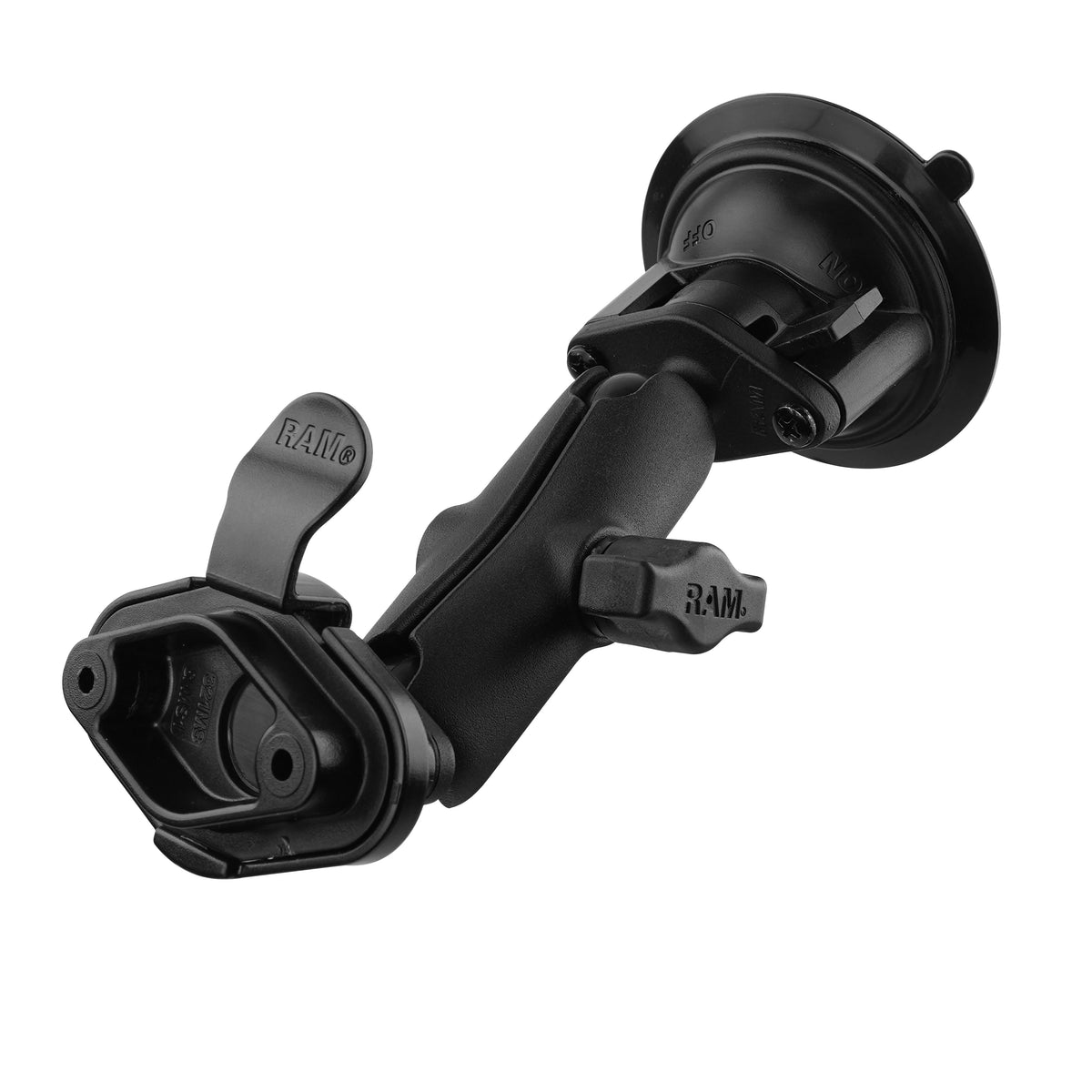

RAM-B-166-326U RAM® Twist-Lock™ Suction Cup Mount with EZY-Mount™ Quick Release

The RAM-B-166-326U is RAM's Twist-Lock™ suction cup mount with a medium double socket arm and the EZY-Mount™ quick release. It's the RAM-B-166U suction cup mount with the RAP-326U adapter kit, so you can leave the mount on the windscreen and lift the cradle and device off with a push of the release tab.

Key Features

• Twist-Lock™ suction cup: 83.8mm (3.3") diameter for windscreens and other smooth, non-porous surfaces
• Medium arm: B Size double socket arm, 76mm (3") socket to socket
• Quick release: the EZY-Mount™ halves snap together; push back the release tab to lift the cradle off
• Fits standard cradles: RAM developed this kit with OtterBox for Hardline Series cases, but the adapters suit any cradle with the 2-hole AMPS pattern

What's Included

• RAM-B-166U Twist-Lock™ suction cup mount with medium arm and diamond base
• RAP-326U EZY-Mount™ quick release adapter kit

Works With

Any RAM® cradle with the 2-hole AMPS pattern. Running more than one device? Add a RAP-326FU female adapter to each extra cradle. Need more grip? See the RAM-B-189-326U dual suction cup version.

Dimensions & Specifications

• Suction cup: 83.8mm (3.3") diameter
• Arm: 76mm (3") socket to socket
• Hole pattern: 2-hole AMPS, 48.6mm (1.912") centre to centre
• Ball size: B Size, 25.4mm (1")
• Weight capacity: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
• Materials: marine-grade aluminium, high-strength composite
• Weight: 340g (0.75 lb)
• Hardware: assembly hardware included

FAQs

Is the suction cup covered by the lifetime warranty?

No. RAM treats the rubber in suction cups as a general wear item, so it isn't covered by the lifetime warranty.
